Huepar P02CG Laser Level
Huepar P02CG Laser Level
Huepar P02CG Laser Level
Tax included, shipping calculated at checkout.
Select Option
Add Top Accessories
Huepar LR8RG - Laser Detector/Line Laser Receiver
Huepar TPD14 - 143CM/4.69Ft Tripod Adjustable
Huepar LP36 - 3.7m Lasers Level Adapter Tripod
Expand Extended Warranty?
Out of stock
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with Hermes/Royal Mail
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.

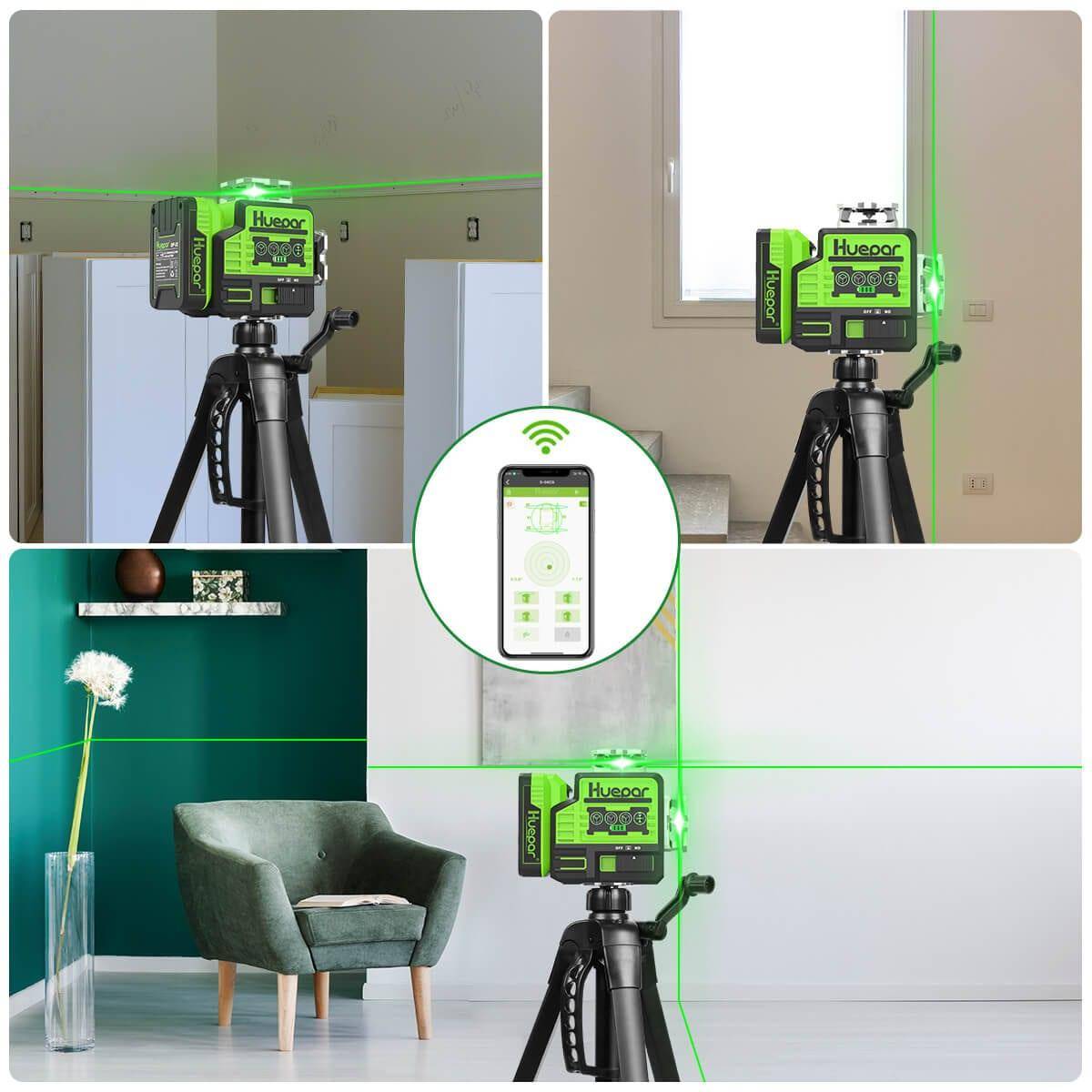

- BLUETOOTH TECH & HIGH VISIBILITY: Bluetooth connectivity enables to control ON/OFF the pulse mode and select the laser planes with Huepar App or remote control. This self-leveling laser level adopted the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. The green beam is twice bright as the red laser with a working range up to 130 feet of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode helps extend the laser range up to 200ft .

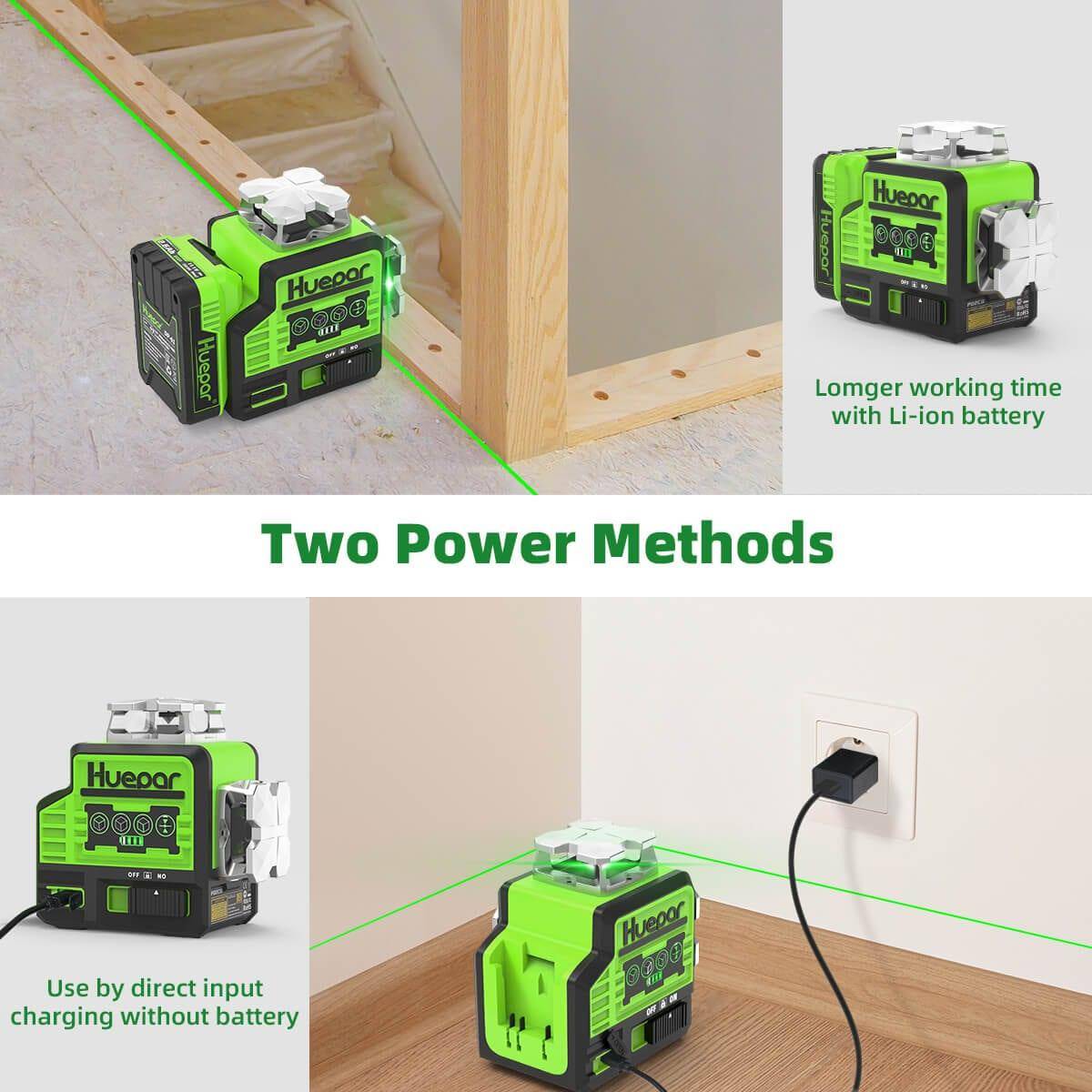

- LARGE CAPACITY LI-ION BATTERY&TYPE-C PORT: Huepar P02CG Laser Level adopted 10.8V / 2600mAh Li-ion battery and provides 10 hours running time.The Li-ion Battery can be charged separately and can be quickly released and installed for rasy use. The four power indicator on the machine allow users to know the charging status. The Li-ion battery pack With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.
- 2x360° FULL LAYOUT LASER TOOL: Huepar Laser Level have one horizontal 360° plane, one vertical 360° planes, which can cover the floor, walls and ceiling all around the room. Each button on this laser level corresponds to a single laser line, you can easily choose to turn on/off any laser line.Unlock the pendulum, the laser level will self-level within 4°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

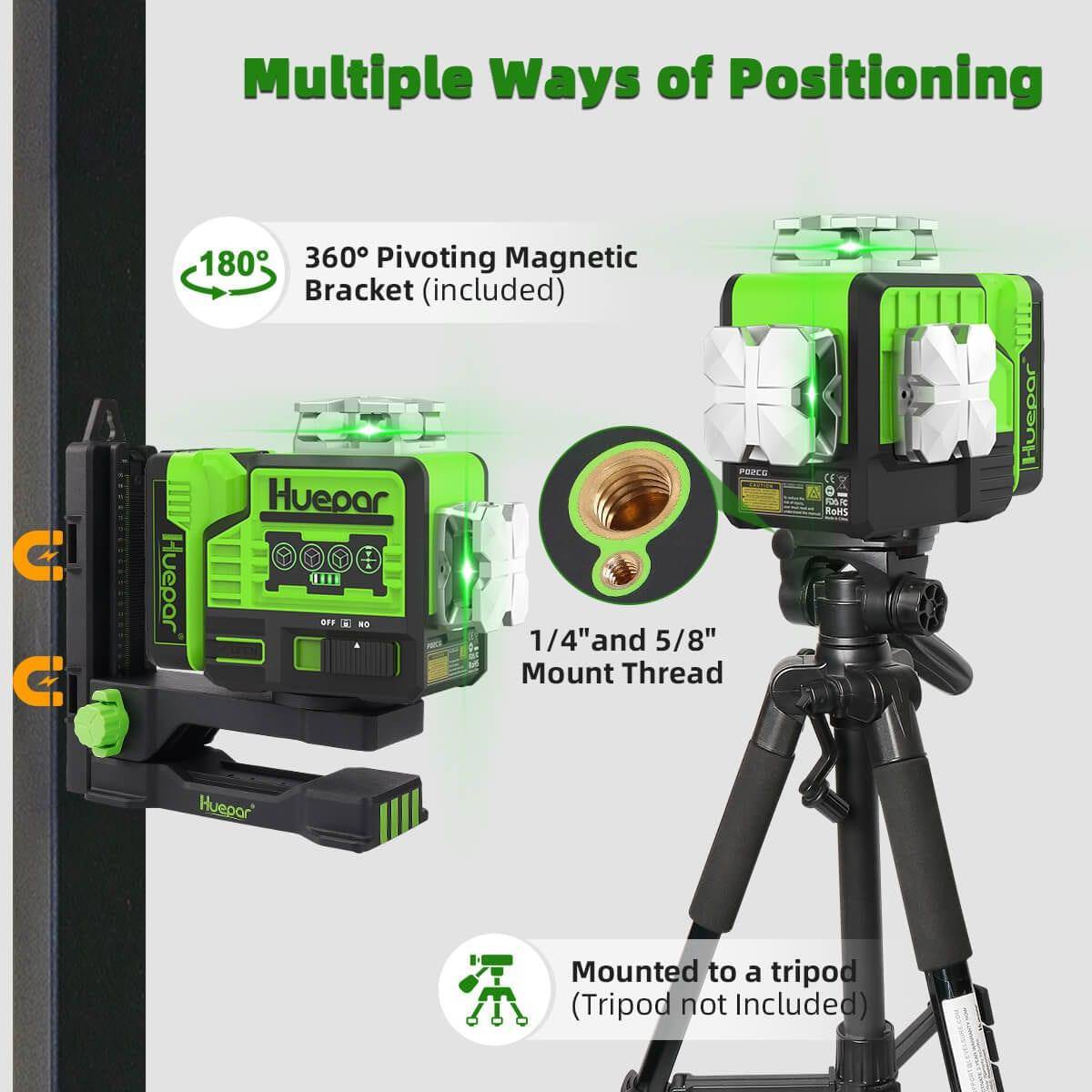

- MAGNETIC BRACKET&MOUNTING THREADS: This green line laser offers 1/4"-20 and 5/8"-11 mounting threads for being fixed on tripod or magnetic bracket. The strong magnetic bracket allows for quick positioning to metal surfaces helping hang the laser level for wall applications and can be rotated to the required angle. The magnetic base also has 1/4"-20 & 5/8"-11 mounting threads to suit for different tripod threads. Metal laser window design withstands tough worksite conditions.
- WATERPROOF & WARRANTY: IP54 waterproof design protects the unit from water splashes, dust and construction debris. The kit has a carry bag for much more convenience to carry and store the laser tool. We provide a 24-Month after-sale service, lifetime technical support. Pleasecontact us freely if you have any concerns.You will get: 1x Laser level, 1x Li-ion battery,1x Magnetic bracket,1xPortable Bag,1x Laser Target Plate,1x Charger
Huepar P02CG 12 Lines Green Laser Level Specifications:
- Laser Class:Class 2 (IEC/EN60825-1/2014), <1mW power output
- Laser Wavelength:505-520nm
- Horizontal/Vertical Accuracy:±1/9 inch at 33Ft.
- Leveling/Compensation Range:±4°
- Working Distance (Line) 130Ft (100 LUX), 200Ft.
- with Huepar Receiver LR-5RG/LR-6RG
- Operating Time:With Li-ion Battery: 10 hours with all laser beams on
- Power Source :10.8V / 2600mAh Li-ion battery
- Package:Carrying Bag

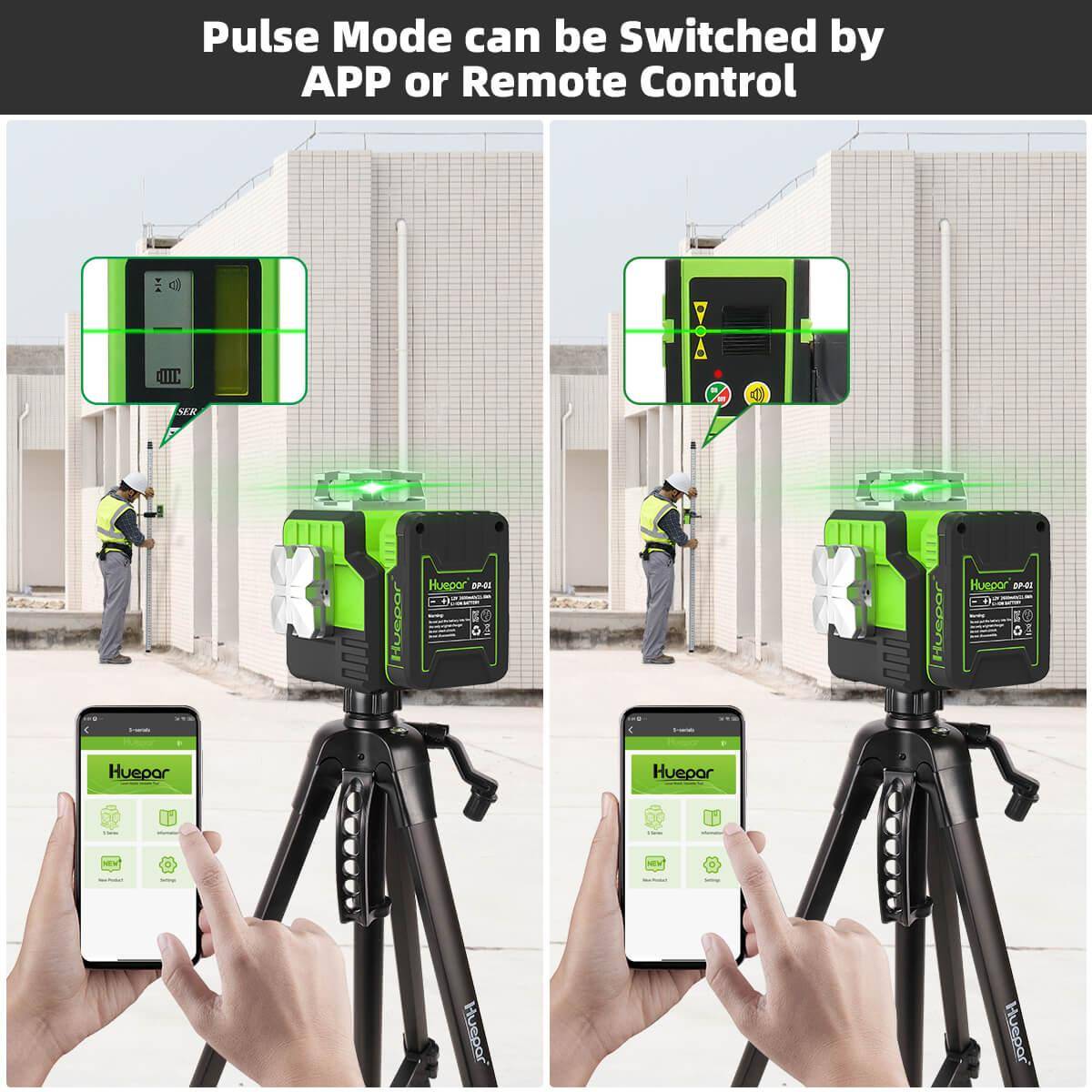

The App&remote control can switch ON/OFF the pulse mode, select the laser planes

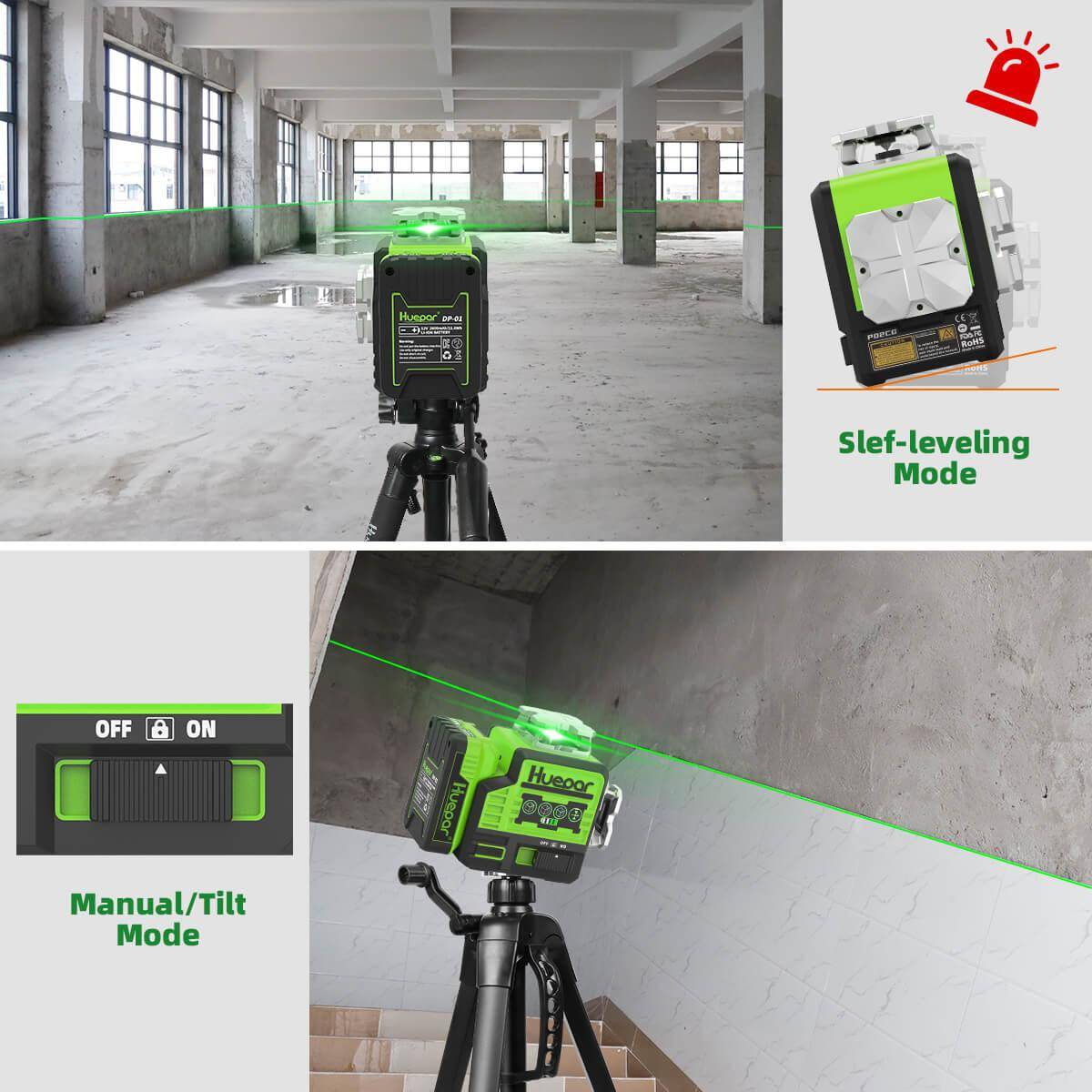

Self-leveling mode:
When the pendulum slides to the“ ON” position, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum is in the middle position, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.The locked icon will be displayed on Huepar APP to remind user it is in manual mode now.
Pulse Mode
After power ON, short press pulse mode button to switch ON/OFF the pulse mode.
Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
Note: Keep the pulse mode on when using with a receiver.
Wide Application & Easy to Install
1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.

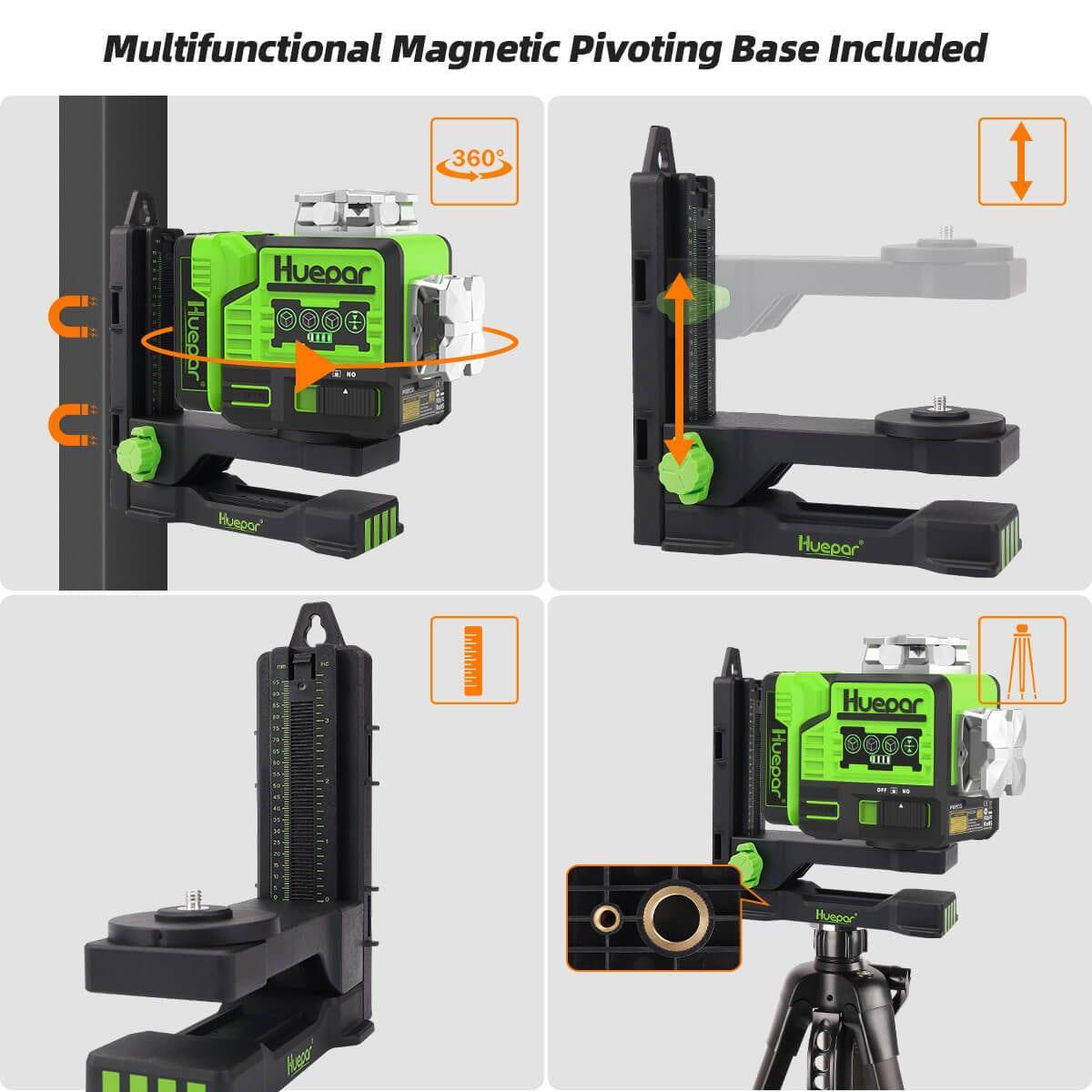

360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole and the laser line can be projected at any position or angle, which is very convenient for your work.
Large capacity Li-ion battery
10.8V / 2600mAh Li-ion battery and provides 10 hours of running time.
The Li-ion battery pack can be quick to release and install and is very easy to use. The Li-ion Battery can be charged separately and the four power indicators on the battery allow users to know the charging status.
Metal laser window
Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver.
The kit comes with a carry bag bringing much more convenience to carry and store the laser tool.
Package Contents:
1 x Huepar P02CG Cross Line Laser Level
1 x Rechargeable Li-ion Battery
1 x Power Adapter
1 x Type-C cord
1 x Magnetic Bracket
1 x Laser Target Plate
1 x Carrying cloth bag
1 x User Manual
Find your perfect laser level
 Huepar P02CG Laser Level£129.99 |  Huepar 902CG Laser Level£89.99 |  Huepar B02CG Laser Level£96.99 | |
|---|---|---|---|
| Product Info | |||
Product SKU |
P02CG
|
902CG
|
B02CG
|
Product type |
2D Laser Levels
|
2D Laser Levels
|
2D Laser Levels
|
| Featured | |||
Number of Lines |
|
|
|
Laser Lines |
|
|
|
Laser Beam Supplier |
|
|
|
Laser Beam Color |
|
|
|
Laser Wavelength |
|
|
|
Line Accuracy |
|
|
|
Leveling / Compensation Range |
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
Bluetooth Connectivity |
|
|
|
Remote Control |
|
|
|
Dot Accuracy |
|
|
|
Line Switching |
|
|
|
Pulse Laser Receiver Mode |
|
|
|
Working Range (60-100 LUX) |
|
|
|
Working Range with Detector |
|
|
|
AA Battery |
|
|
|
Li-ion Battery |
|
|
|
Working Time (Hours) |
|
|
|
Charging Time (Hours) |
|
|
|
Mount Size |
|
|
|
Durable Design |
|
|
|
Hard Carry Case |
|
|
|
Endorsed By
All buttons are tested to ensure proper functionality.
The switch is tested repeatedly to ensure that the machine works stably.
Make sure the charging interface is working properly and not loose.
Laser tube aging test to ensure no brightness attenuation.
Waterproof and dustproof, ensuring normal use in dusty environments.
Simulate natural drops while maintaining accuracy.
Simulate complex transportation environments to ensure unchanged accuracy.
Make sure the device can work normally between -10℃ ~ 50℃
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
