Huepar 903DG Laser Level
Huepar 903DG Laser Level
Huepar 903DG Laser Level
Tax included, shipping calculated at checkout.
✅ Huepar Holiday Savings
Select Option
Add Top Accessories
Huepar LR8RG - Laser Detector/Line Laser Receiver
Huepar TPD14 - 143CM/4.69Ft Tripod Adjustable
Huepar LP36 - 3.7m Lasers Level Adapter Tripod
Expand Extended Warranty?
Low stock: 7 left
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with Hermes/Royal Mail
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.

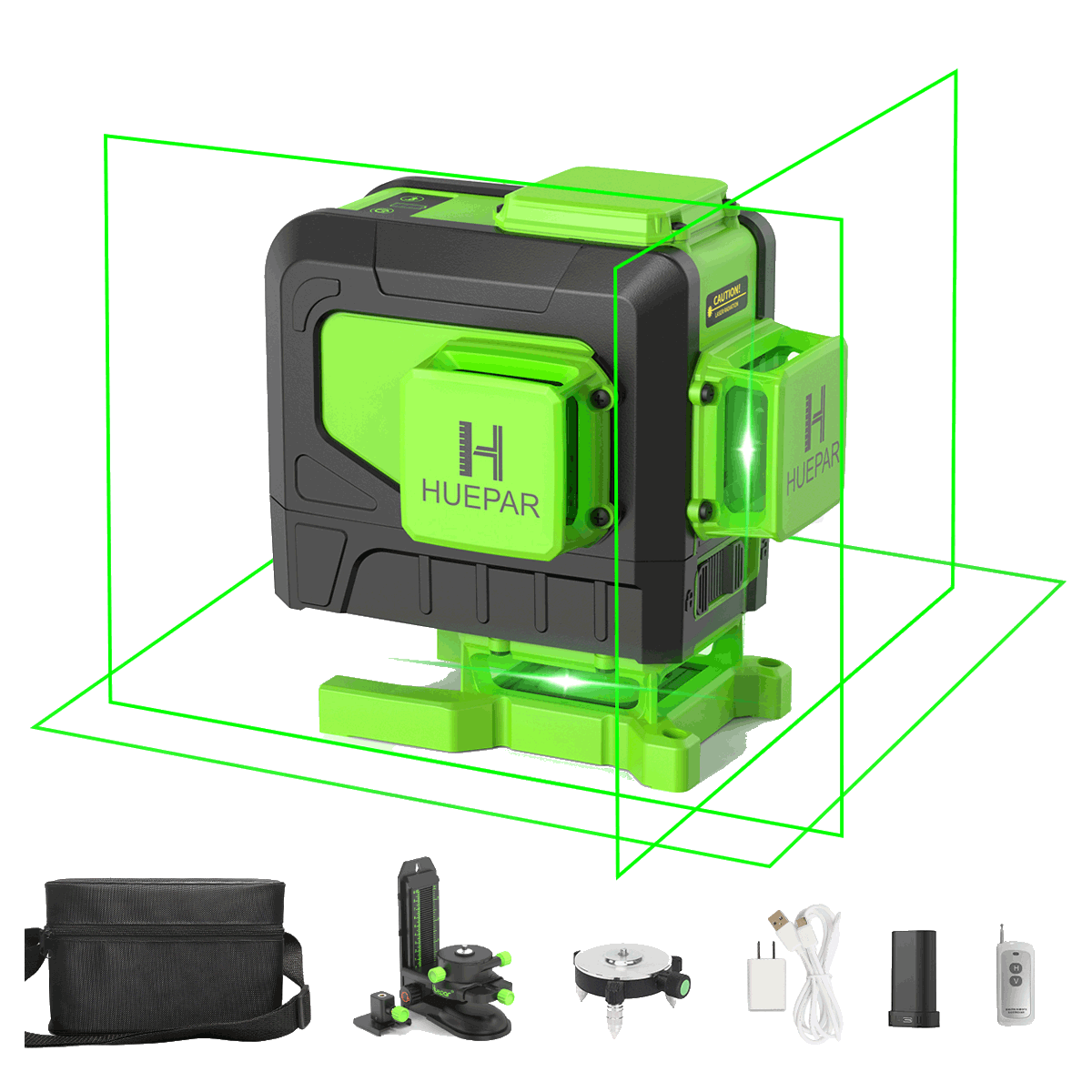

Huepar 903DG 12 Lines 3D Green Laser Level Specifications:
- ● Laser Beam: Green Beam

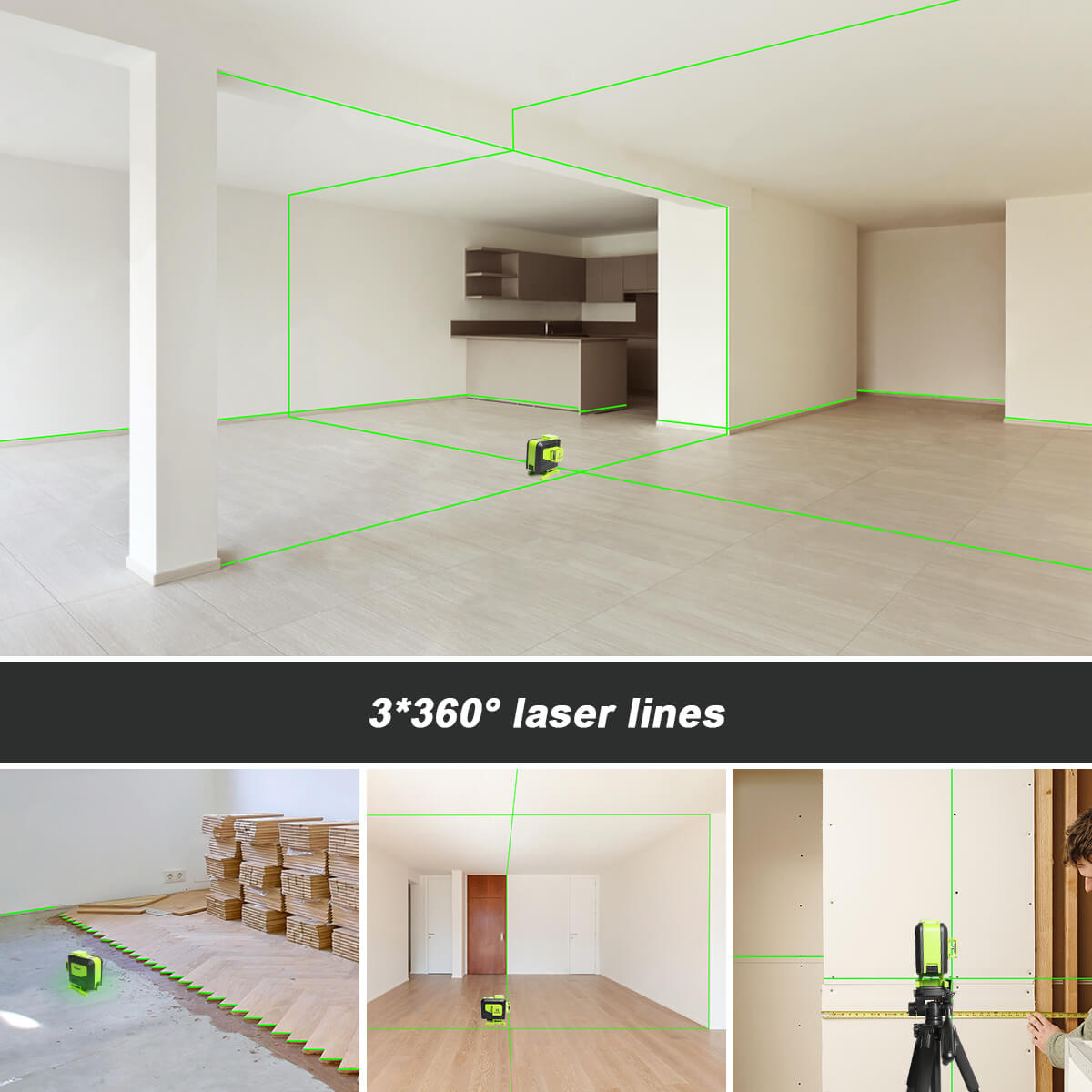

- ● Projection: 12 Green Laser Lines
- ● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
- ● Laser Wavelength: Osram 520nm
- ● Horizontal / Vertical Accuracy: ±3mm/10m;±1/9 In. at 33 Ft.
- ● Leveling / Compensation Range: 4°±1°
- ● Leveling Time: ≤3s
- ● Working Distance: 40m, ≥50m with detector 132 Ft, ≥165 Ft with detector
- ● Operating Time & Power Source: 6-8 hours with built-in Li-ion battery 3.7V / 5200mAh
- ● Mount Size: 1/4"-20
- ● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
- ● Operating Temperature: Between -10℃ and +50℃
- ● Storage temperature: Between -20℃ and +70℃

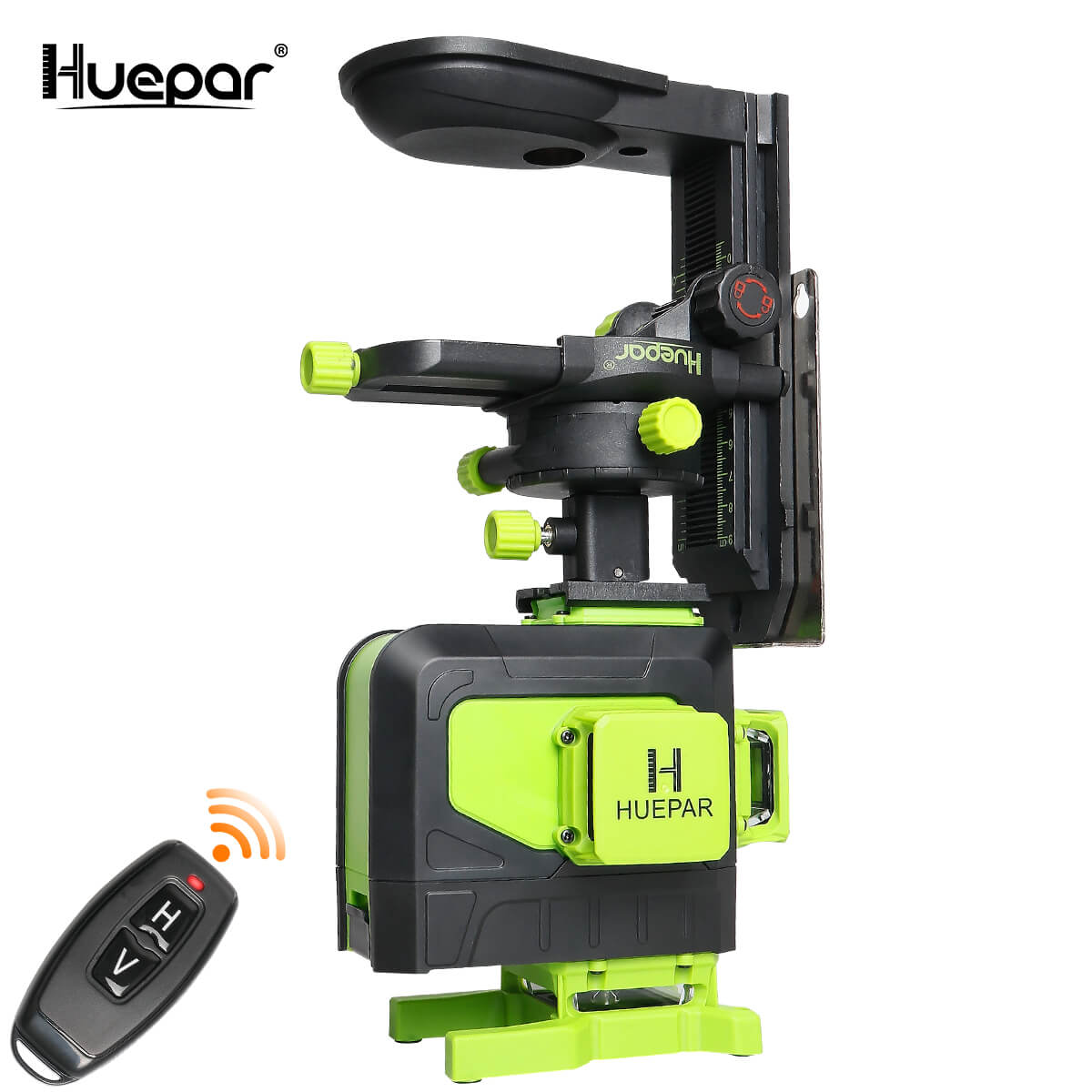

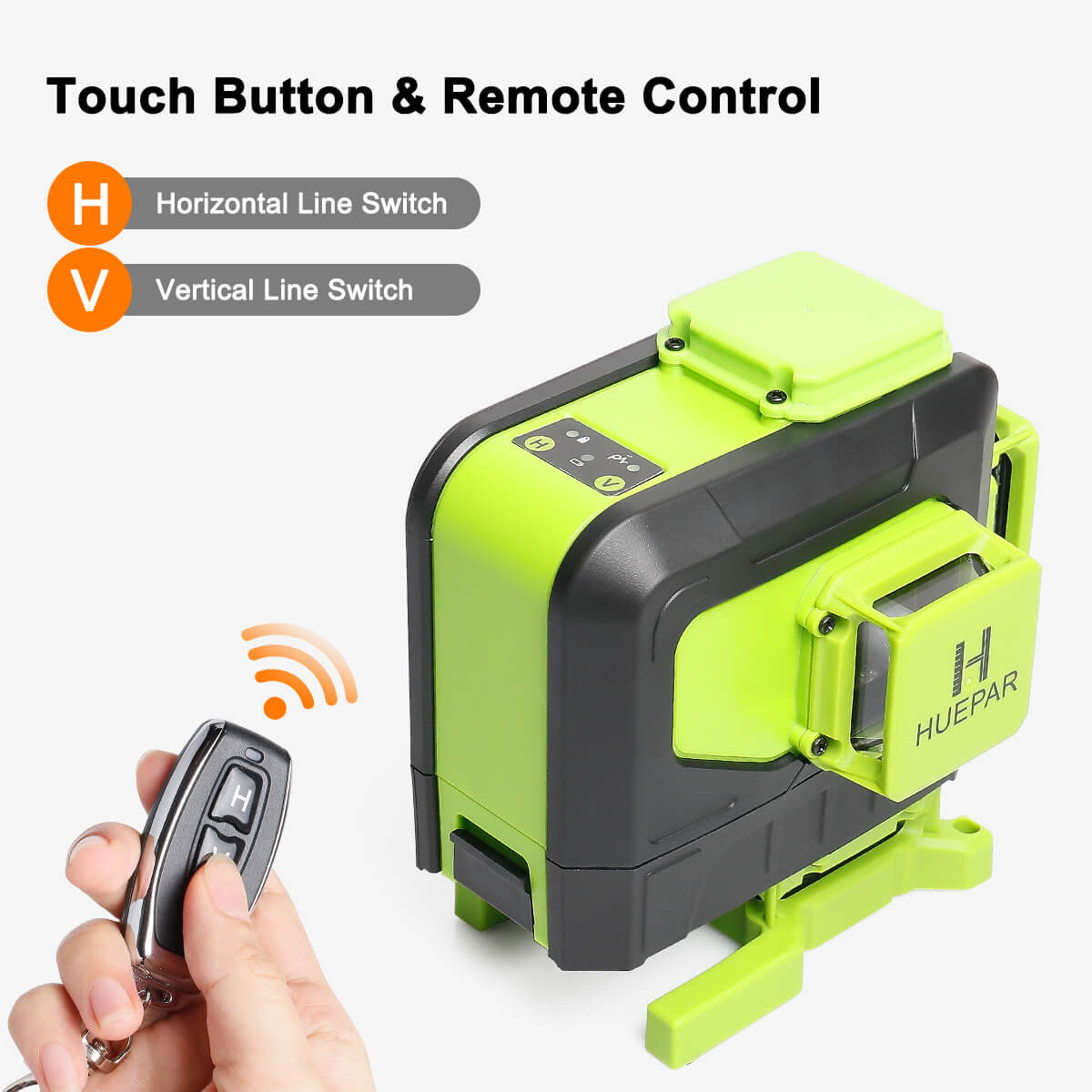

With Remote control

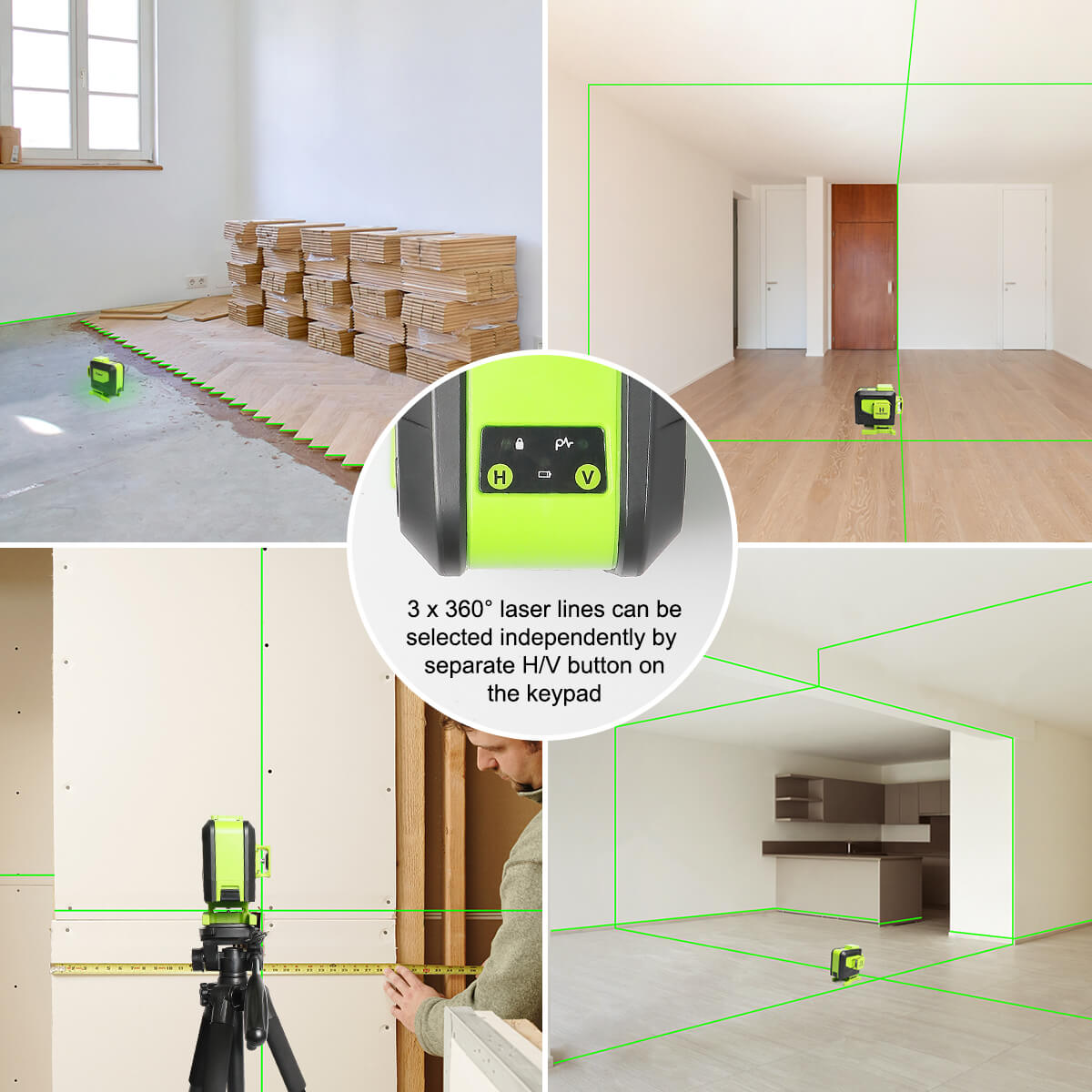

The remote control enables to select three 360° laser lines individually at a distance up to 33Ft.
The laser line(s) of ground laser level can be temporarily turned OFF by the remote control when you need to leave for a while.
Self-leveling mode:
Once the pendulum unlocked, self-leveling mode is enabled.The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
Pulse Mode
Turn ON pulse mode: After power on & switch the pendulum to unlocked position, short press the V button to turn on the pulse mode. The indicator will light up in blue.

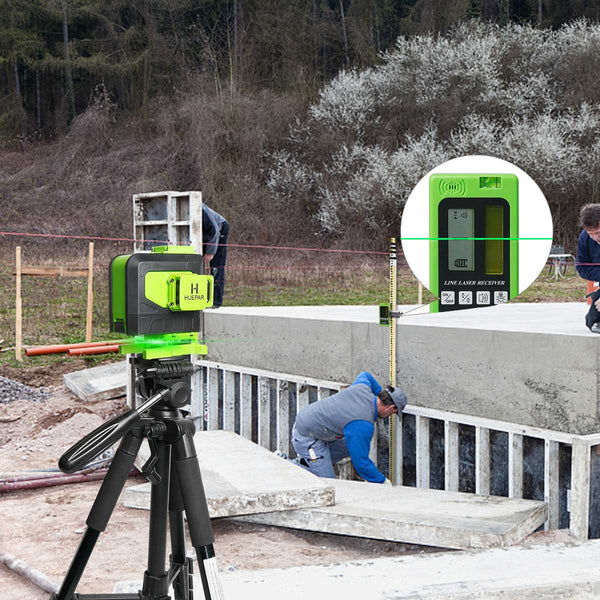

Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
Keep the pulse mode on when using with a receiver.
It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

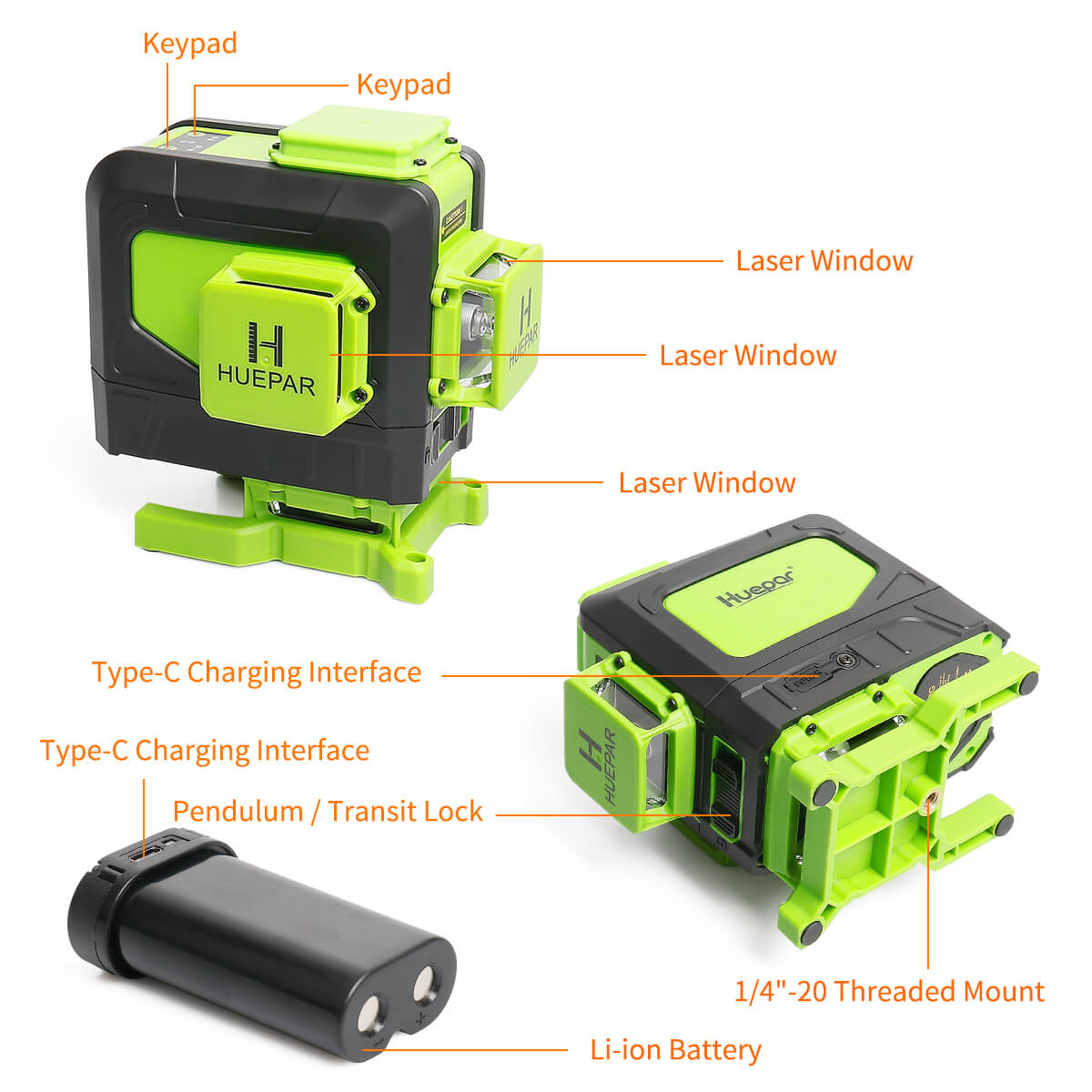

Diverse Power Supply
Large-capacity li-ion battery: 6-8 hours of extra-long working & Can be charged with type-c port.
Bare battery charging: with type-c port.
Direct input charging: This floor laser level can be used at job site with direct input charging even if take out the battery.
Charging protection help prevent the tool from overcharge.

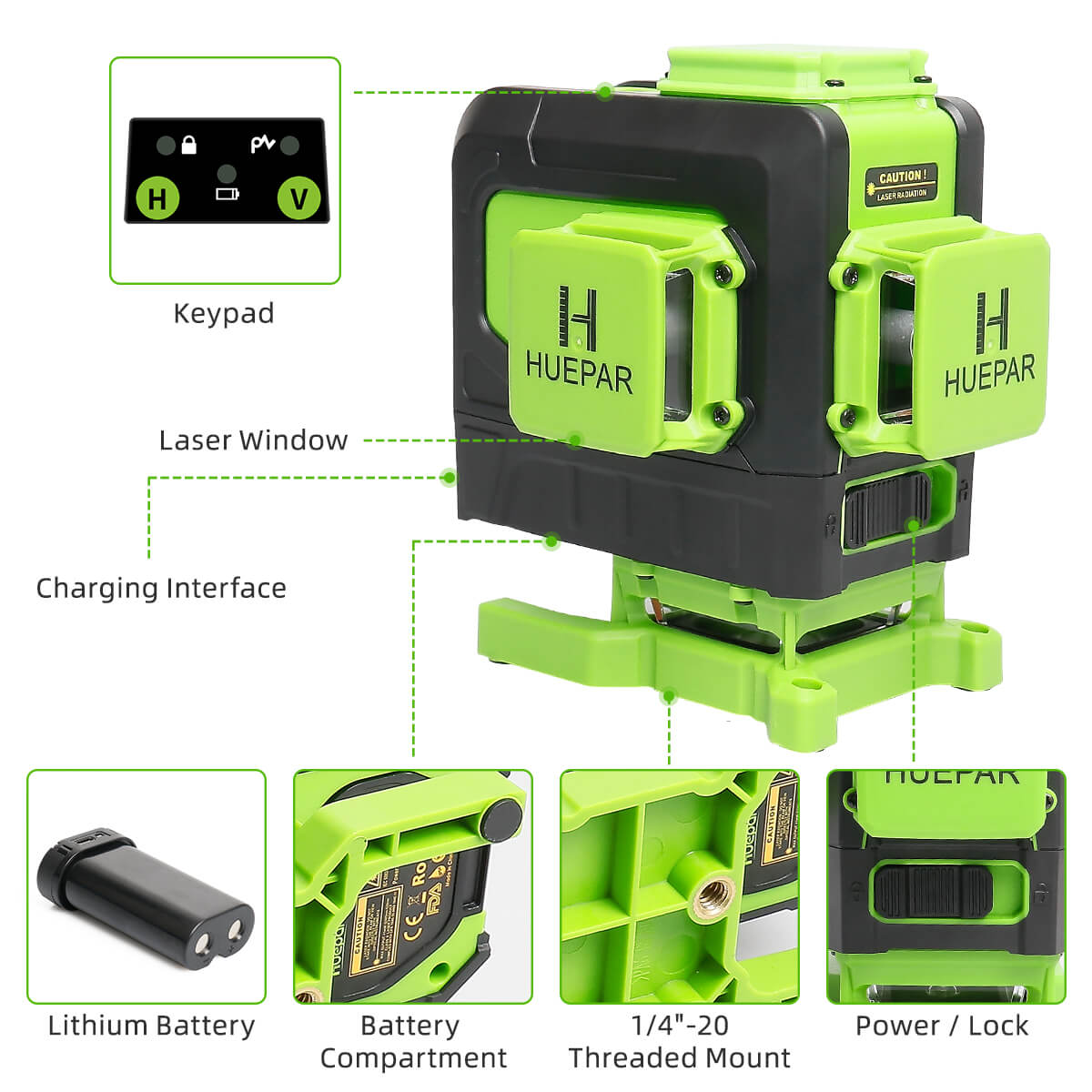

Easy to Use

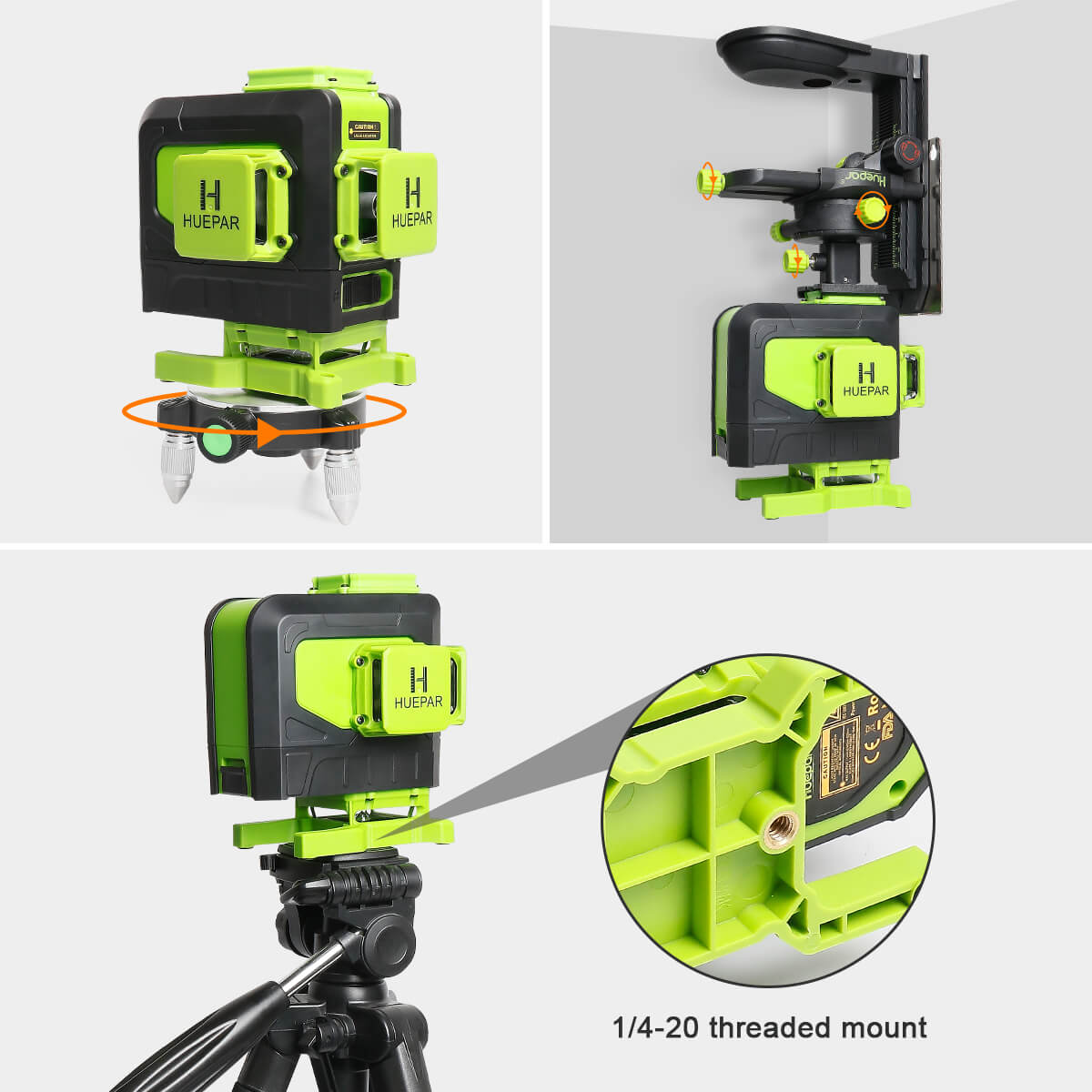

1. 360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree, projecting lines at any angle.
2. Mount Size: 1/4"-20 mounting threads for temporarily fastening in place or being fixed on tripod.

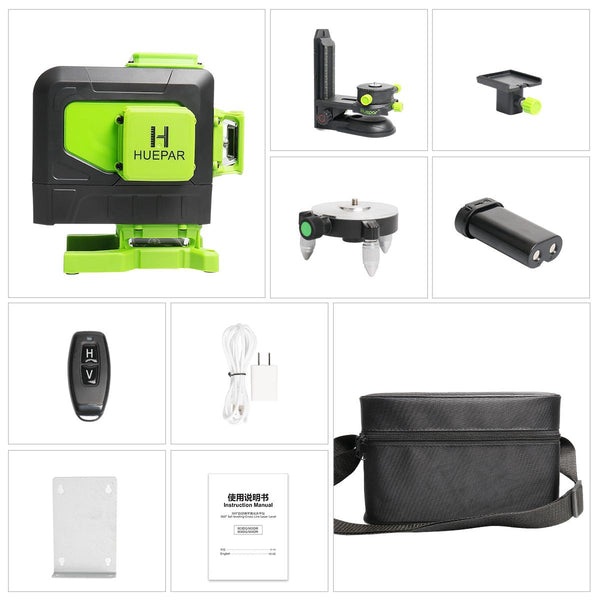

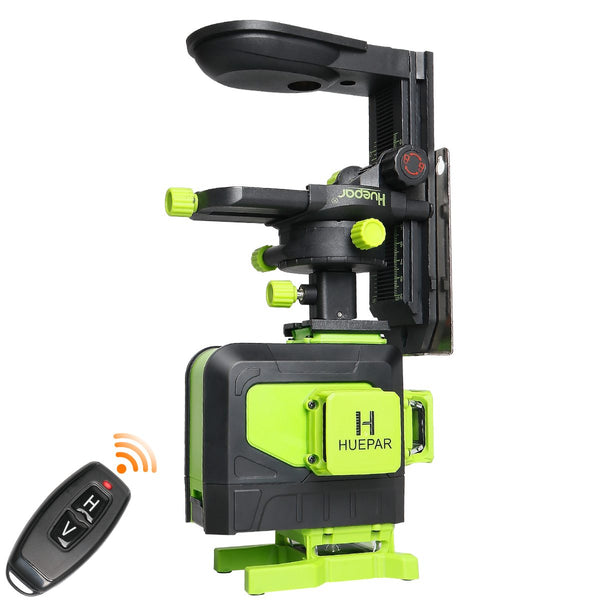

Ground Laser Level Package Contents:
- 1 x Green Floor Laser Level 903DG
- 1 x Wall Hanging Plate
- 1 x Magnetic Pivoting Base
- 1 x Remote Control
- 1 x Power Adapter
- 1 x Li-ion Battery
- 1x Rotating base
- 1x User Manual
- 1x Soft Bag
Find your perfect laser level
 Huepar 903DG Laser Level£139.99 |  Huepar 904DG Laser Level£199.99 |  Huepar 503DG Laser Level£149.99 |  Huepar S03CG Laser Level£189.99 | |
|---|---|---|---|---|
| Product Info | ||||
Product SKU |
903DG
|
904DG
|
503DG
|
S03CG
|
Product type |
3D Laser Levels
|
4D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
| Featured | ||||
Number of Lines |
|
|
|
|
Laser Lines |
|
|
|
|
Laser Beam Supplier |
|
|
|
|
Laser Beam Color |
|
|
|
|
Laser Wavelength |
|
|
|
|
Line Accuracy |
|
|
|
|
Leveling / Compensation Range |
|
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
|
Extra features |
—
|
—
|
—
|
|
Bluetooth Connectivity |
|
|
|
|
Remote Control |
|
|
|
|
Dot Accuracy |
|
|
|
|
Line Switching |
|
|
|
|
Pulse Laser Receiver Mode |
|
|
|
|
Working Range (60-100 LUX) |
|
|
|
|
Working Range with Detector |
|
|
|
|
AA Battery |
|
|
|
|
Li-ion Battery |
|
|
|
|
Working Time (Hours) |
|
|
|
|
Charging Time (Hours) |
|
|
|
|
Mount Size |
|
|
|
|
Durable Design |
|
|
|
|
Hard Carry Case |
|
|
|
|
Endorsed By
All buttons are tested to ensure proper functionality.
The switch is tested repeatedly to ensure that the machine works stably.
Make sure the charging interface is working properly and not loose.
Laser tube aging test to ensure no brightness attenuation.
Waterproof and dustproof, ensuring normal use in dusty environments.
Simulate natural drops while maintaining accuracy.
Simulate complex transportation environments to ensure unchanged accuracy.
Make sure the device can work normally between -10℃ ~ 50℃
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
