Huepar LR8RG - Laser Detector/Line Laser Receiver

• UEPAR DEDICATED RECEIVER- Huepar upgraded version LR-8RG receiver can ONLY be used with Huepar Line Laser Levels that feature Pulse Mode Function. Please pay attention to that this receiver can NOT be used with Rotary Laser Level. And the receiver can NOT be used with Huepr 9011G&9211G laser level. It is recommended to use in accompany with Huepar 902CG/901CG/8211G/BOX-1G/R/GF360G/R/HM03CG/S03CG/S04CG/S03DG/LS04CG/LS03CG/LS41G/621C/R/603CG/R/ B series and P series Laser Level, etc.

• AVAILABLE FOR RED AND GREEN PULSE LASER- It is necessary to Turn ON the Pulse Mode of the laser level when using with Huepar LR-8RG laser receiver. This receiver allows the detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200ft (60m). Accuracy: high accuracy ±1.5mm, it easily directs the user to position the laser higher or lower on a grade rod. This ensures an accurate level of reading all the time.

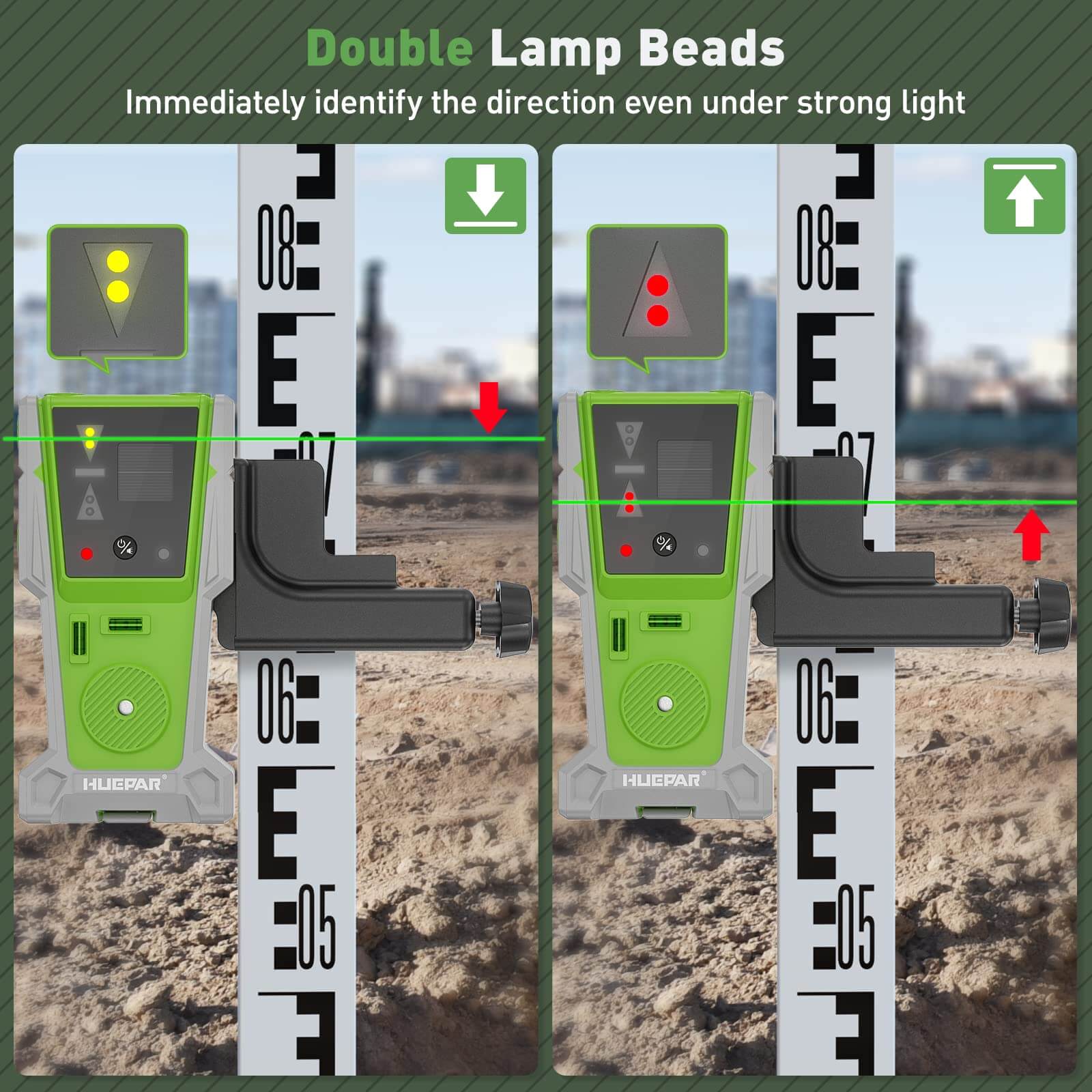

• 90dB SOUND & DOBLE VISUAL SIGNALS: Beep sounds will remind you when you find the target. Devices that are to be used indoors can reduce the sound level as it may get too loud and irritate those around you. As for open spaces, the device needs to be loud for people to hear it over a distance. As for visual signals, the LED indicators are strong enough to be visible in broad daylight. Most of the work that you do would be in the daytime, and the strong sunlight may often cause a problem.

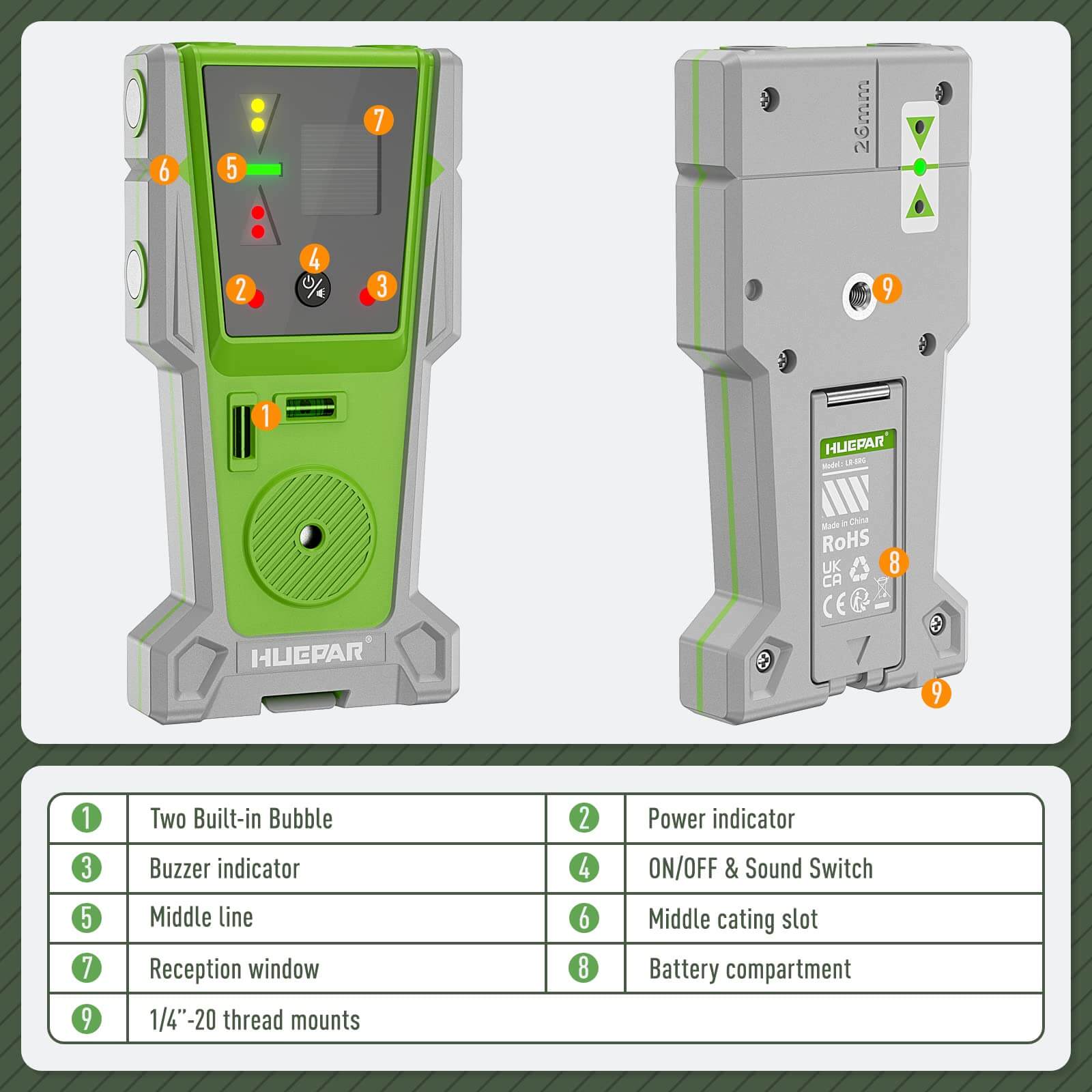

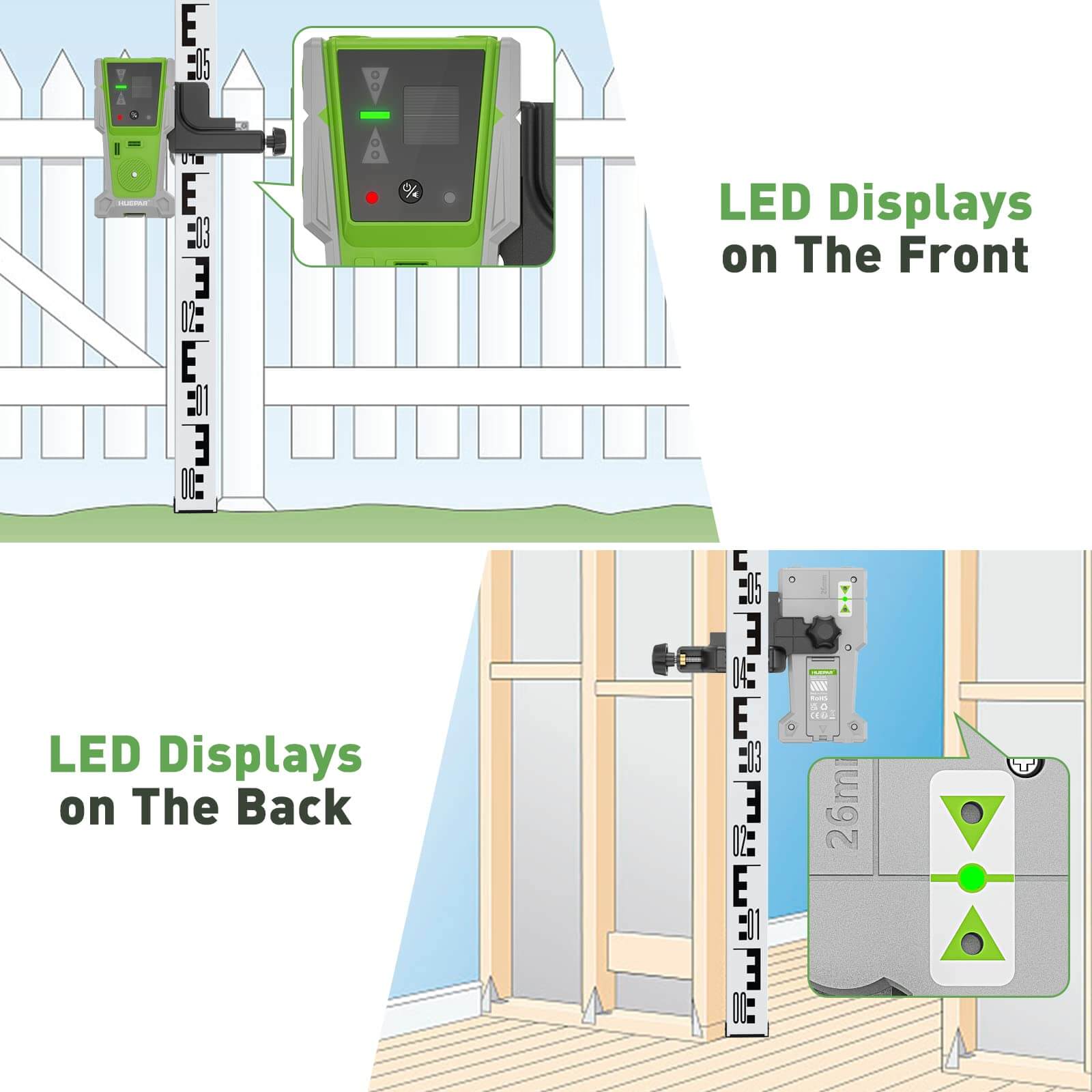

• CLEAR MULTI-SIDED READOUTS: With Two-SIDED display on the front and back of the receiver to offer easier visual readout.This will help you check the position easily. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to accurately determine the level. It comes with a double-sided magnet and ¼” threading .makes it easy to mount the detector to a rod or other target point. Also, they’re lightweight and will fit into your pocket.

• CLEAR MULTI-SIDED READOUTS: With Two-SIDED LED prompt on the front and back of the receiver to offer easier visual readout.This will help you check the position easily. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to accurately determine the level. It comes with a double-sided magnet and ¼” threading .makes it easy to mount the detector to a rod or other target point. Also, they’re lightweight and will fit into your pocket.

!Please note NOT compatible with Rotary Laser Level

!This detector is only compatible with Huepar Line Laser Levels that feature Pulse Mode Function

!If you are not sure whether it suits for your laser tool, please confirm with us before you place an order

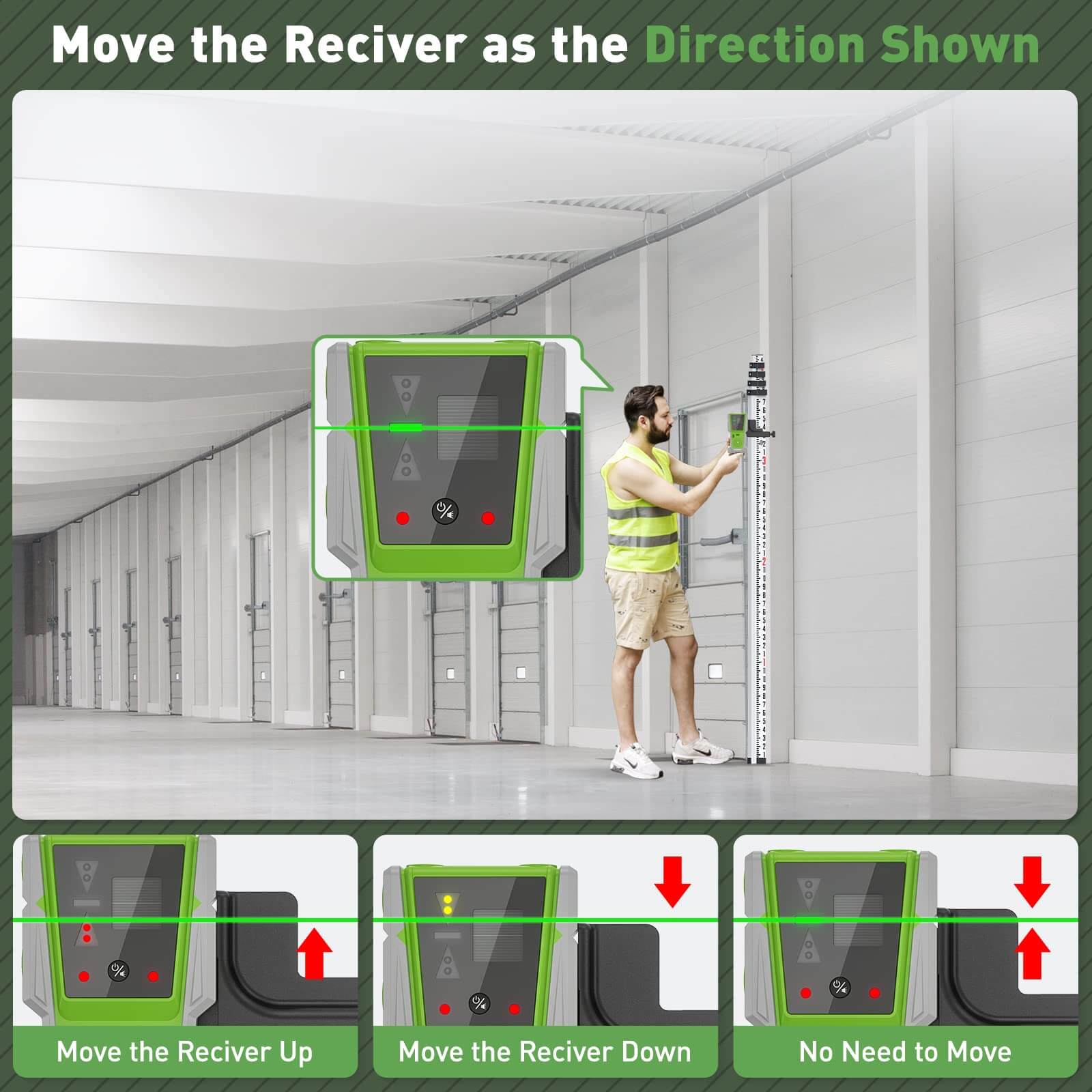

Move the Detector as the Direction Shown

Datum Lower than Laser Beam – Move Up

Datum Higher than Laser Beam – Move Down

When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

Buzzer Remind

 You could reduce the sound level when you use indoors as it may get too loud and irritate those around you. As for open spaces, the device needs to be loud for people to hear it over a distance.

A slower beeping tone signals – Move Up

A fast beeping tone signals – Move Down

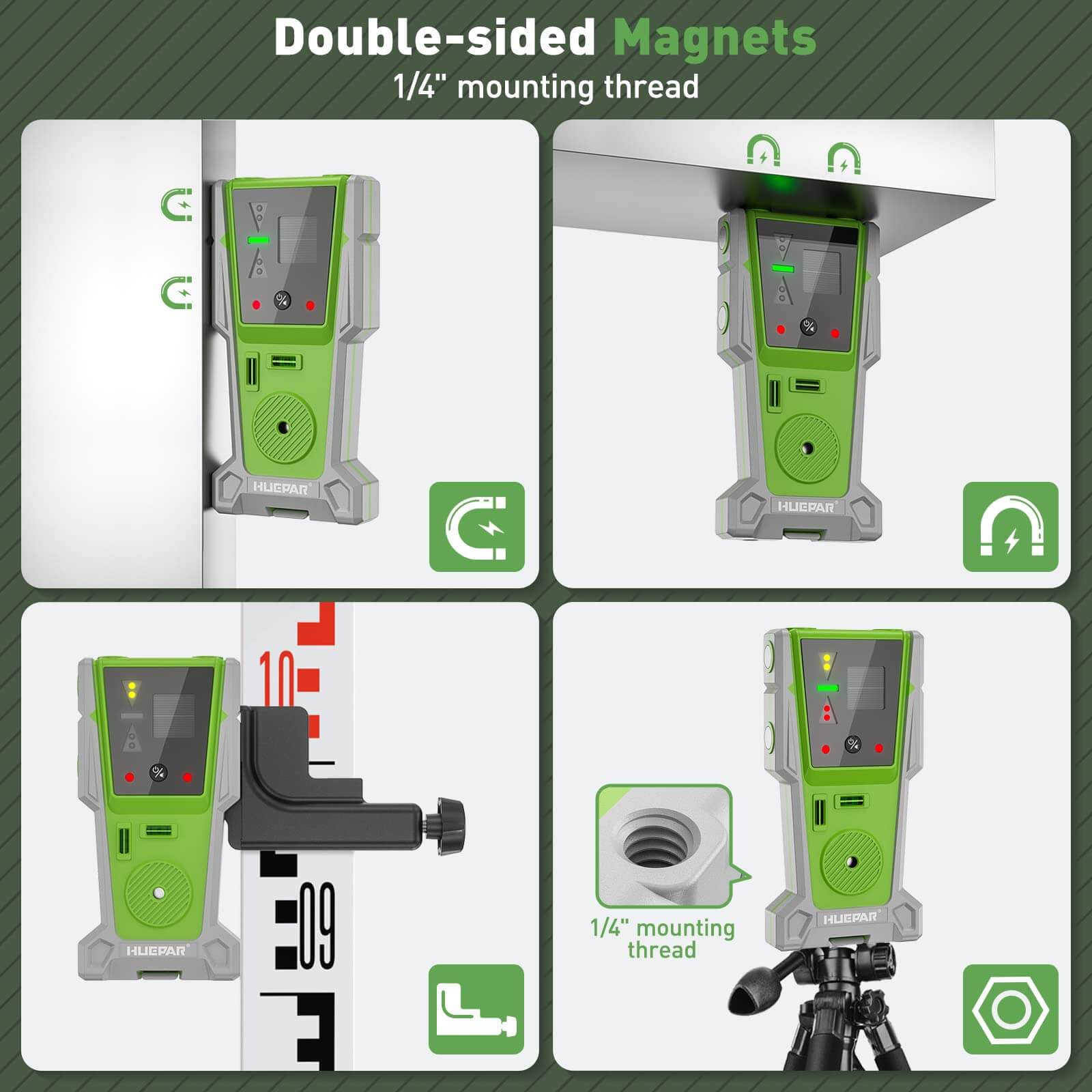

Heavy-duty Clamp & Double-Sided Magnet

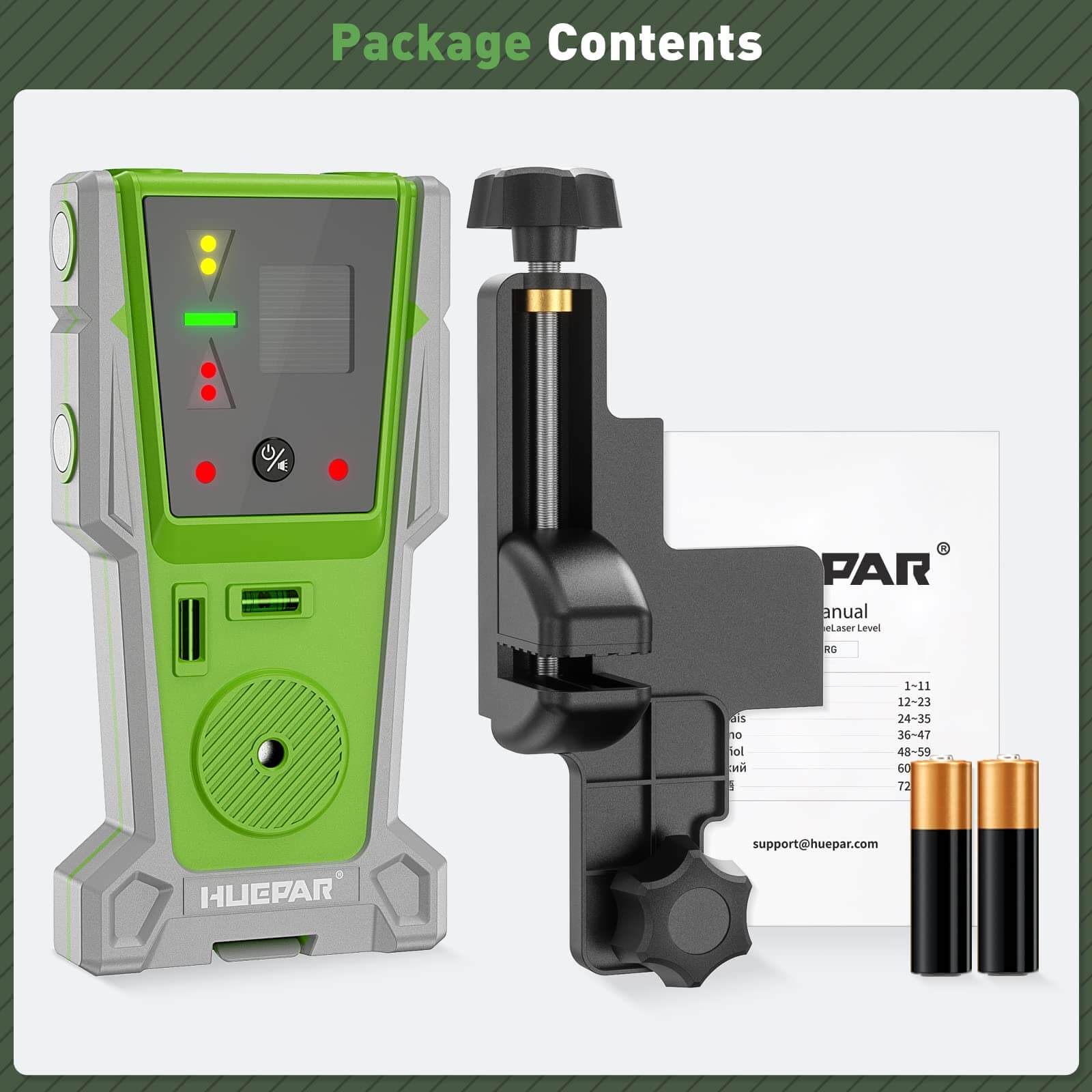

The Laser Detector comes complete with two AA batteries (for more than 12 working hours of continuous use), as well as a compatible rod mounting bracket. Secure the receiver to the clamp using the ¼-inch thread mounting nut and then clamp the receiver to a grade rod or wooden pole.
