Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
![](http://uk.huepar.com/cdn/shop/files/HueparRL300HVG-DE-2.jpg?v=1721876571&width=1500)

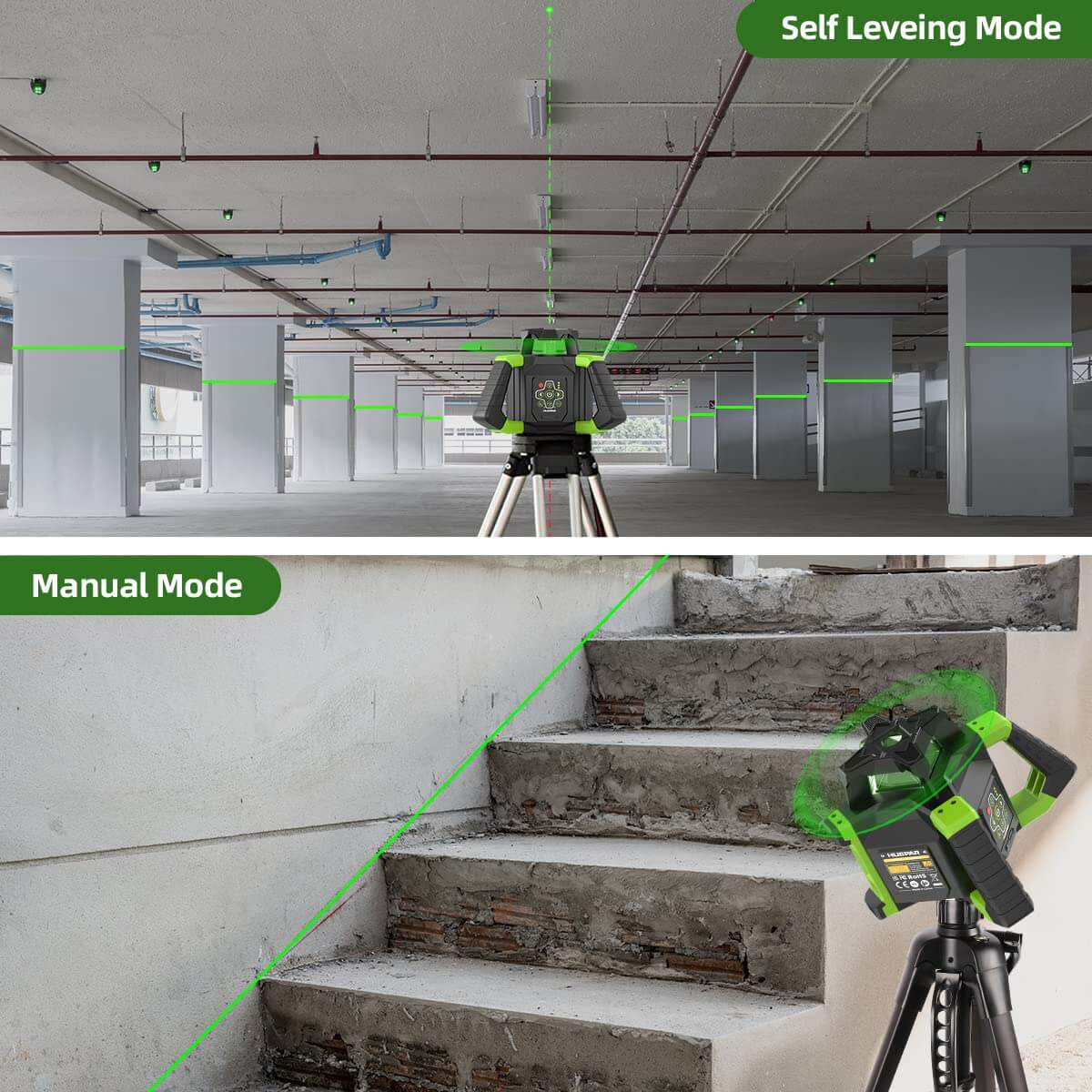

SELF-LEVELING RANGE ±5°
Self-leveling & Manual Mode
Self-leveling mode:
- After powering on, the self-leveling mode will be activated.
- The laser module will rotate at the speed of 600 rp.m by default.
- The indicator and beam(s) will blink together if the instrument is placed improperly, or the slope of the instrument exceeds the range (±5°). Please adjust the position or angle of the instrument.
- When using the self-leveling mode, please place this instrument on a level surface.
Manual mode:
- Press the Manual Mode Button, you can place the laser tool at various angles to project non-level straight laser lines.
- Enter the manual mode, and choose whatever you want with our rotary laser.
![](http://uk.huepar.com/cdn/shop/files/HueparRL300HVG-DE-8.jpg?v=1721876266&width=1500)

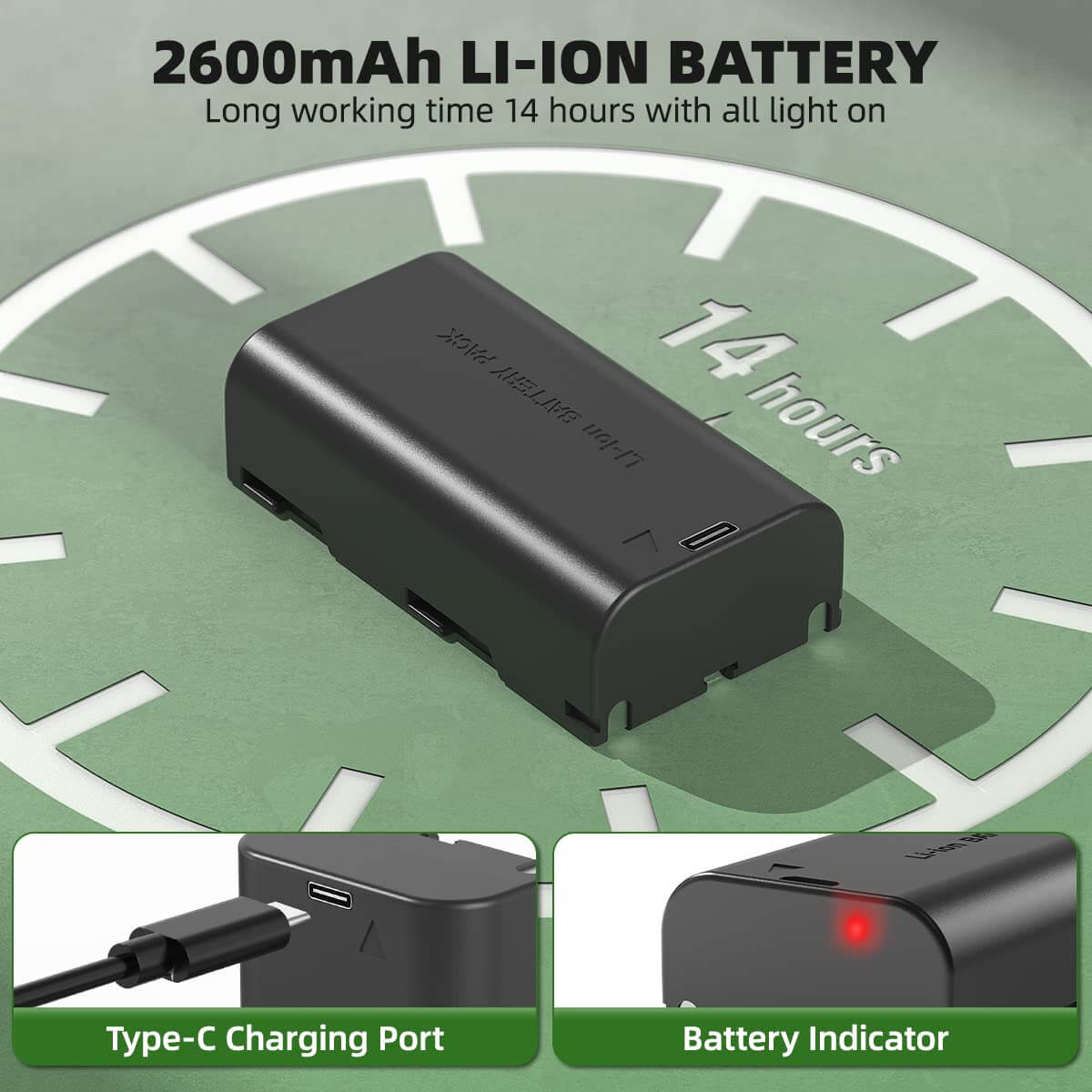

14 hours of working time
Rechargeable Li-ion Battery
- Equipped with a 7.4V/2.6mAh rechargeable lithium-ion battery with type-c charging port and come with a 5V2A adapter super fast charging plug to save you time.
- Providing up to 14 hours of working time, enjoys lower energy consumption and a longer battery lifespan.
![](http://uk.huepar.com/cdn/shop/files/HueparRL300HVG-DE-3.jpg?v=1721876266&width=1500)

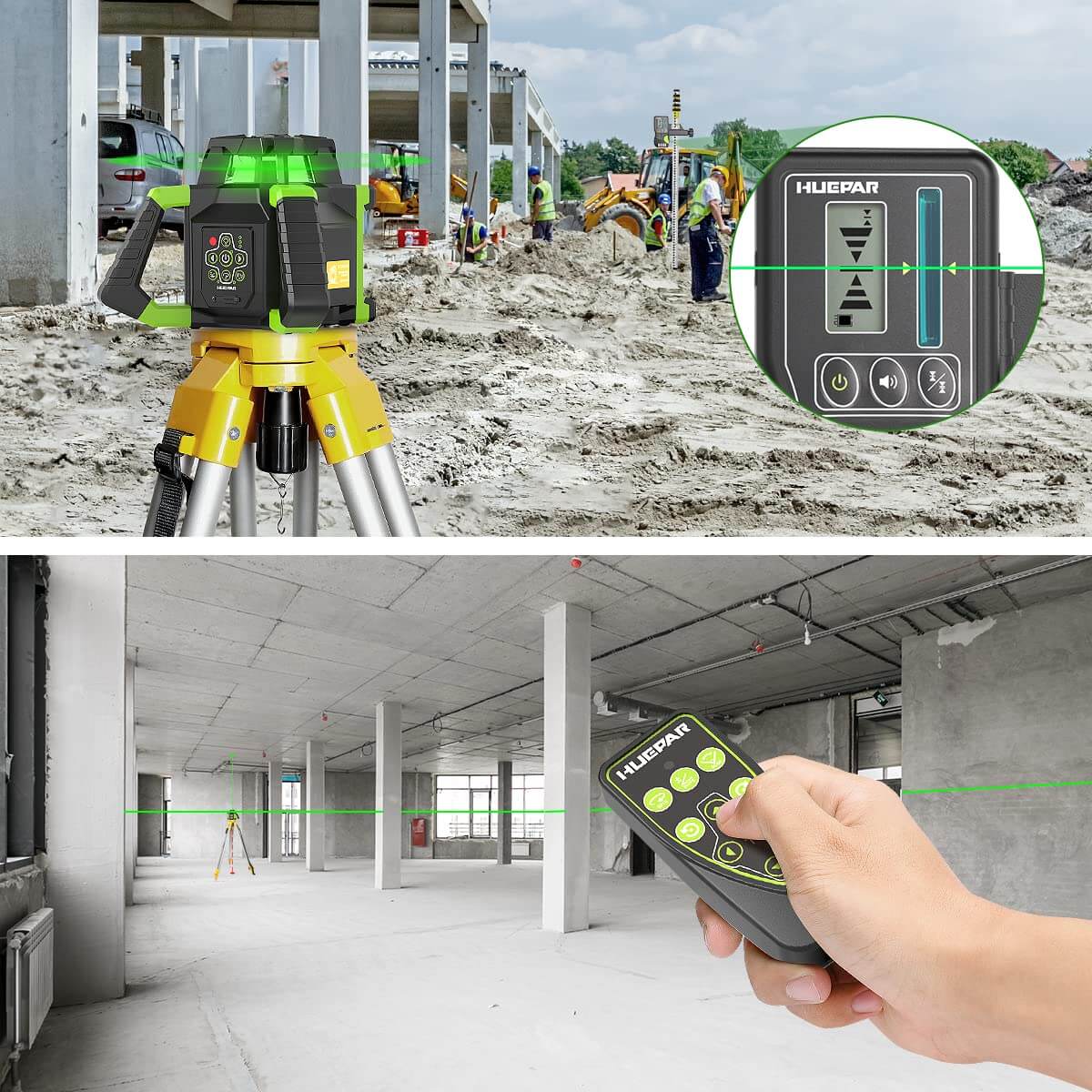

Operating Extended Range
- The exterior working range can be up to 800M/2624Ft in diameter with a detector, accuracy of +/- 1/8" at 100Ft. it is a great tool for large job sites. Green beam has strong stability, low power consumption, and high-cost performance.
- Equipped with a remote controller for one-person operation, can be controlled within 30m indoors or outdoors.
![](http://uk.huepar.com/cdn/shop/files/HueparRL300HVG-DE-6.jpg?v=1721876266&width=1500)

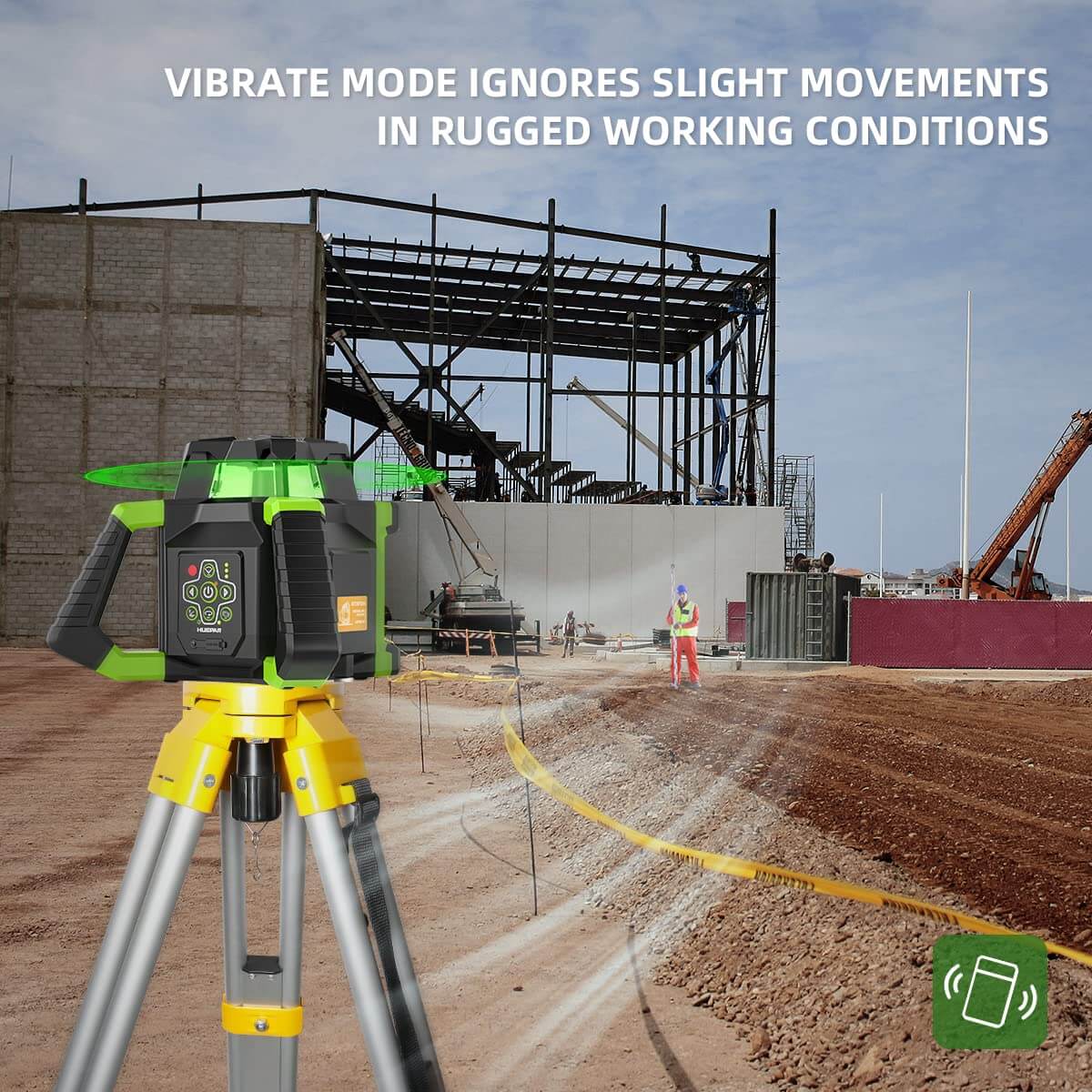

Vibrate Mode
- Huepar green beam rotary laser with vibrate mode, it can keep the machine from being affected by slight vibration and continue to work normally.
- Vibrate mode ignores slight movements in rugged working conditions.
![](http://uk.huepar.com/cdn/shop/files/HueparRL300HVG-DE-4.jpg?v=1721876266&width=1500)

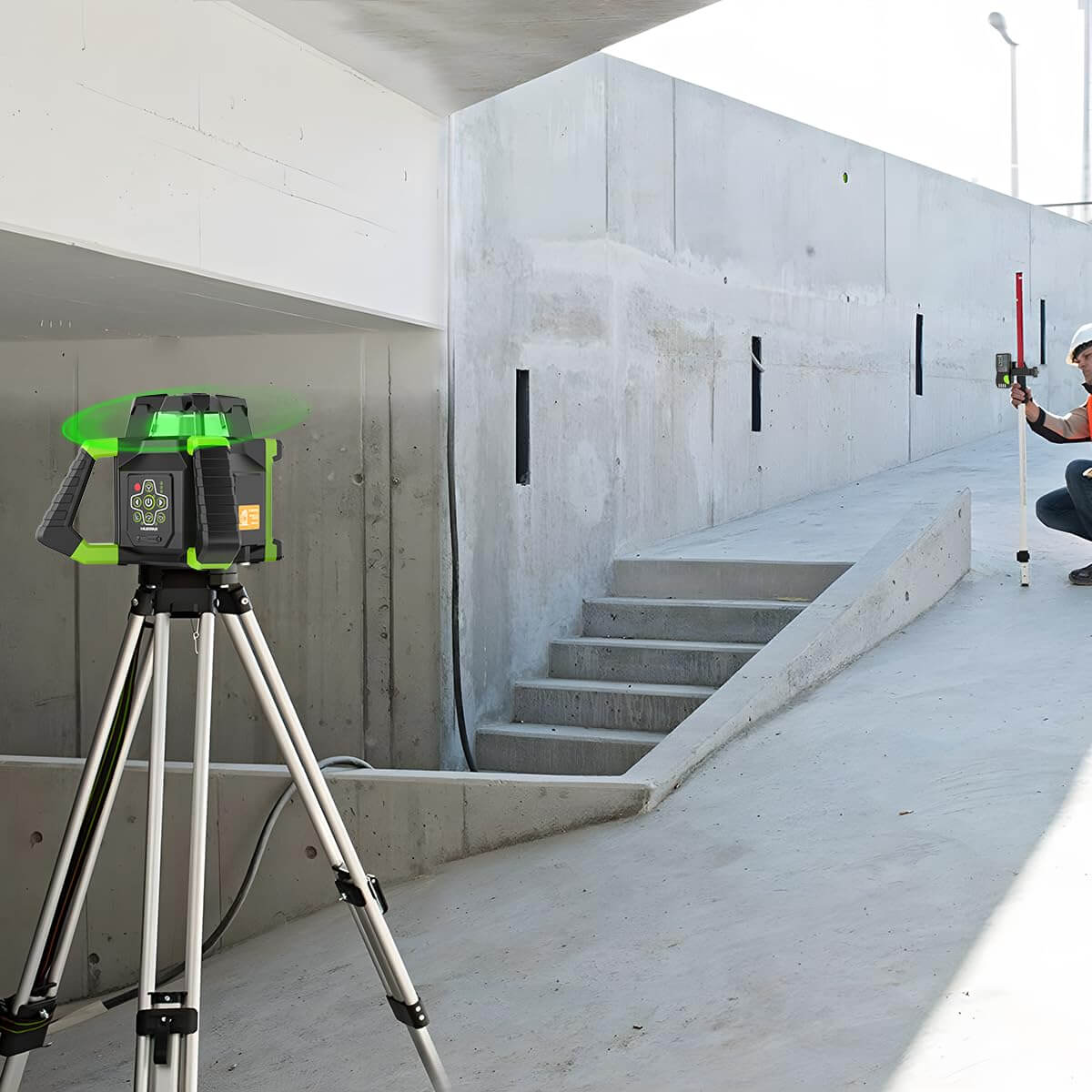

Dual Slope Function
- Electronic dual-slope function allows user to perform slope 5° in both X and Y axis. This dual-slope mode works perfectly when checking grade, setting drainage, landscaping-terracing or other slope work.
- This is a great laser tool for any job from DIY to large commercial construction, and everything in between.
![](http://uk.huepar.com/cdn/shop/files/Huepar_RL300HVG_-_DE_-_9.jpg?v=1721891965&width=1500)

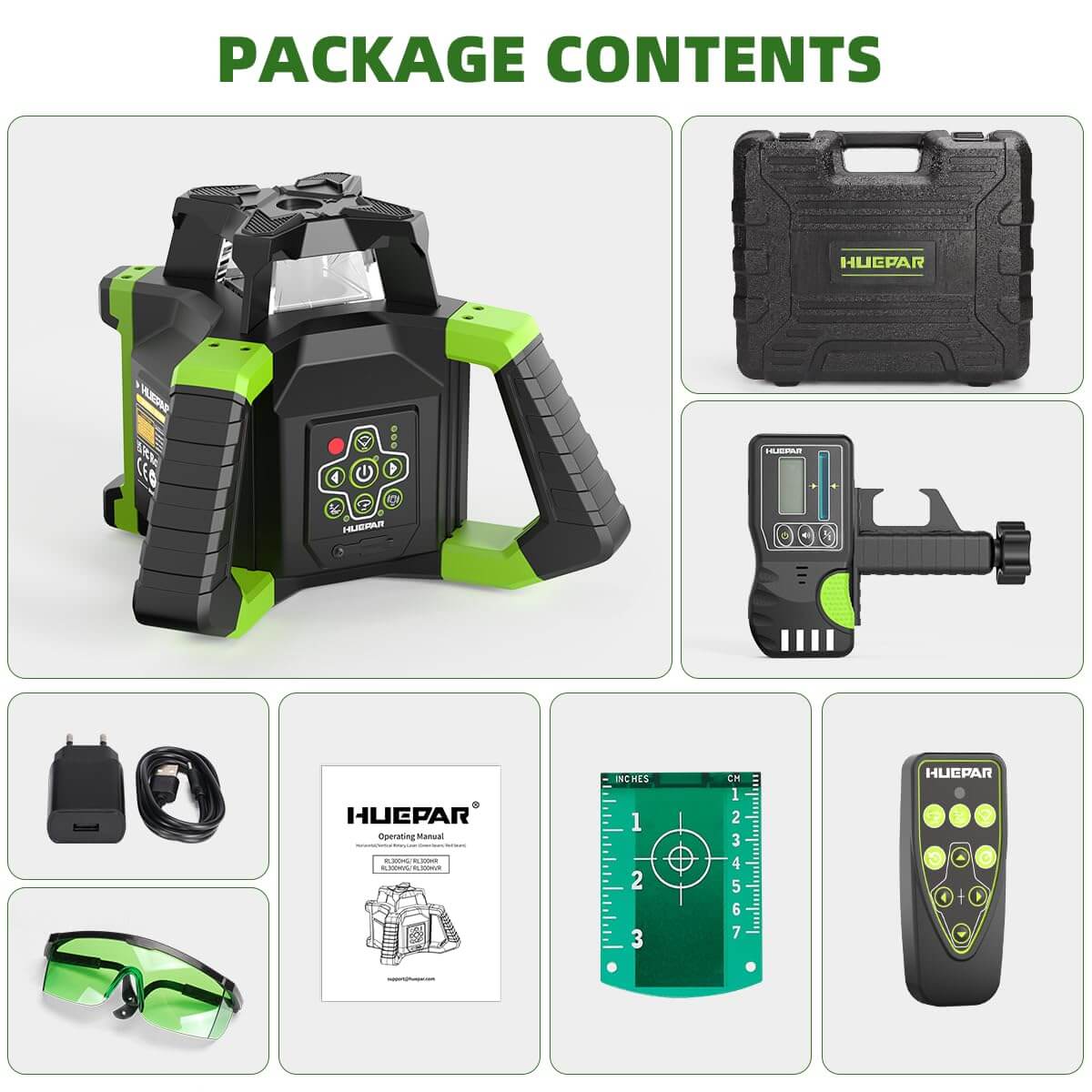

In the Box
![Huepar RL300HVG](http://uk.huepar.com/cdn/shop/files/HUEPAR-RL300HVG-PL-1_300x300.jpg?v=1721891003)
![Hard Carry Case](http://uk.huepar.com/cdn/shop/files/HUEPAR-RL300HVG-PL-2_300x300.jpg?v=1721891009)

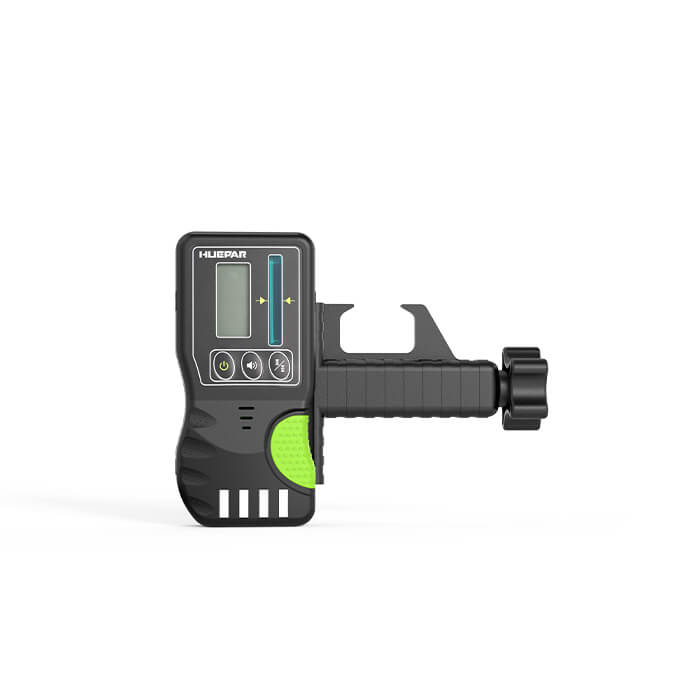

![Receiver With a Clamp](http://uk.huepar.com/cdn/shop/files/HUEPAR-RL300HVG-PL-3_300x300.jpg?v=1721891023)

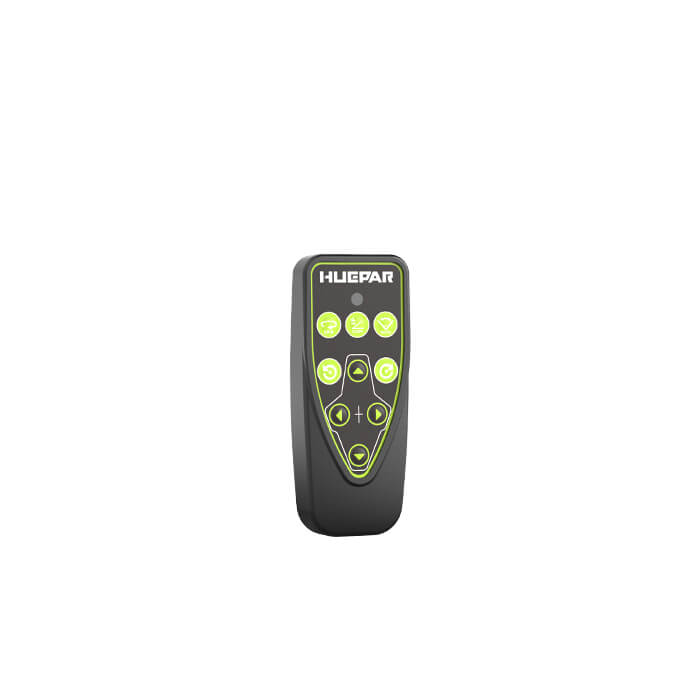

![Remote Control](http://uk.huepar.com/cdn/shop/files/HUEPAR-RL300HVG-PL-4_300x300.jpg?v=1721891125)
![Li-ion Battery](http://uk.huepar.com/cdn/shop/files/Huepar-Li-ion-Battery_300x300.jpg?v=1721694573)
![Type-C Charging Set](http://uk.huepar.com/cdn/shop/files/HUEPAR_P04CG_PACKING_5_300x300.jpg?v=1721696849)
![Magnetic Target](http://uk.huepar.com/cdn/shop/files/Huepar-704cg-packing-5_300x300.jpg?v=1721694573)
![User Manual](http://uk.huepar.com/cdn/shop/files/HUEPAR-RL300HVG-PL-6_300x300.jpg?v=1721891085)
Specifications
Laser Info
Electronic Leveling
Vibrate Mode (dual mode)
Wavelength 505-520nm
Class 2 (IEC/EN60825-1/2014)
Laser Accuracy
± 3mm at 30m
(± 1/8" at 100Ft)
Self-leveling Range: ± 5°
Slope-adjusting Range: ± 5° (Bi-directional)
Spinning Speed
0, 300, 600RPM
Directional-scanning angle:
0°、10°、45°、90°、180°
Working Range
Max Working Distance
60M/196Ft
800M/2624Ft with Receiver
Power System
Li-ion Battery 7.4V/2600mAh
Working Time 14 hrs
Charging Time 4 hrs
TYPE-C Charing Port
Durable Design
Working Temperature
-10℃ ~ 50℃ (14℉ ~ 122℉)
Storage Temperature
-20℃ ~ 70℃ (-4℉ ~ 158℉)
Main Material
ABS + Plastic
IP Rating
IP54
Dimensions
Model Weight
880g (1.94 pounds)
Model Size
166 x 98 x 170mm
Item Weight
1.54kg
Package Dimensions
24.50 x 20.00 x 17.70cm
Suitable Accessories
Mount Size
5/8 “-11
Laser Detector
-
Tripod
M3Y
Base Adapter
-
Packing List
Find your perfect laser level
Huepar RL300HVG Laser Level£469.99 | Huepar RL200HVG Laser Level£399.99 | |
---|---|---|
Product Info | ||
Product SKU |
RL300HVG
|
RL200HVG
|
Product type |
Rotary Laser Level
|
Rotary Laser Level
|
Featured | ||
Number of Lines |
|
|
Laser Lines |
|
|
Laser Beam Supplier |
|
|
Laser Beam Color |
|
|
Laser Wavelength |
|
|
Line Accuracy |
|
|
Leveling / Compensation Range |
|
|
Max Self-leveling Time (Seconds) |
|
|
Extra features |
|
|
Bluetooth Connectivity |
|
|
Remote Control |
|
|
Dot Accuracy |
|
|
Line Switching |
|
|
Pulse Laser Receiver Mode |
|
|
Working Range (60-100 LUX) |
|
|
Working Range with Detector |
|
|
AA Battery |
|
|
Li-ion Battery |
|
|
Working Time (Hours) |
|
|
Charging Time (Hours) |
|
—
|
Mount Size |
|
|
Durable Design |
|
|
Hard Carry Case |
|
|
FAQ
What is the working range of the Huepar RL300HVG?
What is the working range of the Huepar RL300HVG?
What is the accuracy of the Huepar RL300HVG?
What is the accuracy of the Huepar RL300HVG?
Does the Huepar RL300HVG have a self-leveling feature?
Does the Huepar RL300HVG have a self-leveling feature?
What type of batteries does the Huepar RL300HVG use?
What type of batteries does the Huepar RL300HVG use?
Is the Huepar RL300HVG suitable for outdoor use?
Is the Huepar RL300HVG suitable for outdoor use?
What accessories are included with the Huepar RL300HVG kit?
What accessories are included with the Huepar RL300HVG kit?
