Huepar TPD16 - 1.6m Flat Head Aluminum Tripod Adjustable

• Extendable Height to 1.6m/5.2ft: Huepar TPD16 Tripod features 3-section adjustable legs and a telescopic section, users can expand the working height of the tripod from 22" to 62". The legs are easy adjusted by flip-lock. The telescopic section can be fine-tuning by rotating the crank, and can also be adjusted directly by rotating the circle lock clockwise and counterclockwise. Rotate clockwise or counterclockwise the center brace locking circle to change and fix the extension angle of legs.

• Flat Head with 5/8"-11 Male Thread and 1/4"-20 Screw Adapter: It features a flat head with 5/8"-11 mounting thread , which is easy to install and securely fix the measuring instrument, providing solid and stable support. The included screw adapter convert 5/8"-11 to 1/4"-20, compatible with the most line laser level and rotary laser. In addition, when you install Huepar 9211G/9300G point laser, the down laser point can be projected to the ground through the tripod.

• Rotatable Anti-skid Rubber Feet & Built-in Bubble Level: Arbitrarily rotating rubber feet are suitable for outdoor or complex terrain work, the larger area of force makes standing more stable. There is a built-in bubble level on the tripod, even if the tripod is placed on uneven ground, the angle of the tripod can be adjusted with the help of the bubble level.

• Handle and Carrying Bag for Easy Transport: The handle on the tripod allows you to carry it without difficulty when working on the job site and constantly move around. A soft carrying bag with an adjustable shoulder strap enables you to carry the tripod comfortably over your shoulder or keep it clean. The storage length is only 60cm/23.62", the weight is about 1.2kg/2.67lb, which is convenient for you to put in the trunk.

• Sturdy Aluminum Tripod: The whole parts of the tripod (the center column, telescopic section, legs, and the tripod head) are made of aluminum alloy (pipe diameter 19.9mm/0.78"), providing stable support. The load capacity reaches 10kg/22lb, which is compatible with most measuring tools. The warranty period for this product is one year.

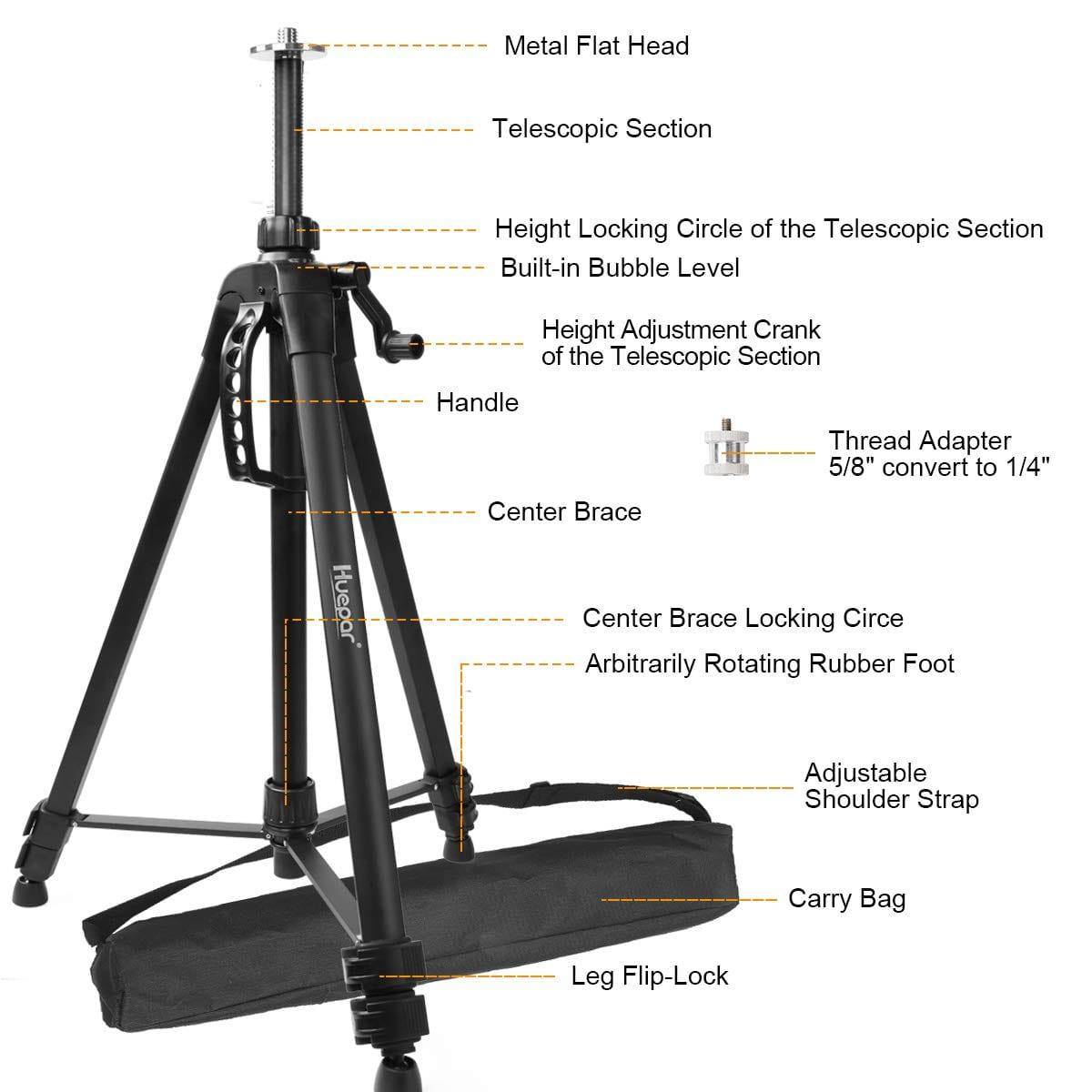

Huepar TPD16 1.6m Tripod Specification:

• Screw Mount Size: 5/8"-11 (included 1/4"-20 screw adapter)
• Leg Sections: 3 Sections
• Leg Locking Type: Flip-lock
• Head Type: Fklat Head
• Folded Length: 60cm / 23.62"
• Min Working Height: 56cm / 22.05"
• Max Working Height: 158 cm / 62.20"
• Telescopic Section Length: 28.5cm/11.22"
• Load Capacity: 10 kg / 22.05lb
• Material: Aluminum alloy (Handle: ABS, Feet: Rubber)
• Pipe Diameter: 19.9 mm / 0.78"
• Net Weight: 1.215 kg / 2.68lb
• Package Includes: 1 x Huepar TPD16 Tripod, 1 x Carrying Bag
• The whole parts of the tripod (the center column, telescopic section, legs, and the tripod head) are made of aluminum alloy.

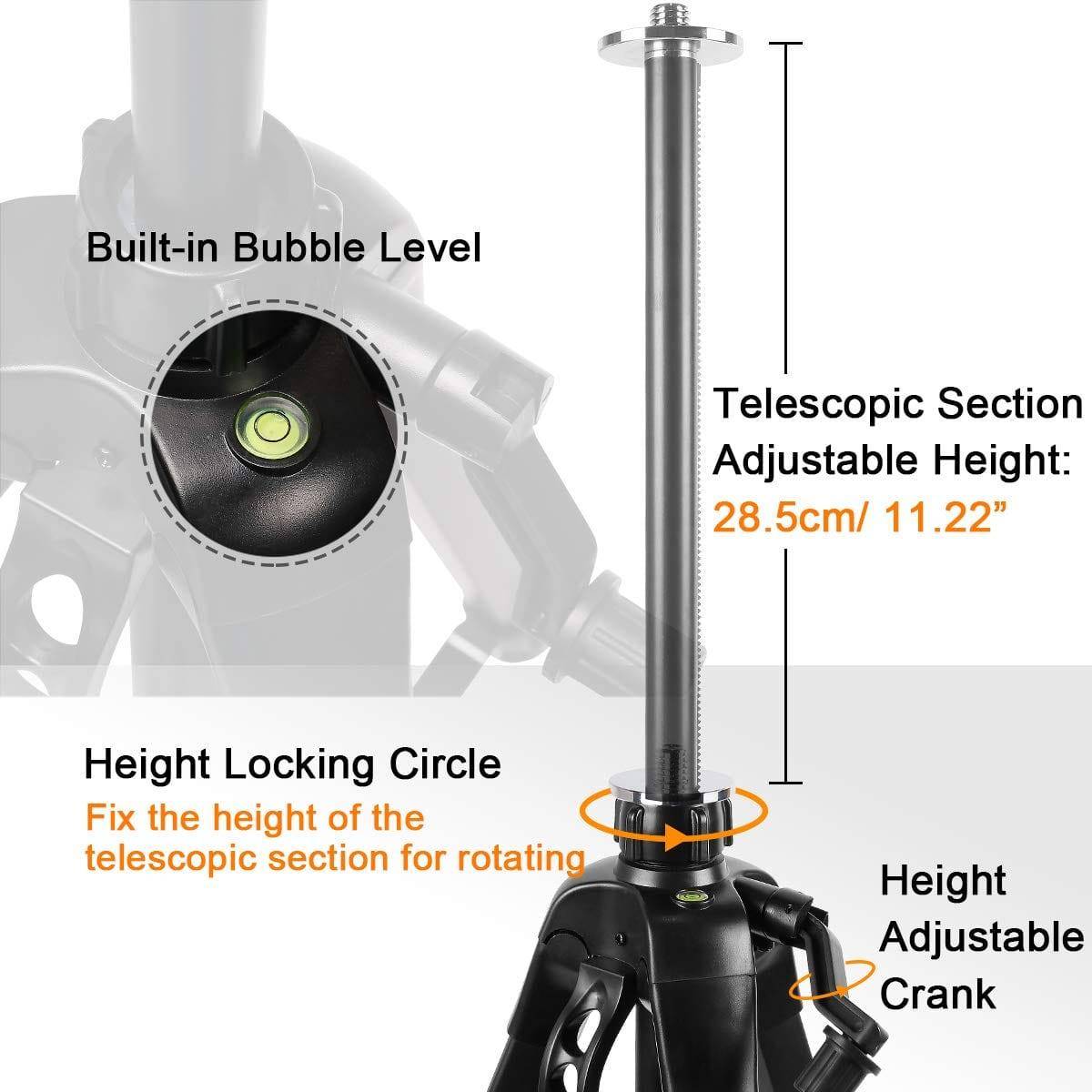

3-Section Adjustment Legs & Telescopic Section:

The working range of the tripod is 56cm-158cm (22.05"-62.20").

The legs can be easily adjusted by flip-lock.

The telescopic section can be fine-tuning by rotating the crank, and can also be adjusted directly by rotating the circle lock counterclockwise and clockwise.

Rotate clockwise or counterclockwise the center brace locking circle to change and fix the extension angle of legs.

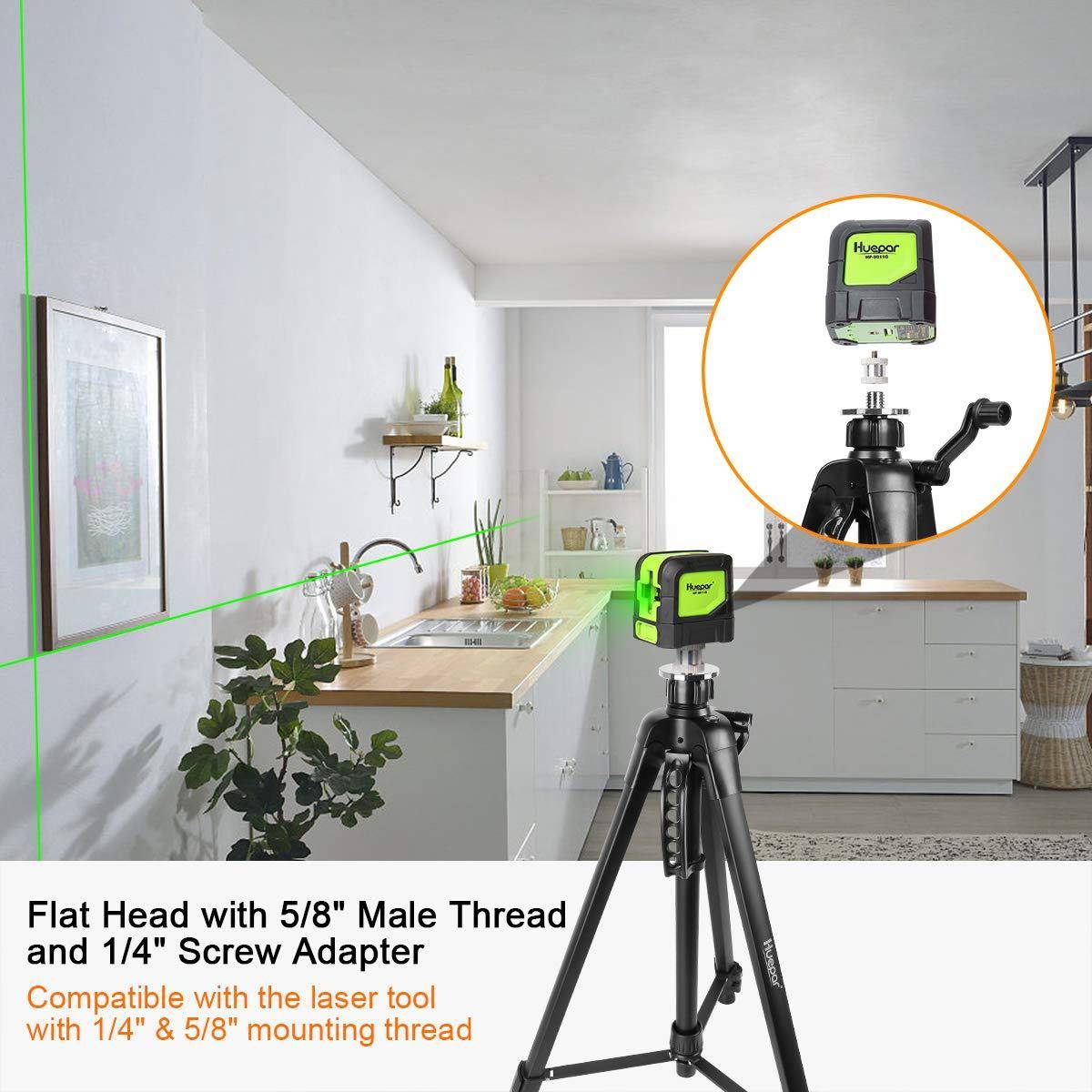

Flat Head with 5/8"-11 Mounting Thread:

• It features a flat head with 5/8"-11 male thread, which is easy to install and securely fix the laser tool, providing solid and stable support.
• The included screw adapter convert 5/8"-11 to 1/4"-20, compatible with the most line laser level and rotary laser.

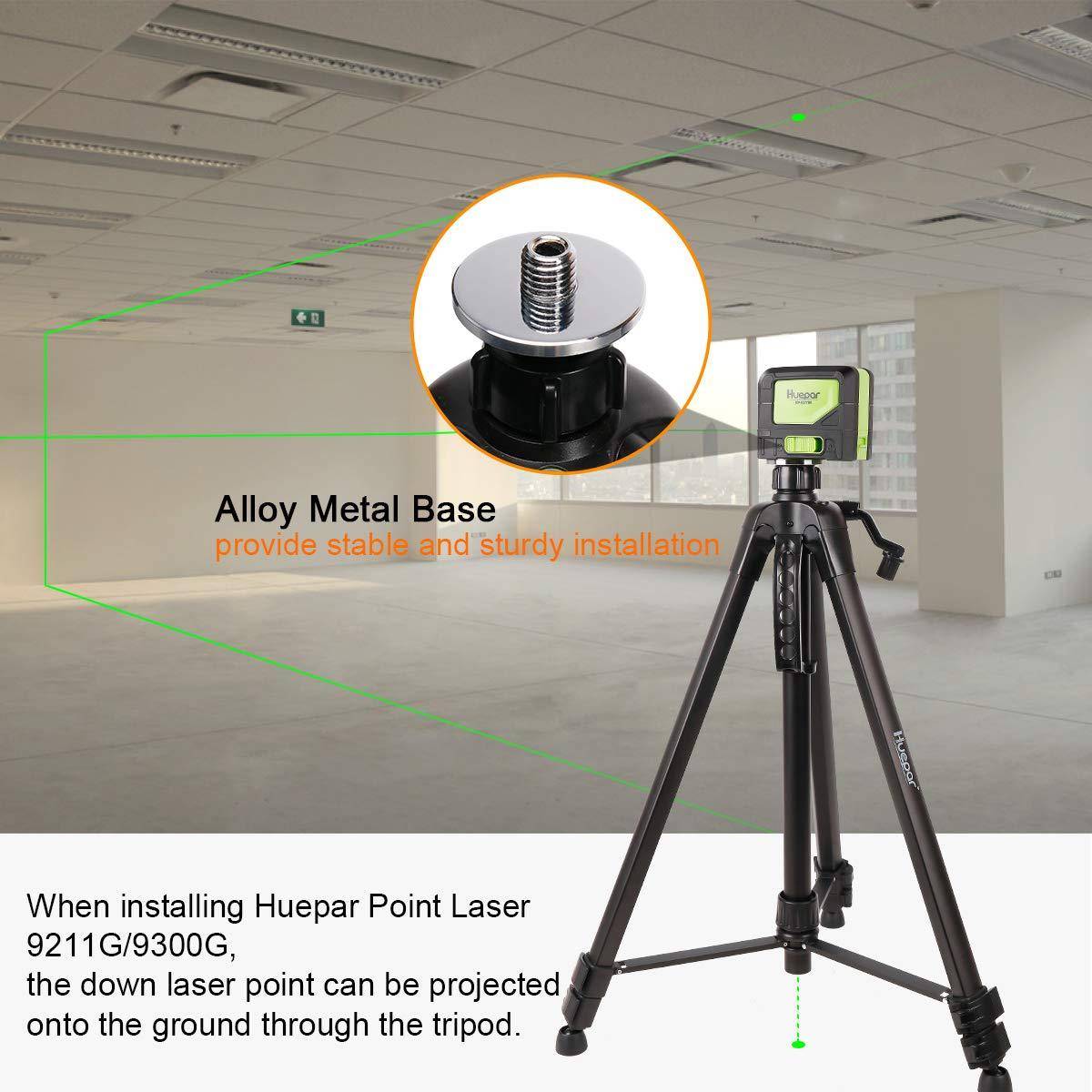

• In addition, when you install Huepar 9211G/9300G point laser, the down laser point can be projected to the ground through the tripod.

Rotatable Rubber Feet & Built-in Bubble Level:

• Arbitrarily rotating rubber feet are suitable for outdoor or complex terrain work, the larger area of force makes standing more stable.
• There is a built-in bubble level on the tripod, even if the tripod is placed on uneven ground, the angle of the tripod can be adjusted with the help of the bubble level.

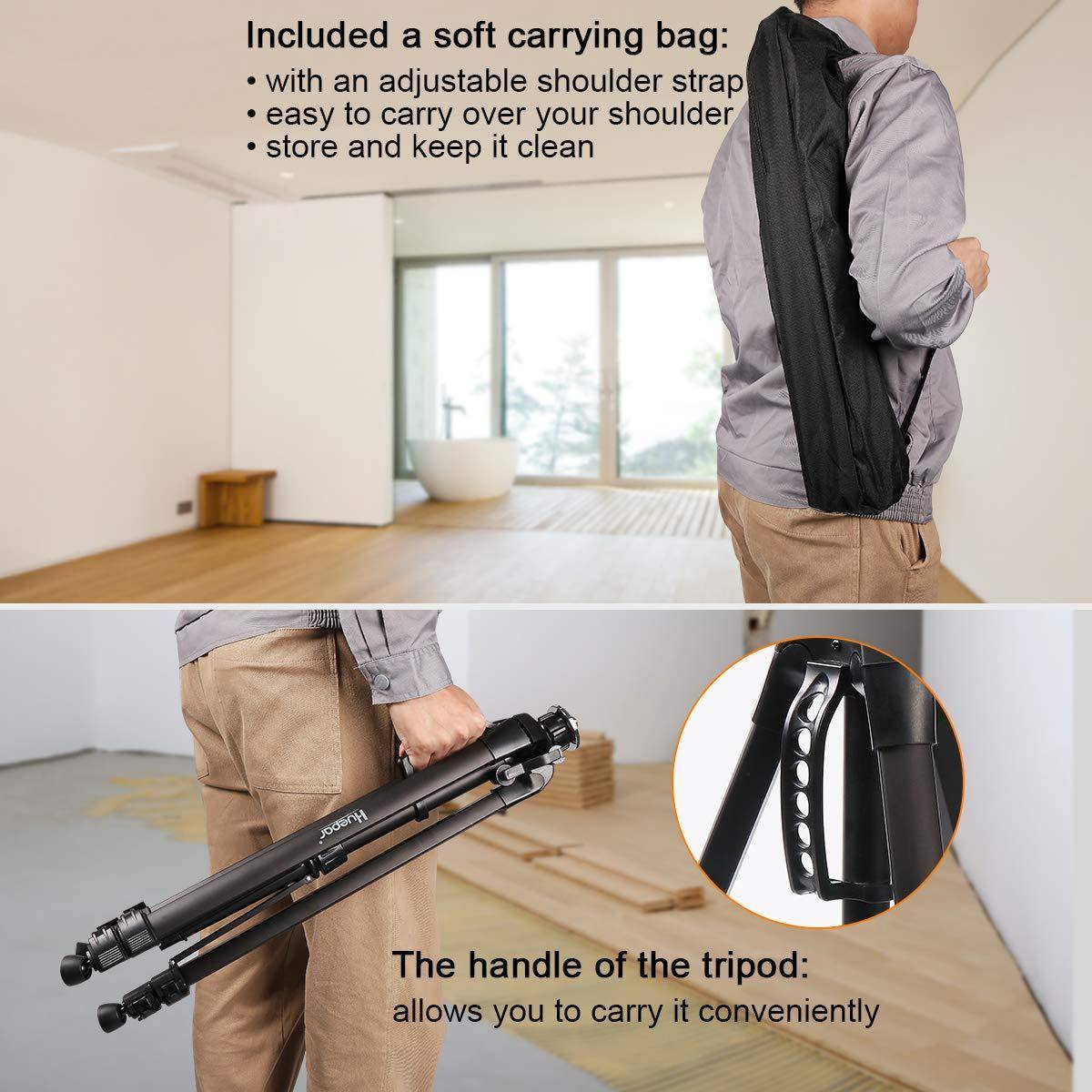

Handle and Carrying Bag:

• The handle of the tripod allows you to carry it without difficulty when working on the job site and constantly move around.
• Come with a soft carrying bag with an adjustable shoulder strap, you can carry the tripod comfortably over your shoulder or keep it clean.
• The storage length is only 60cm/23.62", the weight is about 1.2kg/2.67lb.
