Huepar Pro ZK03DG Laser Level

• ±1/13 inch at 33Ft High Accuracy:  The professional self-leveling laser level has high accuracy in ±1/13 inch at 33Ft with working range up to 100Ft(100 LUX). Using Huepar laser receiver(not included) in strong light or outdoor conditions, pulse mode extends the laser range to 200Ft. The 3 x 360 green line laser adopted bright Osram green laser unit with greater stability and visibility. It is laser Class 2 (IEC/EN60825-1/2014), <1mW.
• 8000mAh Li-ion Battery:  The 8000mAh rechargeable Li-ion battery provides 10 hours of working time with all three 360° laser beams on. It can be charged separately with the type-C charging port. The removable battery also has a micro-USB port to charge other devices, like laser distance meter, or other laser levels and tools.
• 3-year Warranty & Durable Design:  Our professional team is happy to help you with a 36-Month after-sale service and lifetime technical support. A durable hard carry case is included for easier carriage and storage. The laser window cover is made of rugged metal and the laser tool is wrapped in soft rubber for shock protection. IP54 Rating helps to withstand harsh jobsite conditions.
• Remote Control & Magnetic Bracket:  With remote control, turn on/off pulse mode, switch three laser lines at a distance up to 32.8Ft. Magnetic bracket offers quick positioning on metal surfaces with fine-tuning knobs to adjust laser line up&down, left&right, back&forth, and rotate 360°. The bracket has 1/4"-20 and 5/8"-11 threaded mounts on bottom to be used with tripods or pole mounts. The green laser level tool also has 1/4"-20 mount thread to suit a tripod or pole mount.
• Self-leveling/Manual Mode & Line Switch:  The cross line tool has a smart pendulum to self-level in 3 seconds when unlocked. It emits a beeping sound and the laser line flashes quickly when exceeds the self-leveling range of ±3°. Lock the pendulum to manual mode and the laser line can be used at any angle. The three 360 lines can be selected individually using the H and V buttons on keypad.

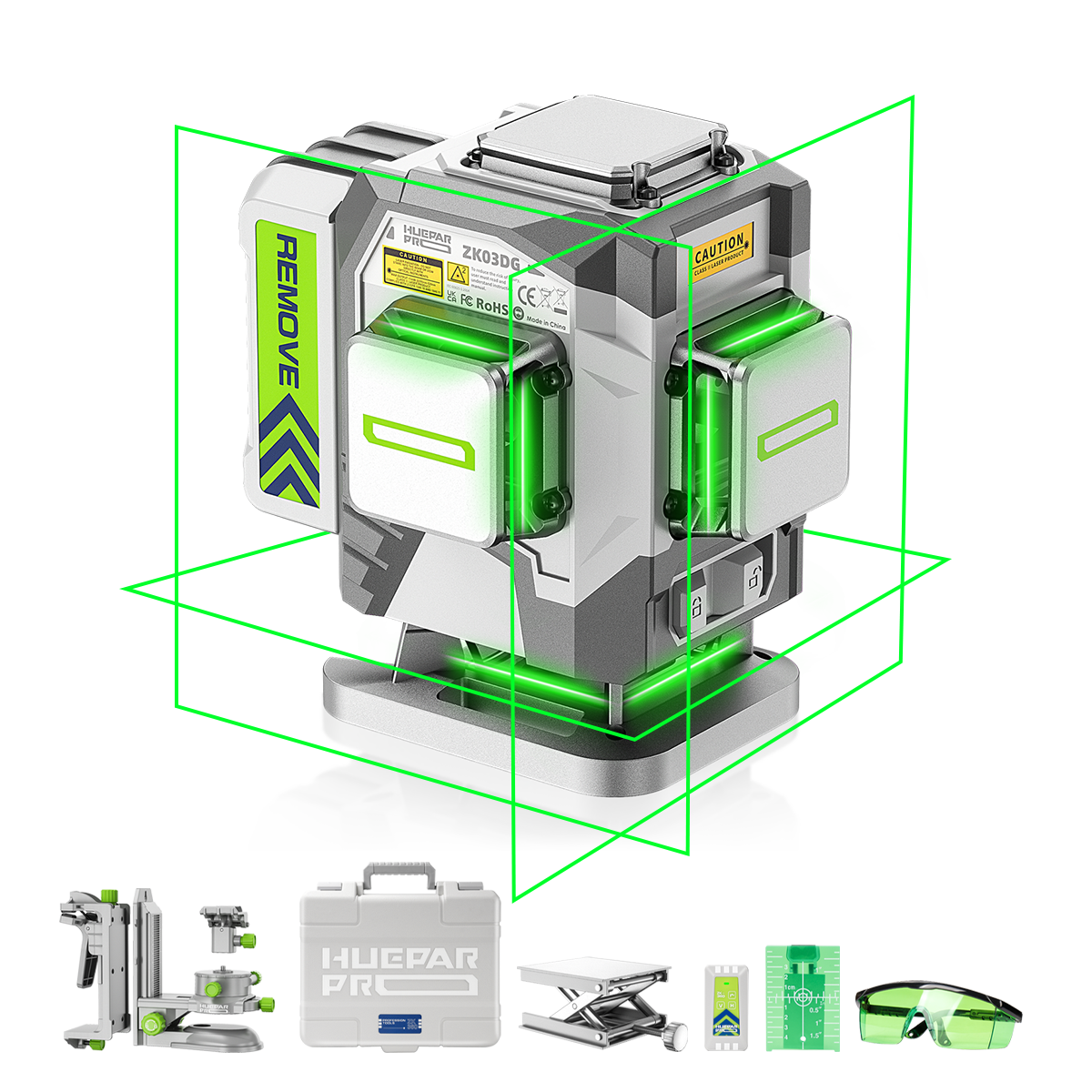

• 3D Tiling Laser & Lifting Base:  This green beam laser level is a 3D laser level with one 360° horizontal tiling laser line and two 360° vertical laser planes that projected onto ceilings, walls, and floors throughout the room. The 360° floor horizontal line is for tiling installation. With the lifting base, the 360° floor laser can raise from the surface between 0.83" and 3.2" height.


Huepar Pro ZK03DG 3 x 360° Green Tiling Laser Level

Specifications:

• Laser Level: Class 2, < 1mW power output
• Laser Plane: One 360° horizontal tiling laser plane and two 360° vertical laser planes
• Horizontal/Vertical Accuracy: 1/13 inch at 33 ft.
• Laser Wavelength: 505-520nm High Brightness Green Laser
• Leveling/Compensation range: ±3°
• Working Distance (Line): 100Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG/LR-8RG
• Power Supply: 5V2A/ 8000mAh Li-Ion battery, 10 hours of operating time with all three laser beams on.
• Protection Rating: IP54 Dustproof, Waterproof, Shockproof, Reliable, Sturdy
• Package: Hard Carrying Case
• Mount Size: 1/4"-20

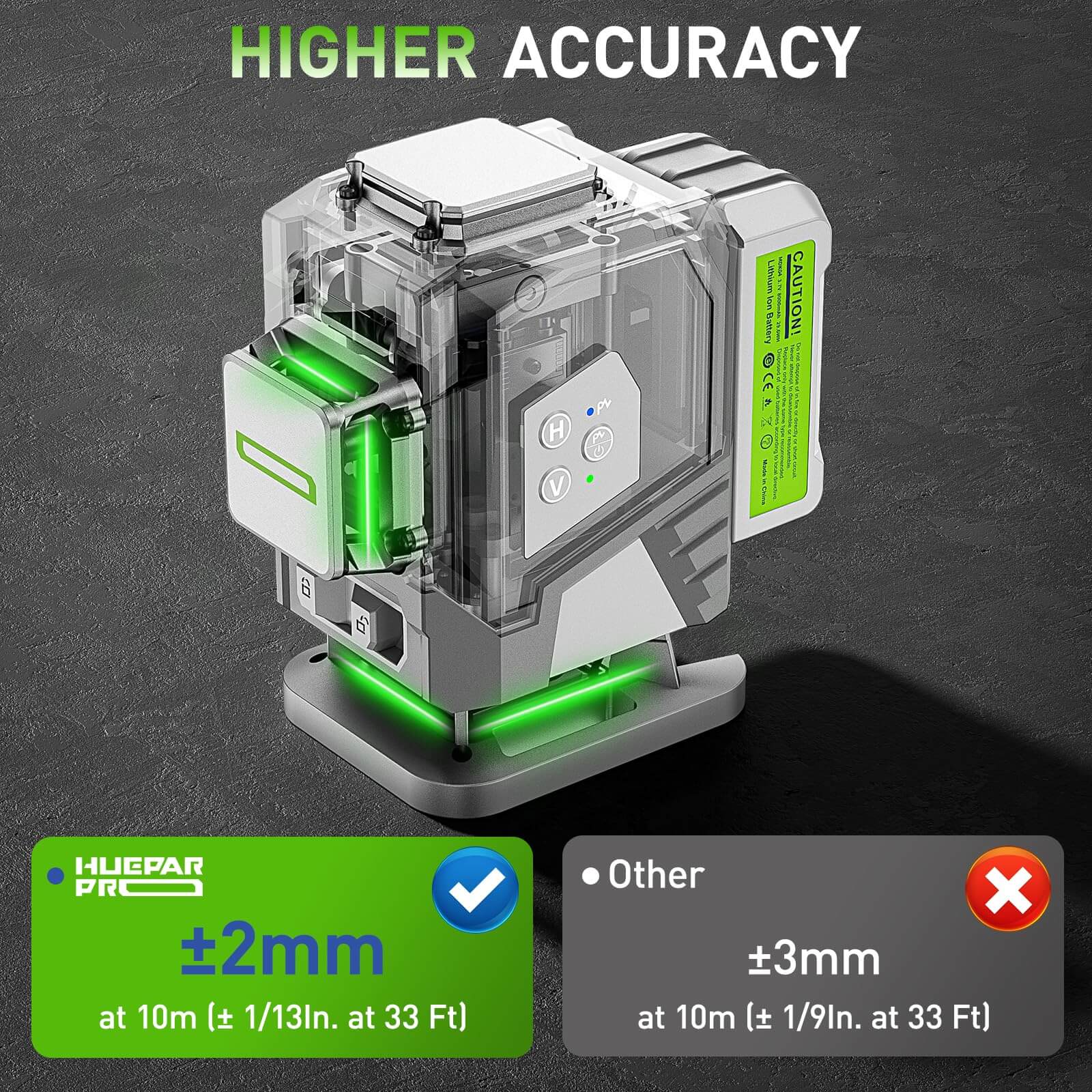

±1/13 inch at 33Ft High Accuracy

• From a large number of laser level modules, high precision modules are selected and specially tuned by hand to produce a laser level with an accuracy of 1/13 inch at 33 feet.
• The percentage of high-precision modules in the total number of modules is only 10%.

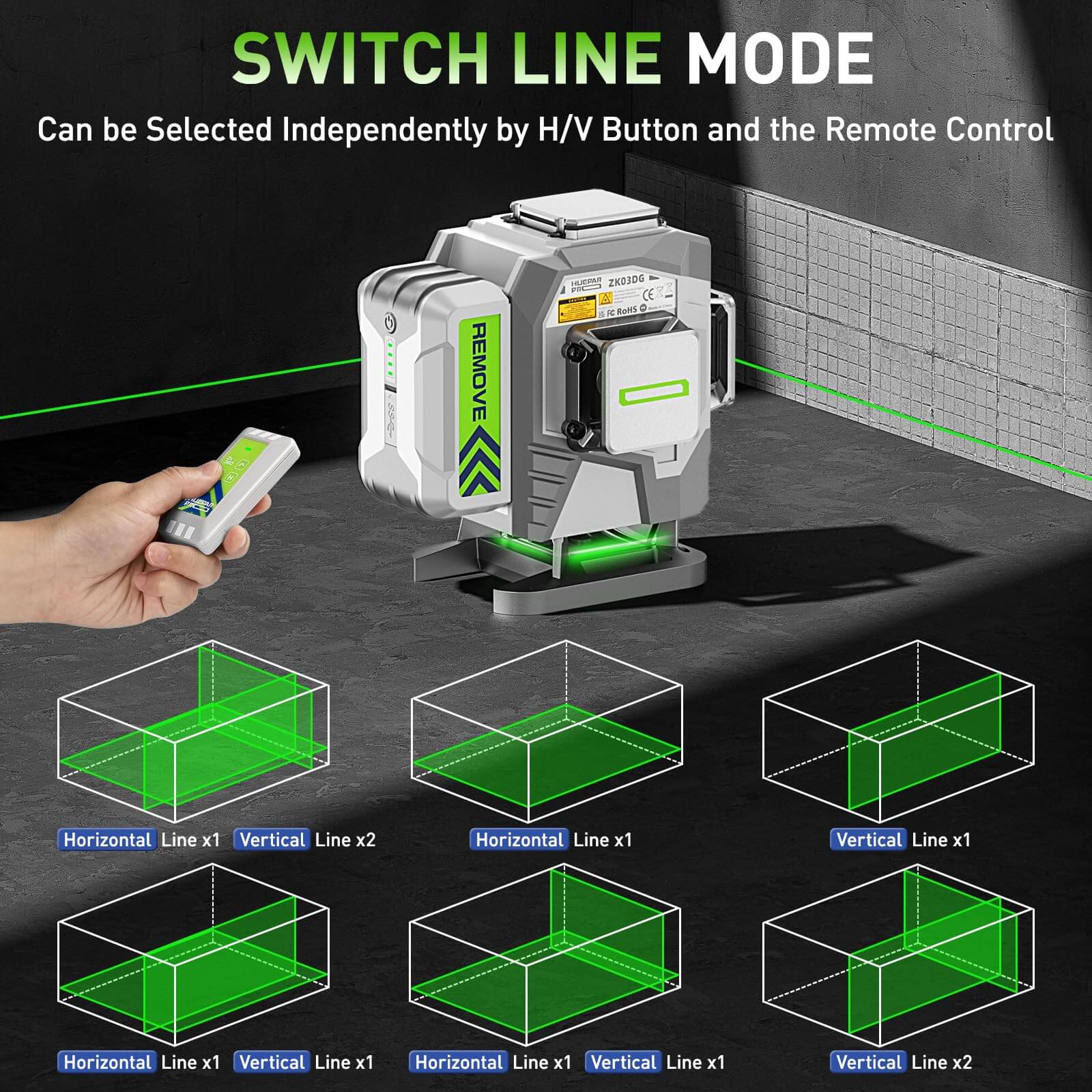

Line Switching

• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
• The remote control enables to select the four 360° laser lines individually at a distance up to 32.8Ft.
• The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.

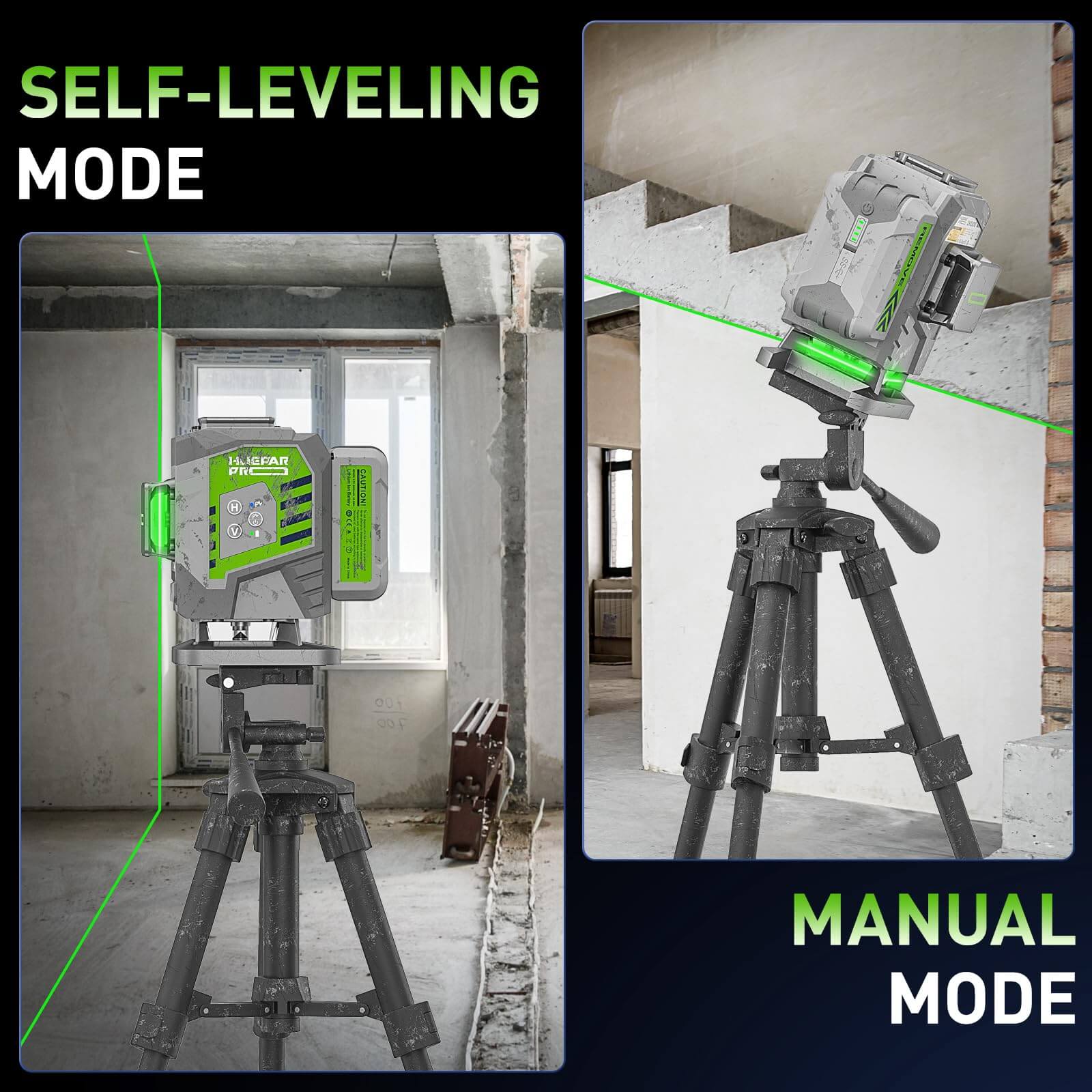

Smart Pendulum - Self-leveling Mode & Manual Mode

• Self-leveling mode: The pendulum unlocks to enable self-leveling mode.
• The laser beam flashes rapidly and the laser tool will beep to alert you when the tool is out of self-leveling range 3°.
• Manual Mode: The pendulum is in the locked position and the laser tool can be placed at any angle for use.
• The laser beam will flash every 3-5 seconds to remind you it is not self-leveling.

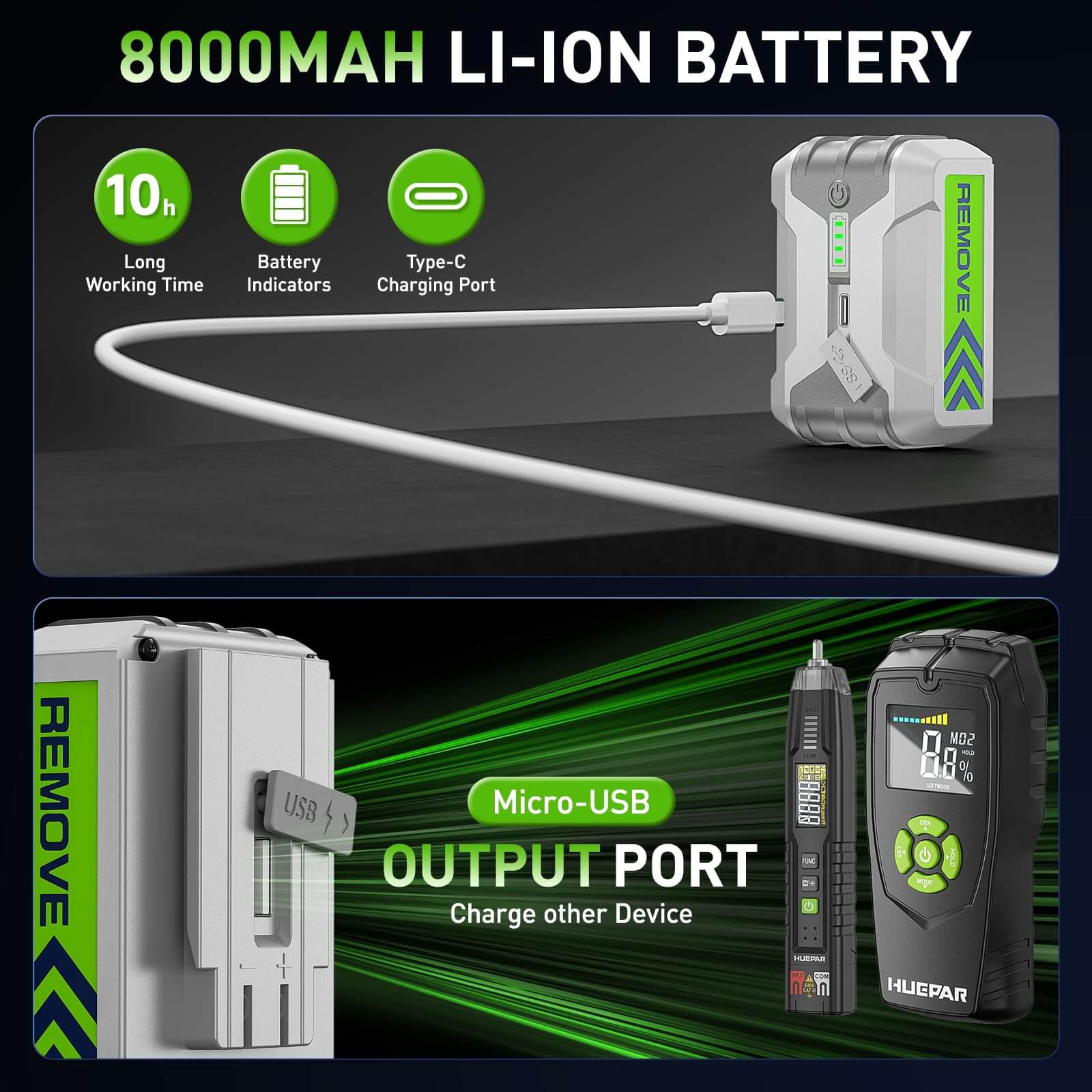

8000mAh Rechargeable Li-ion Battery

• Equipped with 8000mAh rechargeable Li-ion battery enables the laser level to work for 10 hours with all three 360° green laser beams on.
• Type-C charging port can be used to charge the battery through car charger, rechargeable treasure and other ways.
• Battery indicators let you know the power status at any time.
• The removable Li-ion battery also has a micro-USB port to be used as a power bank to charge other devices, like laser distance meter, or other laser levels and tools.

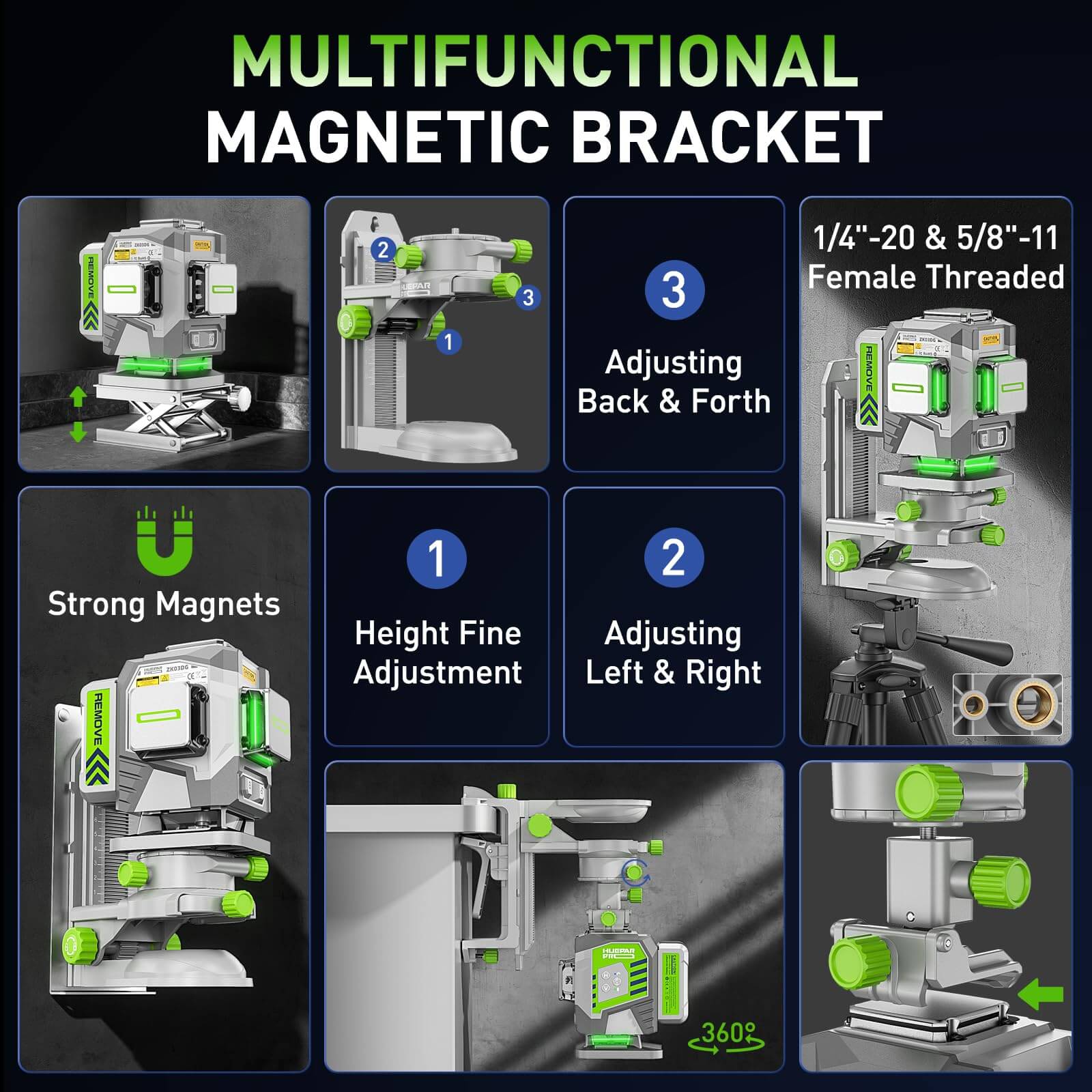

Multi-functional Magnetic Bracket

• The included strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall and ceiling applications.
• The fine-tuning knobs on the bracket enable to adjust laser line up & down, left & right, back & forth, and rotate 360°.
• The opening size of the back clip can be adjusted, offers the ability to mount to any object up to 5cm thick. The back clip is compatible with most magnetic bases, increasing the adsorption force of the magnets and stability.
• A dedicated laser window adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.
• The bracket has 1/4"-20 and 5/8"-11 threaded mounts on bottom to be used with tripods or pole mounts. And the laser tool also has 1/4"-20 mount thread to suit a tripod or pole mount.

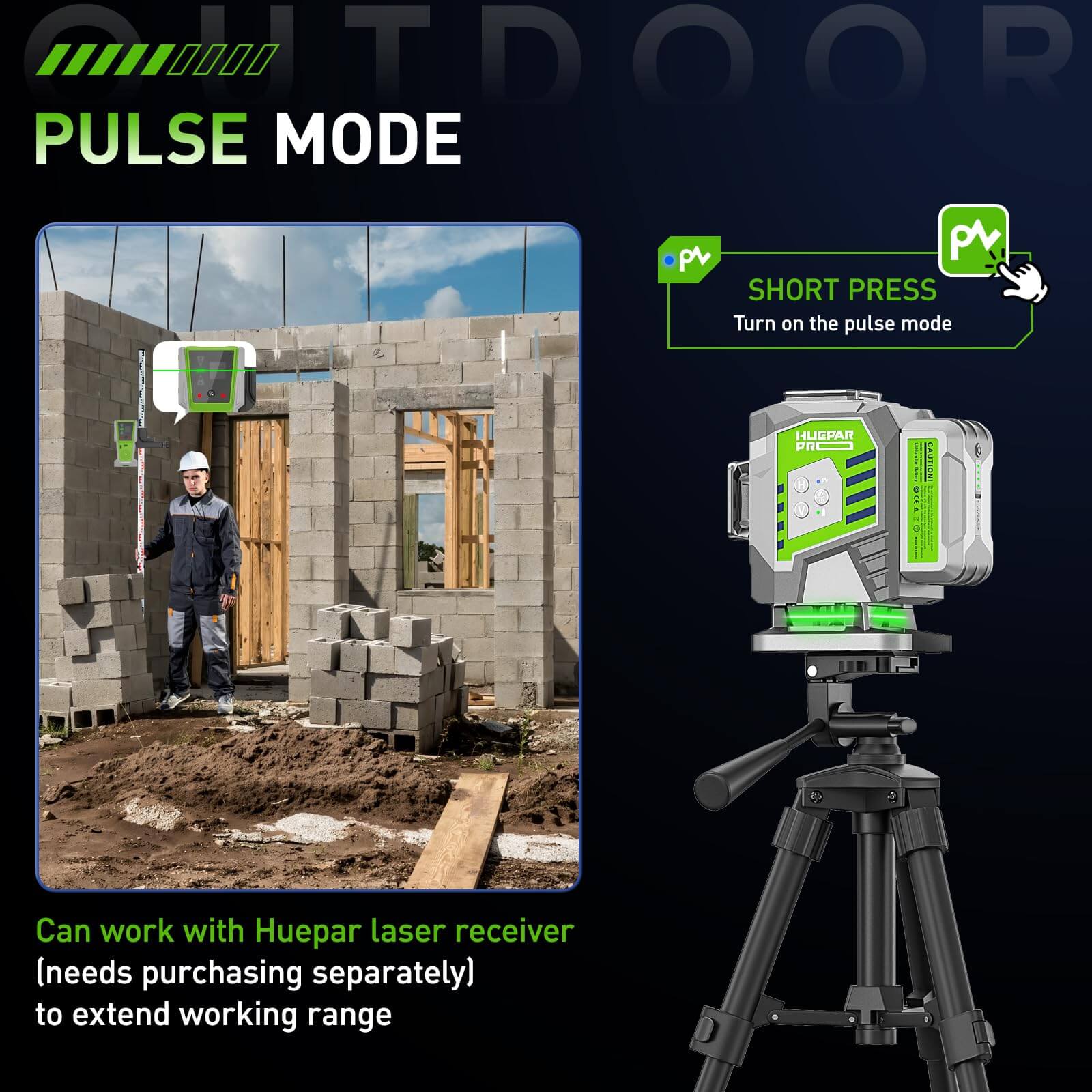

Pulse Mode

• You can use the remote control to turn ON/OFF the pulse mode without walking around too often.
• The visible distance of the laser is 100 feet (100 LUX).
• Pulse Mode extends the working distance to 200 feet, using with a Huepar laser detector LR-6RG/LR-5RG/LR-8RG.
• Pulse mode is for use in bright light or outdoor conditions to locate the laser line.
• Pulse mode need to be used in conjunction with a laser detector.

360° Horizontal Floor Laser & Lifting Base

• This tiling laser tool generates one 360° horizontal bottom laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.
• With the lifting base, the laser lines raise from the surface between 0.83" and 3.2" height.

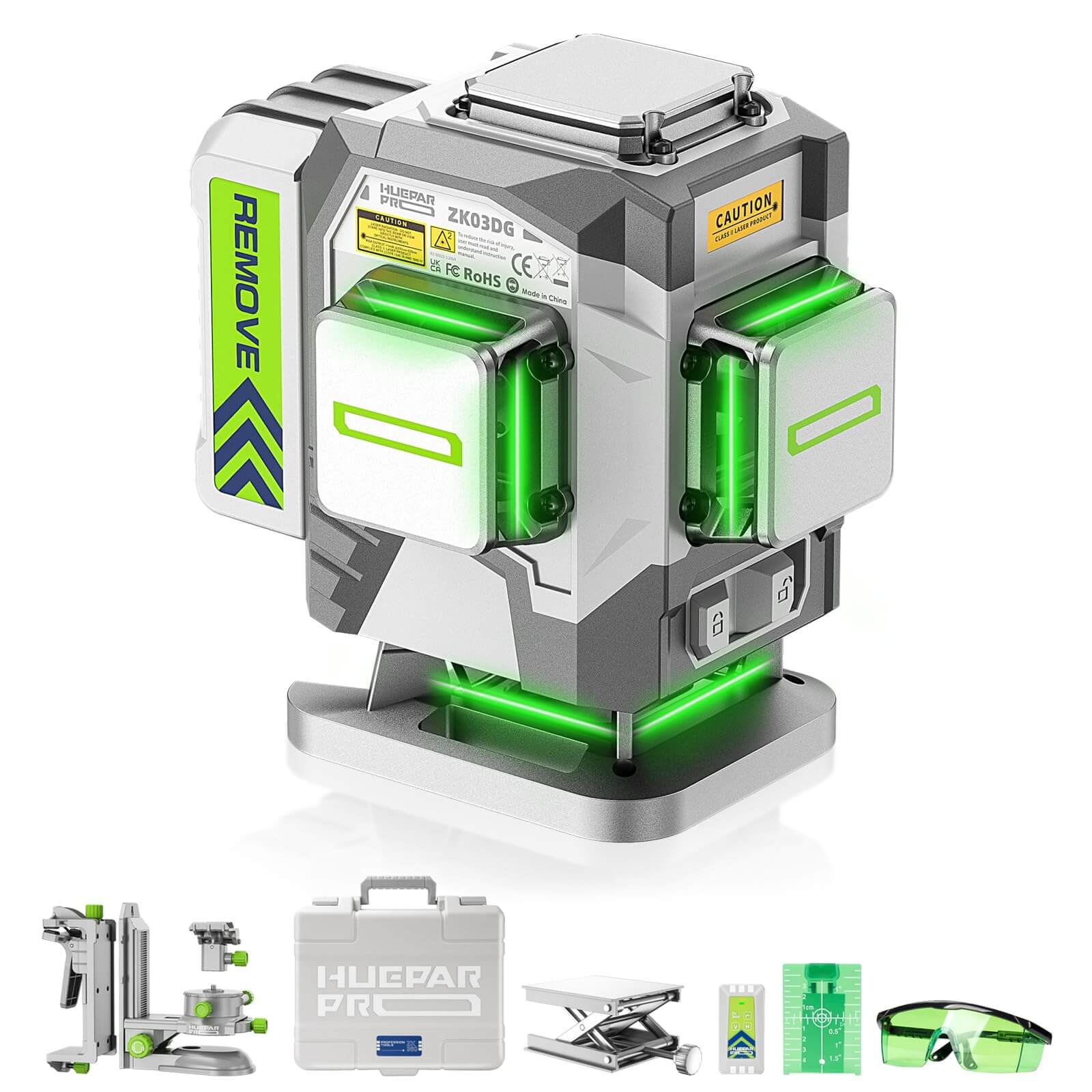

Package Contents

• 1 x 3D Green Tiling Laser Level ZK03DG
• 1 x Rechargeable 8000mAh Li-ion Battery
• 1 x Remote Control
• 1 x 360° Magnetic Bracket
• 1 x Lifting Base
• 1 x Power Adapter & Type-C cord
• 1 x Green Glasses
• 1 x Green Laser Target Plate
• 1 x Lase Level User Manual

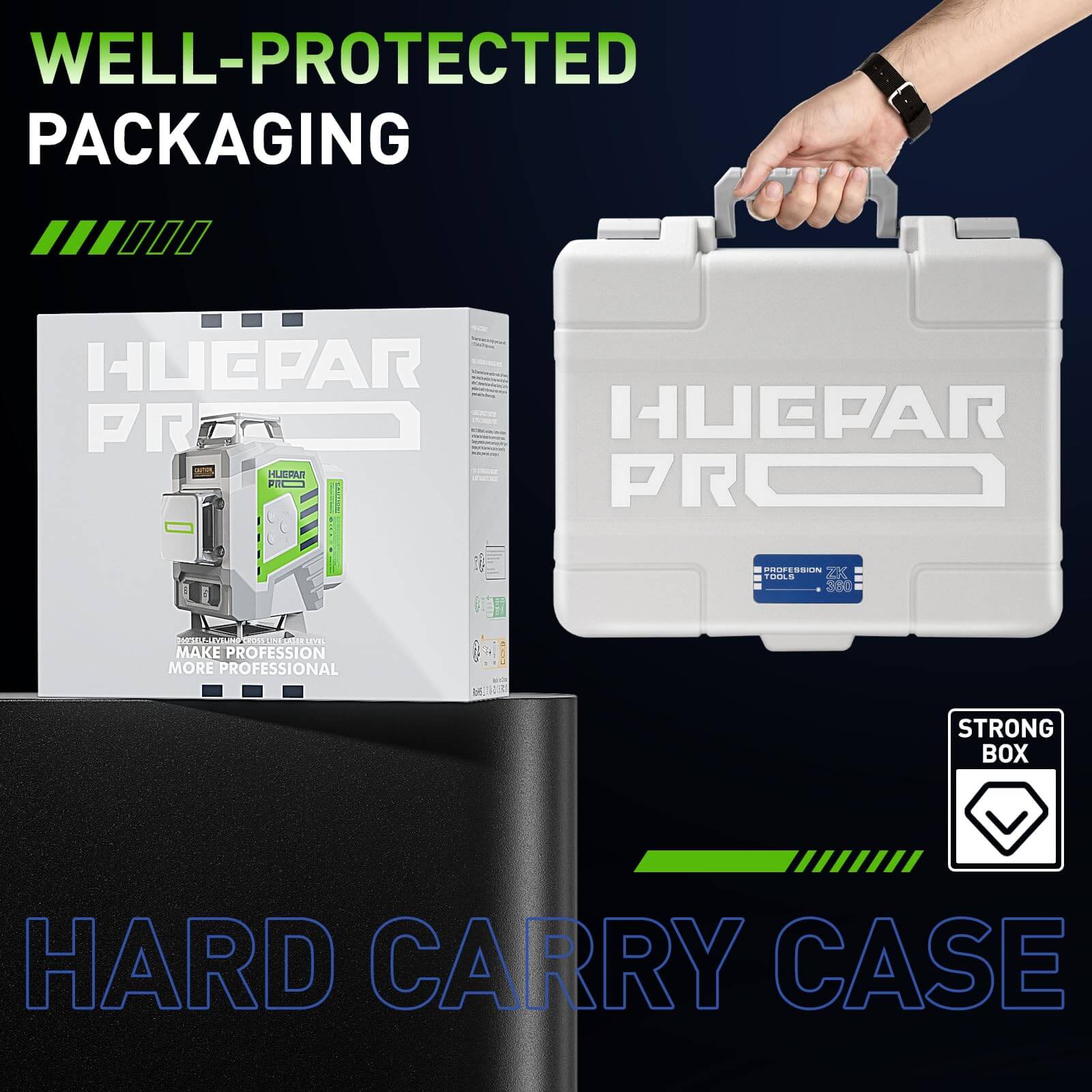

• 1 x Hard Carry Case & 1 x Color Paper Box
