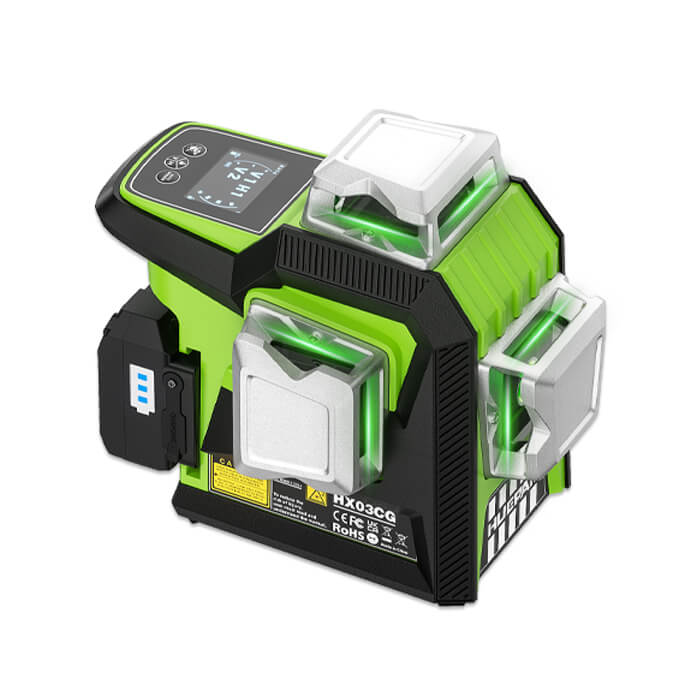

Huepar HX03CG Laser Level
Huepar HX03CG Laser Level
Huepar HX03CG Laser Level
Tax included, shipping calculated at checkout.
Select Option

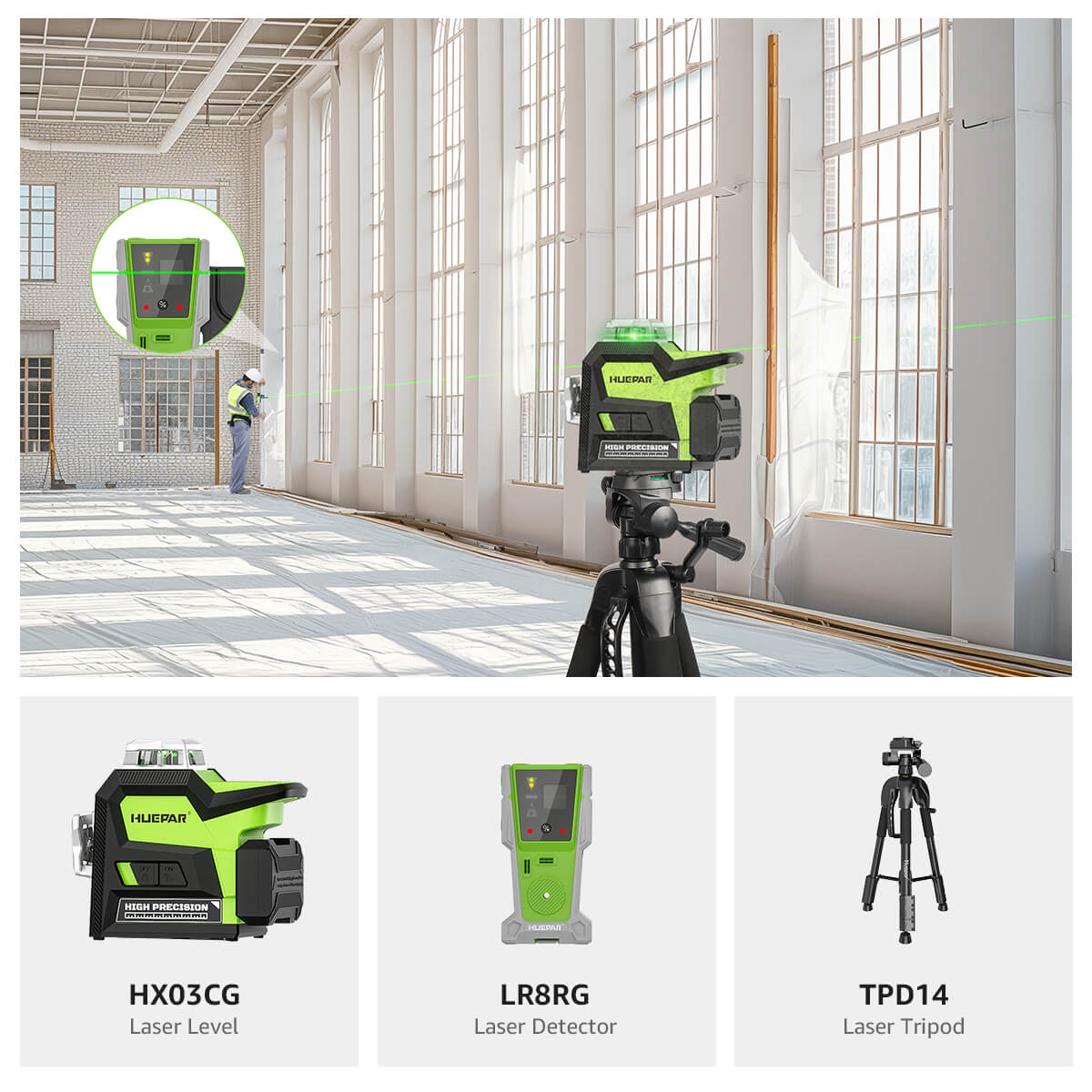

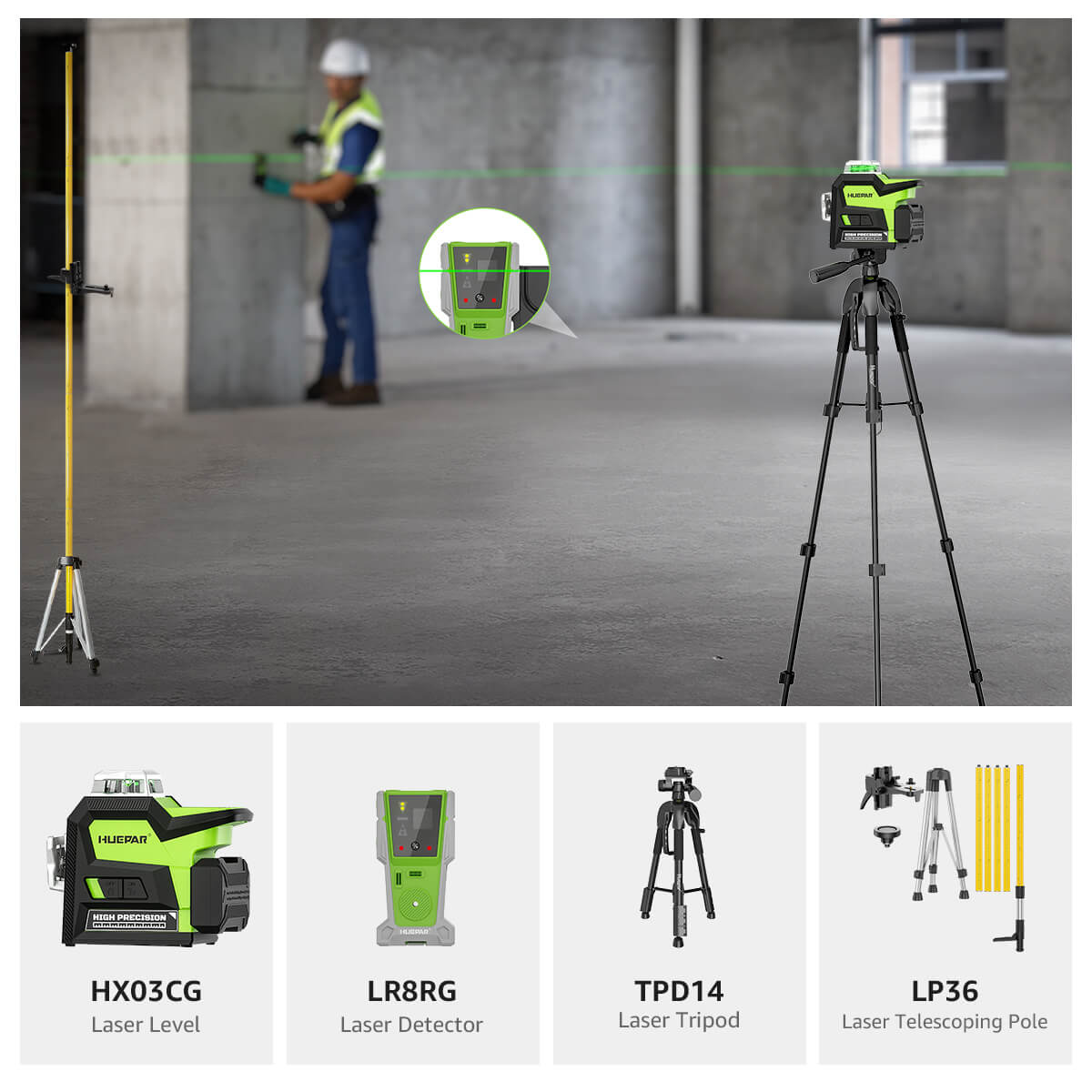

Add Top Accessories

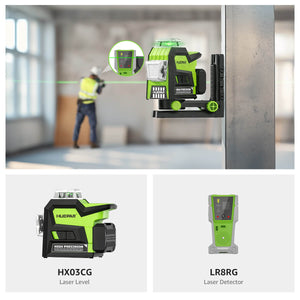

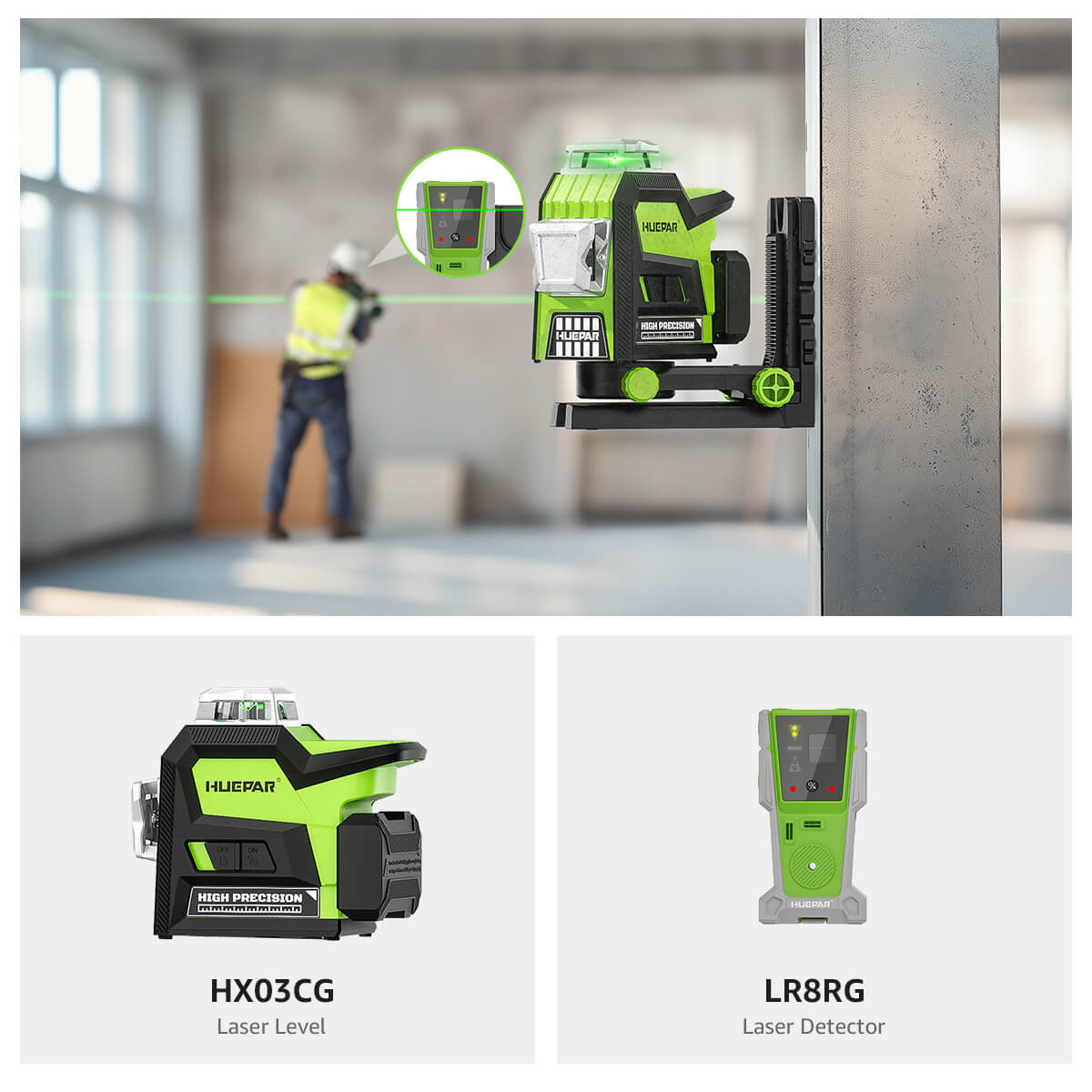

Huepar LR8RG - Laser Detector/Line Laser Receiver
Huepar TPD14 - 143CM/4.69Ft Tripod Adjustable
Huepar LP36 - 3.7m Lasers Level Adapter Tripod
Expand Extended Warranty?
Low stock: 4 left
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with Hermes/Royal Mail
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.

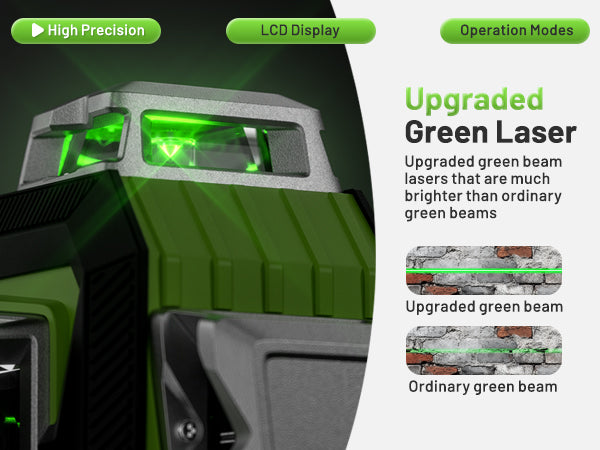

High Precision

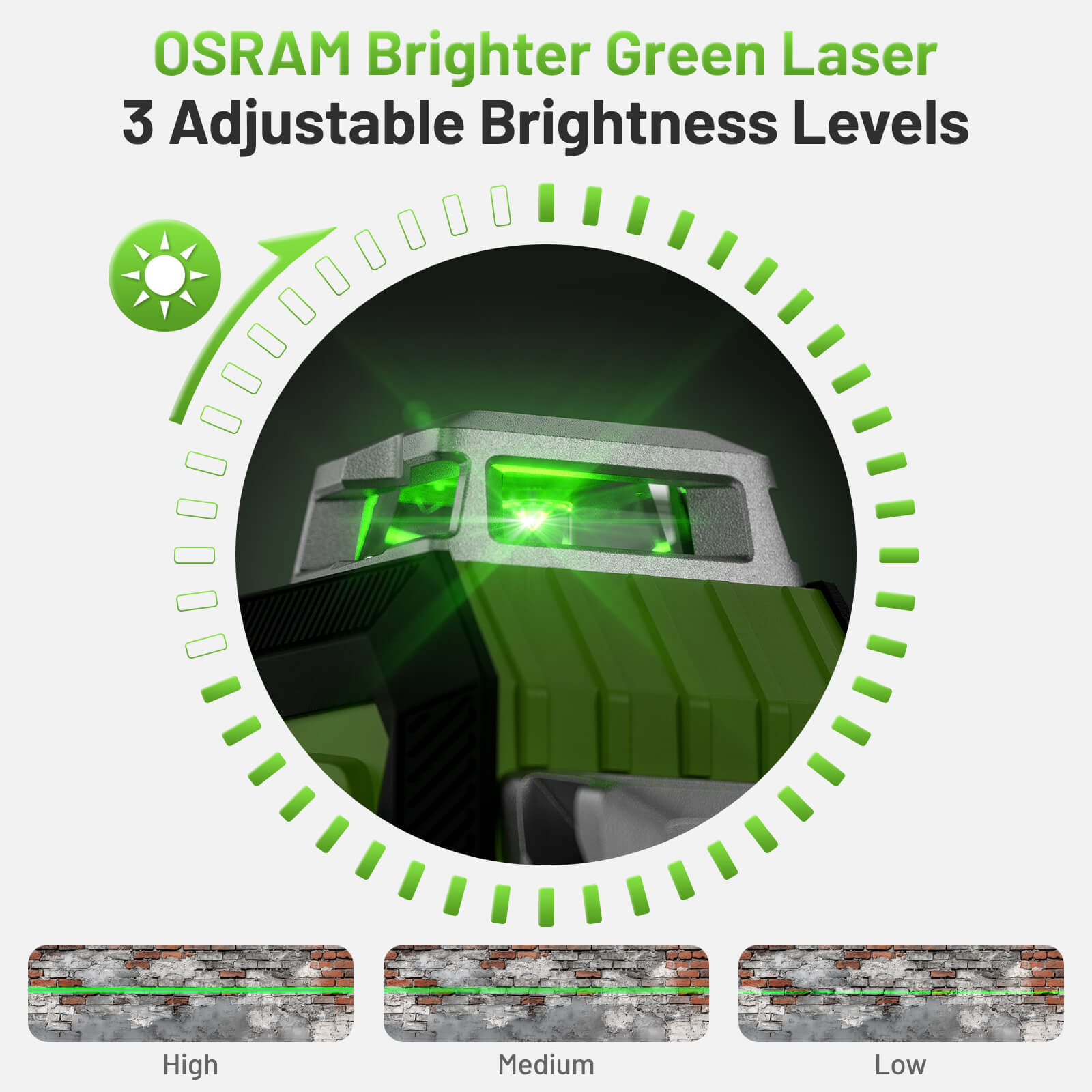

Upgraded Green Laser
Explore the remarkable capabilities of the Huepar HX03CG, featuring an upgraded green beam laser with brightness far exceeding that of ordinary beams. Whether you're working on a major construction project or a home DIY task, this tool offers a brighter, sharper reference line that ensures precision and efficiency in every job.
- Upgraded Green Beam: Superior brightness that guarantees excellent visibility, even in demanding conditions.
- Ordinary Green Beam: Lower brightness, more suited for use in low-light environments.
Efficient precision

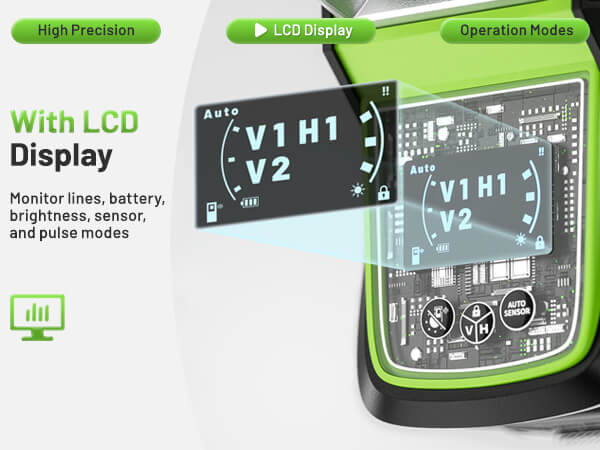

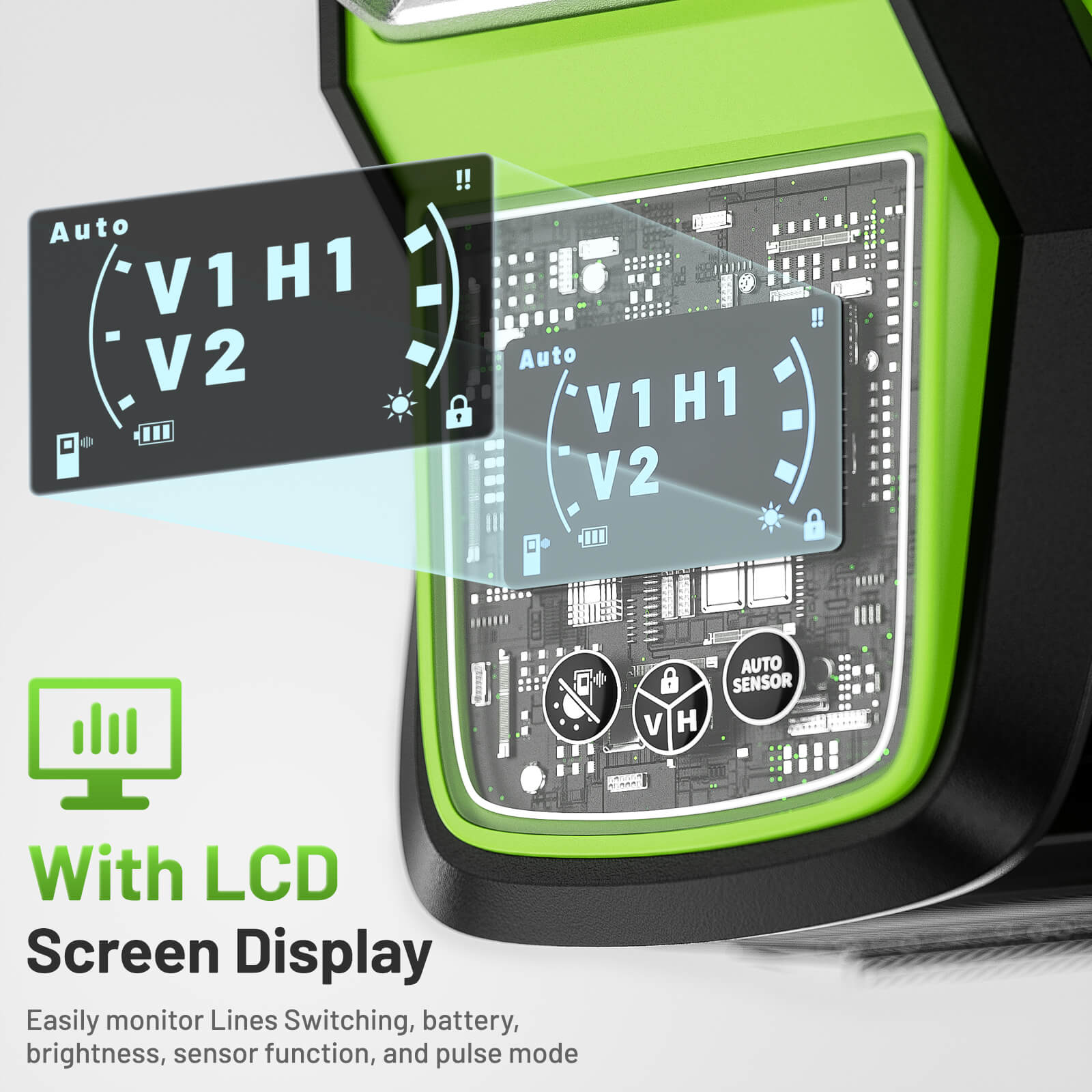

Equipped with an LCD Display
The Huepar HX03CG features a modern LCD display, providing an intuitive monitoring experience that makes the workflow smarter. With the LCD display, you can easily track the laser's working status—real-time monitoring of laser line modes, battery level, brightness adjustments, sensor status, and pulse mode switching. All information at a glance makes the operation more convenient and helps you stay efficient in various working environments, allowing you to achieve precision and efficiency effortlessly.

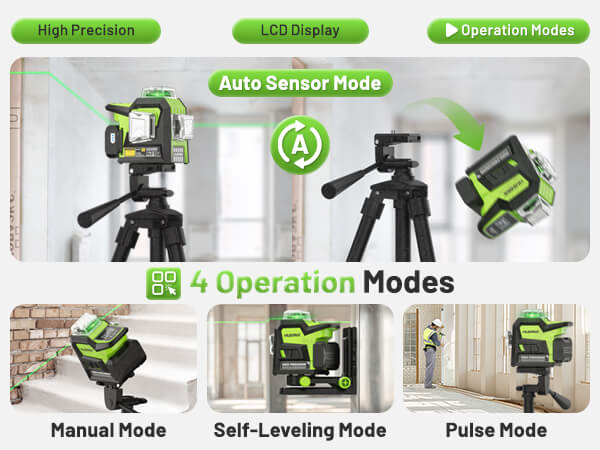

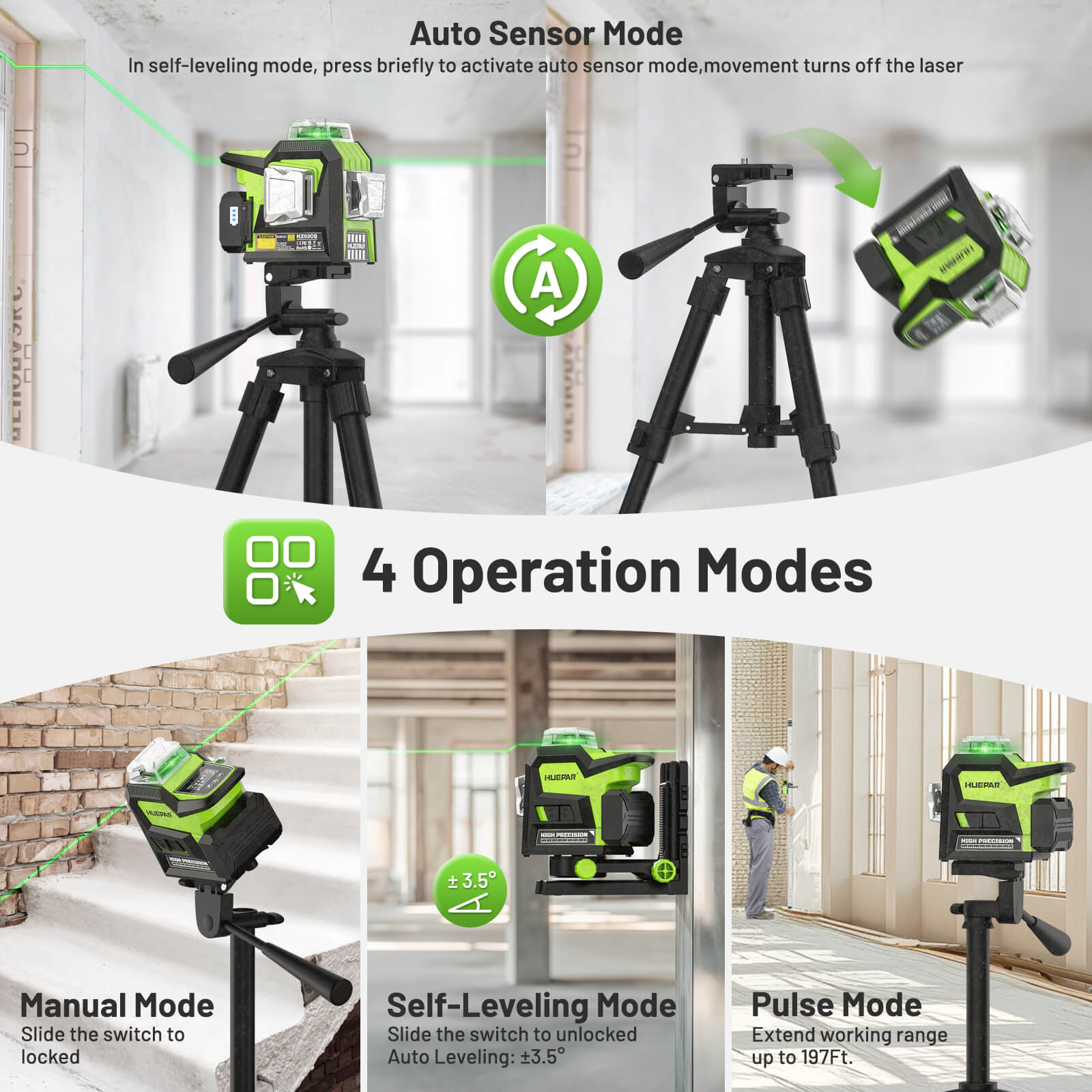

Smart Adjustment Mode
Self-levelling Mode & Manual Mode
- Auto Sensor Mode: Automatically adjusts laser level, minimizing manual intervention.
- Manual Mode: Allows flexible manual adjustments for specific angles.
- Self-Leveling Mode: Quick auto-calibration for precise, efficient operations.
- Pulse Mode: Optimized for outdoor use, extends visibility with a receiver.

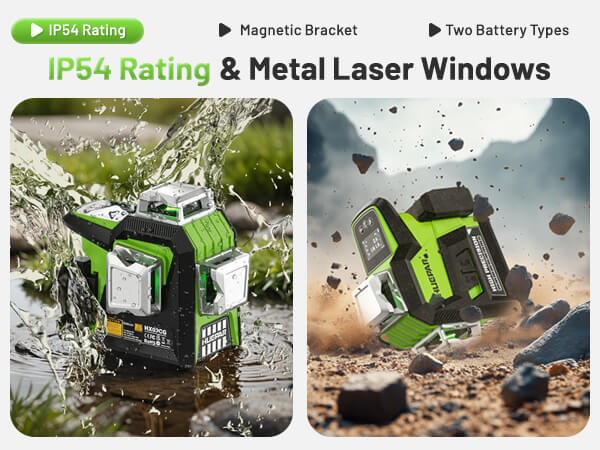

Uncompromising Durability
IP54 Rated & Metal Laser Window
Built to withstand the elements, the Huepar HX03CG offers IP54-rated protection against water and dust, ensuring reliability in the toughest conditions. Its robust construction features metal laser windows for enhanced durability, providing optimal performance even in rugged environments.
Mounting versatility

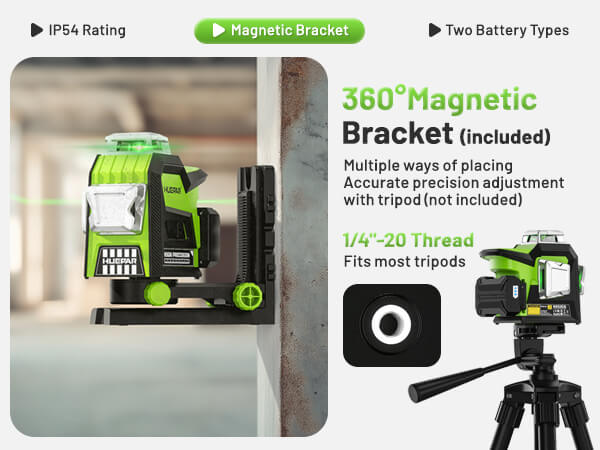

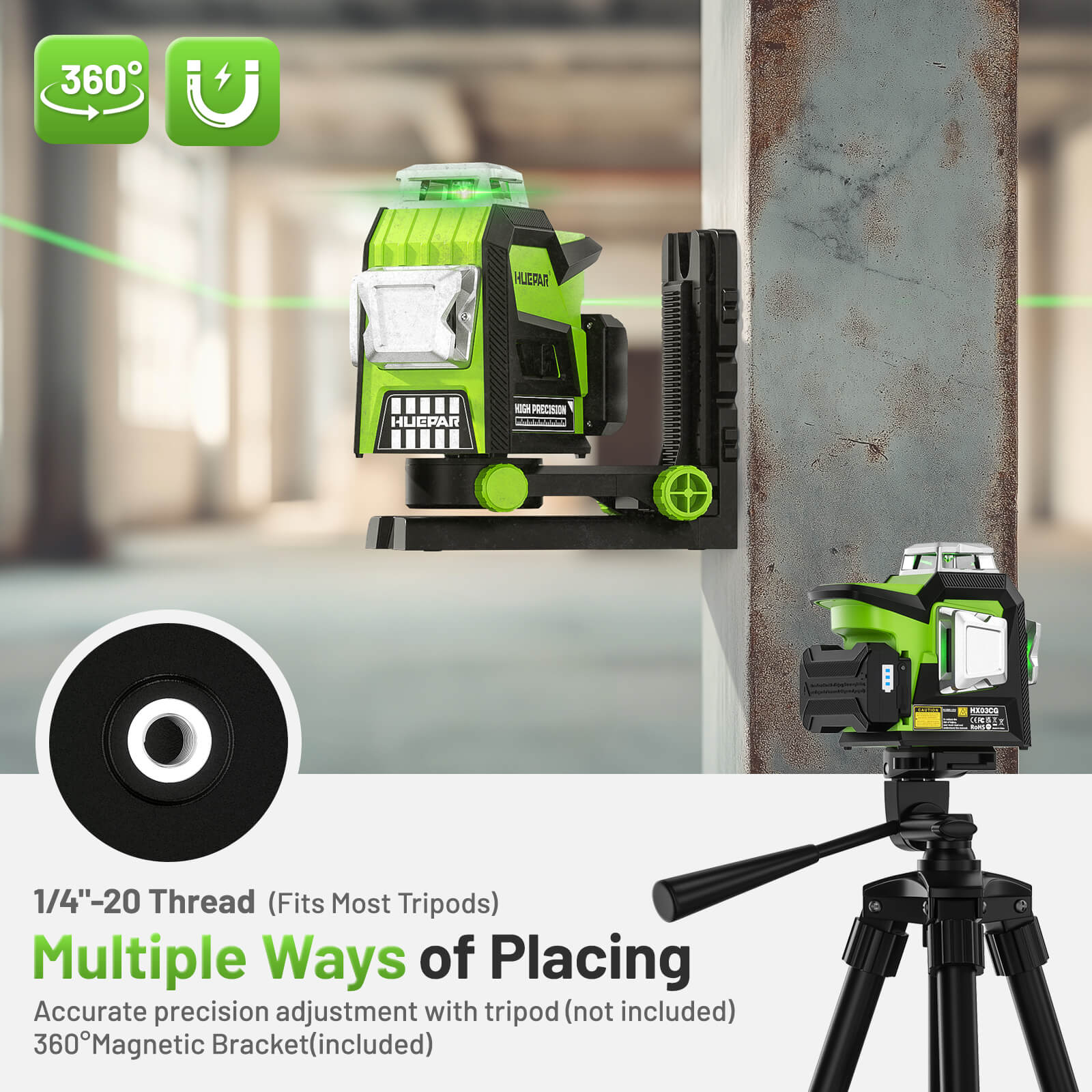

360° Multi-Functional Magnetic Bracket
The Huepar HX03CG comes with a 360° Multi-Functional Magnetic Bracket, designed for effortless versatility. Whether you're positioning the device on a wall, column, or using a tripod (not included), this bracket provides flexible mounting solutions, ensuring precise alignment in any scenario.
Additionally, the 1/4"-20 Thread compatibility means it easily fits most standard tripods, offering stability and control for the most demanding projects. With this tool, achieving top-tier accuracy and professionalism becomes second nature.

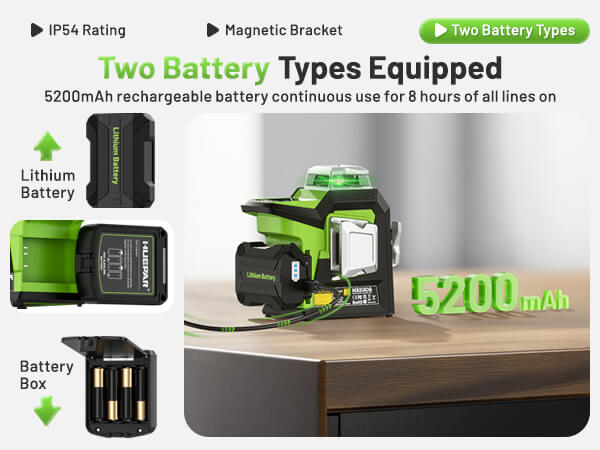

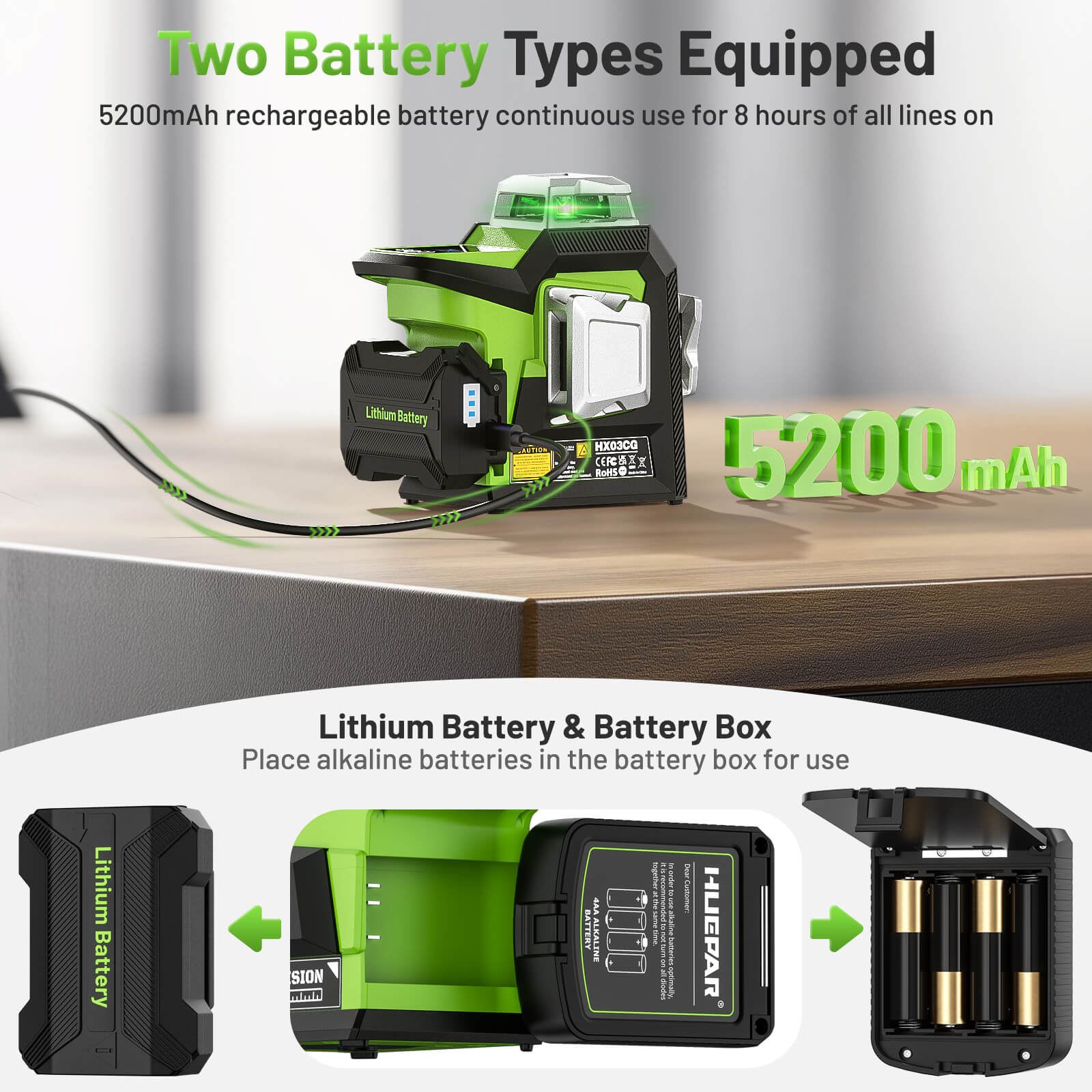

Lithium Battery + Battery Box
Two Battery Types Equipped for Maximum Flexibility
The Huepar HX03CG offers dual battery options, giving you the freedom to choose between a powerful 5200mAh lithium battery or a convenient battery box. The rechargeable 5200mAh lithium battery allows for continuous use for up to 8 hours with all lines active, ensuring long-lasting performance on demanding projects. Alternatively, the battery box offers flexibility by allowing the use of standard AA batteries, providing a reliable backup when needed. This thoughtful design keeps your work uninterrupted, giving you the power to stay productive, no matter the task at hand.
Huepar HX03CG VS Others
More accurate & Smart Laser Measurement Solutions
- Function: An LCD display shows real-time status, unlike many similar products that lack this feature.
- Accuracy: Offers an accuracy of ±1/13 inch at 33 ft, significantly surpassing other products with ±1/9 inch.
- Brightness: Features 3 adjustable brightness levels to adapt to different lighting conditions, guaranteeing laser visibility. Competing models often lack this adjustability, limiting usability.
- Operation Modes: Supports Self-Leveling, Manual, Auto Sensor, and Pulse Modes, offering more flexibility than products with only basic modes.
Huepar HX03CG

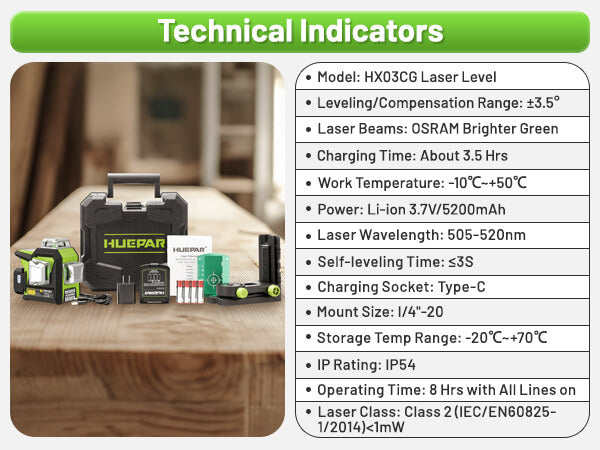

Technical Indicators
- Model: HX03CG Laser Level
- Leveling/Compensation Range: ±3.5°
- Laser Beams: OSRAM Brighter Green
- Charging Time: About 3.5 Hrs
- Work Temperature: -10°C~+50°C
- Power: Li-ion 3.7V/5200mAh
- Laser Wavelength: 505-520nm
- Self-leveling Time: ≤3S
- Charging Socket: Type-C
- Mount Size: 1/4"-20
- Storage Temp Range: -20°C~+70°C
- IP Rating: IP65
- Operating Time: 8 Hrs with All Lines On
- Laser Class: Class 2 (IEC/EN60825-1/2014)<1mW
In the Box
Specifications
Laser Info
Osram Green Beam

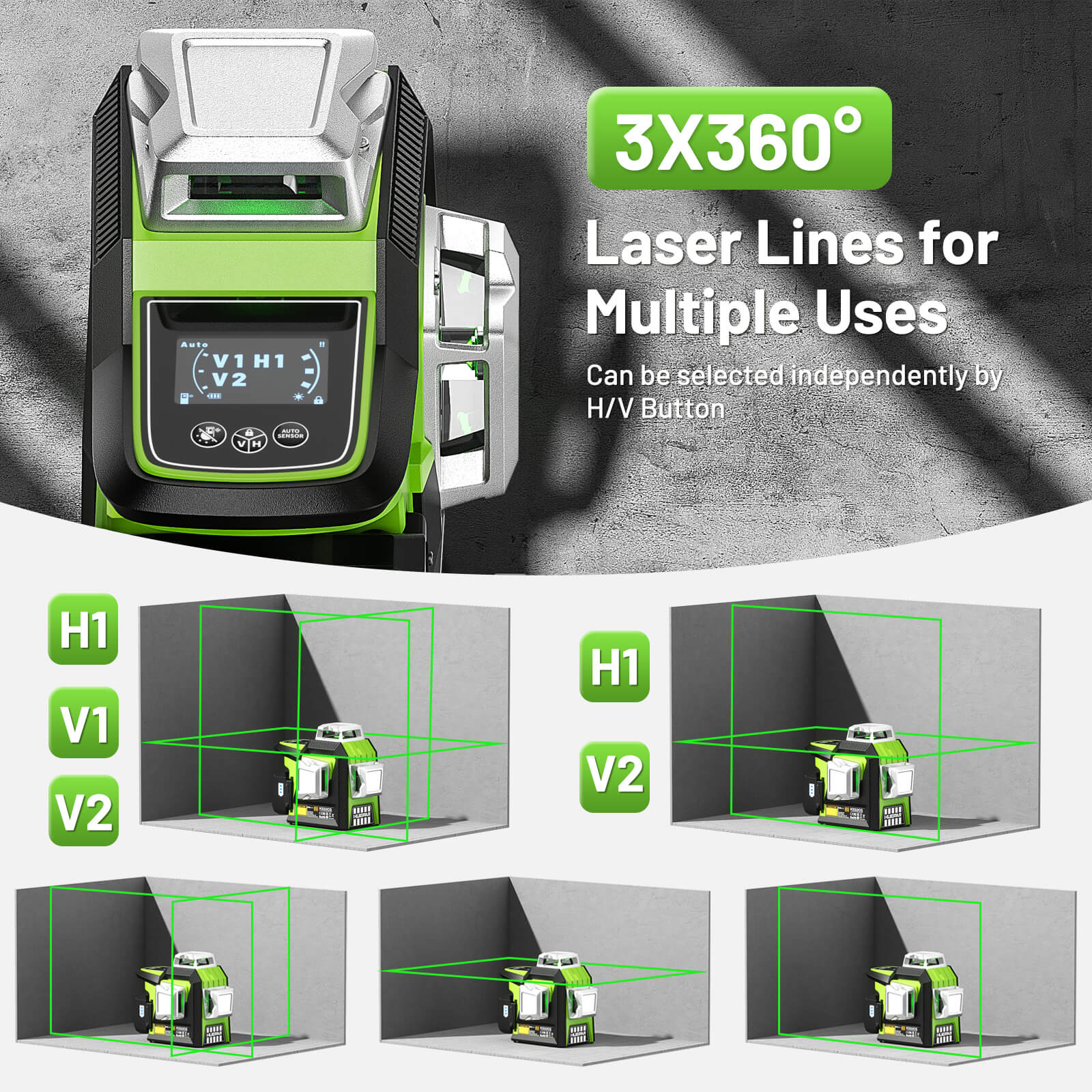

3 x 360° 12 Line Laser Levels
Wavelength 505-520nm
Class 2 (IEC/EN60825-1/2014)
Laser Accuracy
±2mm/10m
(±1/13 in. at 33 ft)
Leveling Range / Time
±3.5°
3 seconds
Working Range
Max Working Distance
30m/98ft
60m/197ft with Pulse Mode
Minimum Distance From The Ground
-
Minimum Distance From The Wall
-
Power System
Li-ion Battery 3.7V 5200mAh
Working Time 8 hrs
Charging Time 3.5 hrs
TYPE-C Charing Port
Durable Design
Working Temperature
-10℃ ~ 50℃ (14℉ ~ 122℉)
Storage Temperature
-20℃ ~ 70℃ (-4℉ ~ 158℉)
Main Material
ABS + Plastic
IP Rating
IP54
Dimensions
Model Weight
-g ( pounds)
Model Size
-x -x mm
Item Weight
2.83kg (4.7 pounds)
Package Dimensions
25.5 x 13.2 x 23.7cm
(10.1 x 5.2 x 9.3 inches)
Suitable Accessories
Mount Size
1/4''-20
Laser Detector
LR5RG/LR6RG/LR8RG
Tripod
LP36/TPD05/TPD14/TPD16
Base Adapter
AT2/PV3/PV10+/PV11+

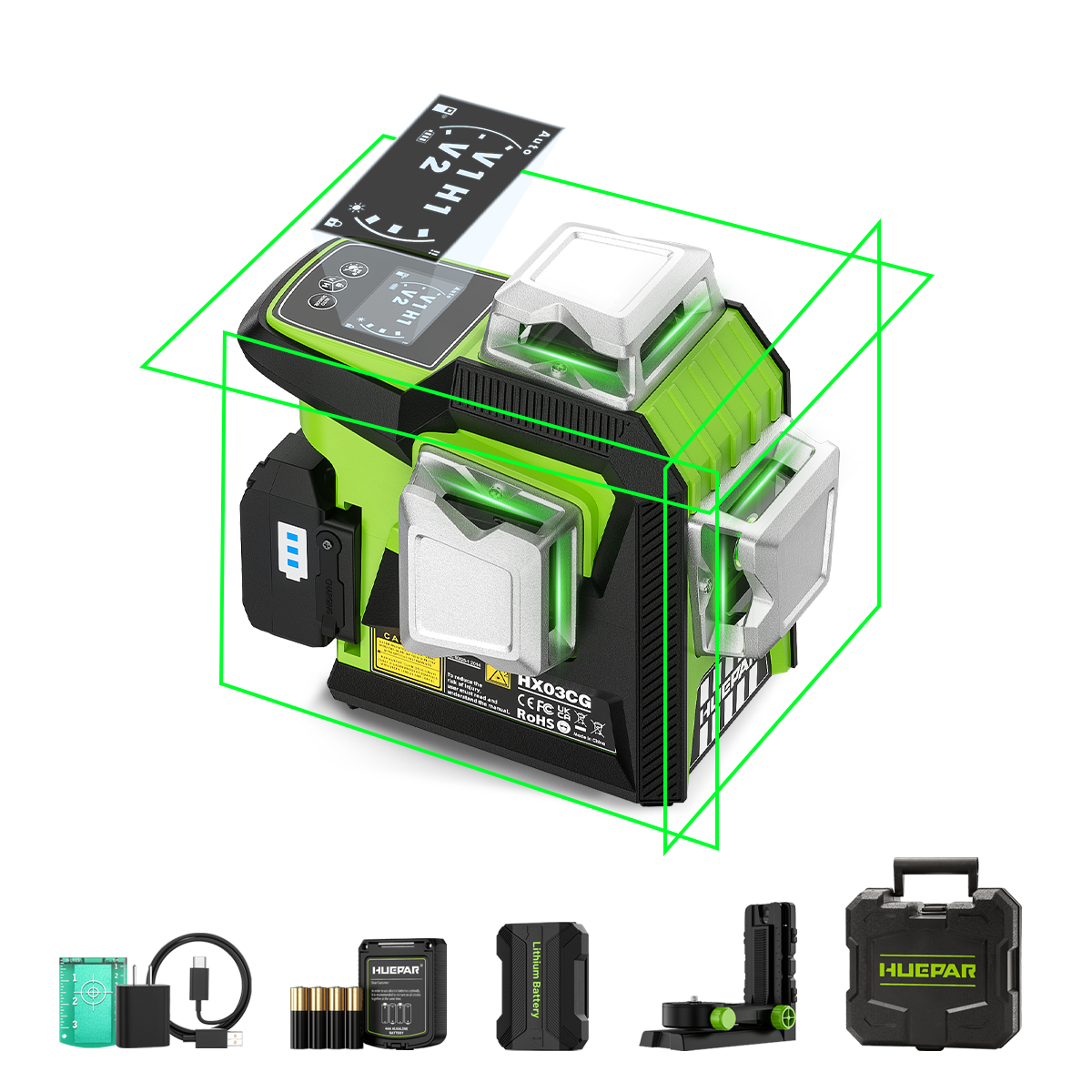

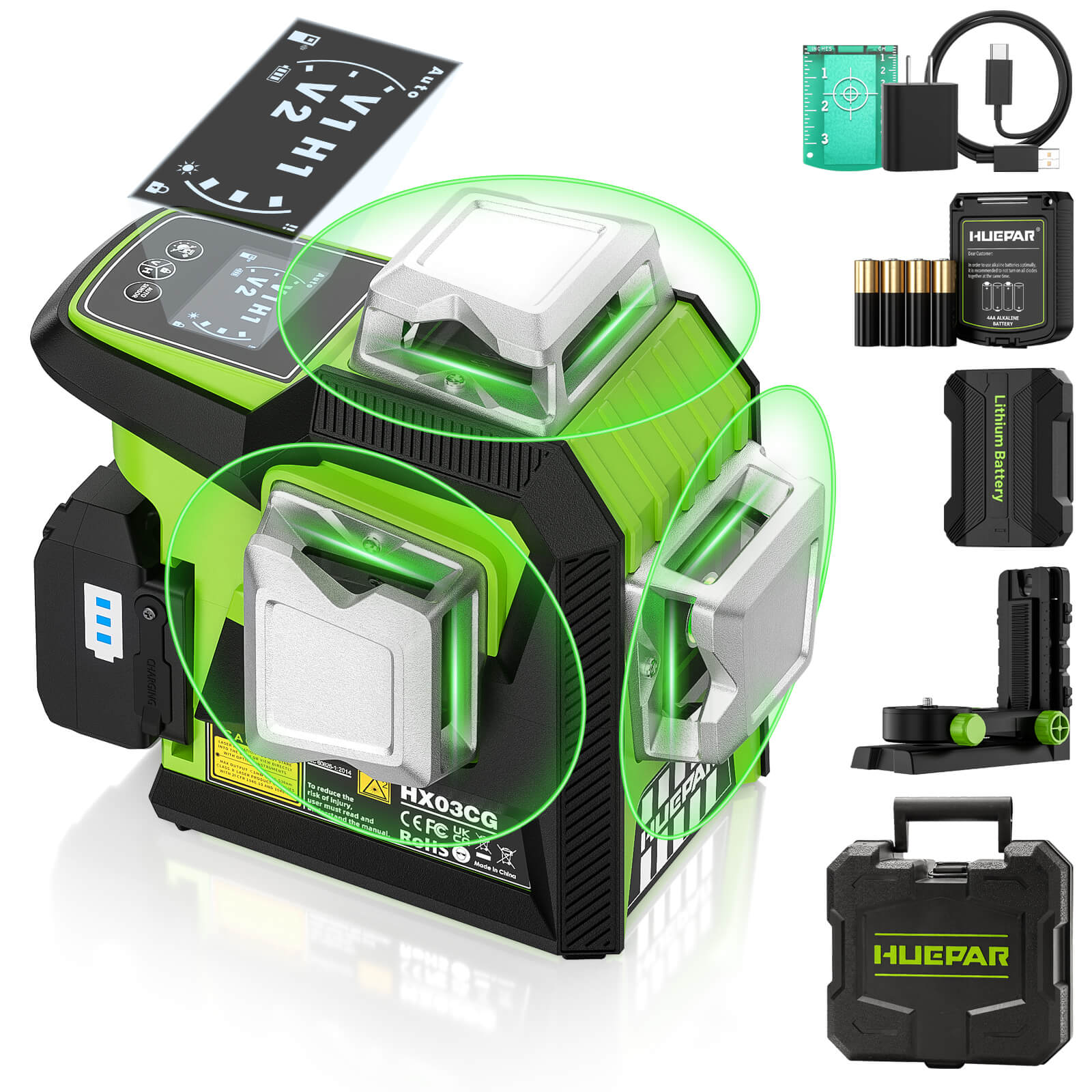

Packing List
1 x HX03CG
1 x 3.7V/5200mAh Lithium Battery Pack (with charging port)
1 x 5V2A Adapter
1 x USB Charging Cable (Black, 1 meter)
1 x Target Plate
1 x Dry Battery Box
1 x Multi-Function Fine-Tuning Hanger
1 x Multi-Language User Manual

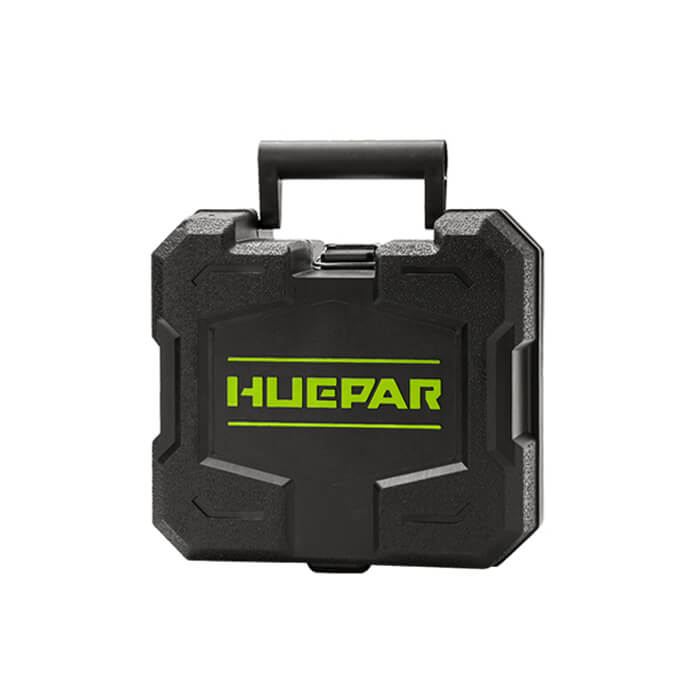

1 x Hard Carrying Case
1 x Huepar Kraft Paper Packaging Box
Endorsed By
All buttons are tested to ensure proper functionality.
The switch is tested repeatedly to ensure that the machine works stably.
Make sure the charging interface is working properly and not loose.
Laser tube aging test to ensure no brightness attenuation.
Waterproof and dustproof, ensuring normal use in dusty environments.
Simulate natural drops while maintaining accuracy.
Simulate complex transportation environments to ensure unchanged accuracy.
Make sure the device can work normally between -10℃ ~ 50℃
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
