Huepar PV10+ Fine-tuning Bracket Adapter

• Positioning Device for Line Lasers: The laser level bracket with 1/4"-20 male thread, the maximum depth from the 1/4''-20 thread to the back of the bracket is 8.5cm. It is compatible with most cross line laser levels with 1/4" female thread. If your laser level has a 5/8" female thread, please purchase the conversion screw adapter AD5/8 separately.

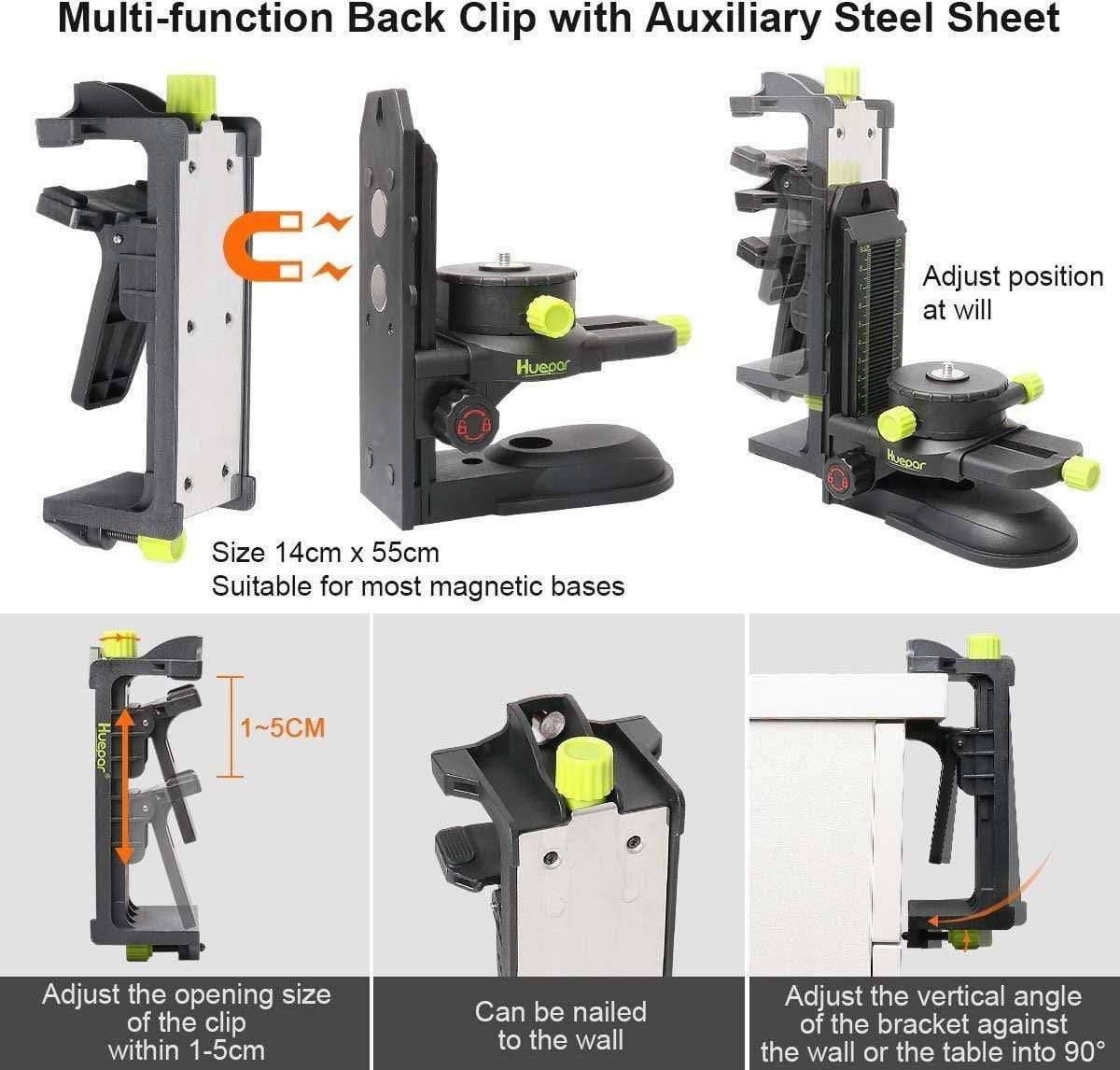

• Multi-functional Auxiliary Back Clip: A separate back clip included in the kit is compatible with most magnetic bases on the market, increasing the adsorption force of the magnets and stability. The Back Clip offers the ability to mount to any object up to 5cm thick. The vertical angle against the wall can be adjusted by the fine-tuning knobs as well as the opening size of the clip. A nail hole in the clip enables to be fixed firmly on the wall.

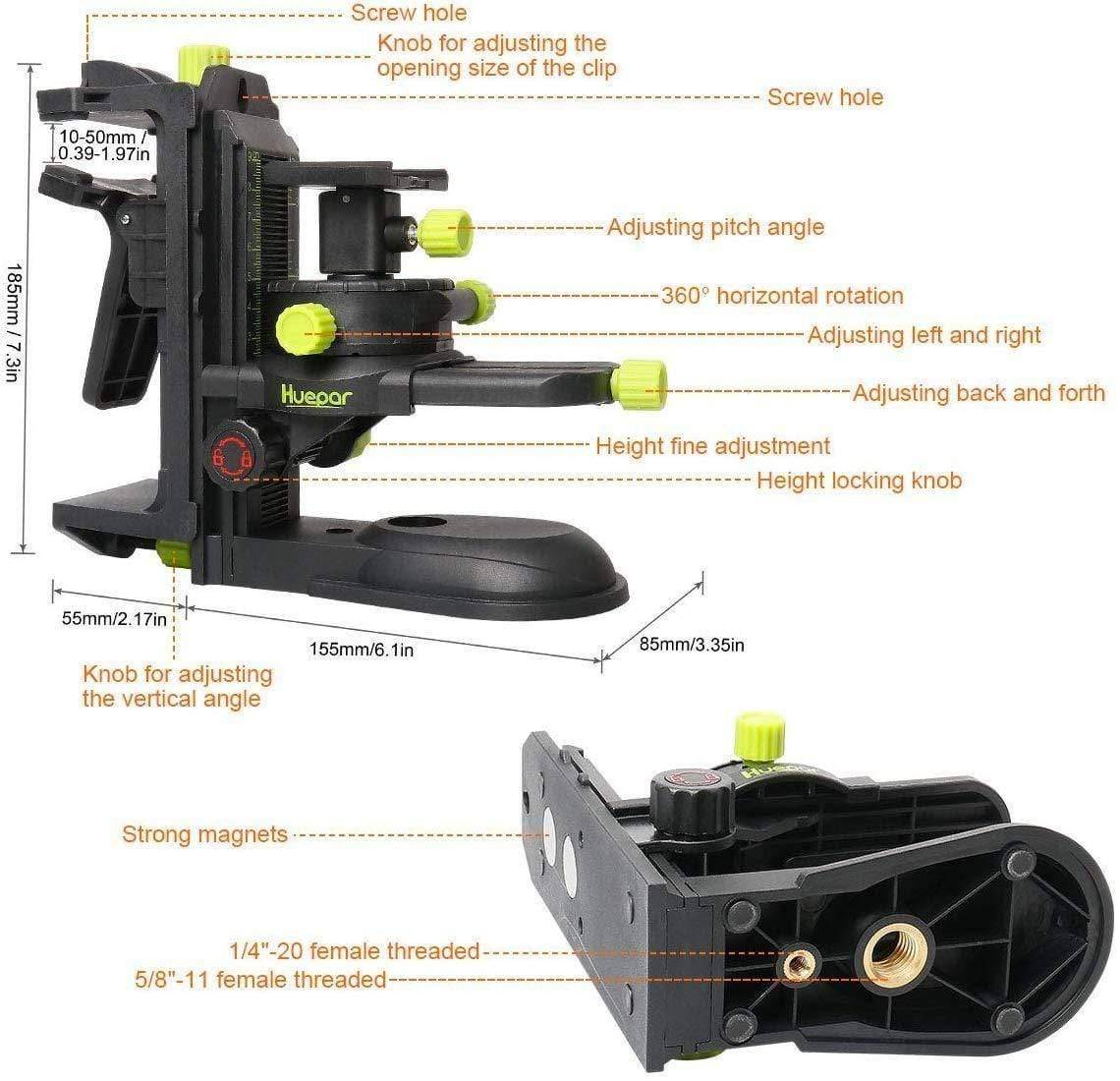

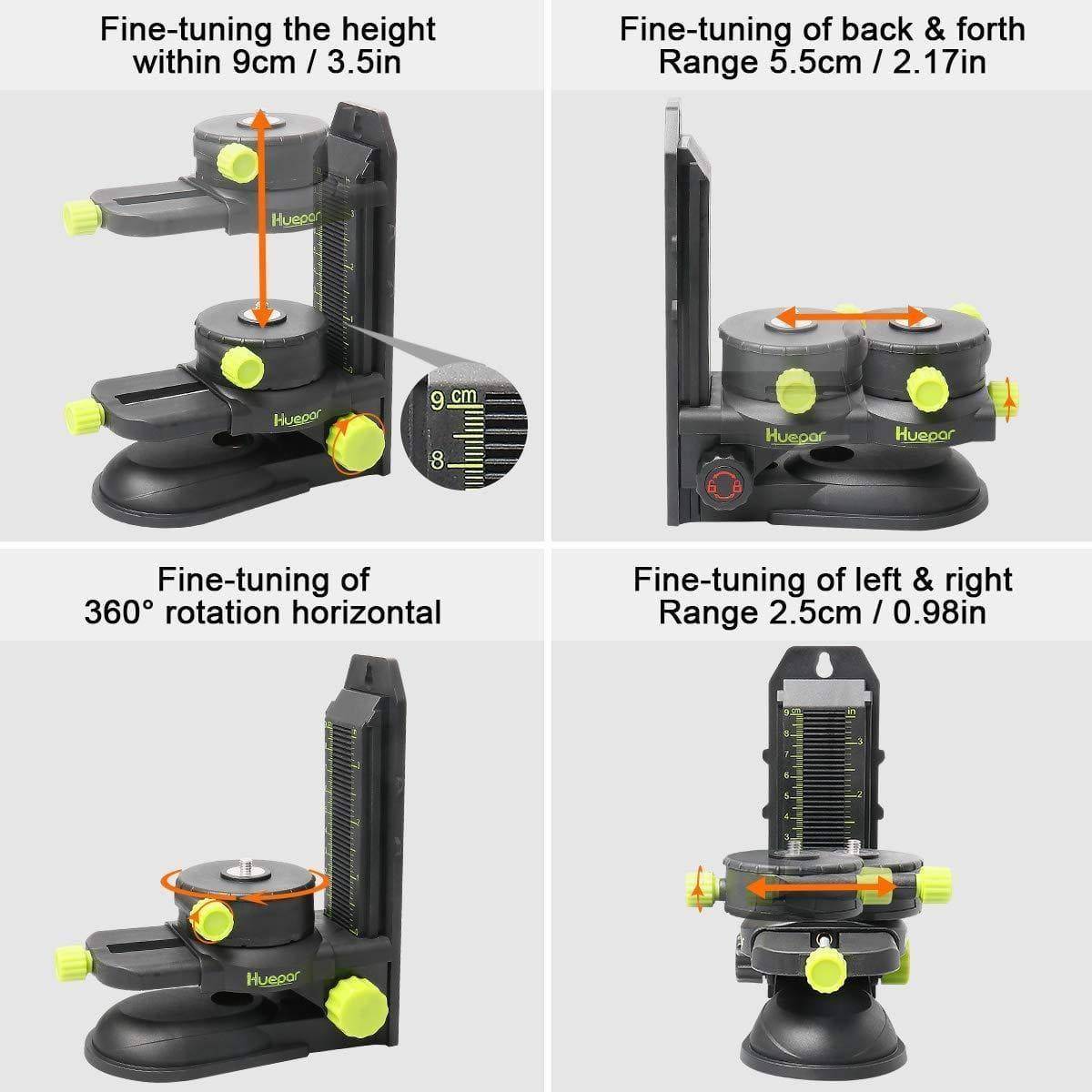

• Multi-directional Fine-tuning Bracket: There are four fine adjustment knobs on the laser level bracket, help to adjust the left and right position within 3cm, the front and back position within 5.5cm, the height within 9 cm, and the horizontal rotation 360°. An added locking knob enables to fix the working height and avoid sliding up and down. The graduations are marked in inches and centimeters for easy readouts.

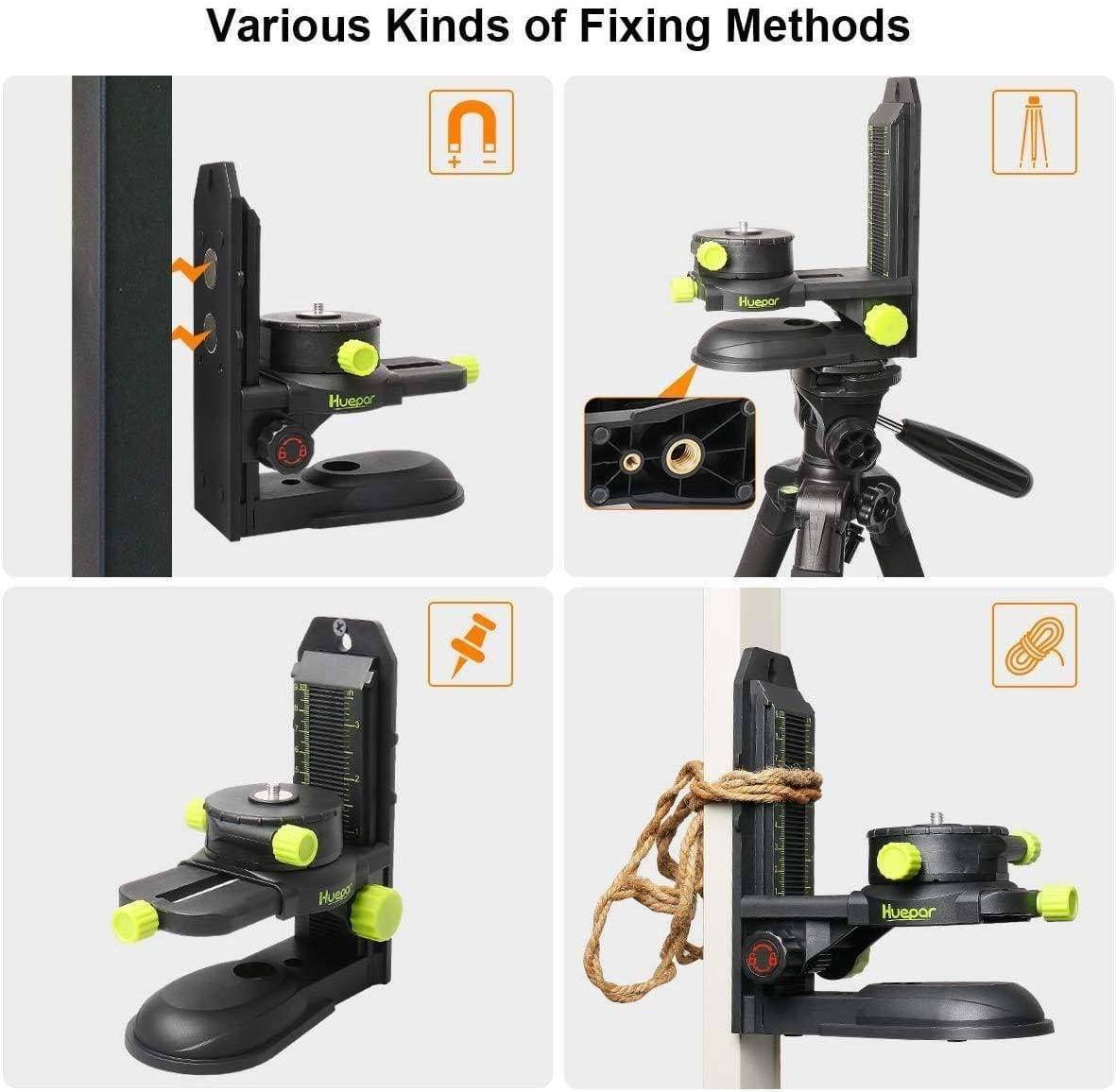

• Multiple Installation Methods of the Bracket: 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole. With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces. Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer. Huepar PV10+ Positioning Bracket is ideal for any job site.

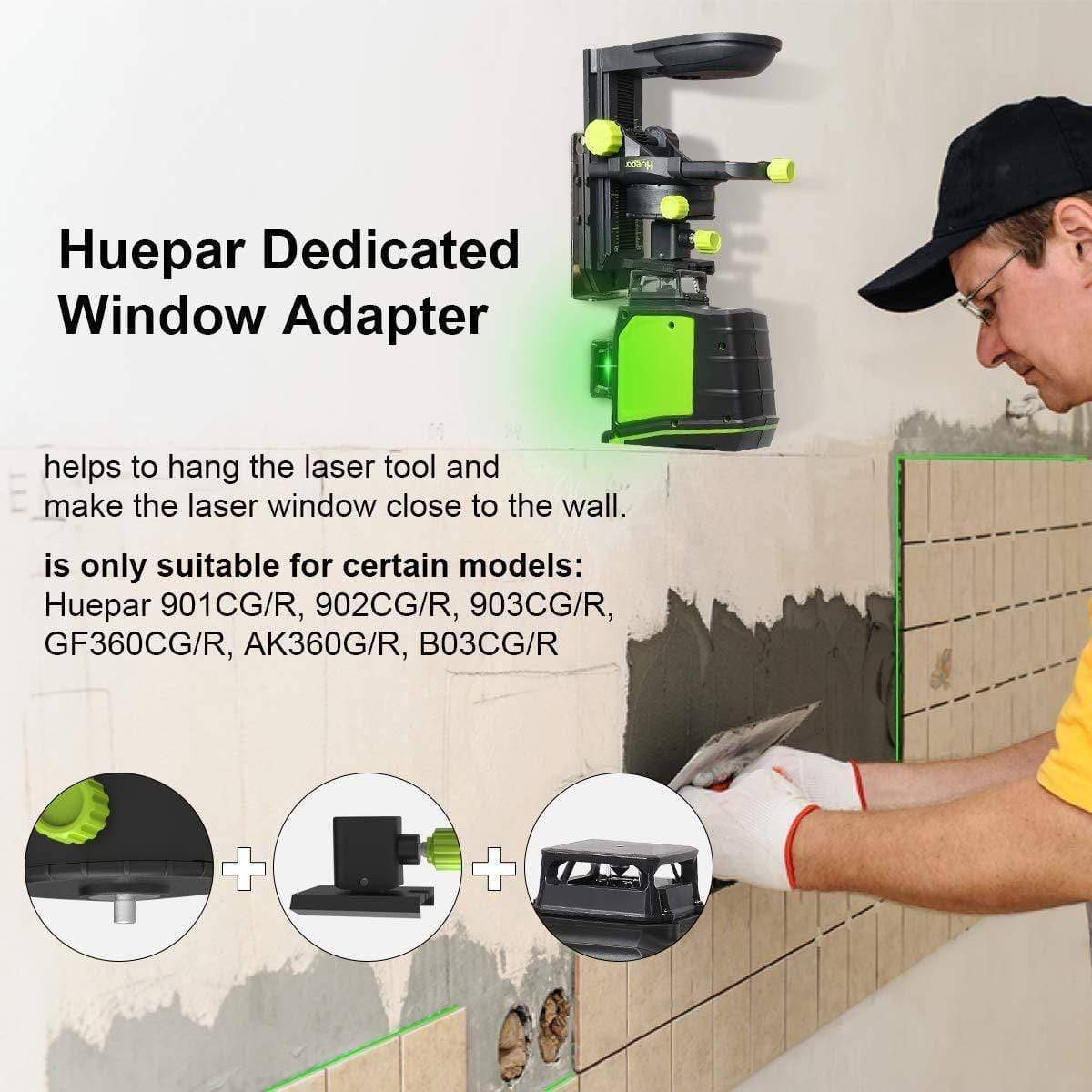

• Huepar Dedicated Laser Window Adapter: A dedicated Huepar laser level adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways. The fine-tuning knob on the adapter is for adjusting pitch angle. Due to the special design of the groove, Huepar laser level adapter is only suitable for certain models: Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

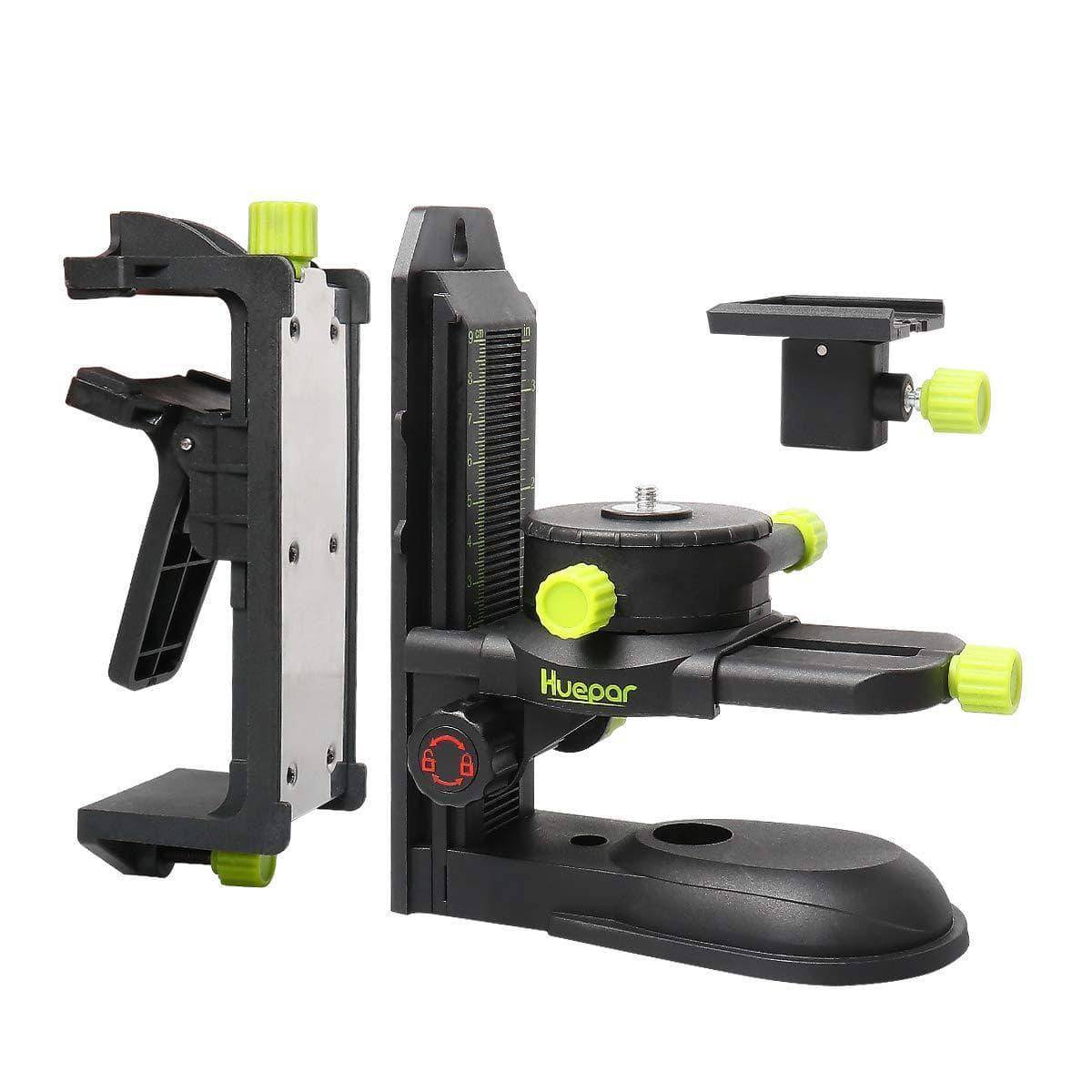

1 x Magnetic Pivoting Bracket
1 x Multi-functional Auxiliary Back Clip
1 x Huepar Dedicated Laser Window Adapter
1 x Operation Instruction
