Huepar S03DG Laser Level
Huepar S03DG Laser Level
Huepar S03DG Laser Level
Tax included, shipping calculated at checkout.
✅ LIMITED DEALS
Select Option
Add Top Accessories
Huepar LR8RG - Laser Detector/Line Laser Receiver
Huepar TPD14 - 143CM/4.69Ft Tripod Adjustable
Huepar LP36 - 3.7m Lasers Level Adapter Tripod
Expand Extended Warranty?
Out of stock
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with Hermes/Royal Mail
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
-

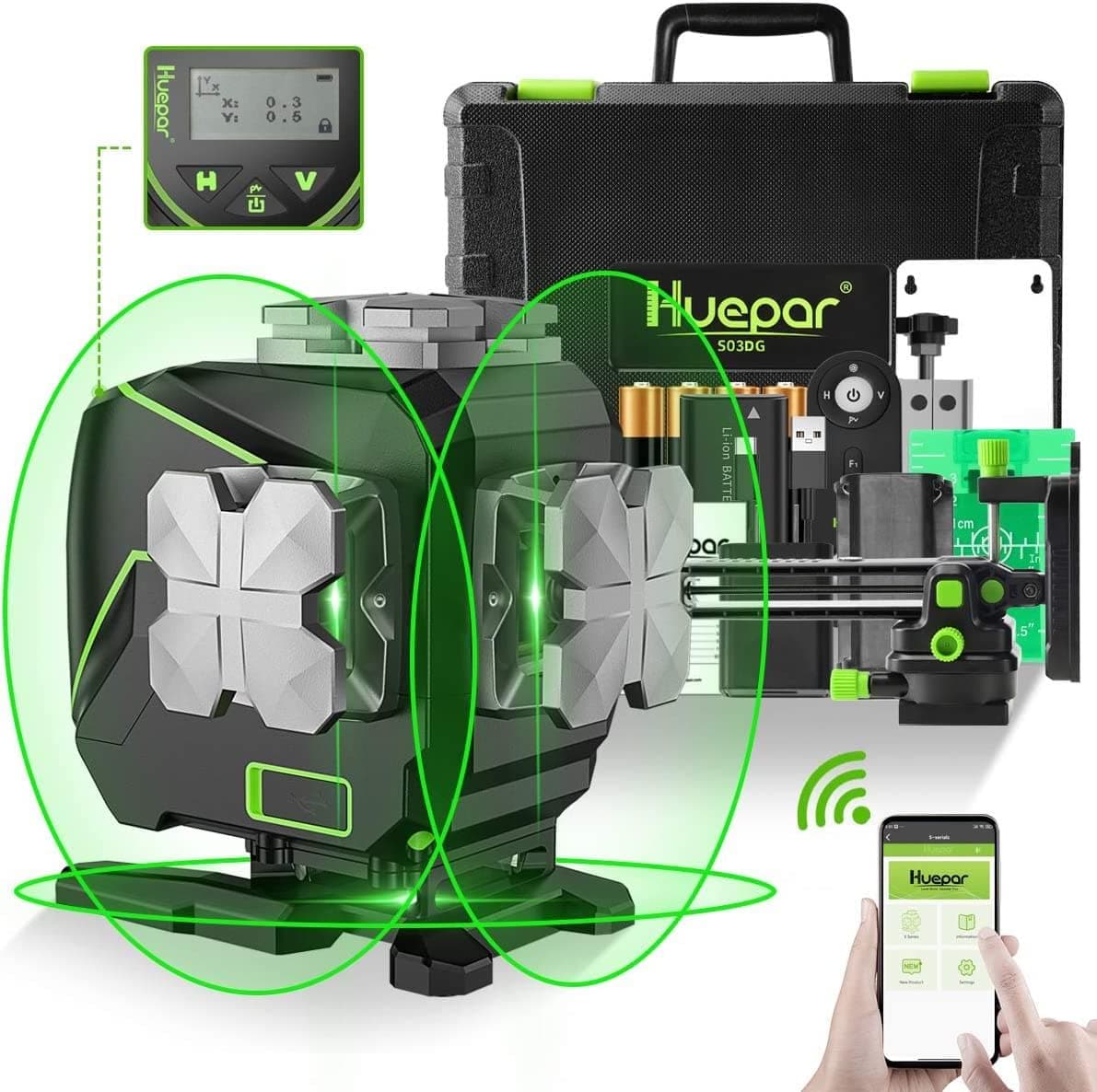

3 x 360° WITH FLOOR LINE LASER: This laser tool projects one 360° horizontal floor laser line for tiling installation. With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height. Two vertical lines cross at 90°angles makes user quickly visualize and finish square layout. This 3 x 360 laser level is a complete tool for covering the floor, wall, ceiling all around the room.
-
LCD DISPLAY & BLUETOOTH TECH: The laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.
-
TRIPLE POWER METHODS & TYPE-C PORT: This 360 laser tool adopted large capacity Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. The Li-ion battery has a Type-C charging port to be charged separately and can also be charged by phone, laptop, power bank, car charger, etc. The included battery holder is for installing 4 AA batteries to use the tool. The laser tool can be used at job site by plugged in when taking out the battery.
-
MULTIFUNCTIONAL LASER TOOL: The three 360° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.
-

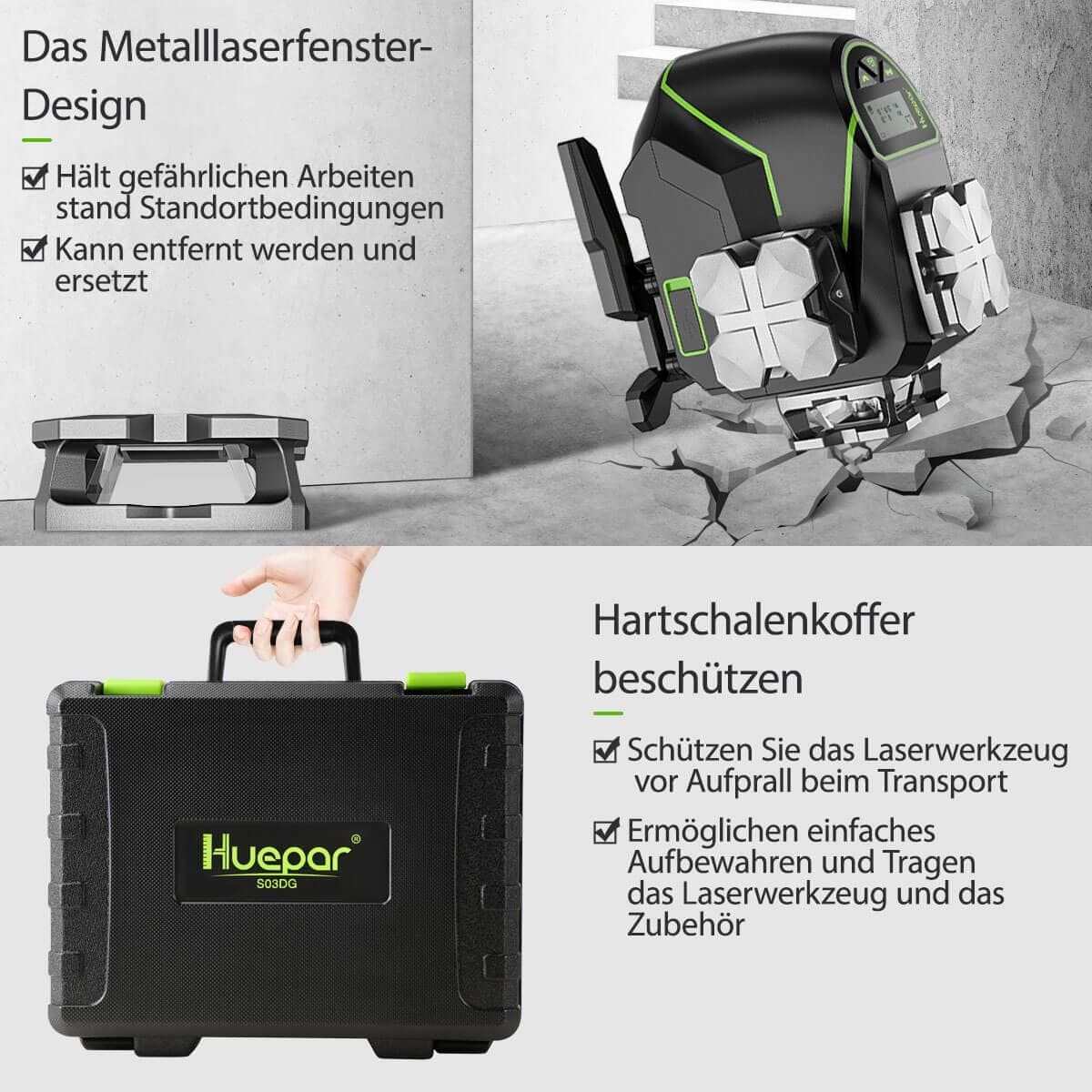

MAGNETIC BRACKET & DURABLE DESIGN: Strong magnetic bracket allows for quick positioning to metal surfaces. And the 1/4"-20 & 5/8"-11 mounting threads on the bracket enable to mounted to different tripod threads. The laser tool also has a 1/4"-20 mount thread to suit a tripod or pole mount. IP54 water/dust resistance can withstand tough job site conditions. The kit has a hard carry case bringing much more convenience to carry and store the laser tool.

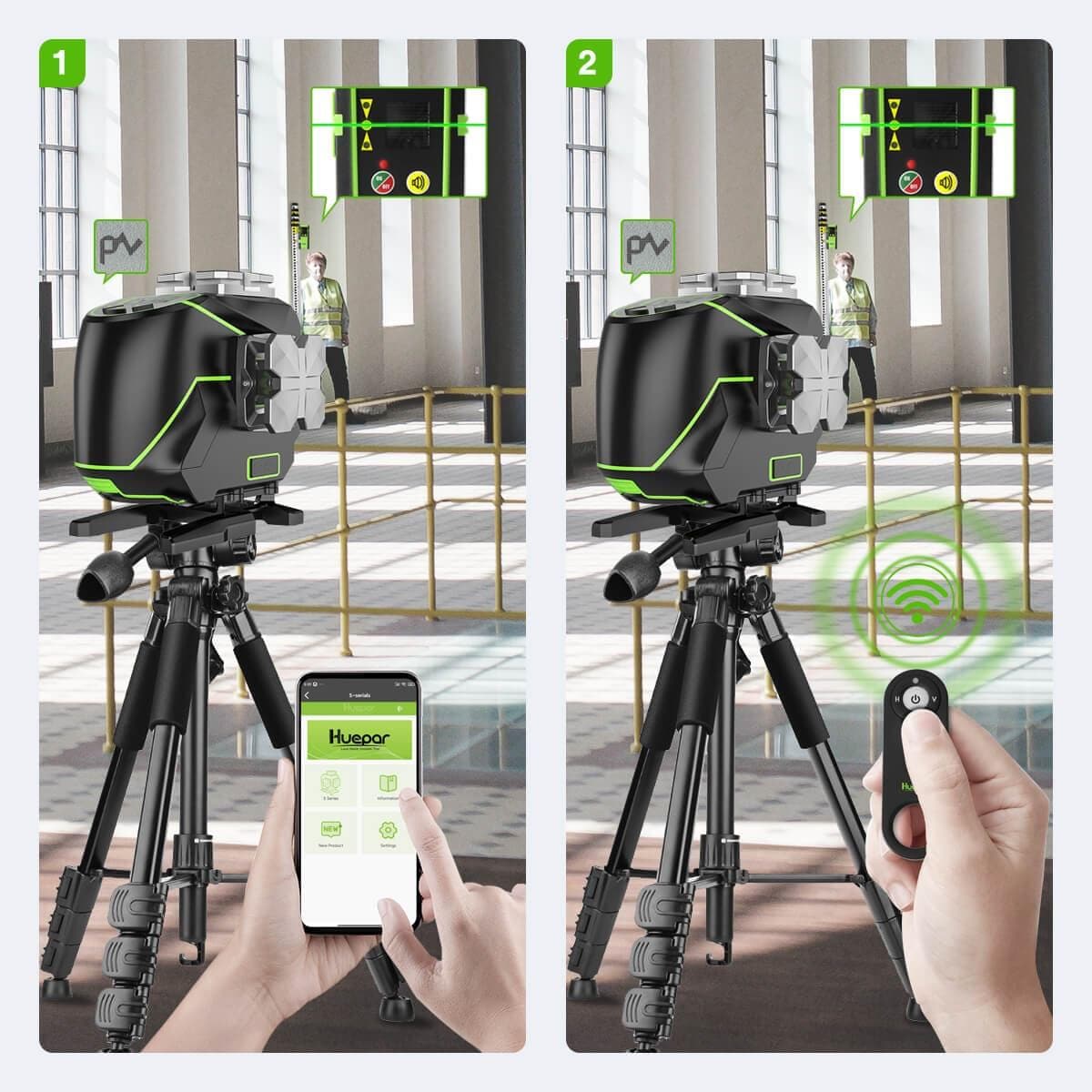

Lines Switching&Bluetooth Technology
- Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
- The Bluetooth remote control / Huepar APP enables to select three 360° laser lines individually at a distance up to 98Ft.
- The laser line(s) can be temporarily turned OFF by the remote control/Huepar APP when need to leave for a while.
- In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.
- The laser tool can connect two Bluetooth devices simultaneously. It can connect two Bluetooth remote controls, or two smart phones(whether on Android or iOS), or one Bluetooth remote control and one smart phone at the same time.

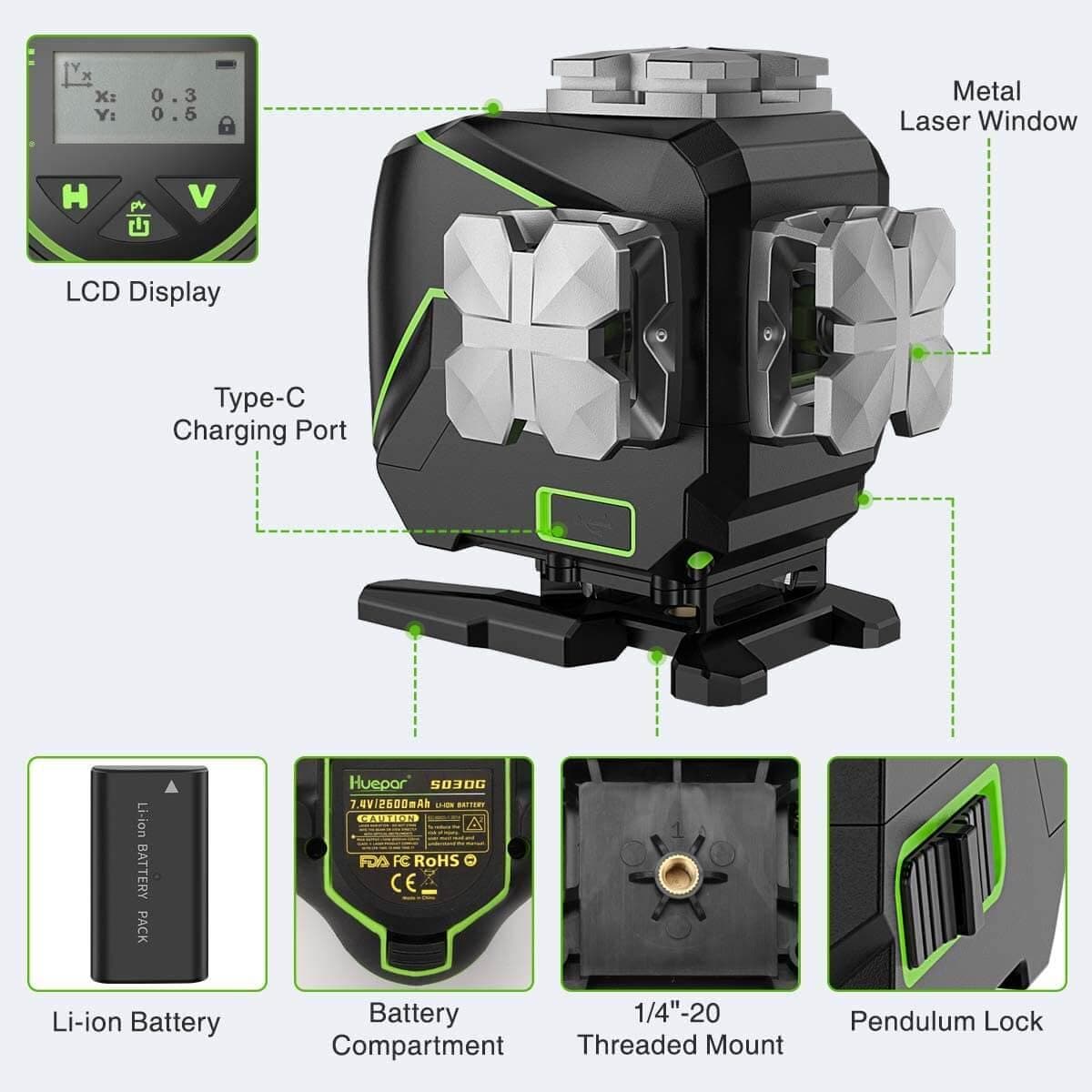

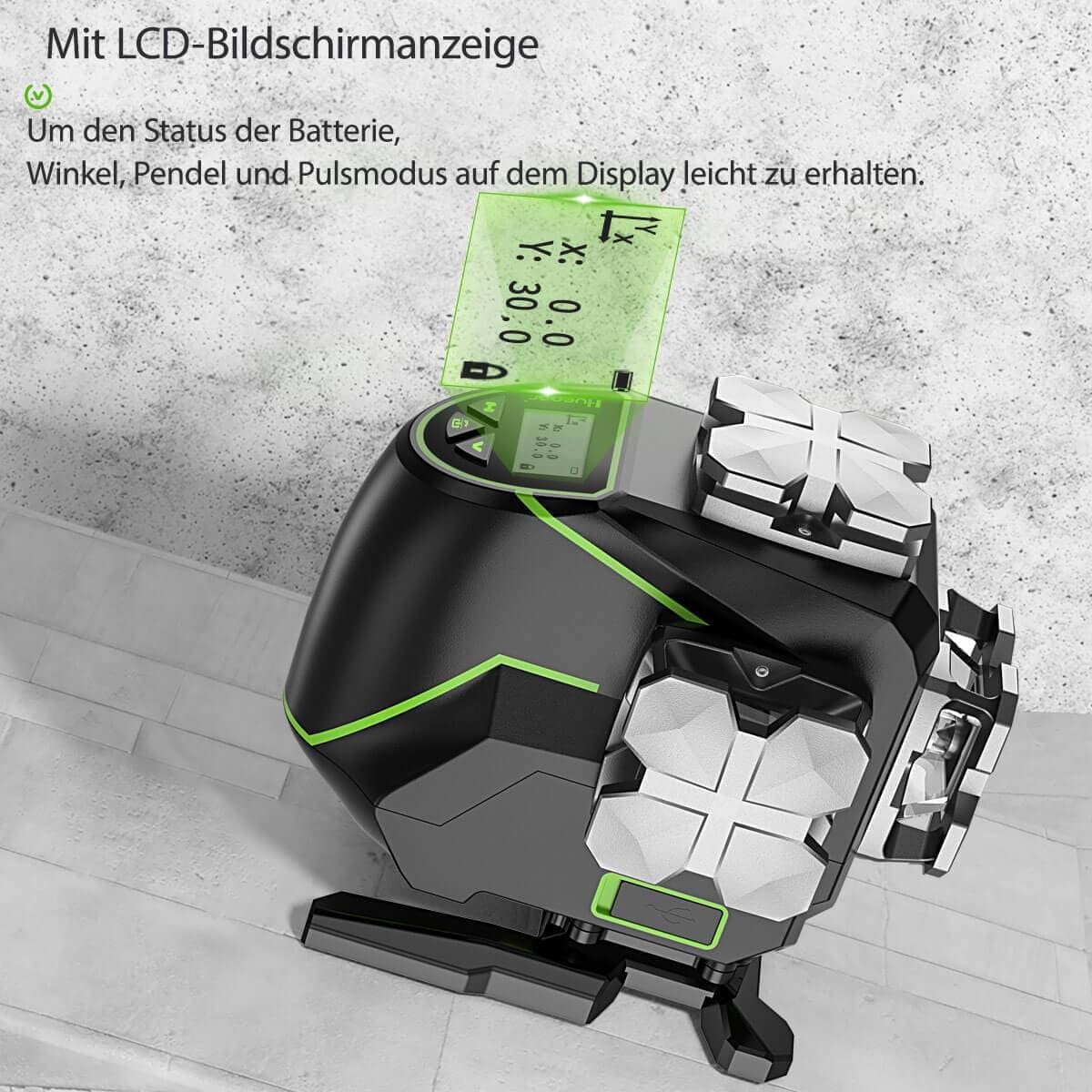

LCD Screen Display
- Huepar S03DG laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display.
- Icons on LCD screen: battery level, pendulum locked&unlocked status, X axis tilt angle, Y axis tilt angle, X/Y axis tilt direction, pulse mode.
360° Horizontal Tiling Laser&Lifting Base
- Huepar S03DG floor laser tool generates one 360°horizontal tiling laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.
- With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height.
Pulse Mode
- After power on, short press the power button to switch ON/OFF the pulse mode.
- When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP and remote control.
- Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
- It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
- Note: Keep the pulse mode on when using with a receiver.

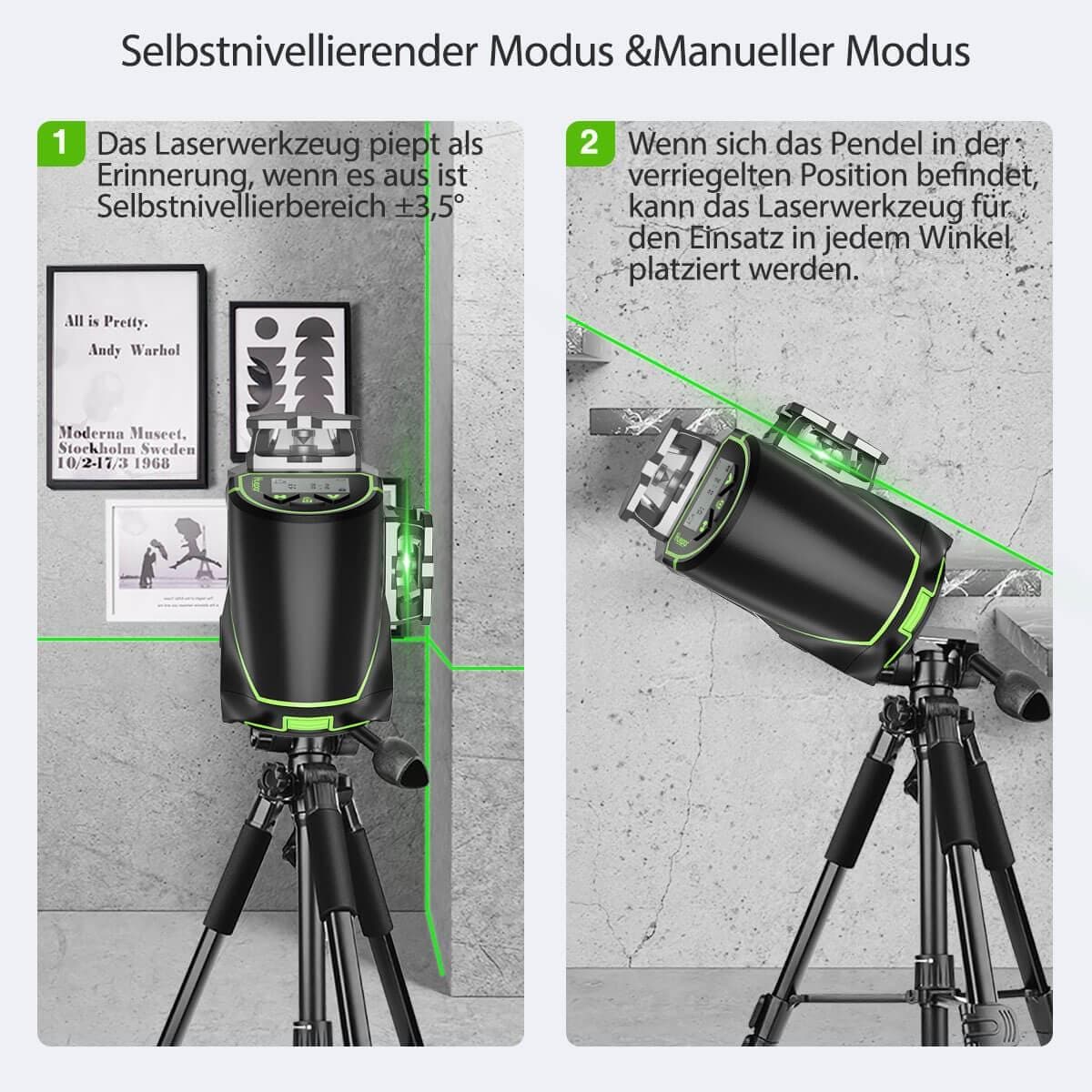

Self-leveling mode:
- Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.
- With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen.
Manual mode:
- When the pendulum is in the locked position, the laser tool can be placed for use at any angle.
- The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
- With Bluetooth Tech
Triple Power Methods
- This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.
- The Li-ion battery comes with type-c charging port that can be charged by laptop, power bank, car charger, etc.
- Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.
- The 12 lines laser level can be used at the work site by plugged in directly when taking out the battery.
- Equipped with a magnetic pivoting bracket, the laser tool can be rotated at 360° randomly.
- The fine-tuning knobs on the bracket enable adjustment of the left and right position, front and back position within 2.16 in (5.5cm) , can also help adjust and lock the height within 3.74 in (9.5cm).
- The graduations in both Inch and Metric on the bracket make the adjustment much easier.
- The magnetic bracket offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads.
- The laser tool also has 1/4"-20 mounting thread to suit for standard tripods or pole mounts.

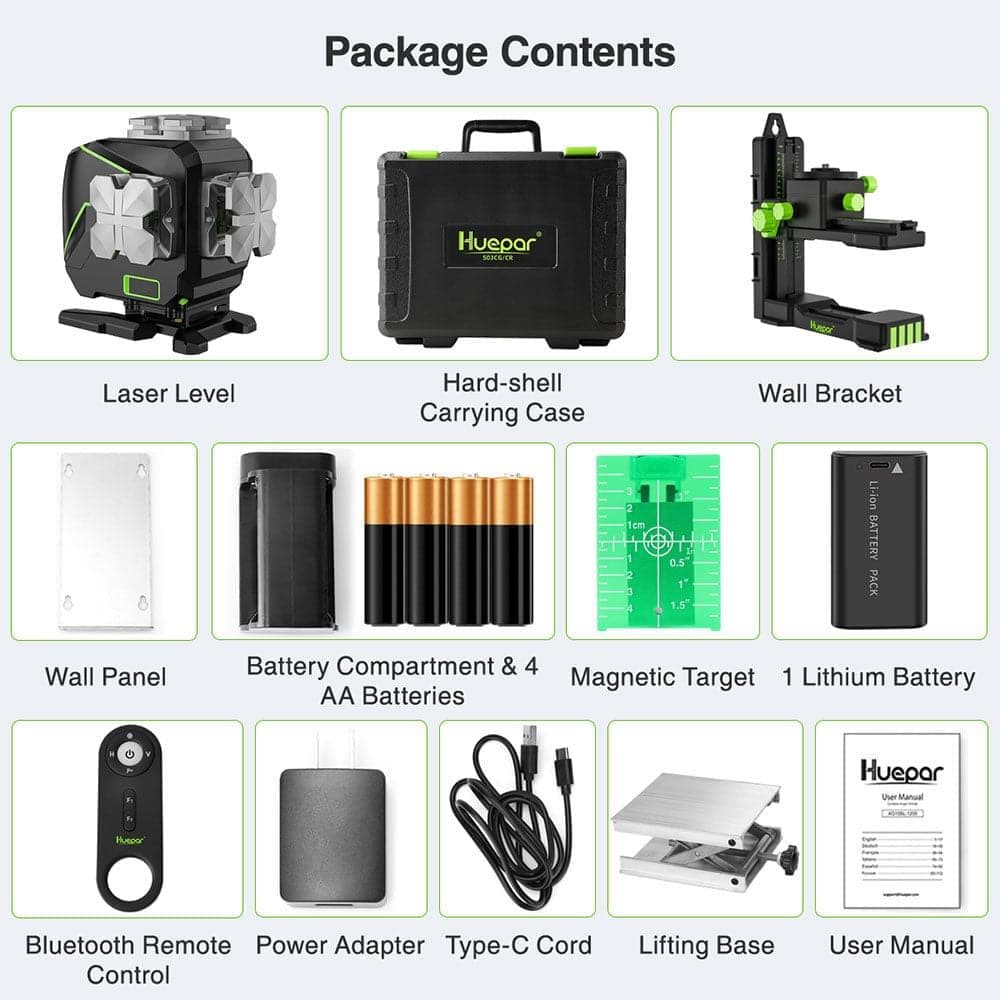

Package Contents:
- 1 x 3D Green Tiling Laser Level with LCD screen S03DG
- 1 x Bluetooth Remote Control
- 1 x Rechargeable Li-ion Battery
- 1 x Power Adapter&1 x Type-C cord
- 4 x AA (LR6) Batteries & 1 x AA Battery Holder
- 1 x Magnetic Bracket&1 x Steel Sheet
- 1 x Lifting Base
- 1 x Laser Target Plate
- 1 x Lase Level User Manual
- 1 x Hard Carry Case
Find your perfect laser level
 Huepar S03DG Laser Level£199.99 |  Huepar S03CG Laser Level£189.99 |  Huepar 903CG Laser Level£129.99 |  Huepar B03CG Laser Level£129.99 | |
|---|---|---|---|---|
| Product Info | ||||
Product SKU |
S03DG
|
S03CG
|
903CG
|
B03CG
|
Product type |
3D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
| Featured | ||||
Number of Lines |
|
|
|
|
Laser Lines |
|
|
|
|
Laser Beam Supplier |
|
|
|
|
Laser Beam Color |
|
|
|
|
Laser Wavelength |
|
|
|
|
Line Accuracy |
|
|
|
|
Leveling / Compensation Range |
|
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
|
Extra features |
|
|
—
|
—
|
Bluetooth Connectivity |
|
|
|
|
Remote Control |
|
|
|
|
Dot Accuracy |
|
|
|
|
Line Switching |
|
|
|
|
Pulse Laser Receiver Mode |
|
|
|
|
Working Range (60-100 LUX) |
|
|
|
|
Working Range with Detector |
|
|
|
|
AA Battery |
|
|
|
|
Li-ion Battery |
|
|
|
|
Working Time (Hours) |
|
|
|
|
Charging Time (Hours) |
|
|
|
|
Mount Size |
|
|
|
|
Durable Design |
|
|
|
|
Hard Carry Case |
|
|
|
|
Endorsed By
All buttons are tested to ensure proper functionality.
The switch is tested repeatedly to ensure that the machine works stably.
Make sure the charging interface is working properly and not loose.
Laser tube aging test to ensure no brightness attenuation.
Waterproof and dustproof, ensuring normal use in dusty environments.
Simulate natural drops while maintaining accuracy.
Simulate complex transportation environments to ensure unchanged accuracy.
Make sure the device can work normally between -10℃ ~ 50℃
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
