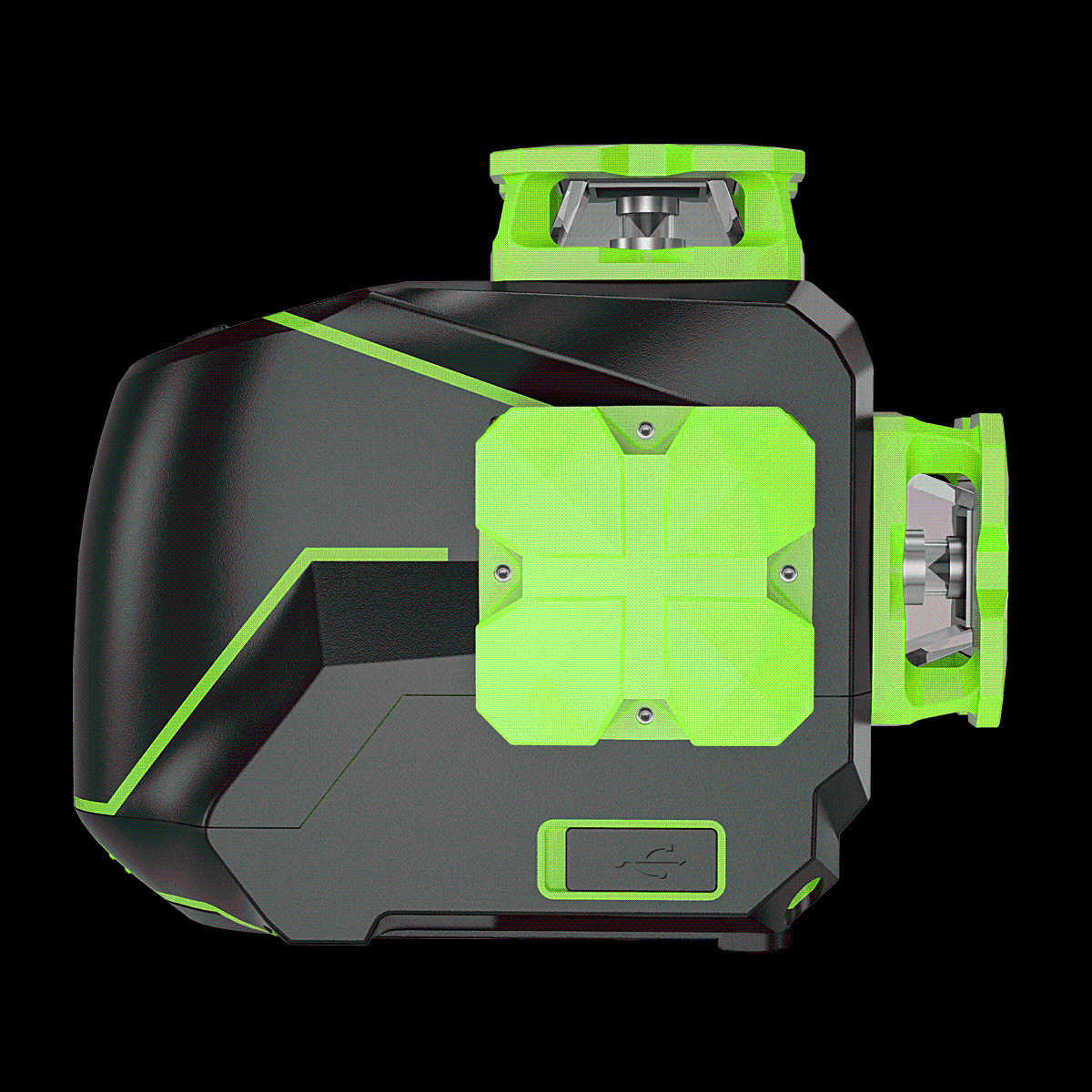

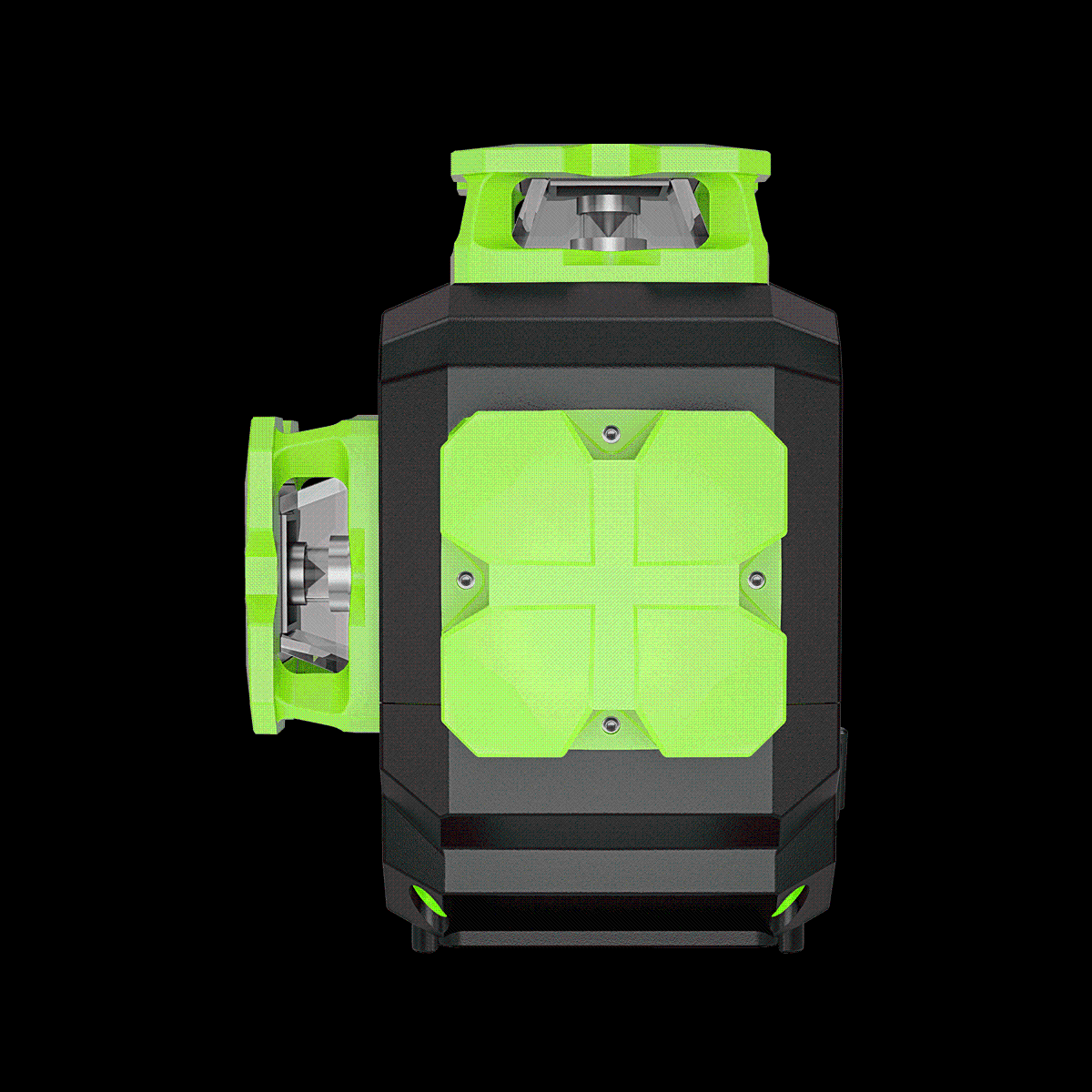

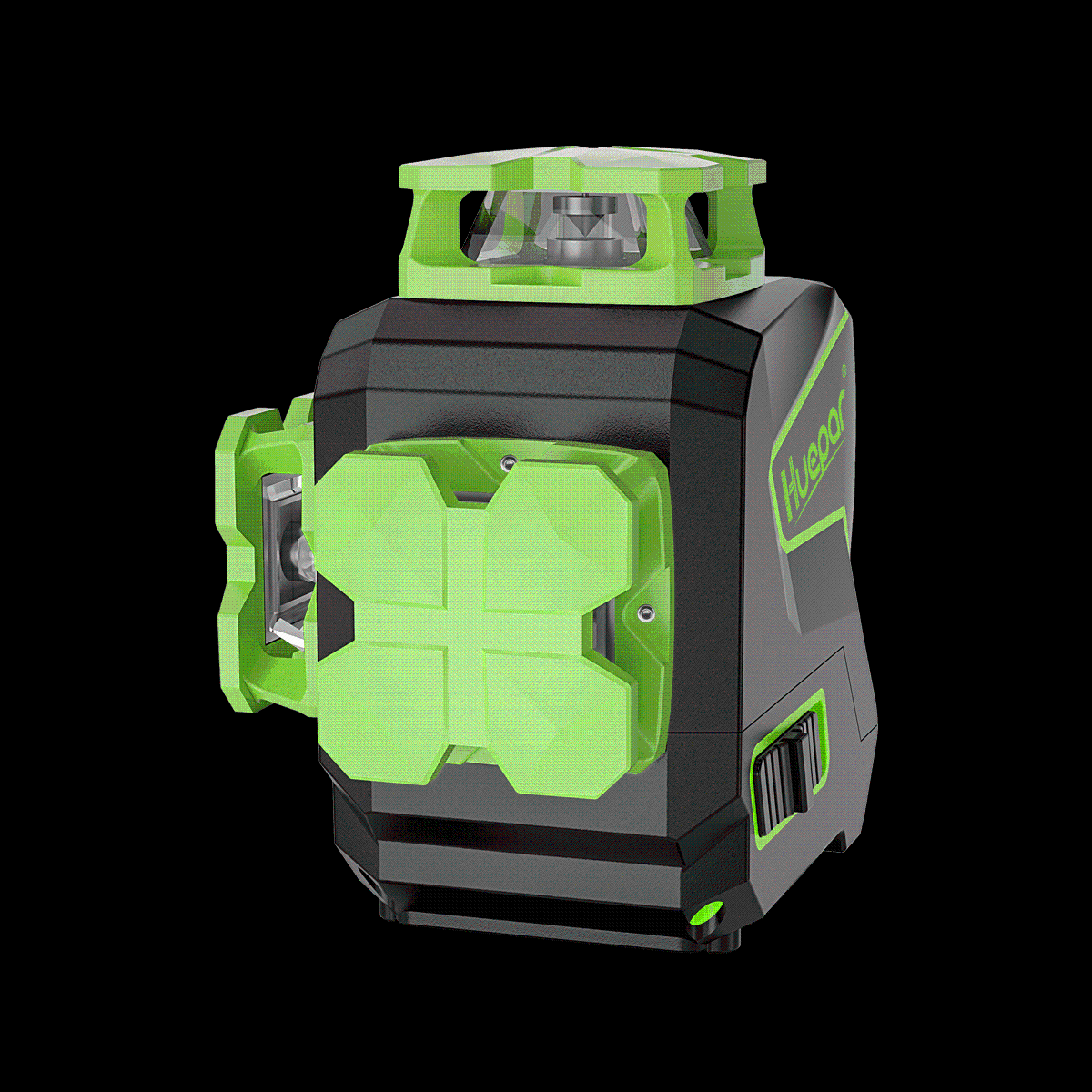

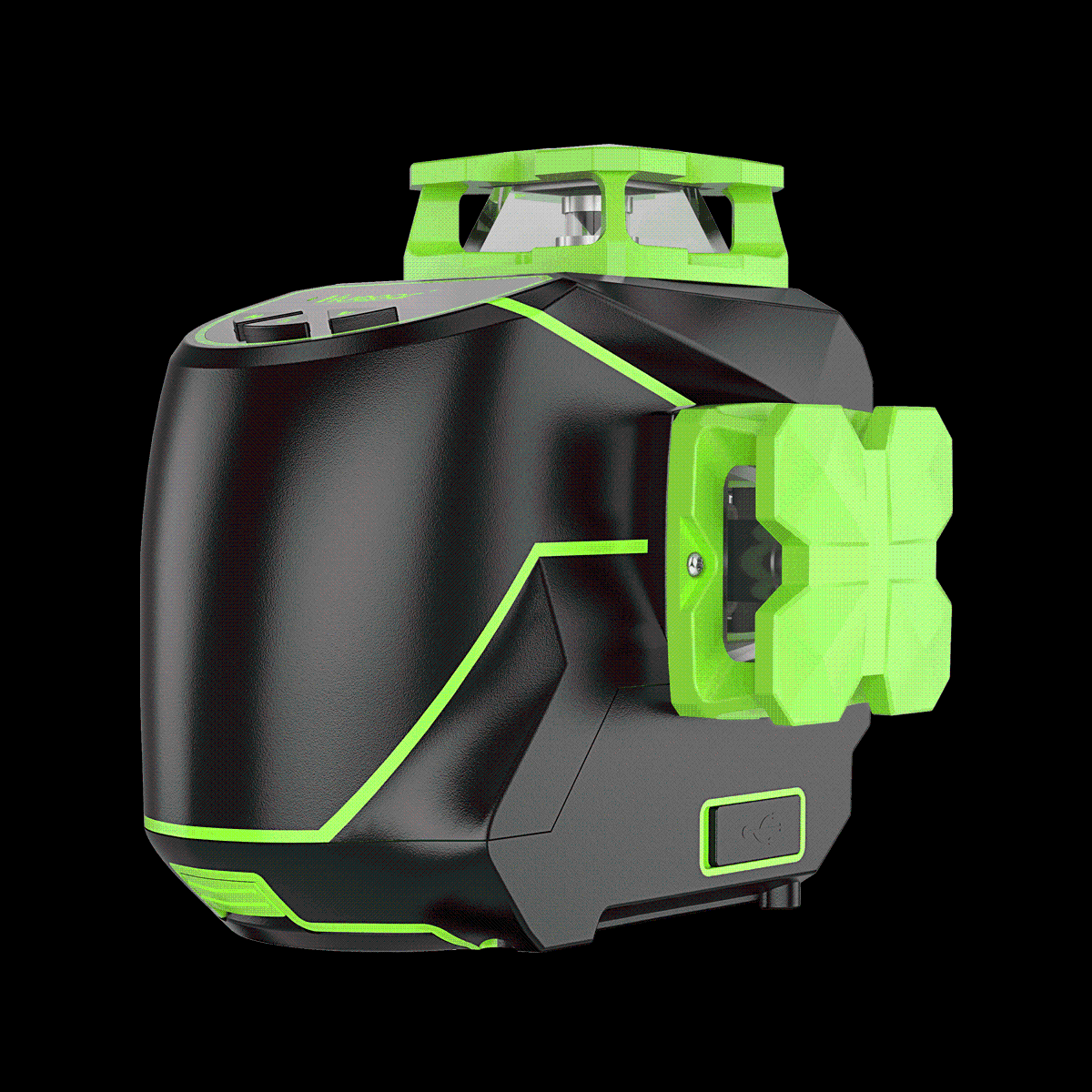

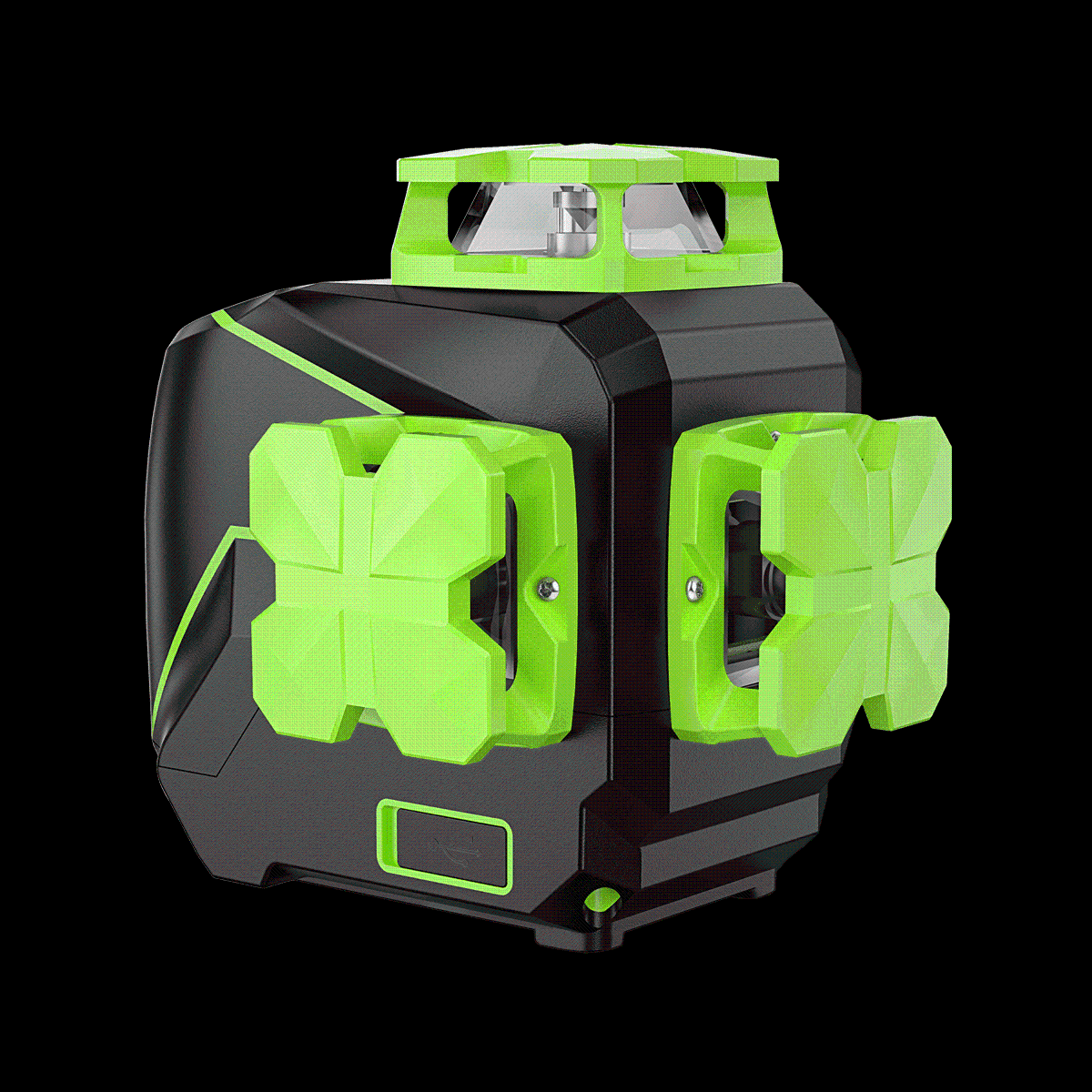

Huepar S03CG-L Laser Level

With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision. Shop Huepar cross line laser level, complete your projects more efficiently and with greater ease.

Specifications for Huepar 3 x 360 Green Laser Level S03CG-L:

• Projection: 3 x 360° Green Laser Lines

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

• Laser Wavelength: 505-520nm

• Horizontal / Vertical Accuracy: ±1/9 Inch at 33 Feet

• Leveling / Compensation Range: ±3.5°

• Working Distance: 85 feet (300 LUX), 200 feet with Huepar Laser Detector LR-5RG / LR-6RG

• Power Source: 7.4V / 2600mAh Li-ion Battery & 4*AA (LR6)

• Operating Time with Lithium Battery: 7 hours with all laser beams on

• Operating Time with AA Batteries: 1.5 hours with all laser beams on

• Mount Size: 1/4"-20 & 5/8"-10

• IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

• Operation Temperature Range: Between -10℃ and +50℃

• Storage Temperature Range: Between -20℃ and +70℃

WARNING: Do not point the laser beam directly into the eyes. The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions. The eye protection is usually secured by aversion reactions and blink reflex.

Almost Unlimited Field of Application:

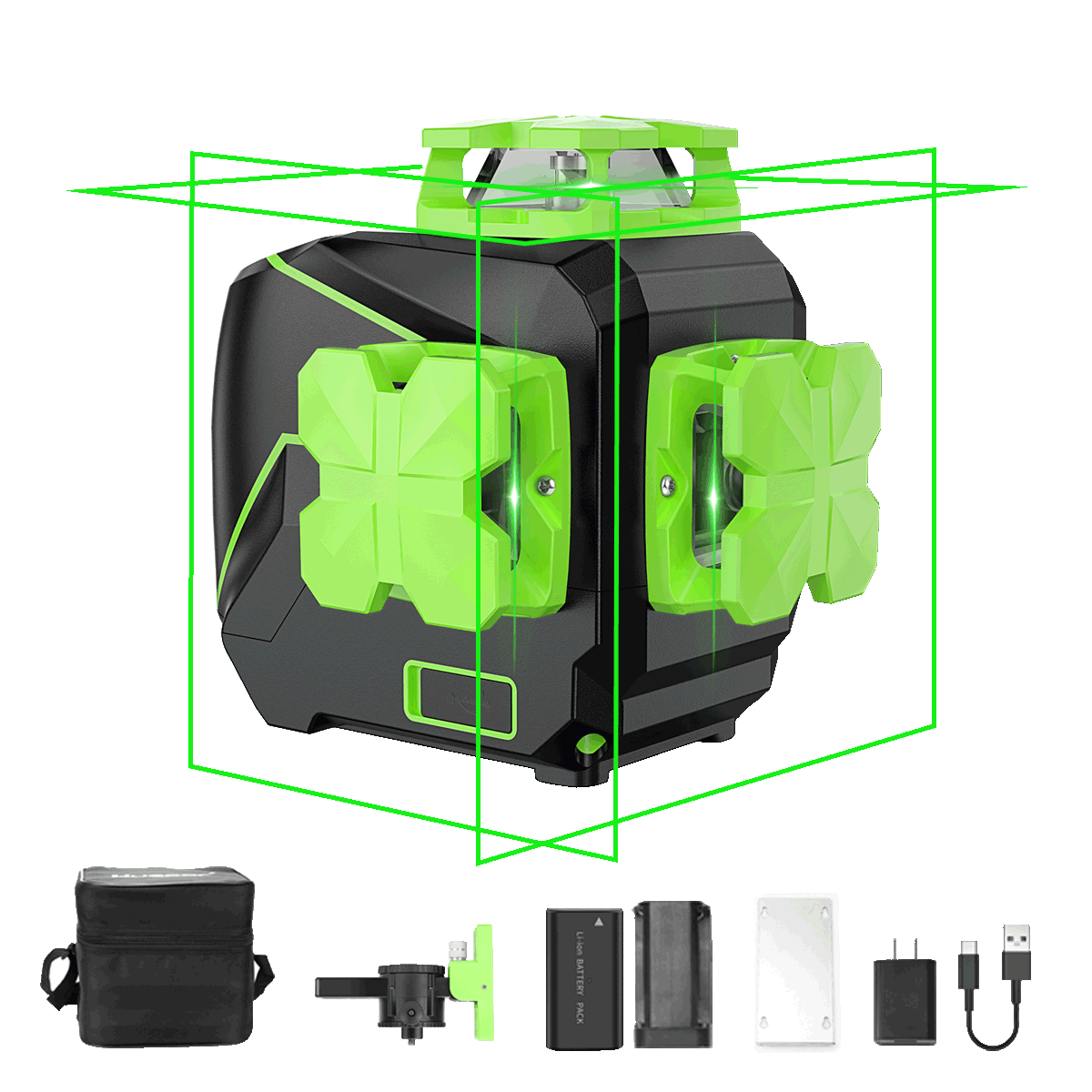

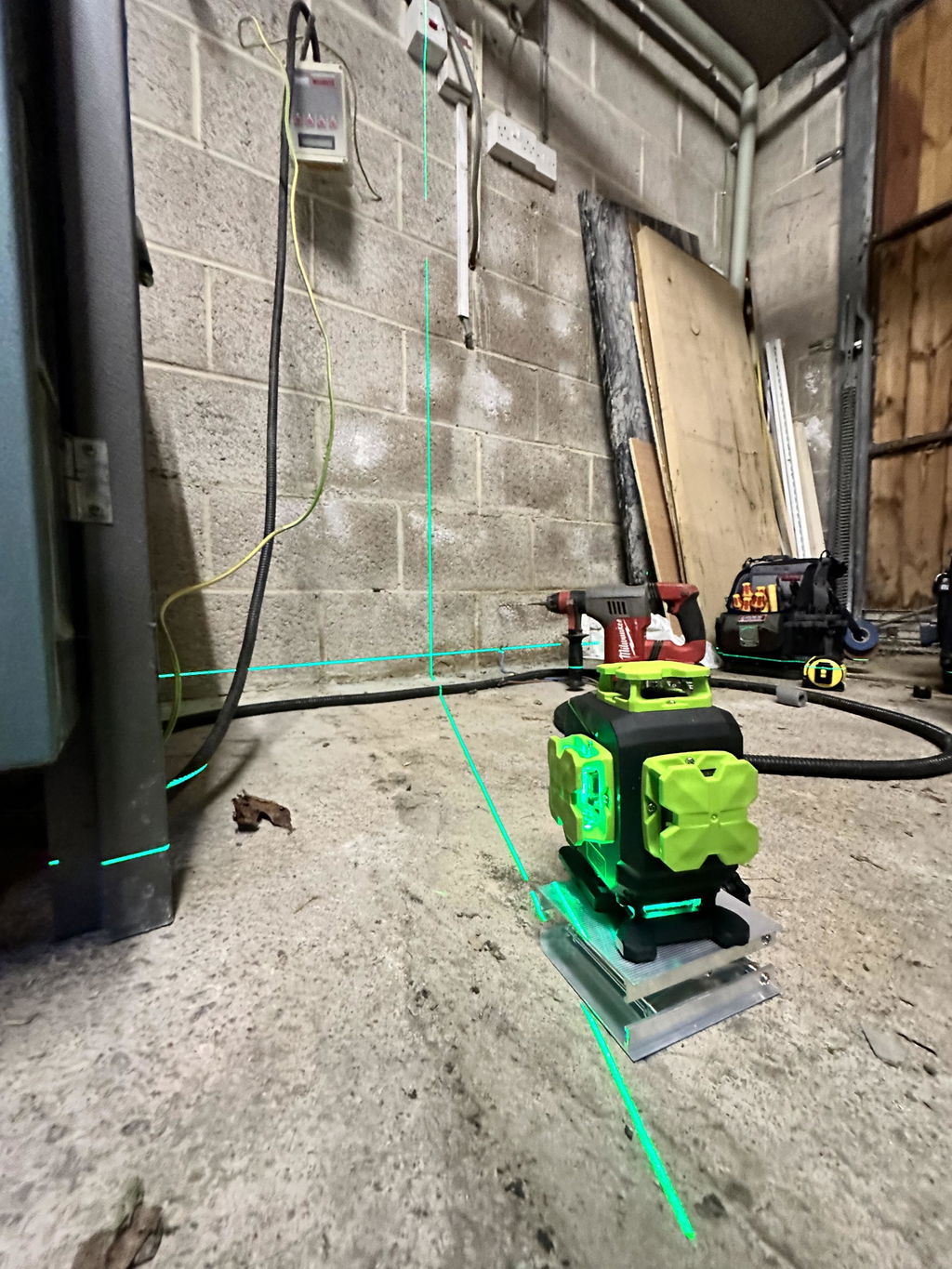

• One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room.

• You can use the intersection of the laser lines to project reference points and divide surfaces at right angles.

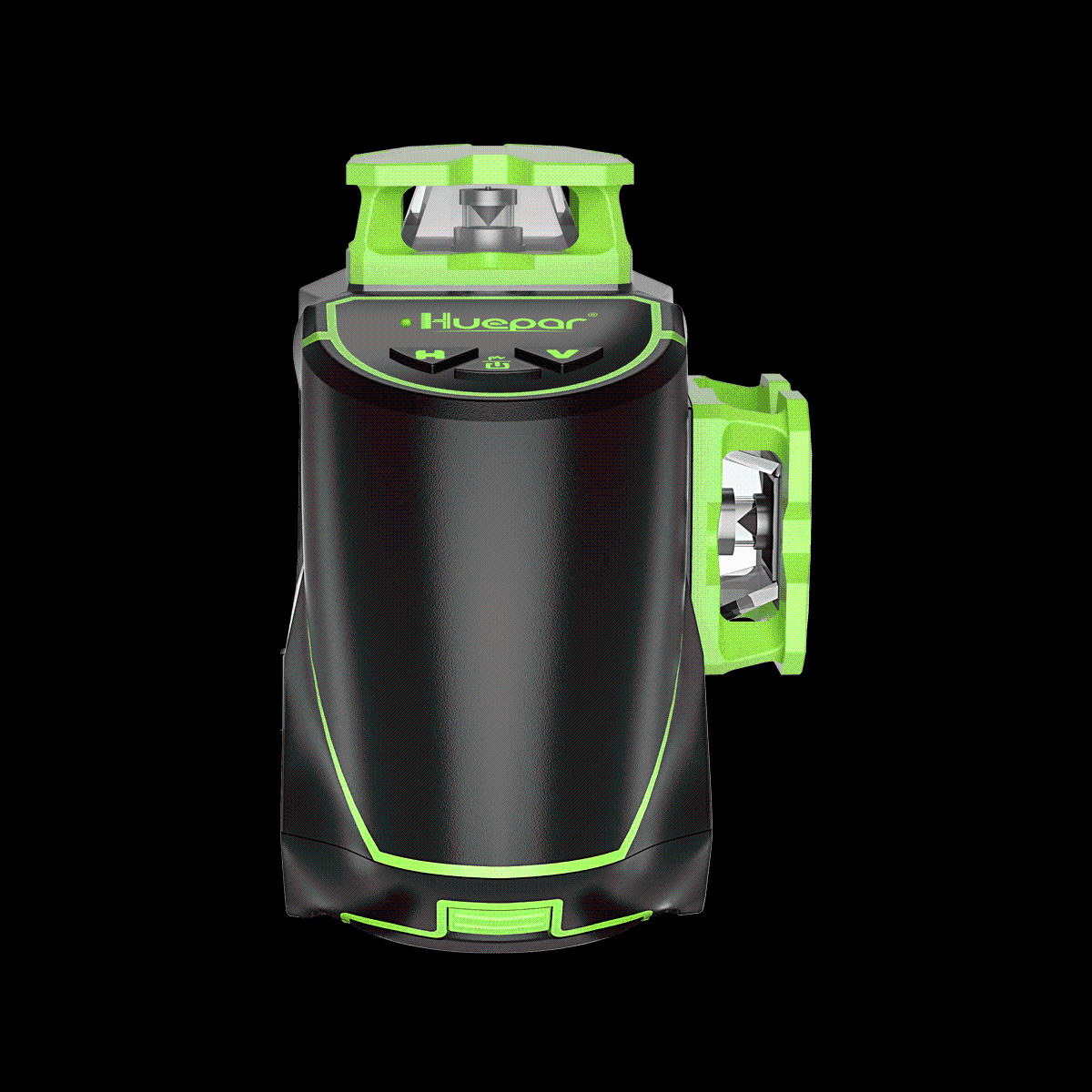

• Short press H/V button to switch the laser line combinations individually.

• The three laser lines can be selected individually depends on job site applications.

• complete tool to cover the floor, wall, ceiling all around the room.

Self-leveling mode&Manual mode

Self-leveling mode:

Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

Manual mode:

When the pendulum is in the locked position, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.

Outdoor Pulse Mode

• Turn ON the pulse mode: After power ON, short press Pulse Mode button to switch ON/OFF the pulse mode.
• Pulse mode extends the working range up to 200 feet in brighter working conditions when using with Huepar Line Laser Detector
• When the pulse mode is activated, the laser beams are dimmer, the pressure on eyes is less when working at close range, and the working time can be appropriately extended
• It is compatible with Huepar LR-5RG / LR-6RG Line Laser Receiver (need to purchase separately) only.
• Keep the pulse mode on when using with a receiver.

Triple Power Supply

• This laser tool utilizes the included 7.4V / 2600mAh Li-ion battery which is compatible with Samsung SB-L110 battery.
• This laser tool comes with an holder for installing AA battery to use the tool.
• Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
• Charging protection help prevent the tool from overcharge.

More Installation Methods

• 360° Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
• 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.

Bright Green Laser Diode:

• This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.
• At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet.

Durable Design & Easy to Use:

• Over-molded laser window: Withstands hazardous job site conditions and can be removed and replaced with a screwdriver.
• Convenient design battery cover: Open the battery cover with just one tap.
• IP54 water/dust resistance ensures you work well in hazardous working conditions.
• Green Target Plate: Increases the visibility of the laser beam.

Widely Used:

• Huepar 3x360° three-plane leveling and alignment-line laser provides an all-in-one level and alignment solution for one-person job setup, enable users to cover the floor, wall, ceiling all around the room.
• Laser tools can help you work effectively in home decoration, wall building, bridge construction, engineering construction, railway construction, etc.

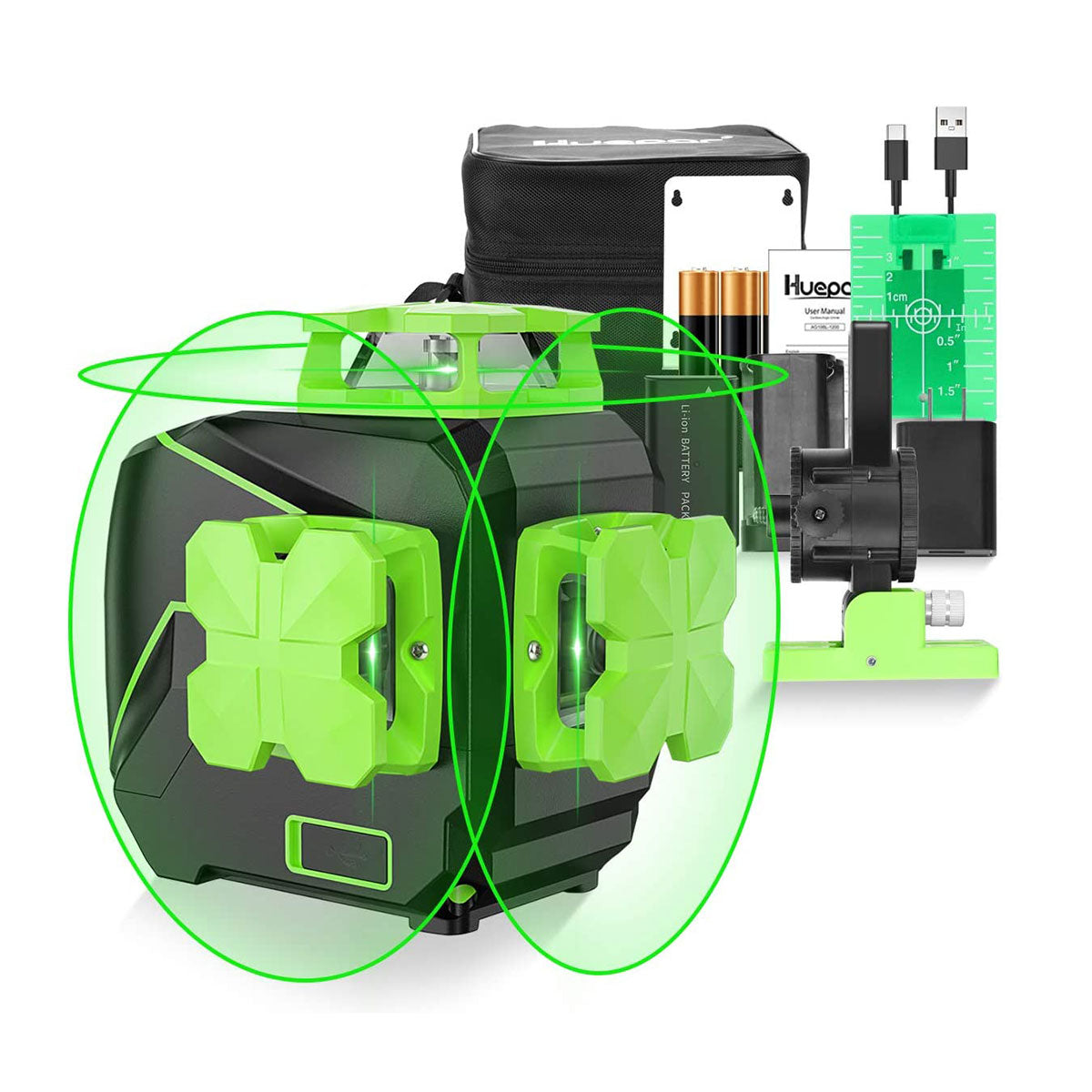

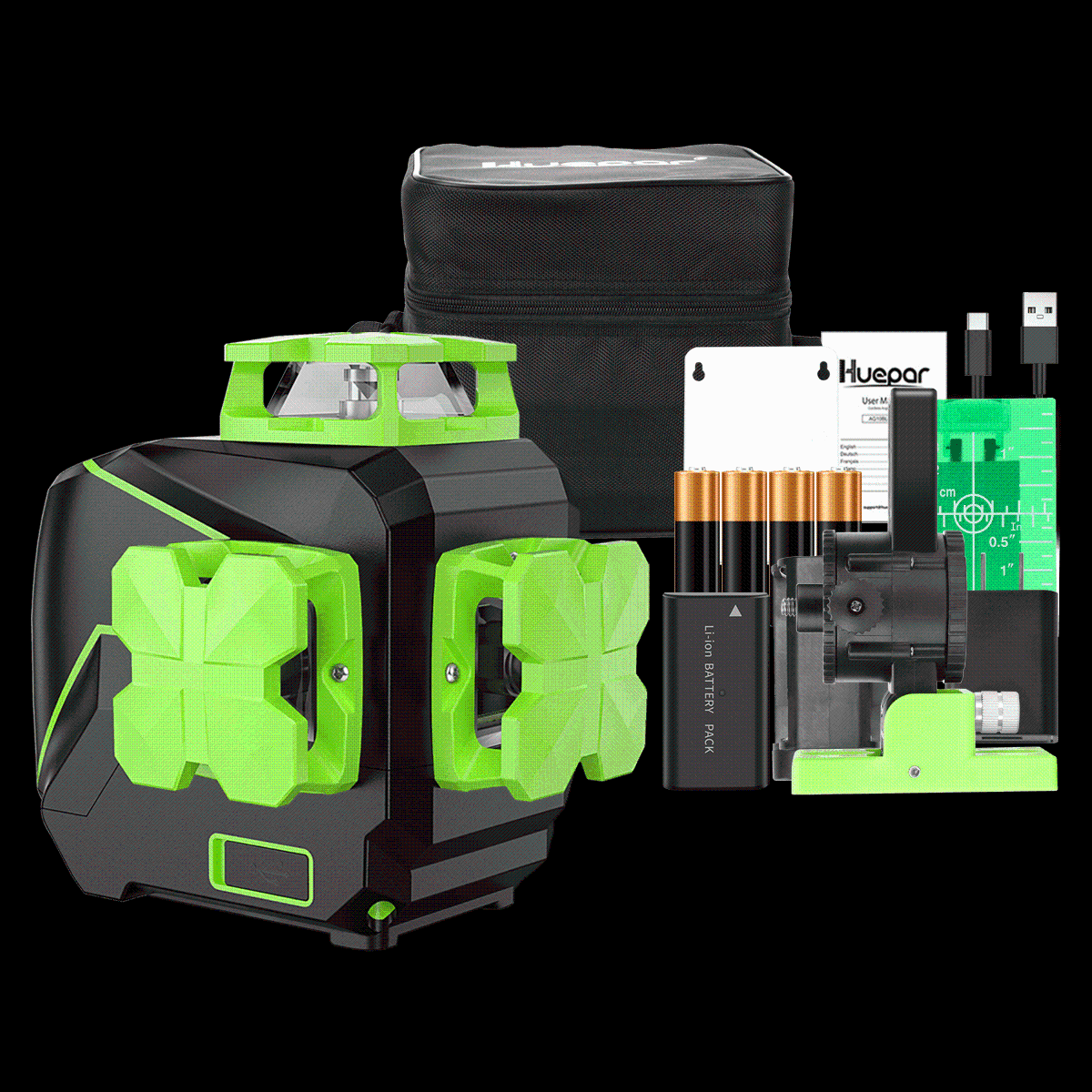

Package Contents

• 1 x 3D Green Tiling Laser Level S03CG-L
• 1 x Rechargeable Li-ion Battery
• 1 x Power Adapter& Type-C cord
• 4 x AA (LR6) Batteries & 1 x AA Battery Holder
• 1 x Magnetic Bracket
• 1 x Lifting Base
• 1 x Steel Sheet
• 1 x Laser Target Plate
• 1 x Lase Level User Manual
• 1 x Portable Bag
