Huepar R03CG Laser Level

Elevate precision with the Huepar R03CG, a robust 3D Green Beam Laser Level featuring Osram's bright laser unit for enhanced visibility. Ideal for outdoor projects with its IP54 rating, it offers a 66ft accuracy range, extendable to 130ft with a receiver. Its 3x360° layout and rechargeable Li-ion battery cater to professional demands, while the versatile mounting options ensure ease of use across various scenarios.

• Professional Laser Level With High Visibility: This self-leveling laser level adopted the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. Under the same lighting conditions, the green beam is twice as bright as the red laser with a working range of up to 66 feet of accuracy within ±1/9 Inch at 33 Feet. Using the Huepar laser receiver in strong light or outdoor conditions, the outdoor pulse mode helps to extend the laser range to 130 feet.

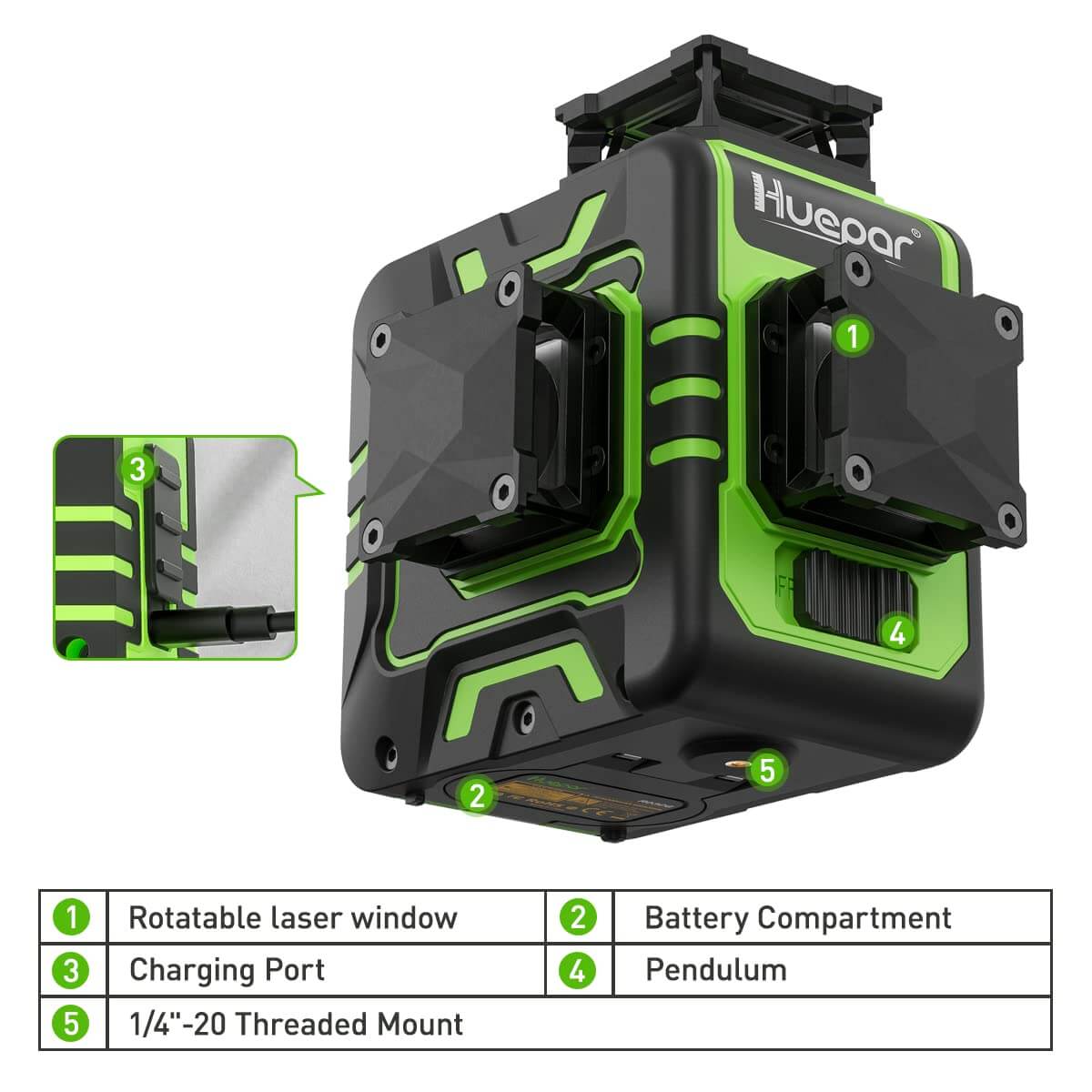

• 3x360°Full Layout with Rotatable Laser Window: Huepar laser level has 1 horizontal 360° plane, 2 vertical 360° planes, and 12 laser lines, which can cover the room Surrounding floors, walls, and ceilings. The horizontal and vertical lines intersect at an angle of 90° to help you quickly visualize and complete the square layout. The rotatable laser window allows you to get three 360° laser coils without any gap. The window can be rotated to avoid the break of the laser lines.

• Rechargeable Lithium Battery & Intelligence Pendulum: This Laser Level adopted a 3.7V/5200mAh Li-ion battery and provides 7 hours of running time. The Type-C charging is faster than ordinary USB charging, and the external replaceable lithium battery makes it possible for you to work for a longer time. Unlock the pendulum, the laser level will self-level within 4°(otherwise the laser will keep flashing). Once the pendulum is locked, it switches to manual mode to lock lines for use at any angle.

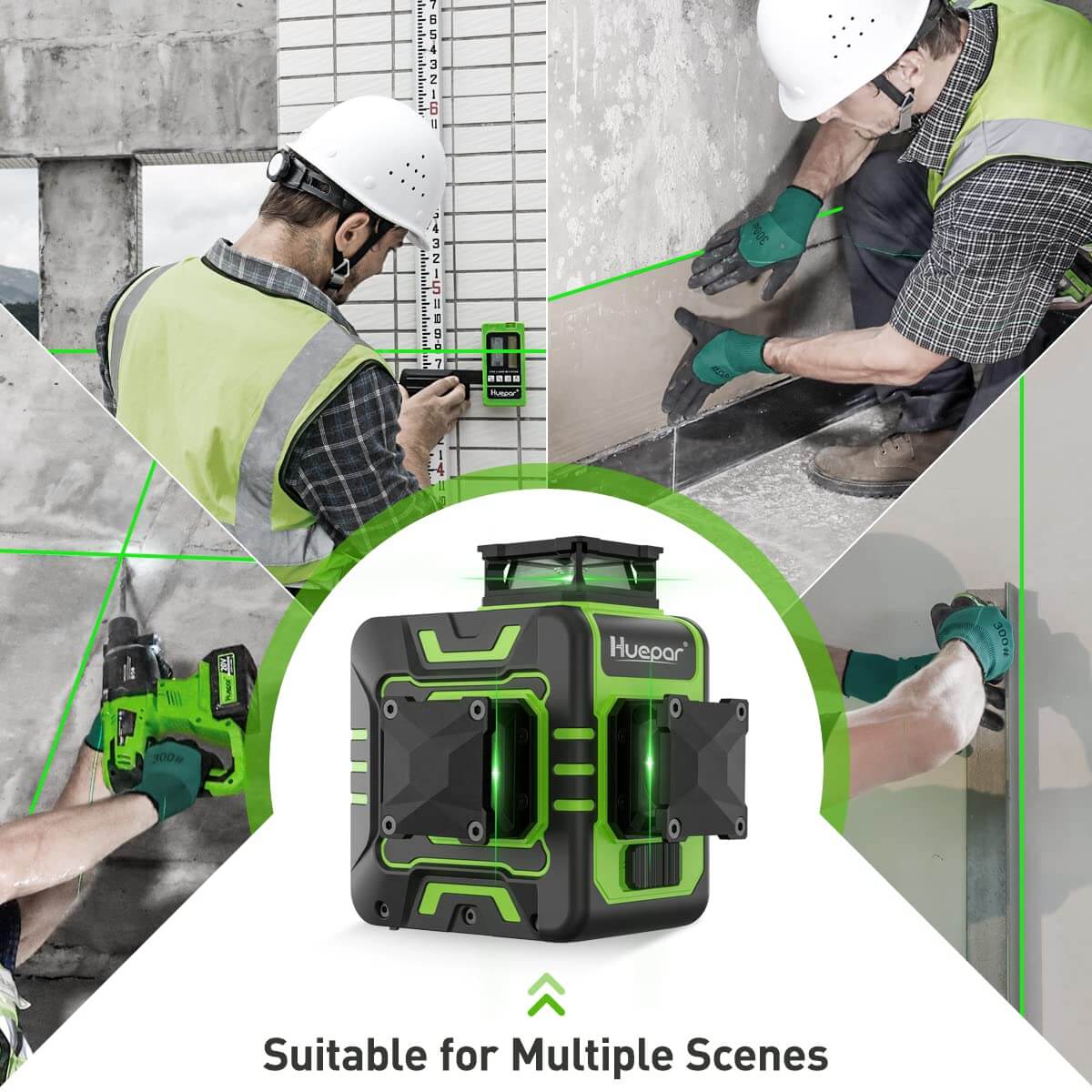

• Multiple Use and Multiple Installation Methods: This line laser provides a 1/4" mounting thread for fixing on tripod or mounting pole. Equipped with 360° free rotating base, it can be rotated to desired angle. The base also has 1/4"-20 and 5/8"-11 mounting threads to adapt to different tripods. It' equipped with a powerful bracket that can be adjusted universally, it can also be clipped on wooden slats. It can be fixed to wall by magnetism or screws, so it can be used in more scenes.

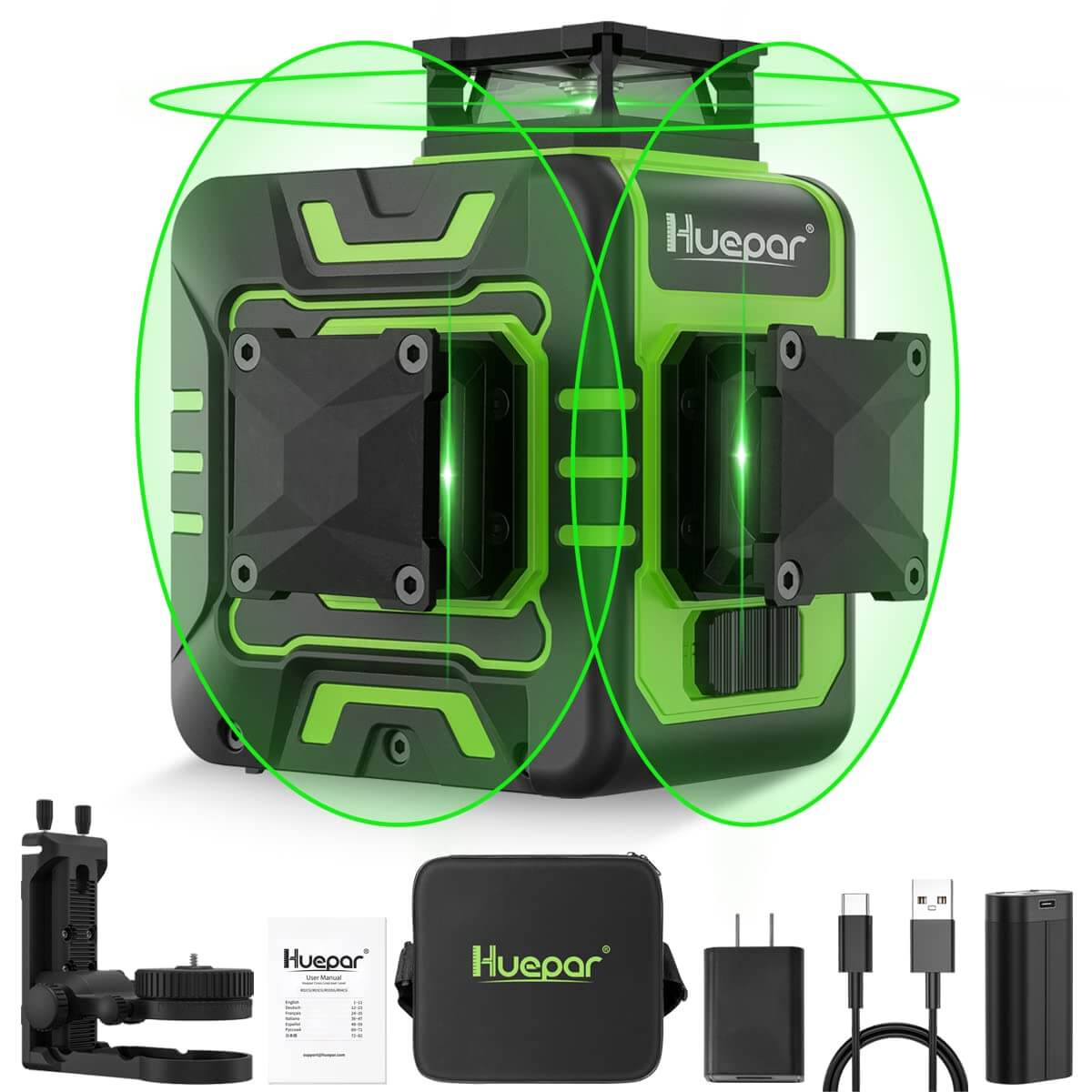

• Durable Design & 2 Years Warranty: IP54 waterproof/dustproof to ensure that you can work normally and stably under complex working conditions. Protected by TPR soft rubber, which is shock-resistant, abrasion-resistant, and impact-resistant. Includes laser level, lithium-ion battery, magnetic stand, Type-c power cord, power adapter, portable bag, and user manual. We provide a 24-month after-sale service and lifetime technical support. Please feel free to contact us if you have any concerns.

With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.

Huepar New Generation12 Lines Green Laser Level Self Leveling ideal for alignment, leveling and squaring needs for Construction.

R03CG 3D Green Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
• Laser Wavelength: 505-520nm
• Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
• Leveling/Compensation Range: 4°±1°
• Working Distance (Line): 66Ft (100 LUX), 130Ft. with Huepar Receiver LR-5RG/LR-6RG
• Operating Time with Li-ion Battery: 7 hours with all laser beams on
• Power Source: 3.7V / 5200mAh Li-ion battery
• Package: Portable storage bag

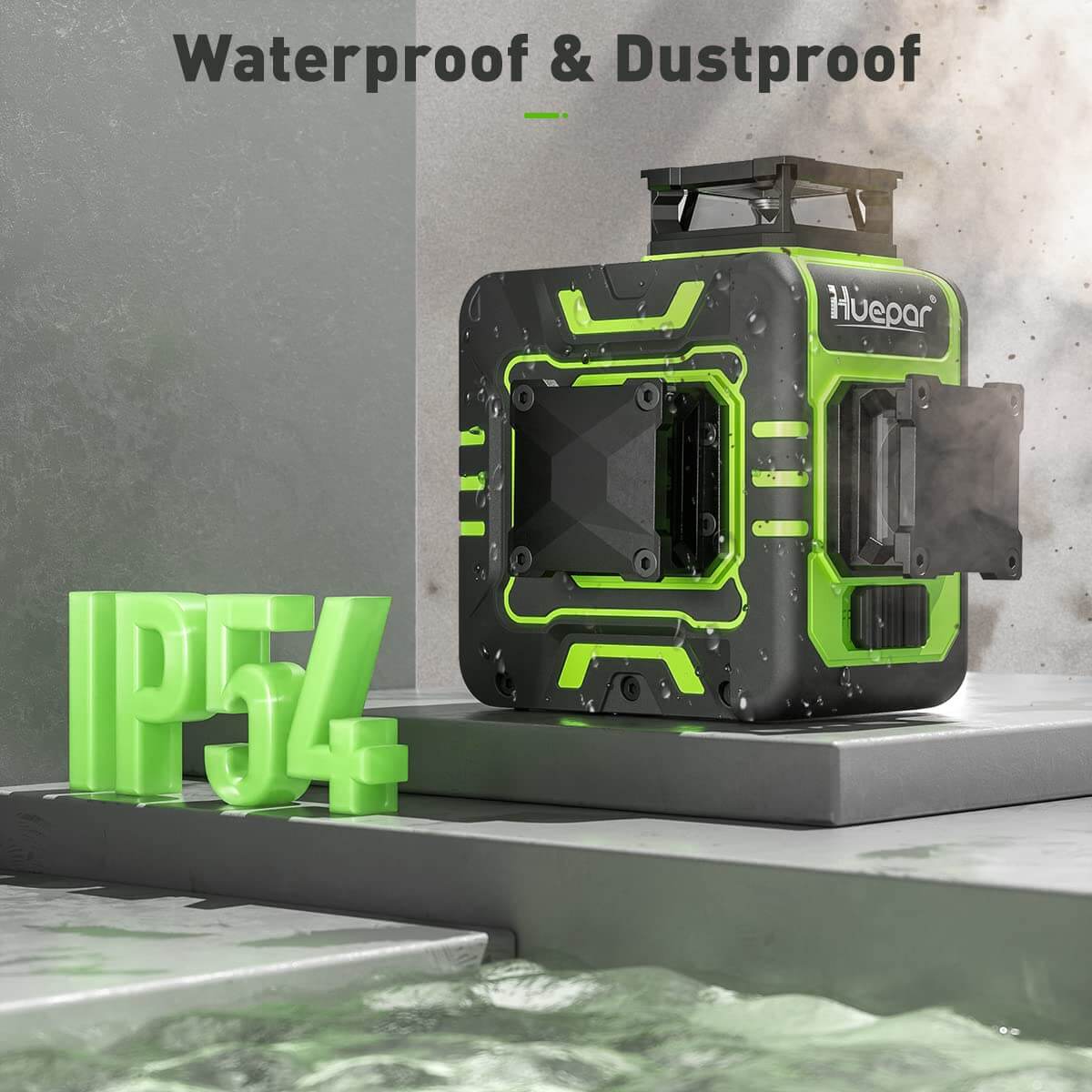

• IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
• Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
• Mount Size: 1/4"-20 and 5/8"-11

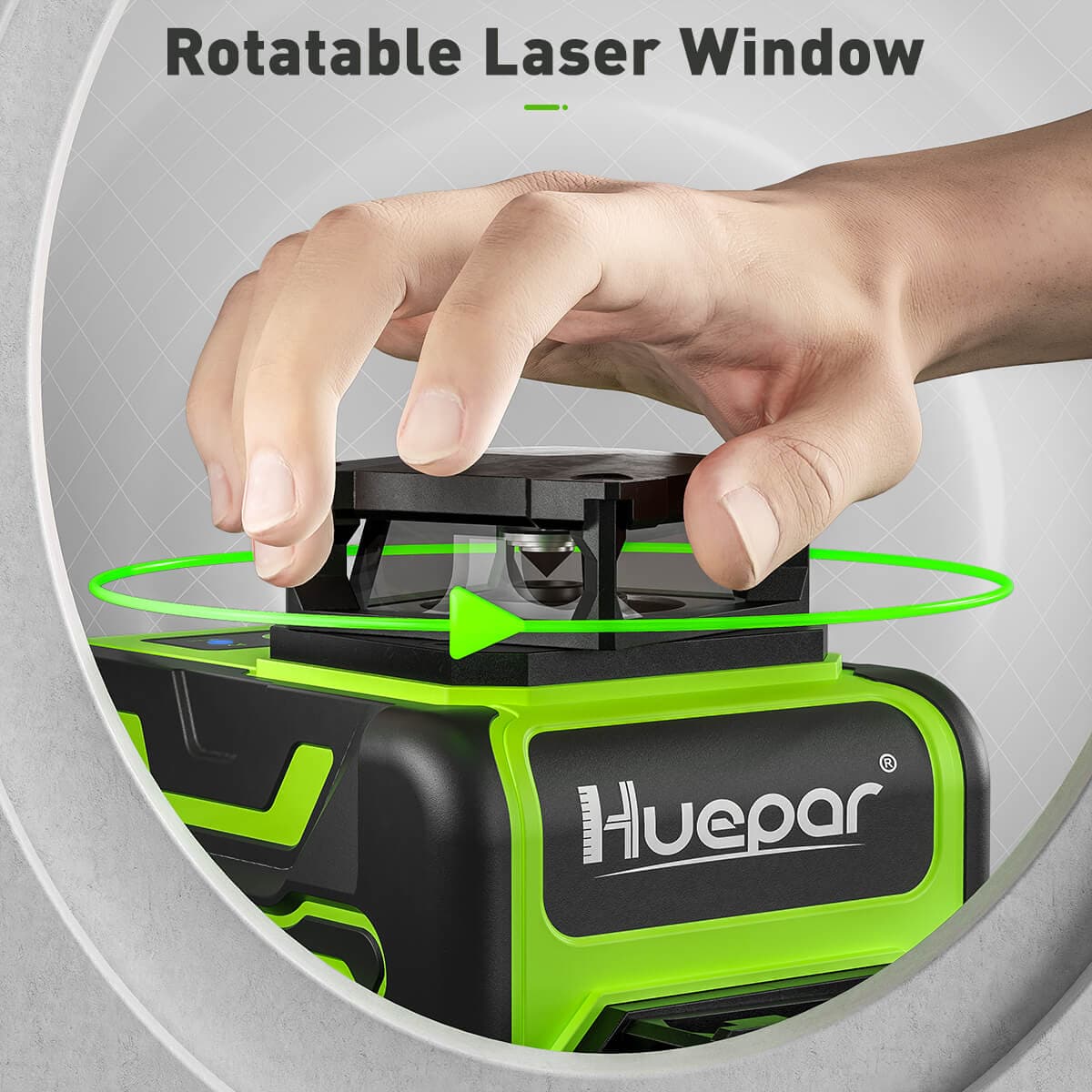

360°Rotatable Laser Window

The rotatable laser window allows you to get three 360° laser coil without any gap to avoid the break of the laser line. IP54 water/dust resistance withstands tough job site conditions.

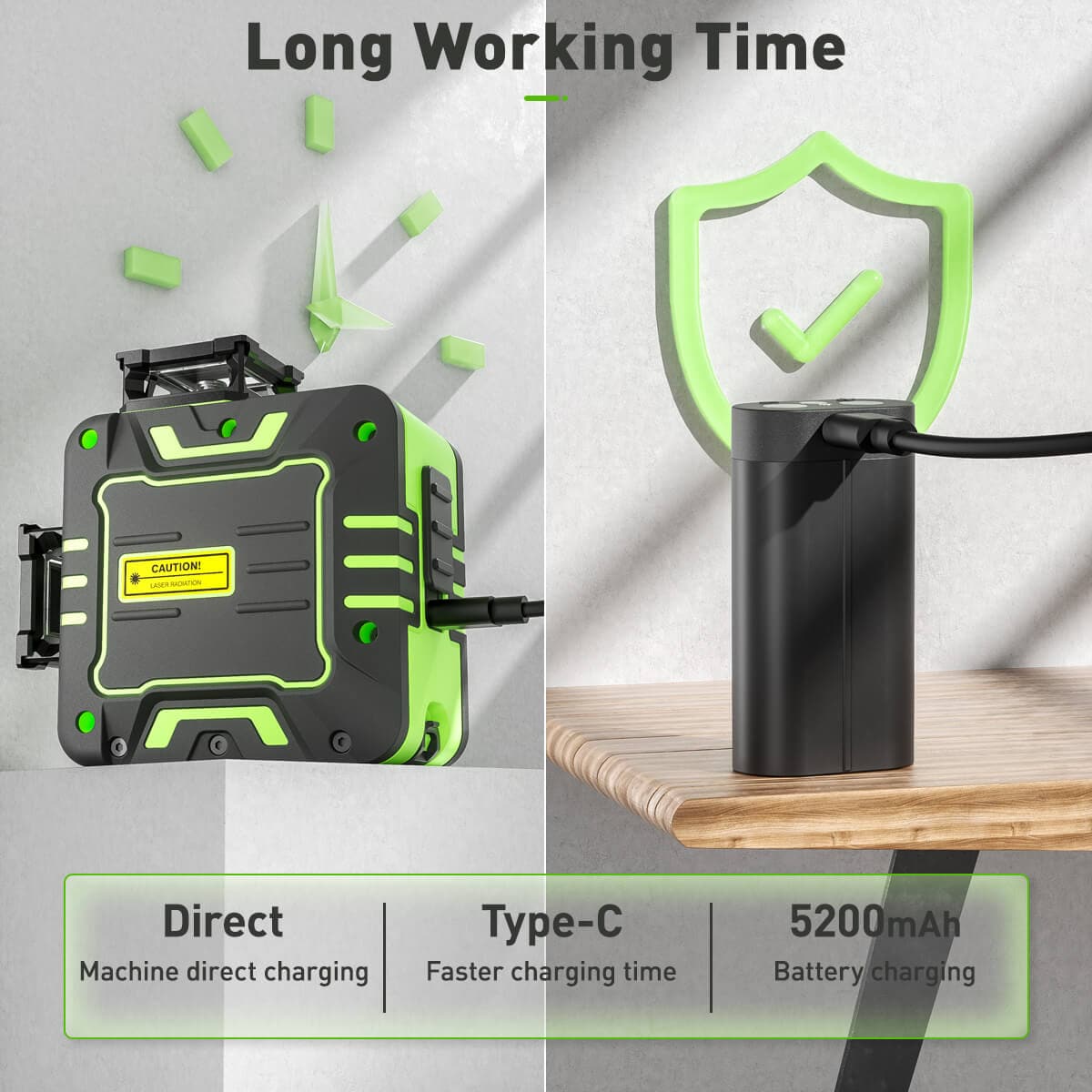

Large capacity Li-ion battery

3.7V / 5200mAh Li-ion battery and provides 7 hours running time.

When taking out the battery, the cross line laser level can be used at the job site by plugged in directly. The newly upgraded Type-C charging is faster than ordinary USB charging, and the battery has a separate charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

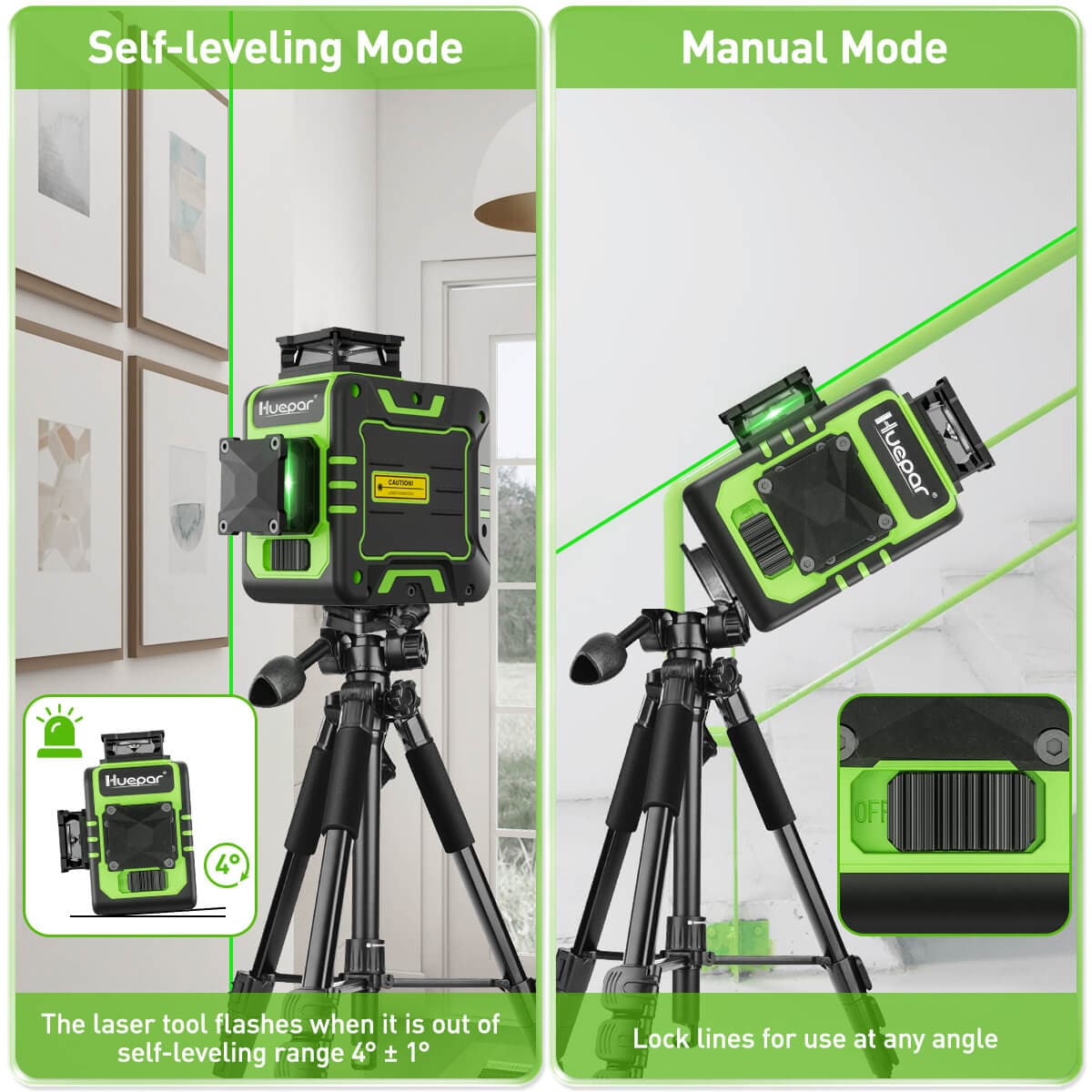

Self-leveling mode & Manual mode

Self-leveling mode:

When the pendulum slides to unlock position, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4.

Manual mode:

When the pendulum is in the middle position, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

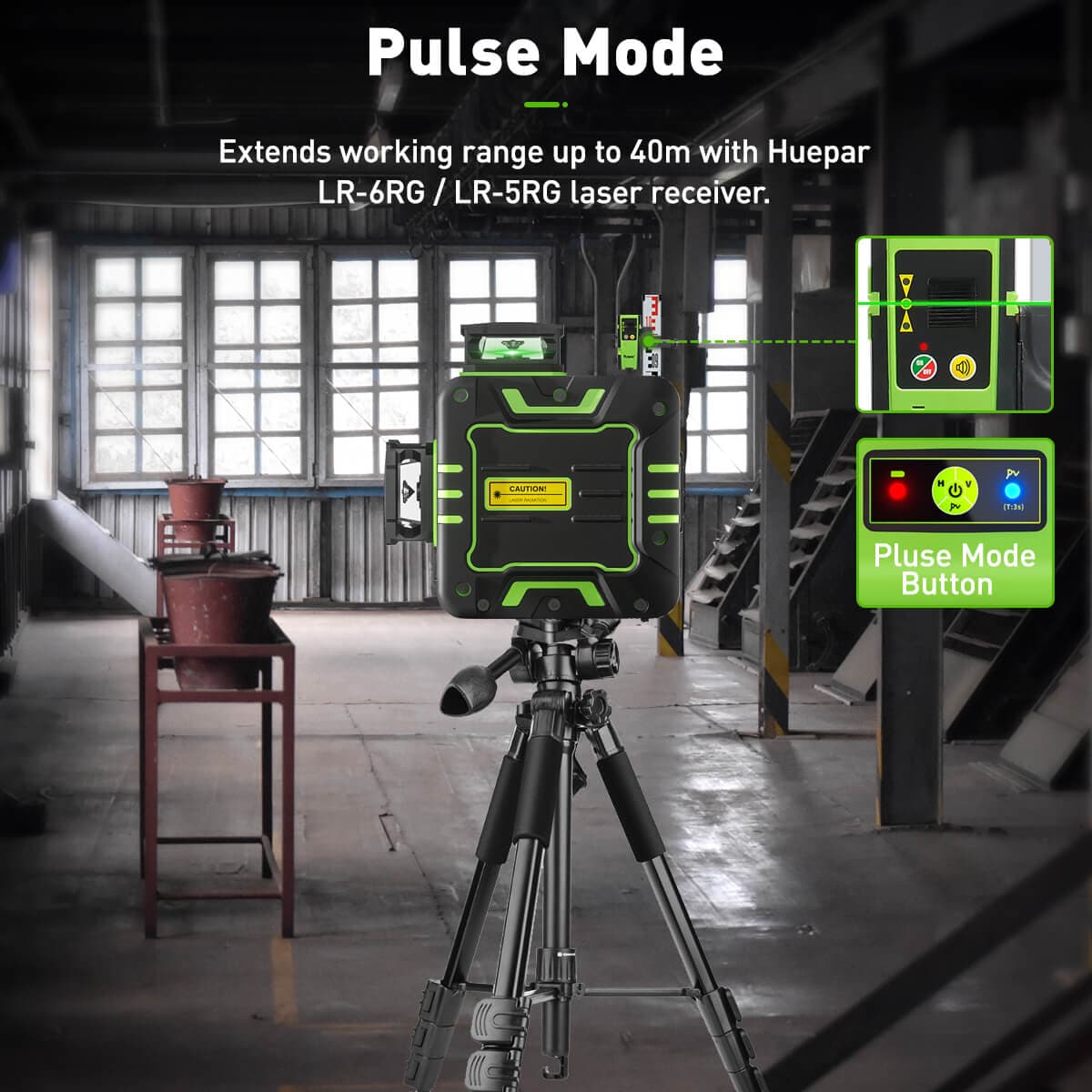

Pulse Mode

After power on, short press the power button to switch ON/OFF the pulse mode.

Pulse mode extends the working range up to 130Ft in brighter working conditions when using with Huepar Line Laser Receiver.

It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.

Note: Keep the pulse mode on when using with a receiver.

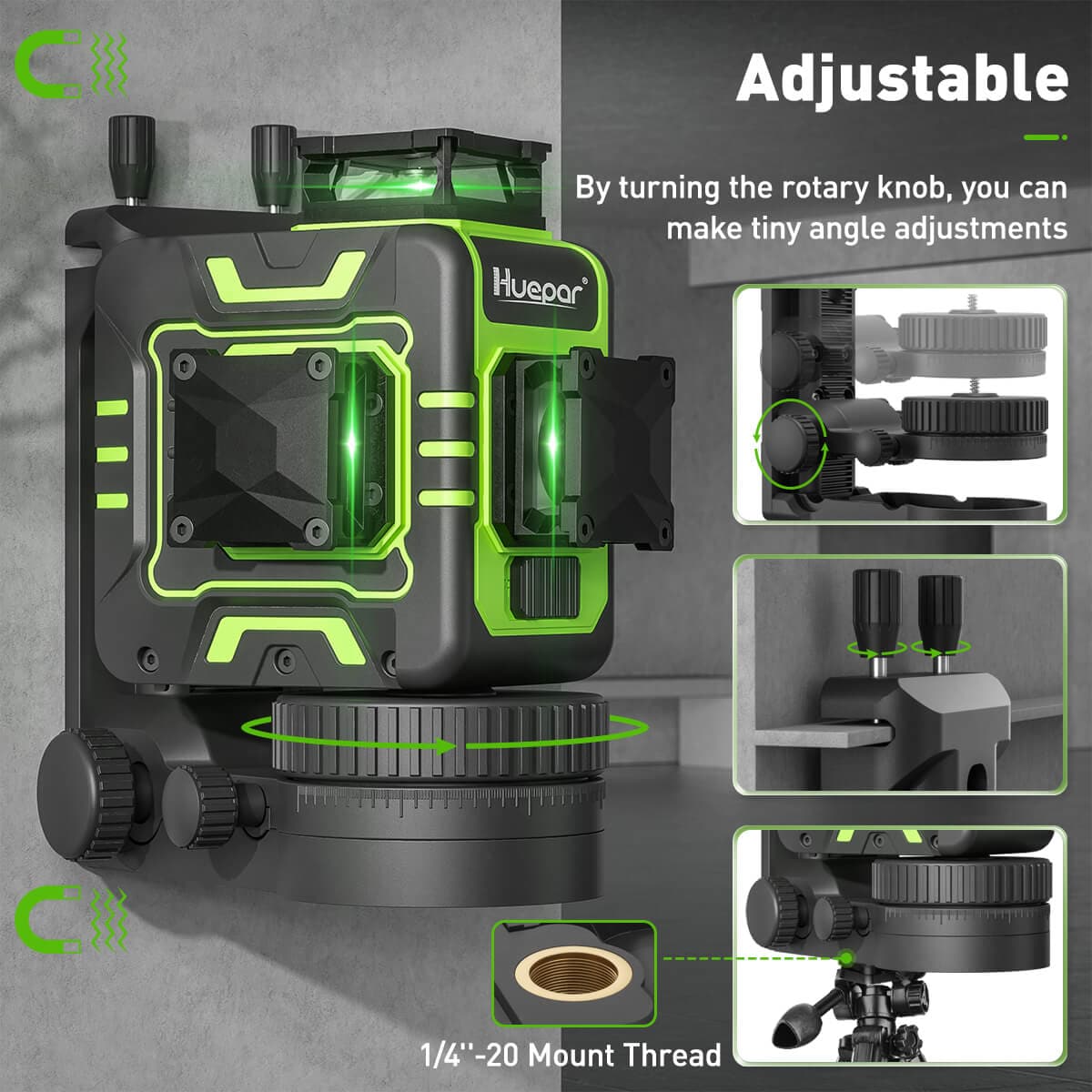

Multi-function magnetic bracket

This green line laser offers 1/4"-20 mounting threads for being fixed on tripod or magnetic bracket. The strong magnetic bracket allows for quick positioning to metal surfaces helping hang the laser level for wall applications. The magnetic base also has 1/4"-20 & 5/8"-11 mounting threads to suit for different tripod threads.
