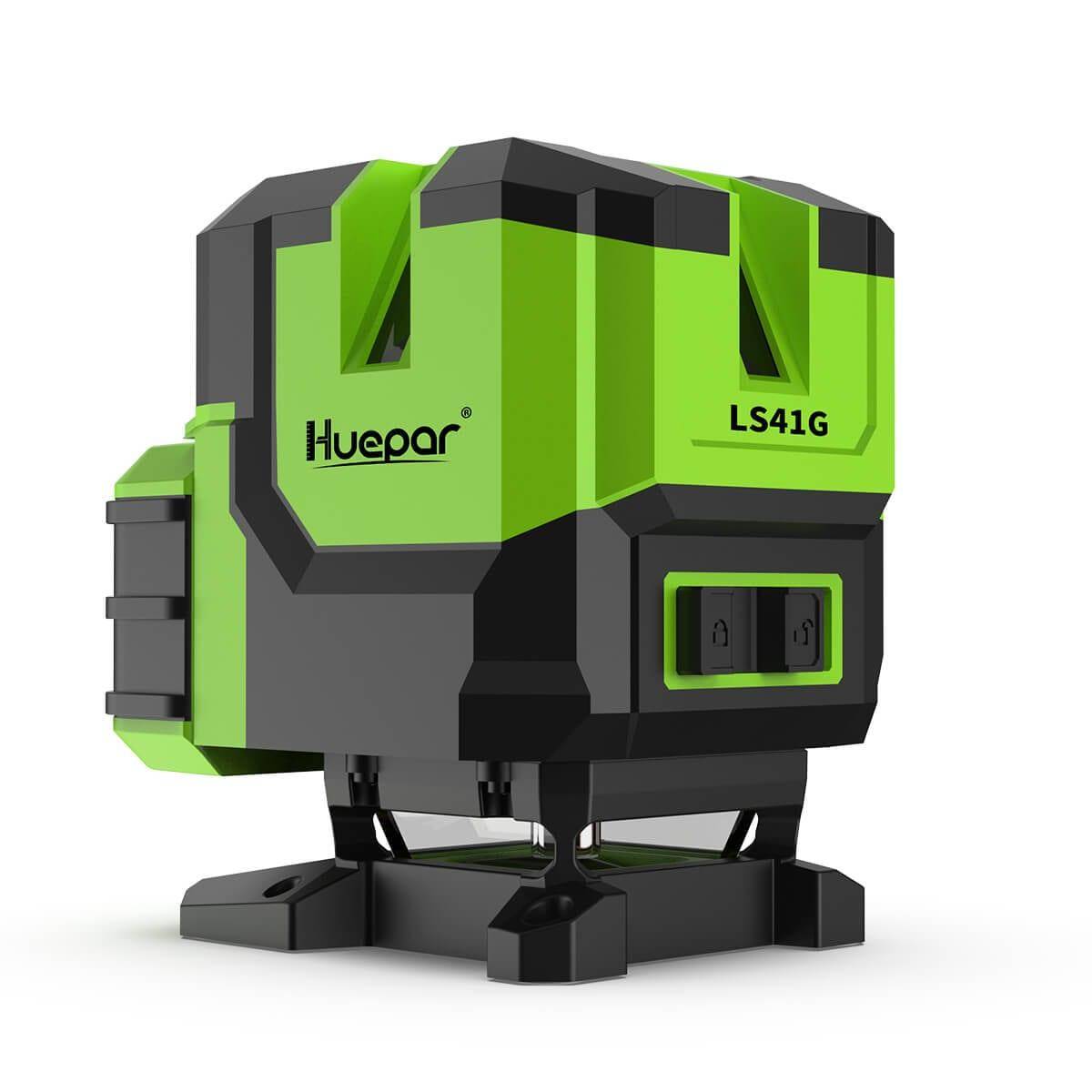

Huepar LS41G Laser Level

• MULTI-LINE LASER TOOL WITH 360°FLOOR LASER LINE: Huepar LS41G multi-line laser level delivers 360° floor horizontal line for tiling installation at a 2/5" distance. Providing all-around leveling coverage for layout of tile, stone, brick, carpet and hardwood flooring. Four vertical lines cross at 90° angles in the ceiling, makes user quickly visualize and finish the square layouts on the ceiling. An unique down plumb dot provides additional benefits of plumbing and squaring applications.

• EXTRA BATTERY & TYPE-C CHARGING PORT: Huepar LS41G laser level comes with 2 5200mAh Li-ion batteries for convenient replacement and continuous use. There is a Type-C charging port on the Li-ion battery pack that can be charged separately. 4 battery indicators on the Li-ion battery allow users to know the current battery level and charging status. With Type-C charging port, the batteries can also be charged by phone, laptop, power bank, car charger, etc.

• MICRO-ADJUST BASE & LIFTING BASE: The laser level comes with 1/4"-20 & 5/8"-11 threads to suit for standard tripod or laser mounting pole. Equipped with a metal micro-adjust fine turning pivoting base, the laser dot can go through the 5/8" thread, and the micro rotary knob enables users to make 360° adjustment. With the lifting base, the 360° floor laser can raise from the surface to go over and travel past uneven surfaces or obstructions between 1" and 3.5" height.

• BRIGHTER GREEN LASER & OUTDOOR PULSE MODE: This multi-Line laser level adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. At the same power, the green laser is twice bright as the red laser, with a working range up to 98 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode can be activated by pressing the Pulse Mode Button, allowing to extend the laser range up to 197 feet with Huepar Line Laser Detector.

• CONVENIENT AND INTELLIGENT DESIGN: Short press H and V to switch the laser lines, users can select the individual and combined laser lines individually depending different on job site applications. With our smart pendulum system, this laser level tool self-levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output.

Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.

Huepar LS41G Self-leveling Multi-Line Laser Level Specifications:

• Projection: 1 x 360° Horizontal Line + 4 Vertical Lines + 1 Down Plumb Dot
• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
• Laser Wavelength: 505-520nm
• Horizontal/Vertical Accuracy: ±1/9in at 33ft (±3mm/10m)
• Plumb Dot Accuracy: 1/25in at 3.3ft (1mm/1m)
• Leveling/Compensation Range: ±3°
• Working Distance (Line): 30m, Up to 60m with Huepar Laser Receiver
• Operating Time: 5 hours continual use with all laser beams on
• Power Source: Two 3.7V / 5200mAh Li-ion Battery
• IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
• Operation Temperature Range: -10℃ ~ 50℃(14℉ ~ 122℉)
• WARNING: Avoid direct exposure of the laser beam to the eyes

Multiple Line Switching Functions

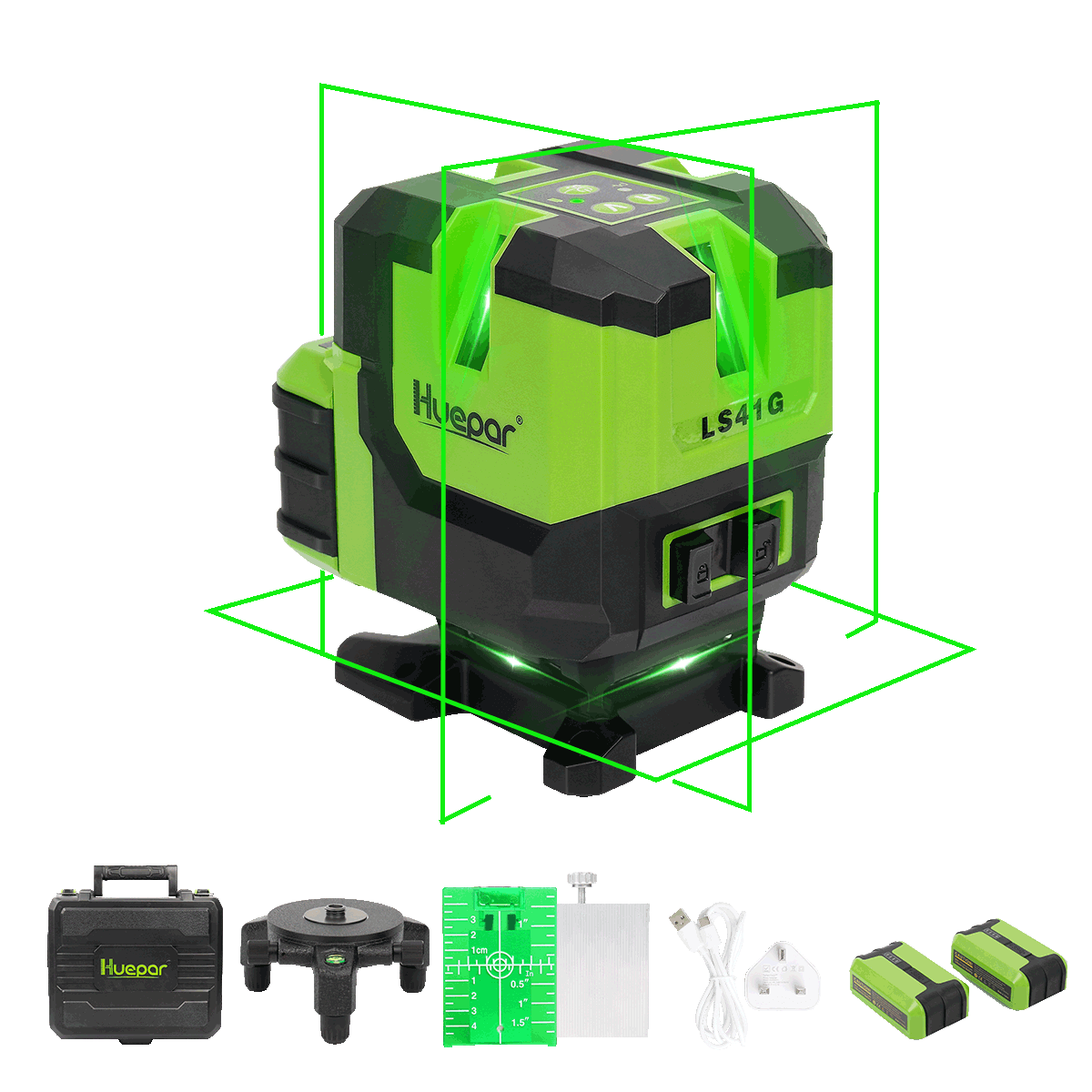

Huepar LS41G multi-line laser level projects 360° floor horizontal line, four vertical lines plus plumb down dot for leveling, aligning, tiling, plumb and square applications.

Short press H and V to switch the laser lines, users can select the individual and combined laser lines individually depending different on job site applications

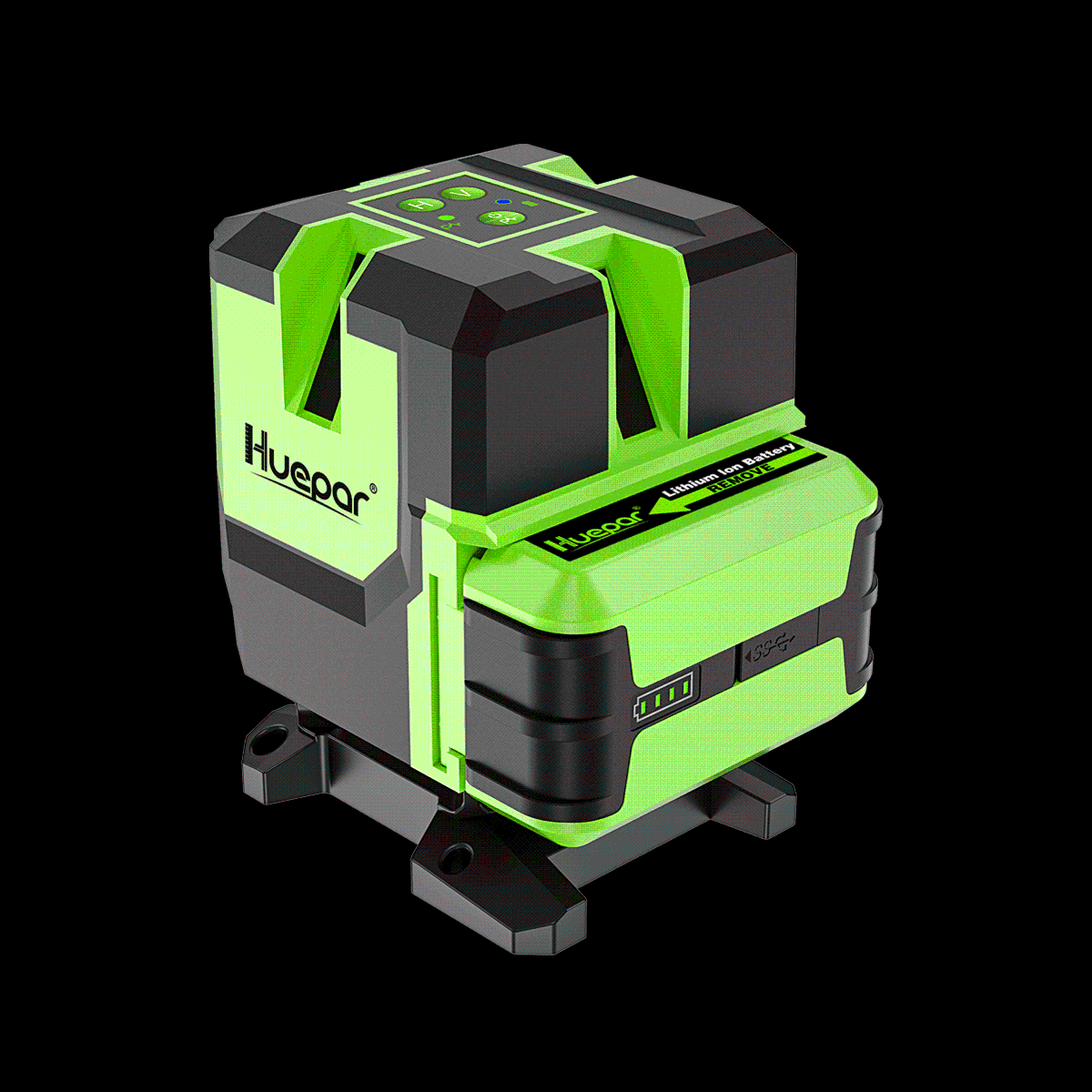

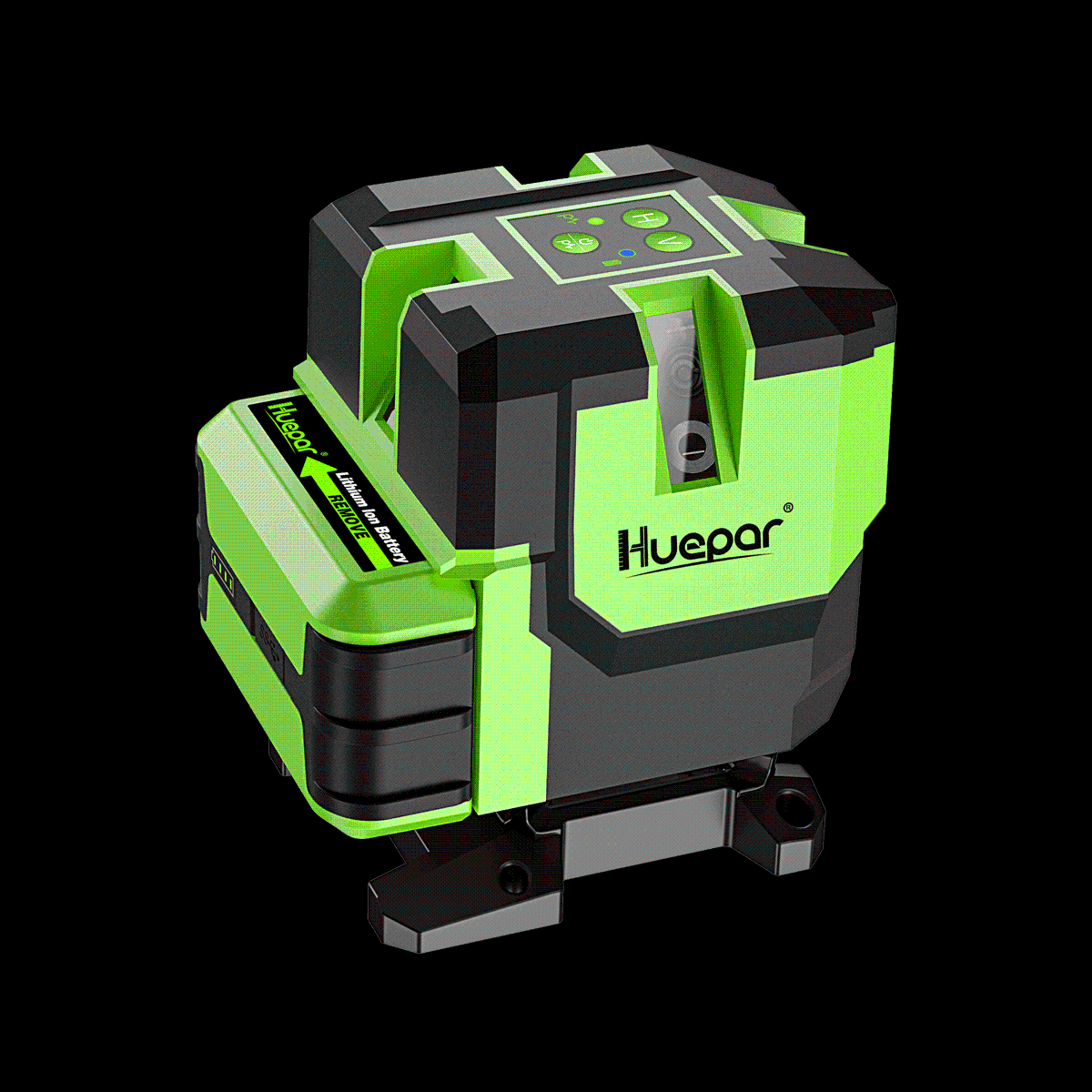

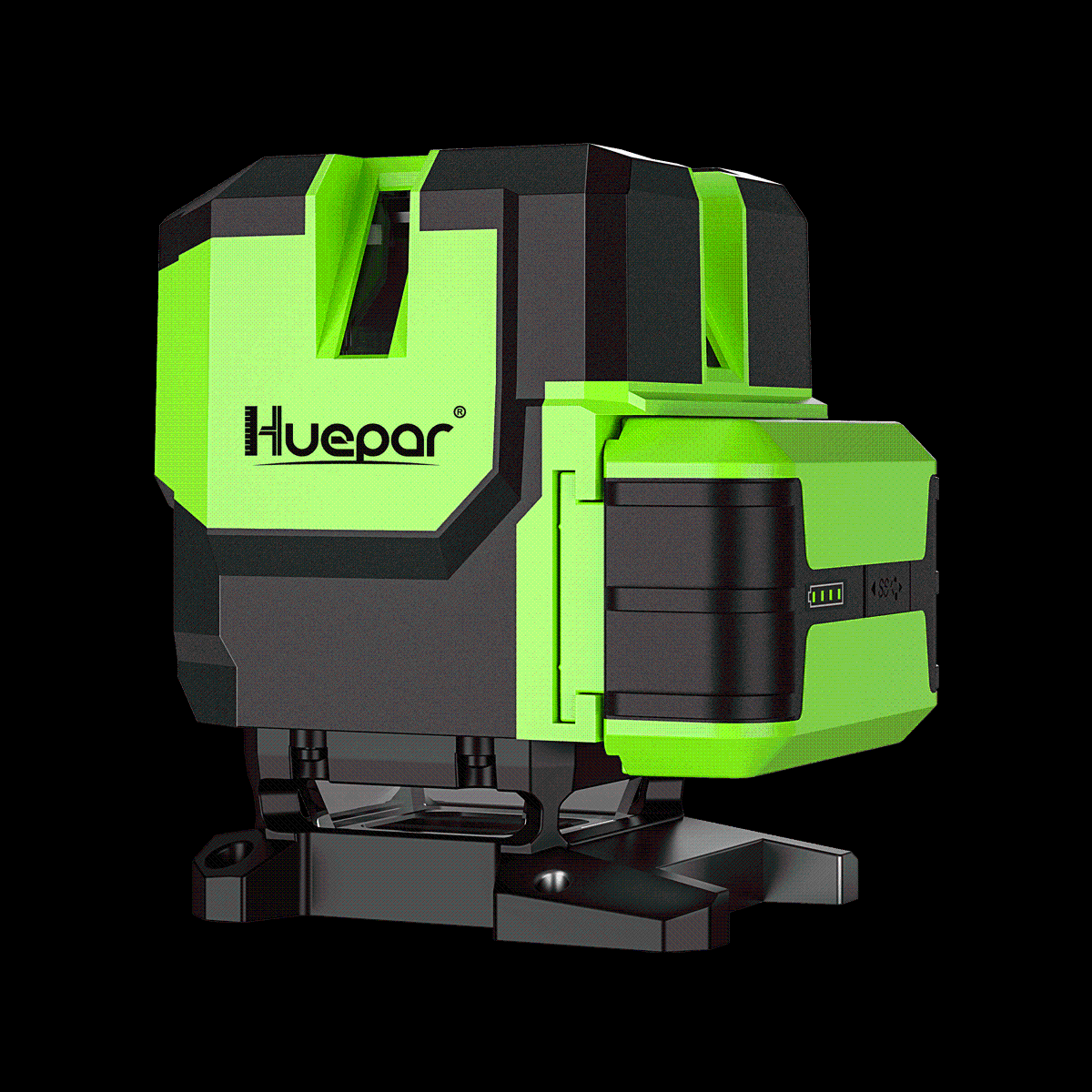

2 Large Capacity Li-ion Batteries & Type-C Charging Port

This laser tool utilizes the 3.7V / 5200mAh large capacity Li-ion battery. An extra battery pack is included in the package for backup.

Users can charge the battery independently with the. Power adapter. There is a Type-C charging port on the Li-ion battery that can be charged separately.

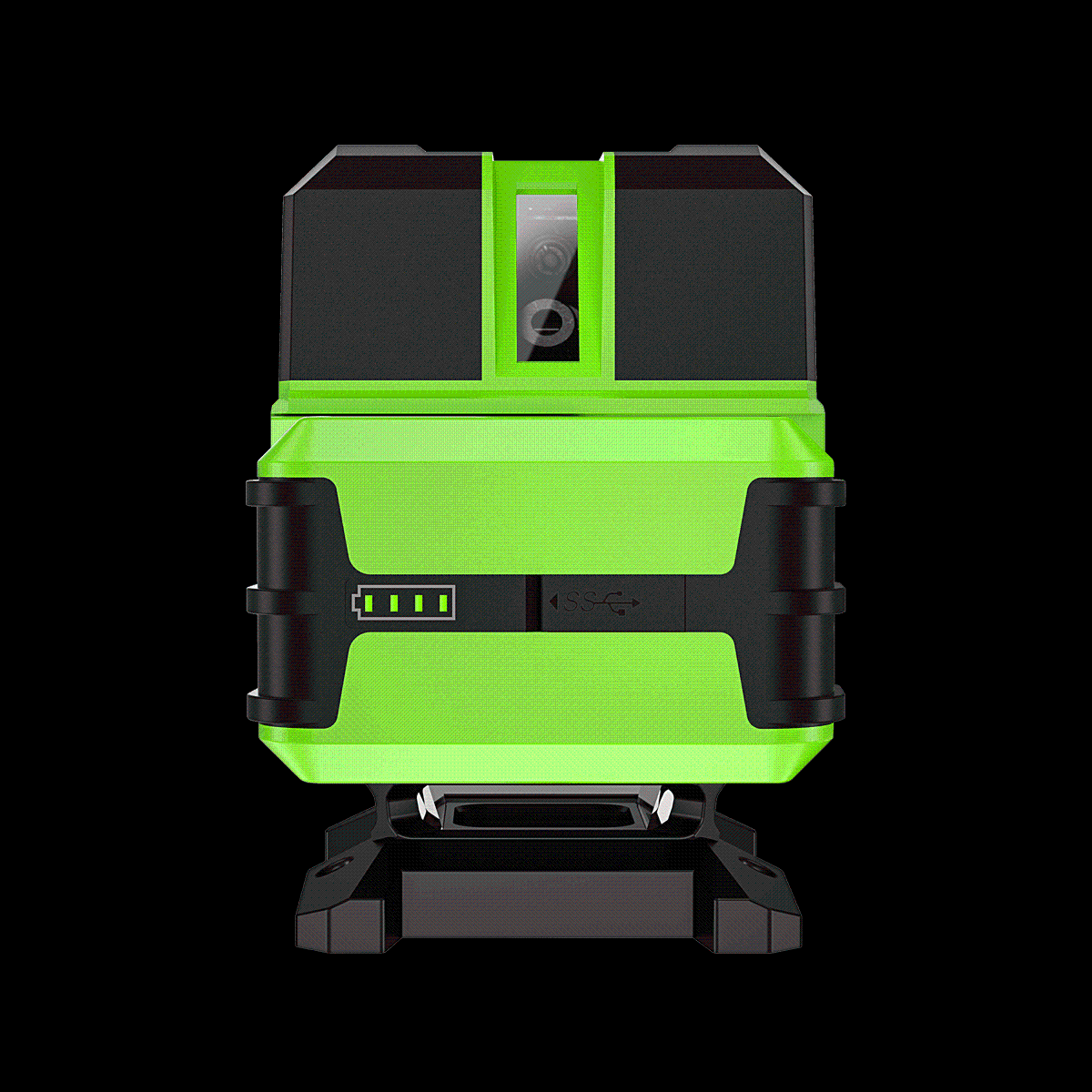

4 battery indicators on the Li-ion battery pack allow users to know the current battery level and charging status.

With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

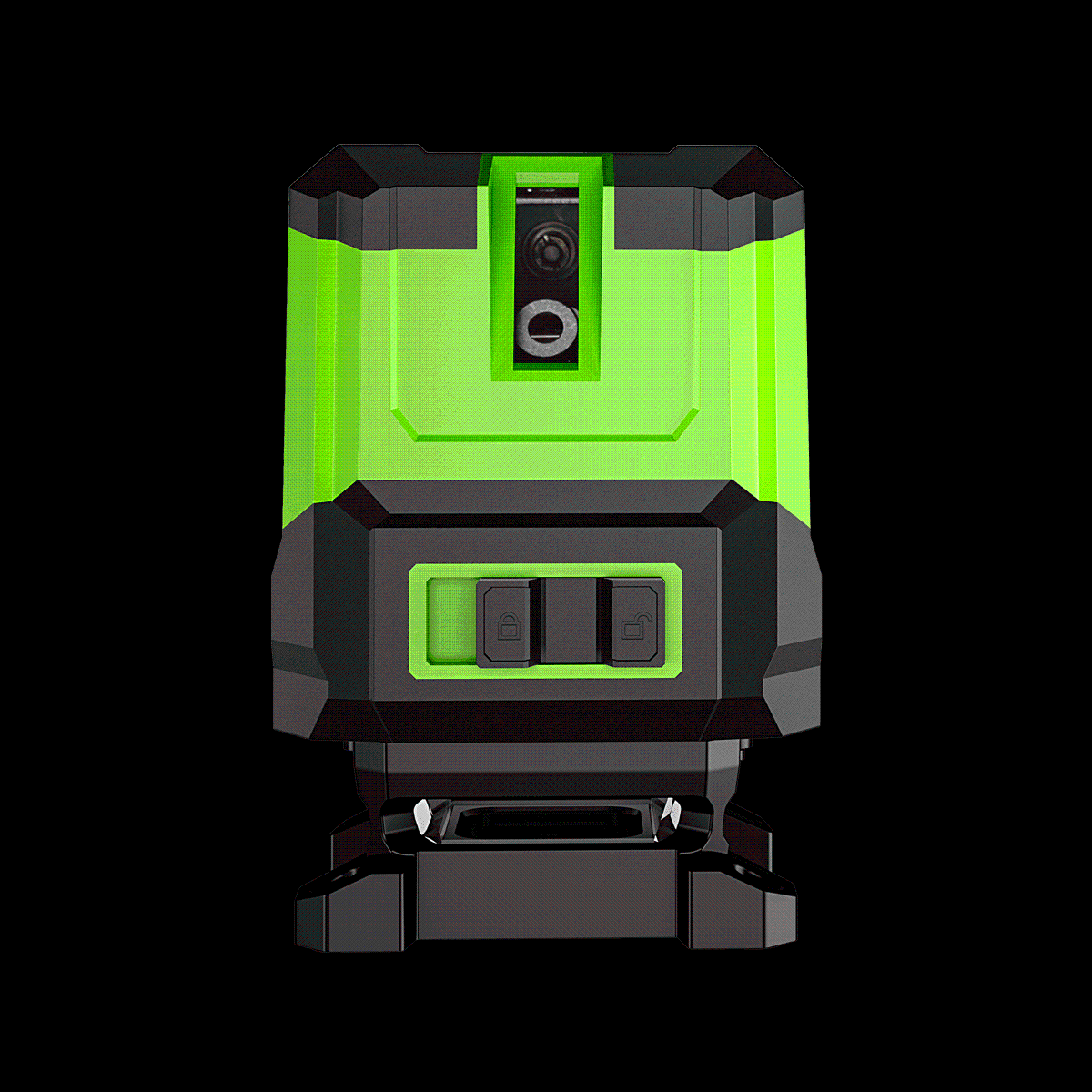

Smart Pendulum - Self-leveling Mode & Manual Mode

Self-leveling Mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.
The laser beam will flash and laser tool will beep as well when the tool is beyond self-leveling range ± 3°.

Manual / Tilt Mode:

When the pendulum locked, the laser tool can be placed for alignment at any angle.
The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

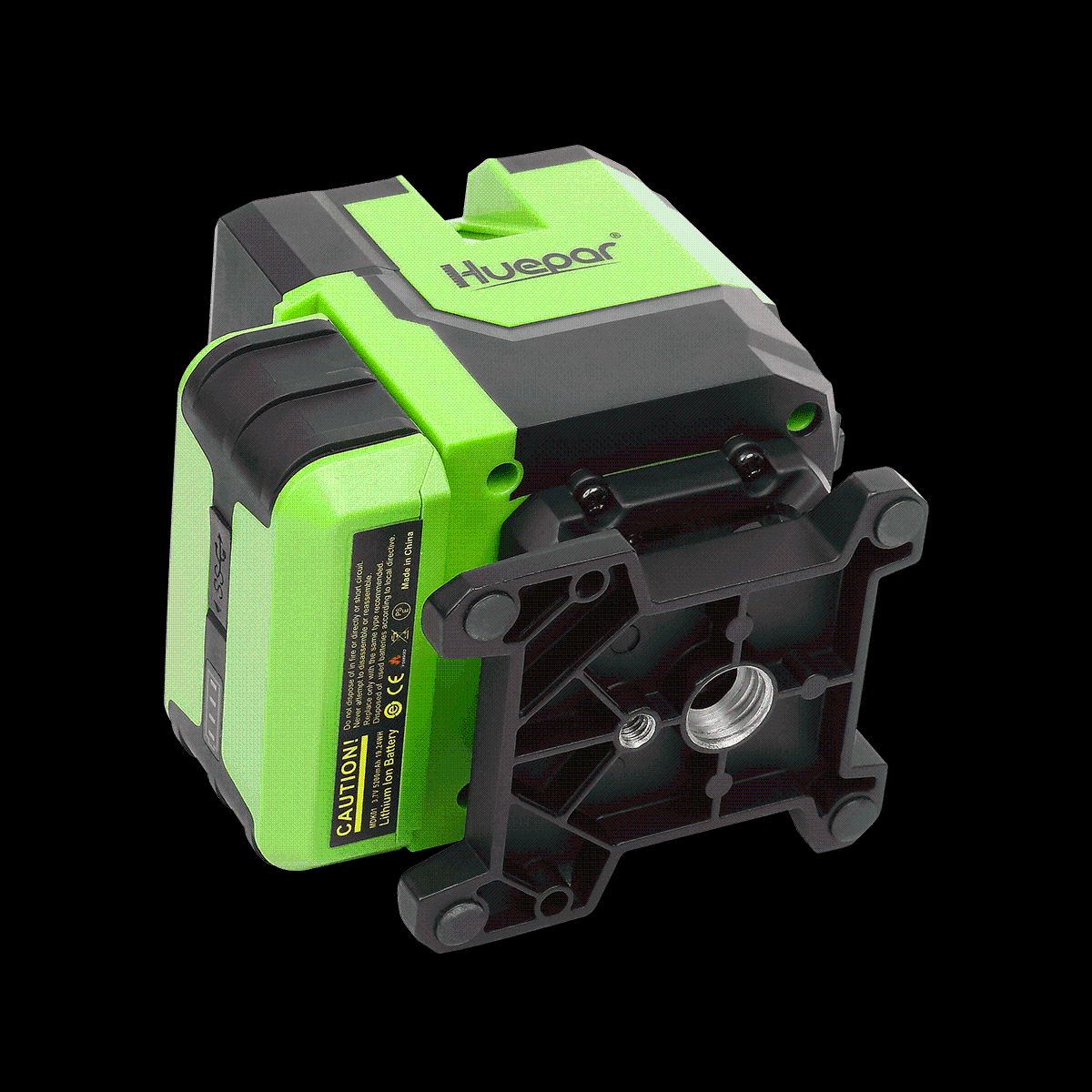

Metal Micro-Adjusting Base

Equipped with a metal micro-adjust fine turning pivoting base, the laser dot can be projected through the 5/8" thread, and the two micro rotary knob enables users to make 360°adjustment.

Users can adjust the height by rotate the three legs of the adapter even on a tilt surface.

The 5/8" threaded mount makes it possible to be attached to a tripod or other tool for use.

Lifting Base

This line laser tool generates one 360°horizontal tiling laser on the floor for tiling installation at a 2/5" distance.

The 360°floor horizontal line providing all-around leveling coverage for layout of tile, stone, brick, carpet and hardwood flooring.

With the lifting base, the laser lines can raise from the surface to project over and travel past uneven surfaces or obstructions between 2.5cm and 8.9cm height.

Pulse Mode

Turn ON pulse mode: After power on, short press the power button to turn on the pulse mode. The indicator will light up in blue.

Pulse mode extends the working range up to 60m. in brighter working conditions when using with Huepar Line Laser Receiver.

Keep the pulse mode on when using with a receiver.

It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

Easy Use

Green Target Plate: Increases the visibility of the laser beam. Special reflective target film increases 1.3 times visibility of a green laser line or point when working over long distance or bright sunlight conditions.

Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.

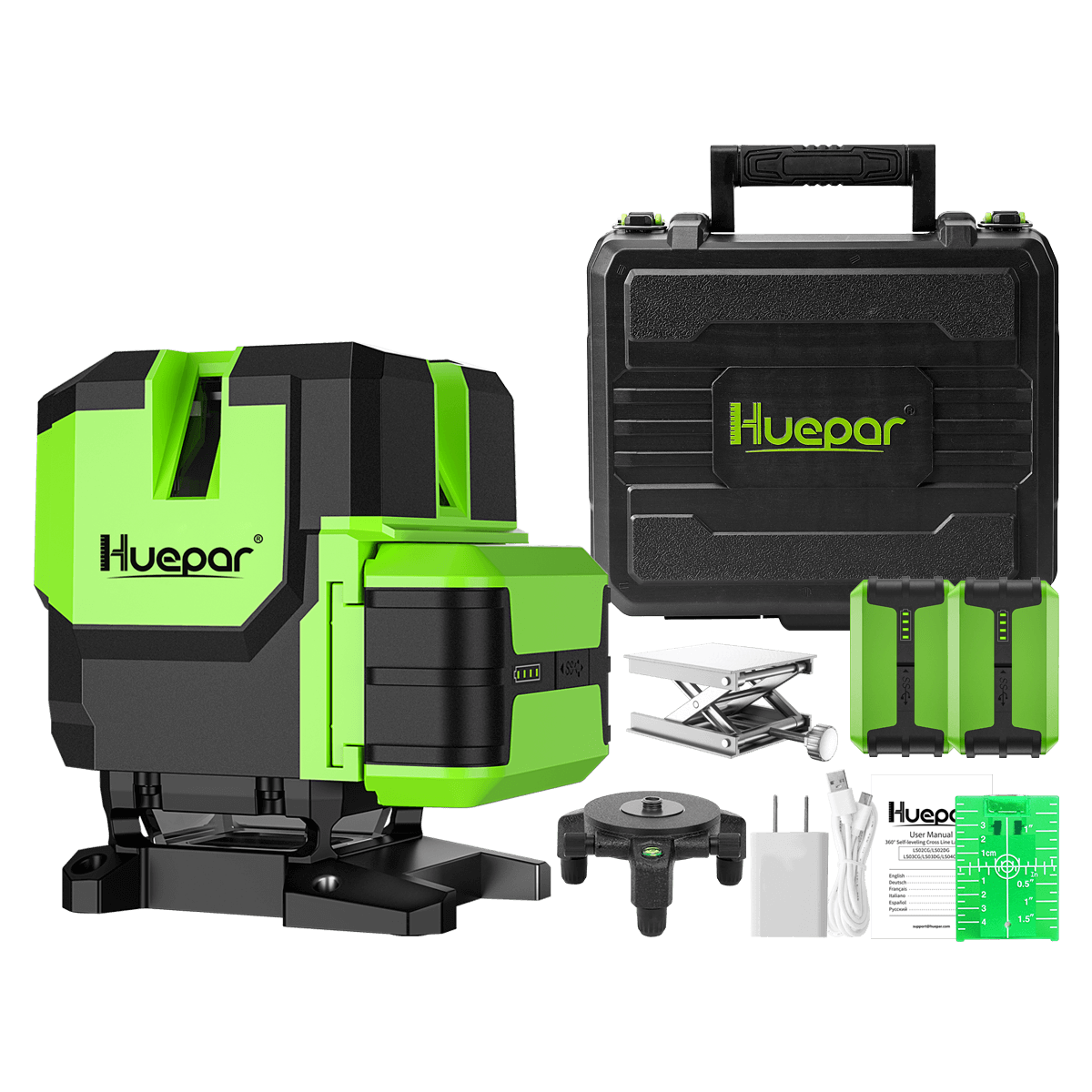

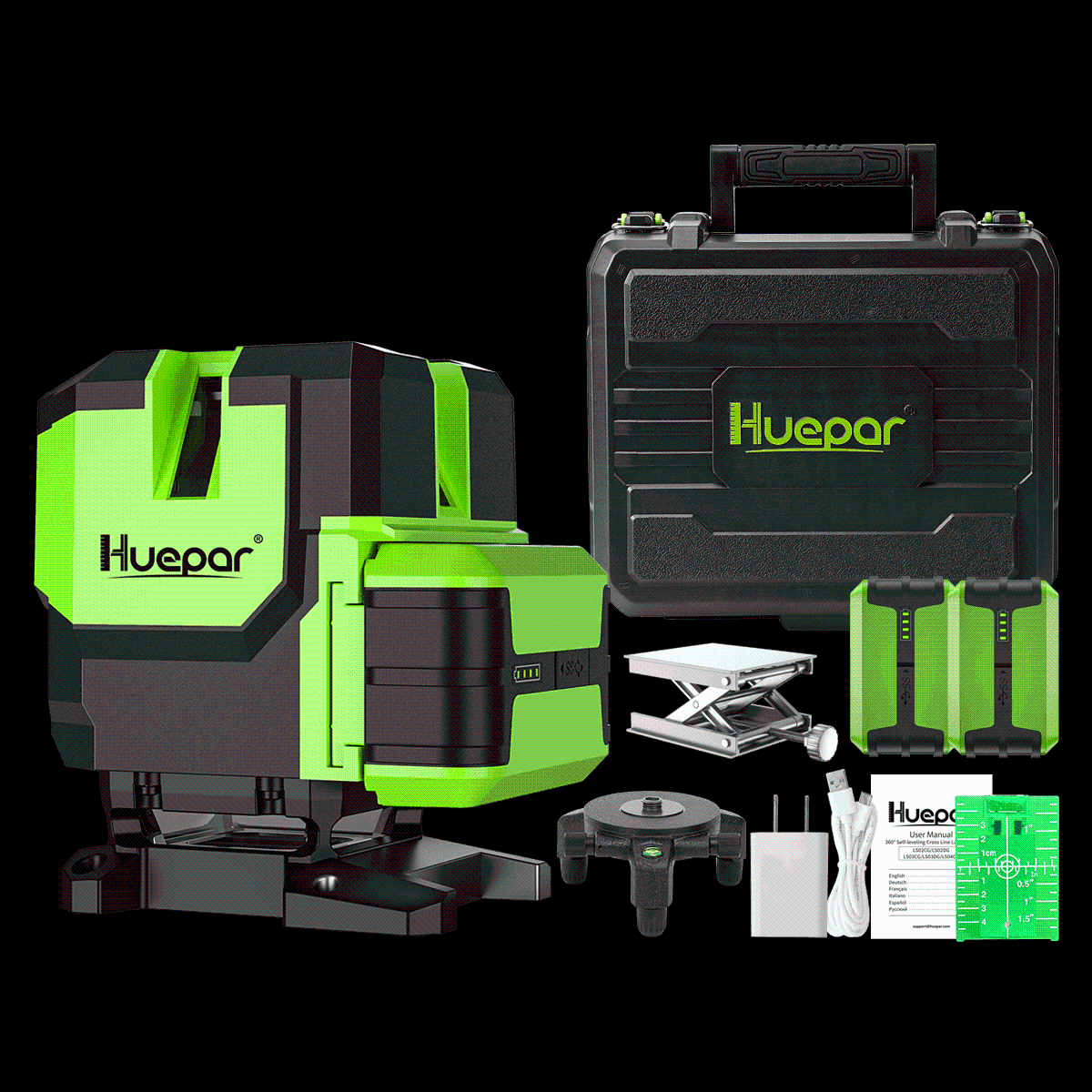

Package Contents

1 x Green Multi-line Laser Level LS41G
2 x Rechargeable Li-ion Battery
1 x Power Adapter& Type-C cord
1 x Metal Micro-Adjust Fine Turning Pivoting Base
1 x Lifting Base
1 x Laser Target Plate
1 x Lase Level User Manual
1 x Hard Carry Case
