Huepar HX04CG Laser Level

Name: Huepar HX04CG Laser Level
Brand: HUEPAR UK
SKU: HX04CG
Price: 229.99 GBP
Availability: OutOfStock

£229.99

Product Highlights

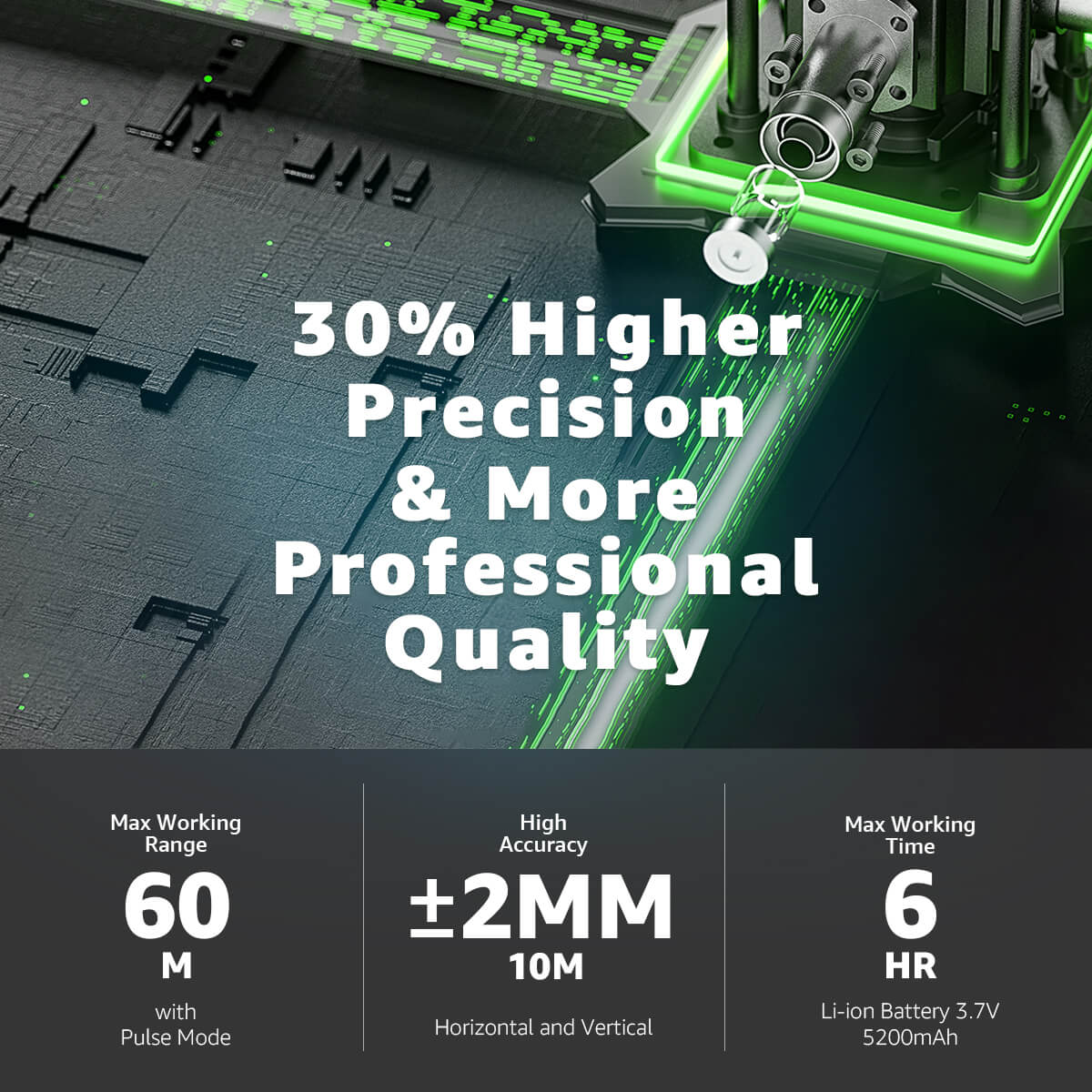

Accuracy of ±2mm/10m

Self-Levelling Range ±3.5°

Range Up to 60m with Pulse Mode

3-Second Self-Levelling Time

5200mAh Removable Battery

IP54-Rated Dust & Water Resistant

Pay with Ease

Trusted Delivery

Huepar HX04CG Laser Level

Out of stock, no delivery date available.

±2MM/10MM

Horizontal/Vertical Accuracy: ± 1/13" at 33Ft

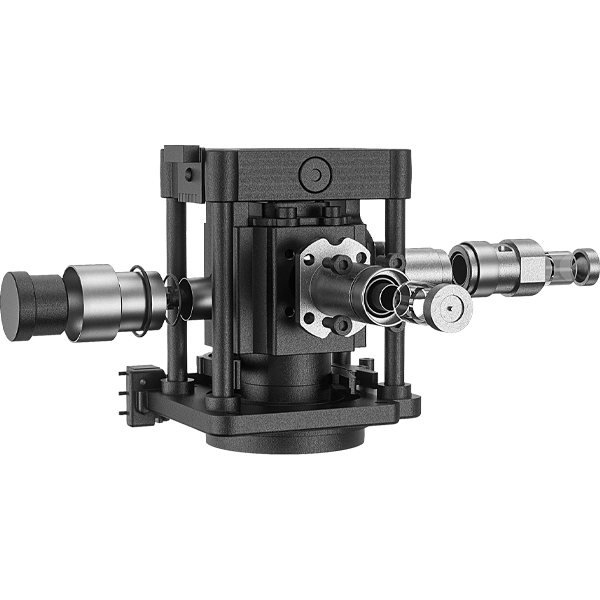

Integration of Mechanization

By introducing automated processes, the accuracy and consistency of laser system components can be improved, reducing human error and external interference.

Dual Battery Design

The 3.7V 5200mAh Li-Ion battery provides up to 6 hours of continuous operation. Also comes with 4 AA batteries (battery box included) for flexible extended runtime.

Self-leveling Range ±3° & Manual mode

The laser tool self-levels and indicates out-of-level when unlocked. When the pendulum is locked, the laser tool can be used at any angle.

High Protection Grade

The durable, high-quality shockproof enclosure provides 4 ft. collision protection. It's compact and lightweight for easy gripping, yet large enough to sit stably, making it ideal for construction site work.

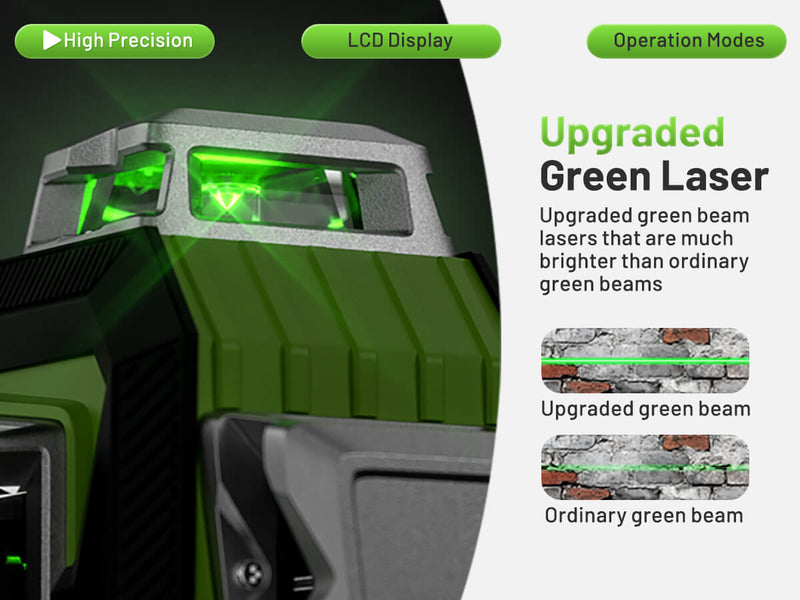

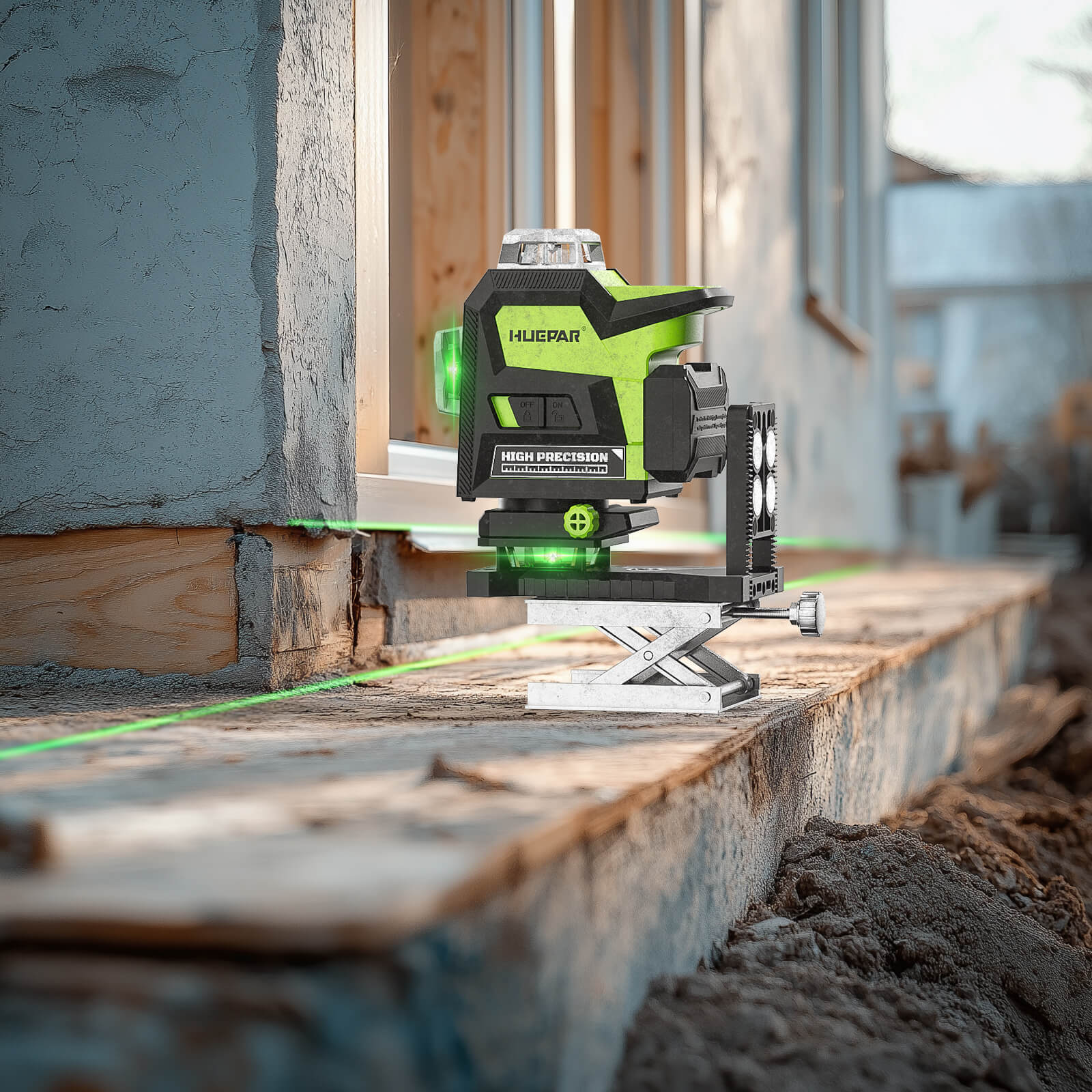

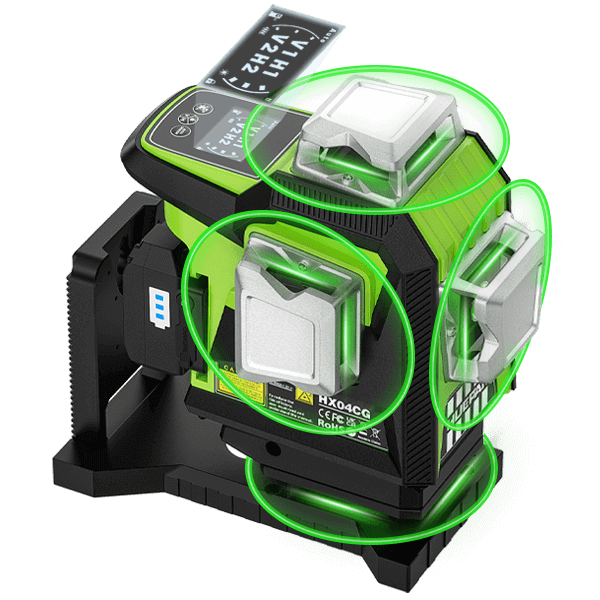

Upgraded Green Laser

Explore the remarkable capabilities of the Huepar HX04CG, featuring an upgraded green beam laser with brightness far exceeding that of ordinary beams. Whether you're working on a major construction project or a home DIY task, this tool offers a brighter, sharper reference line that ensures precision and efficiency in every job.

Upgraded Green Beam: Superior brightness that guarantees excellent visibility, even in demanding conditions.
Ordinary Green Beam: Lower brightness, more suited for use in low-light environments.

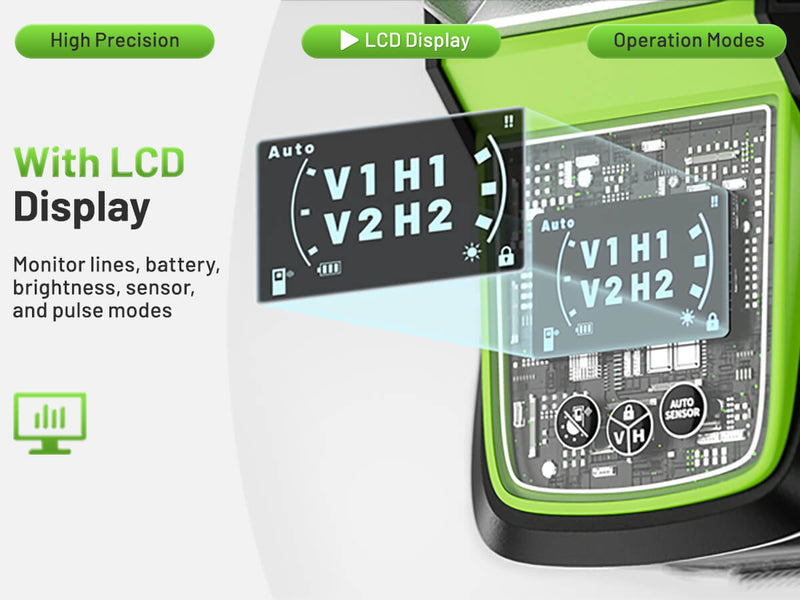

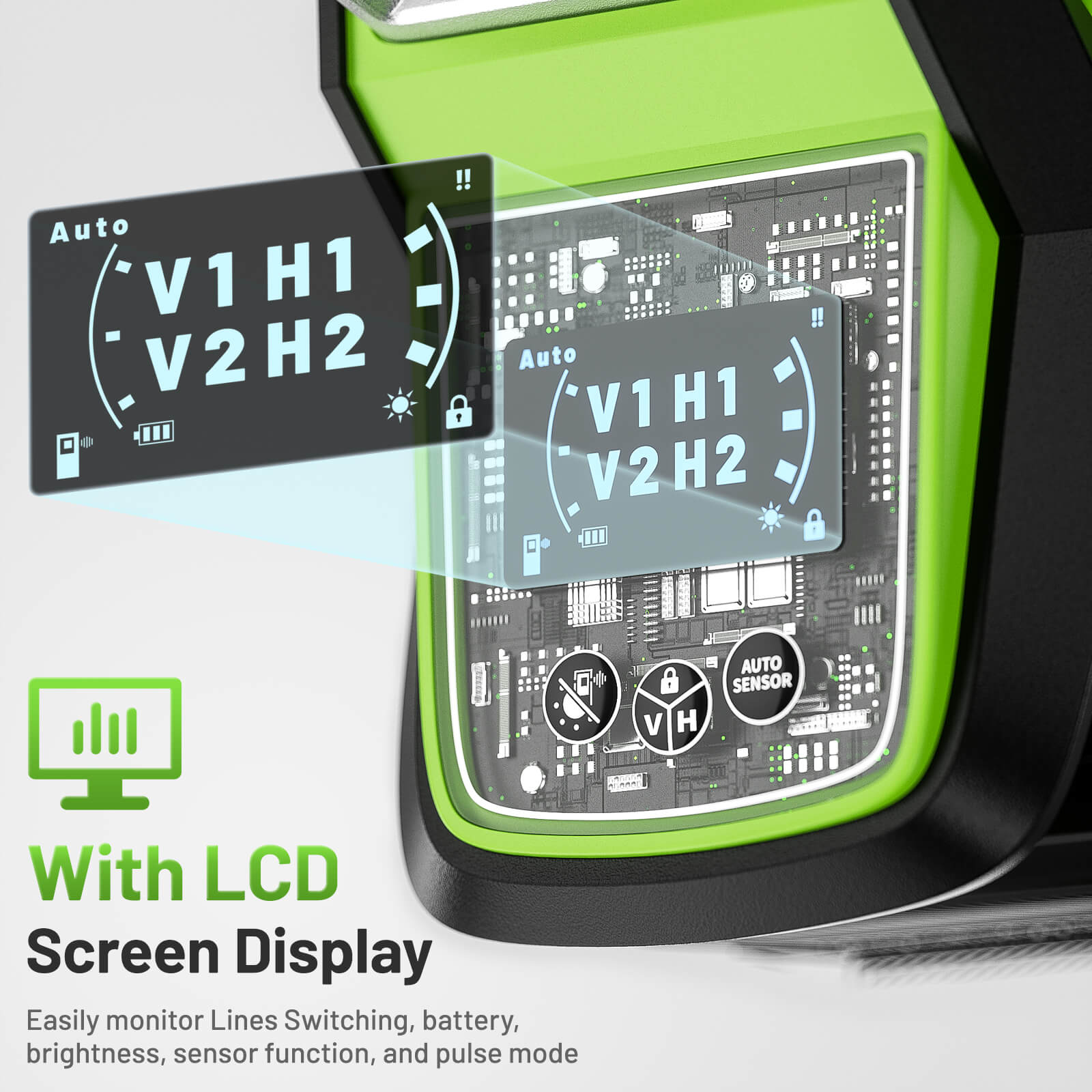

Equipped with an LCD Display

The Huepar HX04CG features a modern LCD display, providing an intuitive monitoring experience that makes the workflow smarter. With the LCD display, you can easily track the laser's working status—real-time monitoring of laser line modes, battery level, brightness adjustments, sensor status, and pulse mode switching. All information at a glance makes the operation more convenient and helps you stay efficient in various working environments, allowing you to achieve precision and efficiency effortlessly.

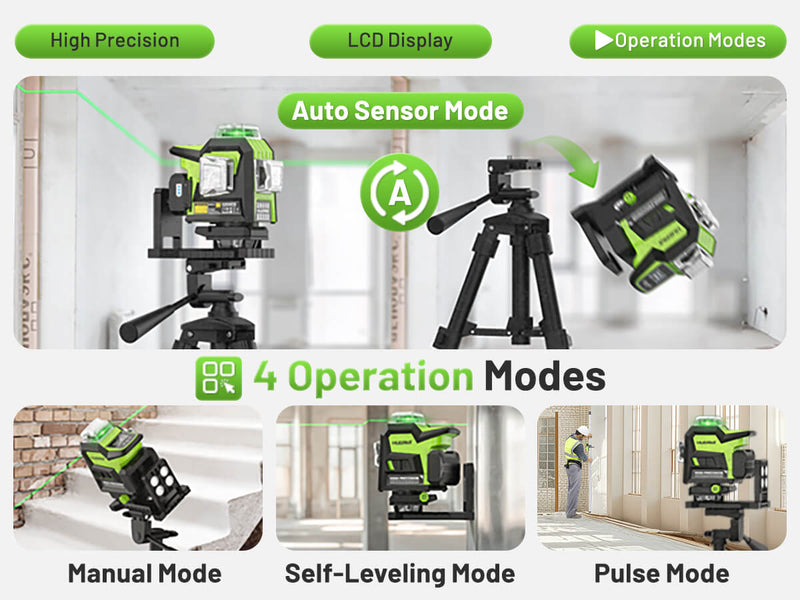

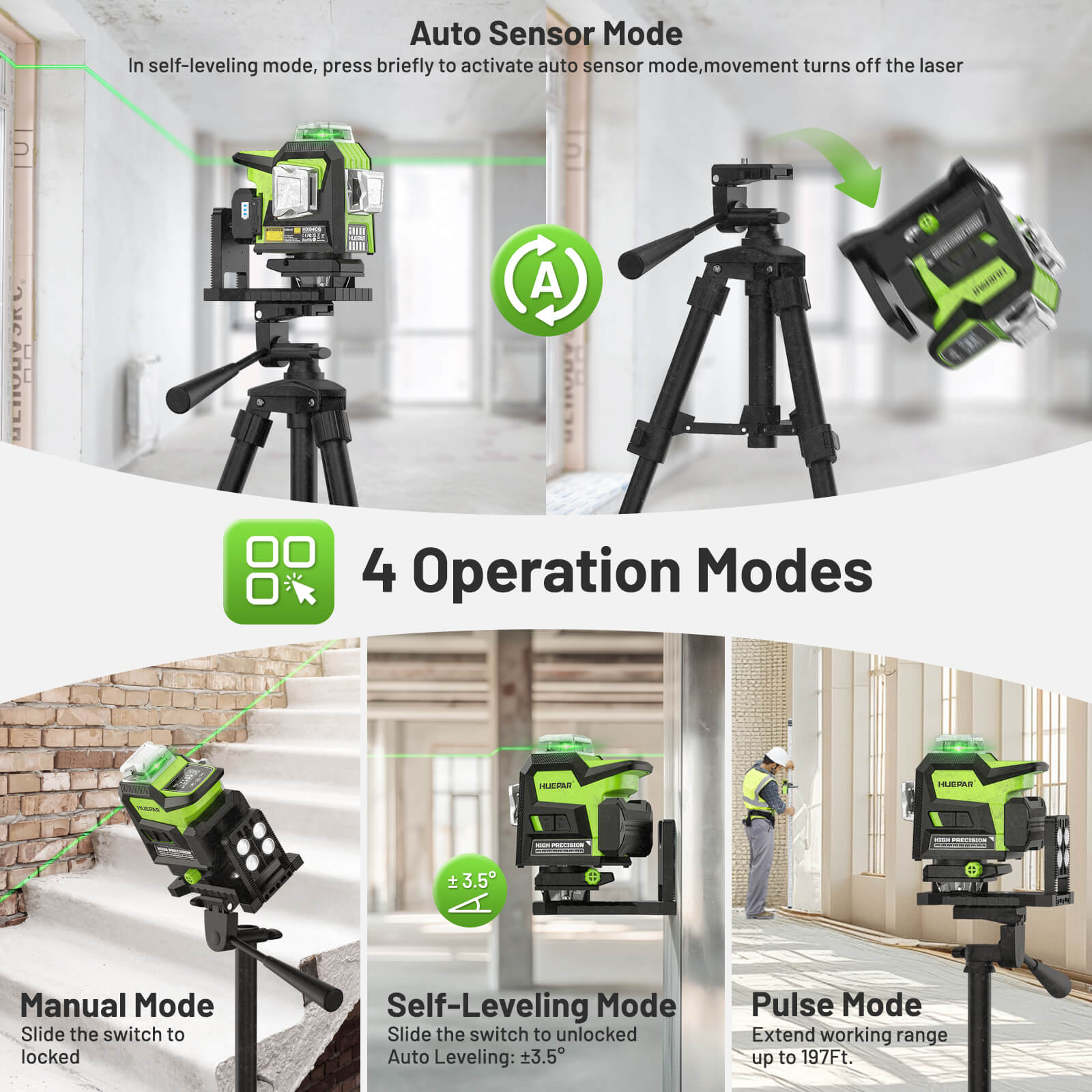

Self-levelling Mode & Manual Mode

Auto Sensor Mode: Automatically adjusts laser level, minimizing manual intervention.
Manual Mode: Allows flexible manual adjustments for specific angles.
Self-Leveling Mode: Quick auto-calibration for precise, efficient operations.

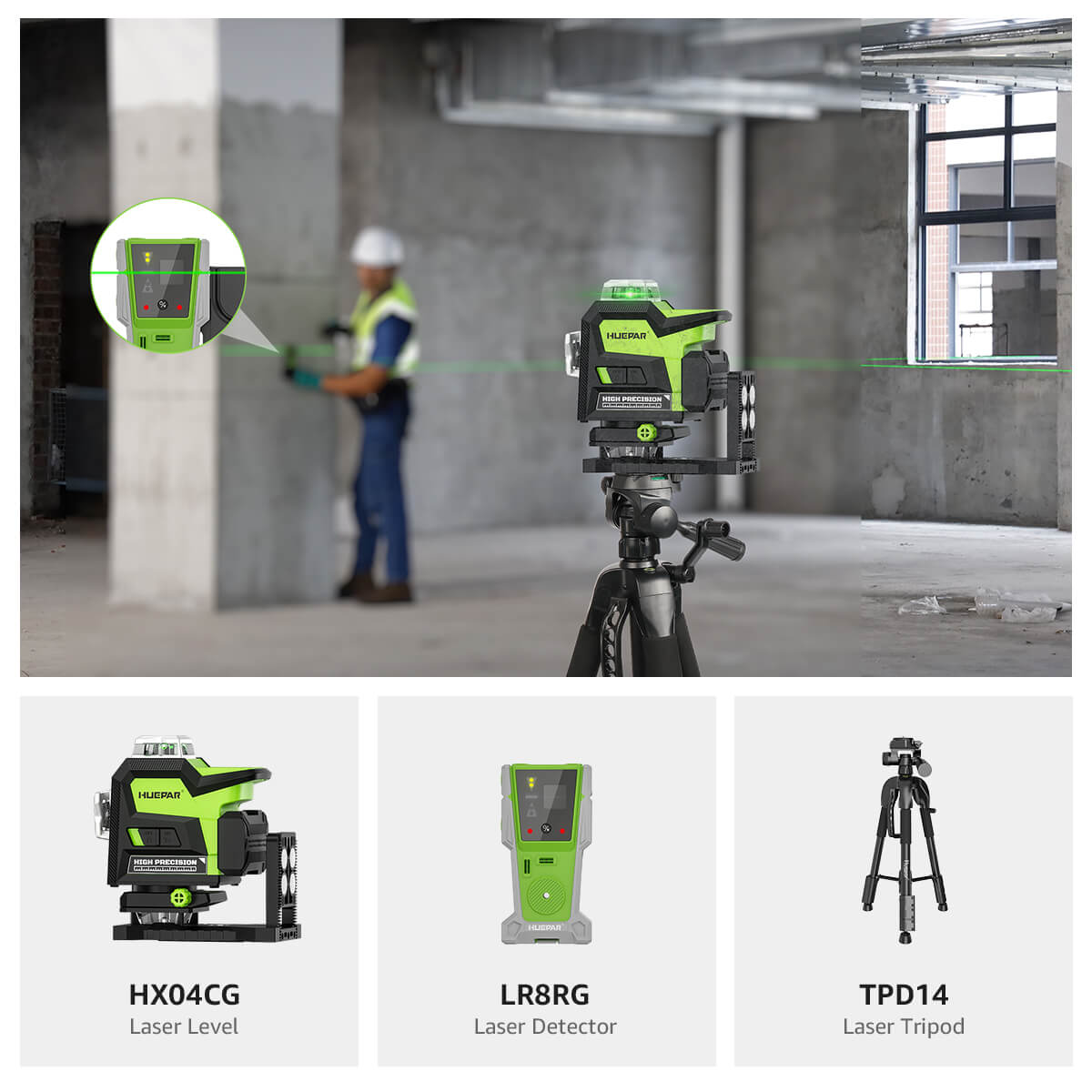

Pulse Mode: Optimized for outdoor use, extends visibility with a receiver.

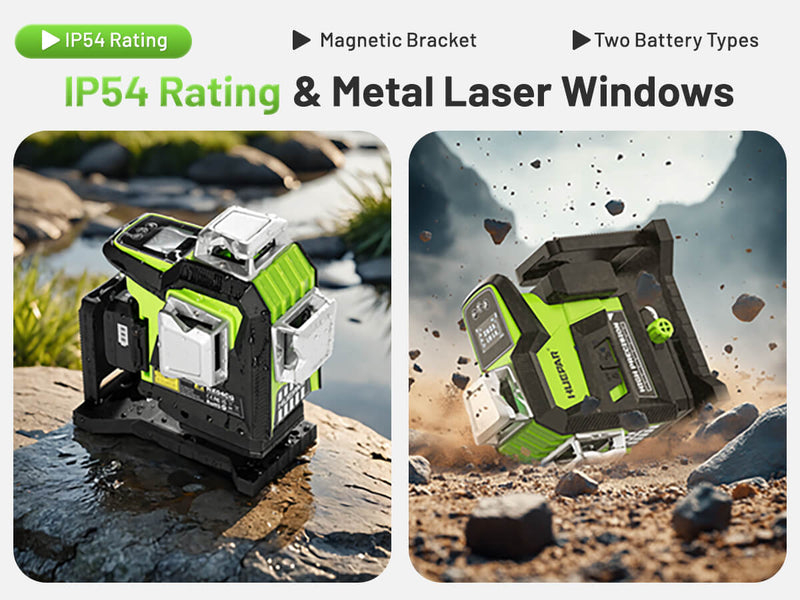

IP54 Rated & Metal Laser Window

Built to withstand the elements, the Huepar HX04CG offers IP54-rated protection against water and dust, ensuring reliability in the toughest conditions. Its robust construction features metal laser windows for enhanced durability, providing optimal performance even in rugged environments.

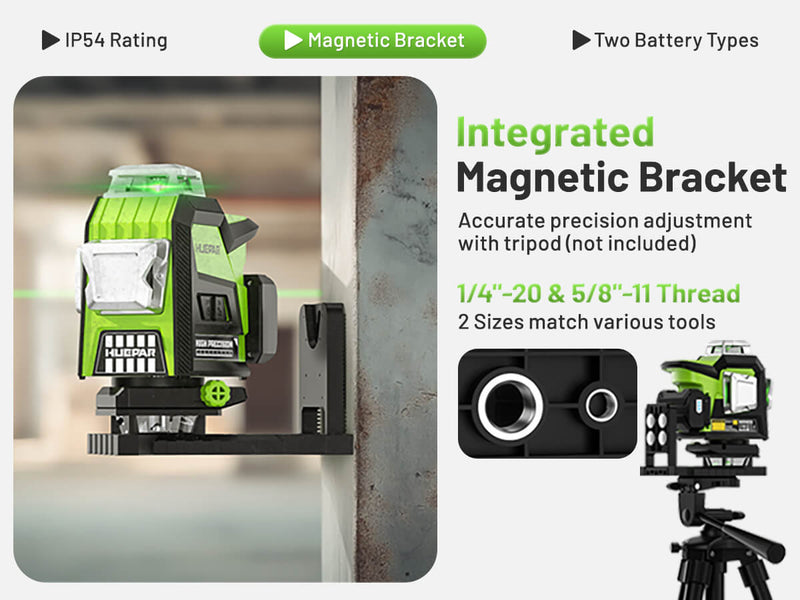

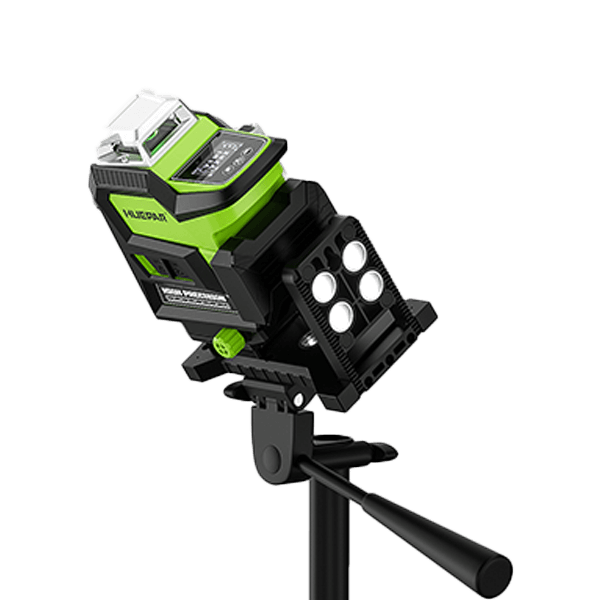

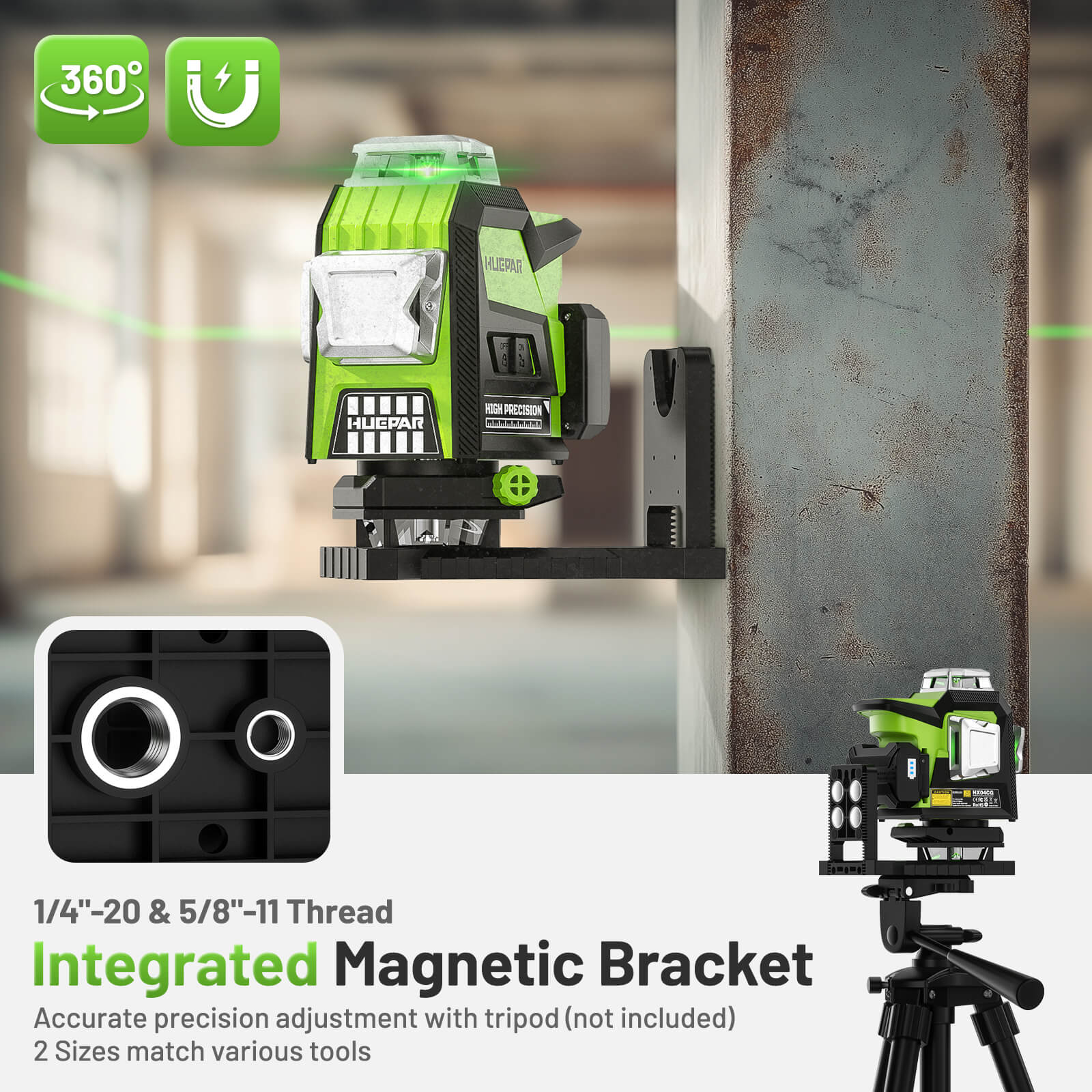

360° Multi-Functional Magnetic Bracket

The Huepar HX04CG comes with a 360° Multi-Functional Magnetic Bracket, designed for effortless versatility. Whether you're positioning the device on a wall, column, or using a tripod (not included), this bracket provides flexible mounting solutions, ensuring precise alignment in any scenario.

Additionally, the 1/4"-20 and 5/8"-11 thread sizes ensure compatibility with a variety of tools, offering maximum flexibility for different tasks. Whether mounting on a wall, column, or using a tripod, this bracket offers easy and reliable installation.

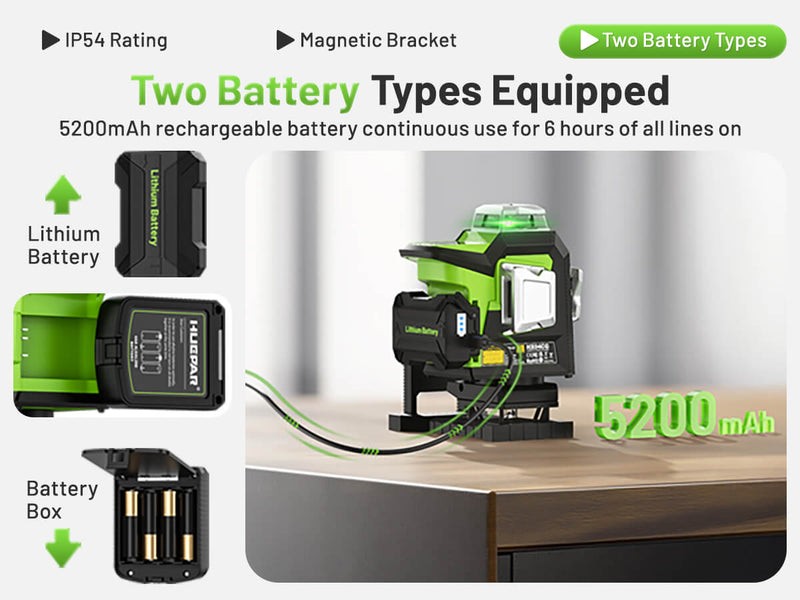

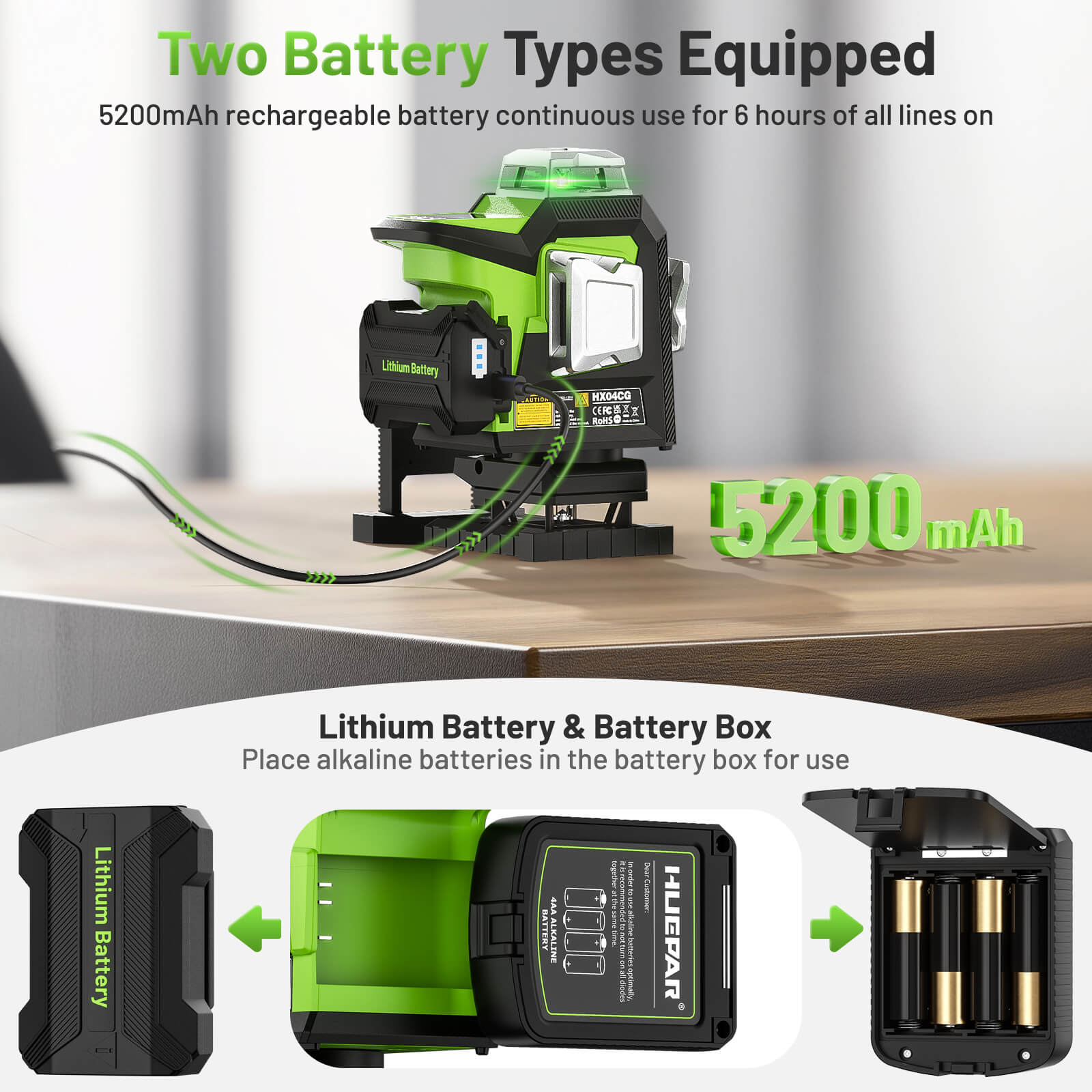

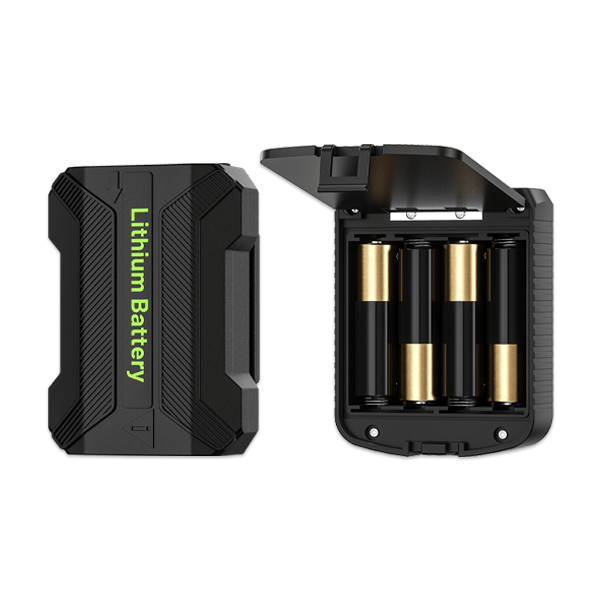

Two Battery Types Equipped for Maximum Flexibility

The Huepar HX04CG offers dual battery options, giving you the freedom to choose between a powerful 5200mAh lithium battery or a convenient battery box. The rechargeable 5200mAh lithium battery allows for continuous use for up to 6 hours with all lines active, ensuring long-lasting performance on demanding projects. Alternatively, the battery box offers flexibility by allowing the use of standard AA batteries, providing a reliable backup when needed. This thoughtful design keeps your work uninterrupted, giving you the power to stay productive, no matter the task at hand.

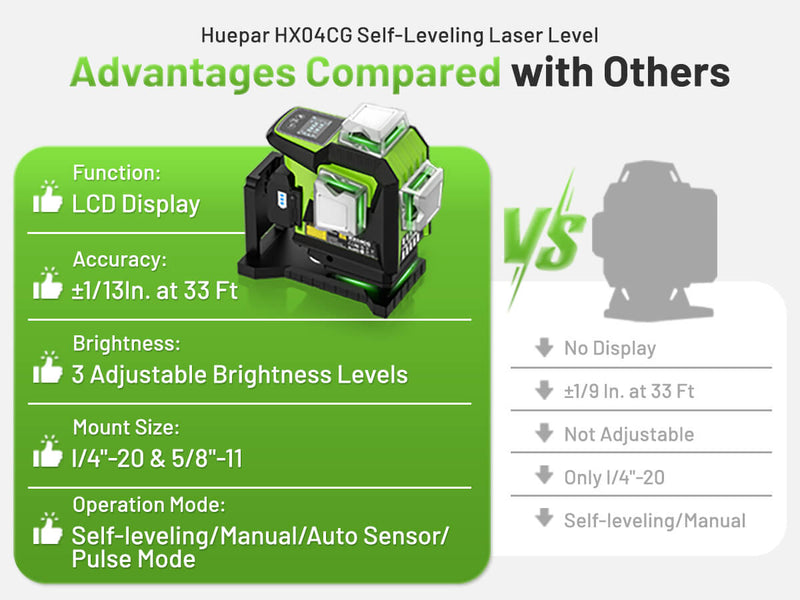

More accurate & Smart Laser Measurement Solutions

Function: An LCD display shows real-time status, unlike many similar products that lack this feature.
Accuracy: Offers an accuracy of ±2mm/10m, significantly surpassing other products with ±3mm.

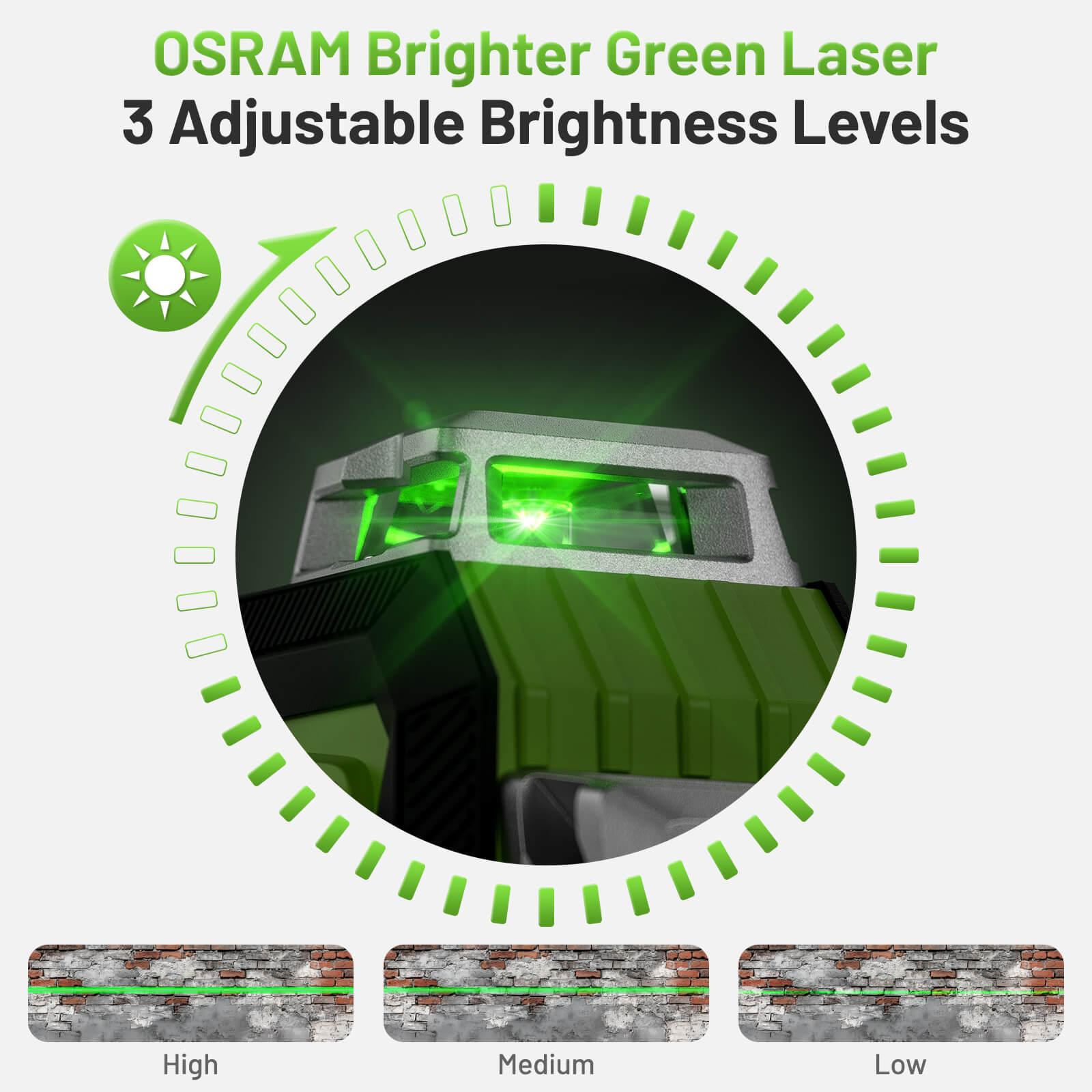

Brightness: Features 3 adjustable brightness levels to adapt to different lighting conditions, guaranteeing laser visibility. Competing models often lack this adjustability, limiting usability.
Operation Modes: Supports Self-Leveling, Manual, Auto Sensor, and Pulse Modes, offering more flexibility than products with only basic modes.

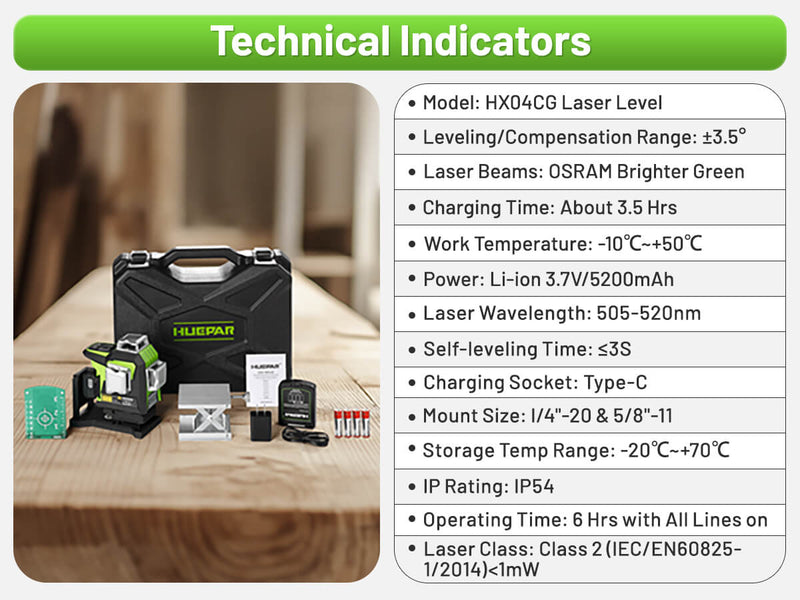

Technical Indicators

Model: HX04CG Laser Level
Laser Wavelength: 505-520nm
Leveling/Compensation Range: ±3.5°
Laser Beams: OSRAM Brighter Green
Charging Time: About 3.5 Hrs
Operating Time: 6 Hrs with All Lines On
Power: Li-ion 3.7V/5200mAh
Self-leveling Time: ≤3S
Charging Socket: Type-C
Mount Size: 1/4"-20 & 5/8"-11
Work Temperature: -10°C~+50°C
Storage Temp Range: -20°C~+70°C
IP Rating: IP54
Laser Class: Class 2 (IEC/EN60825-1/2014)<1mW

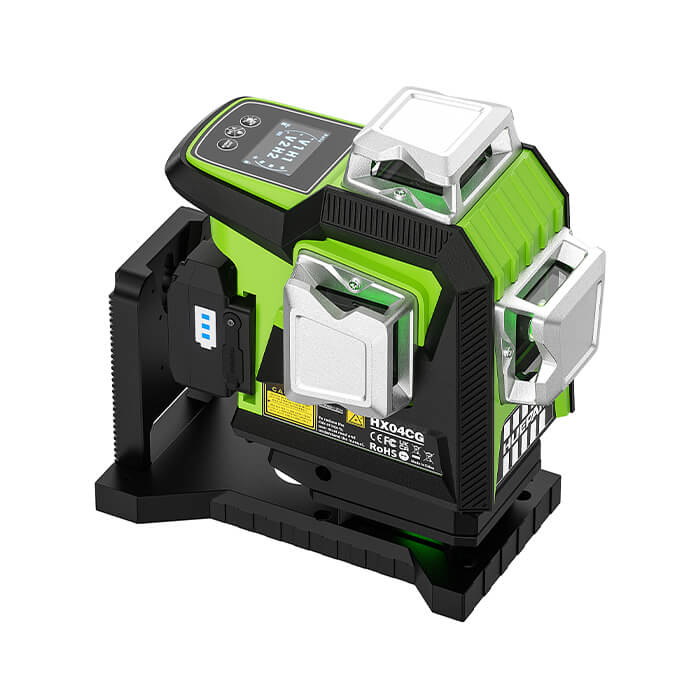

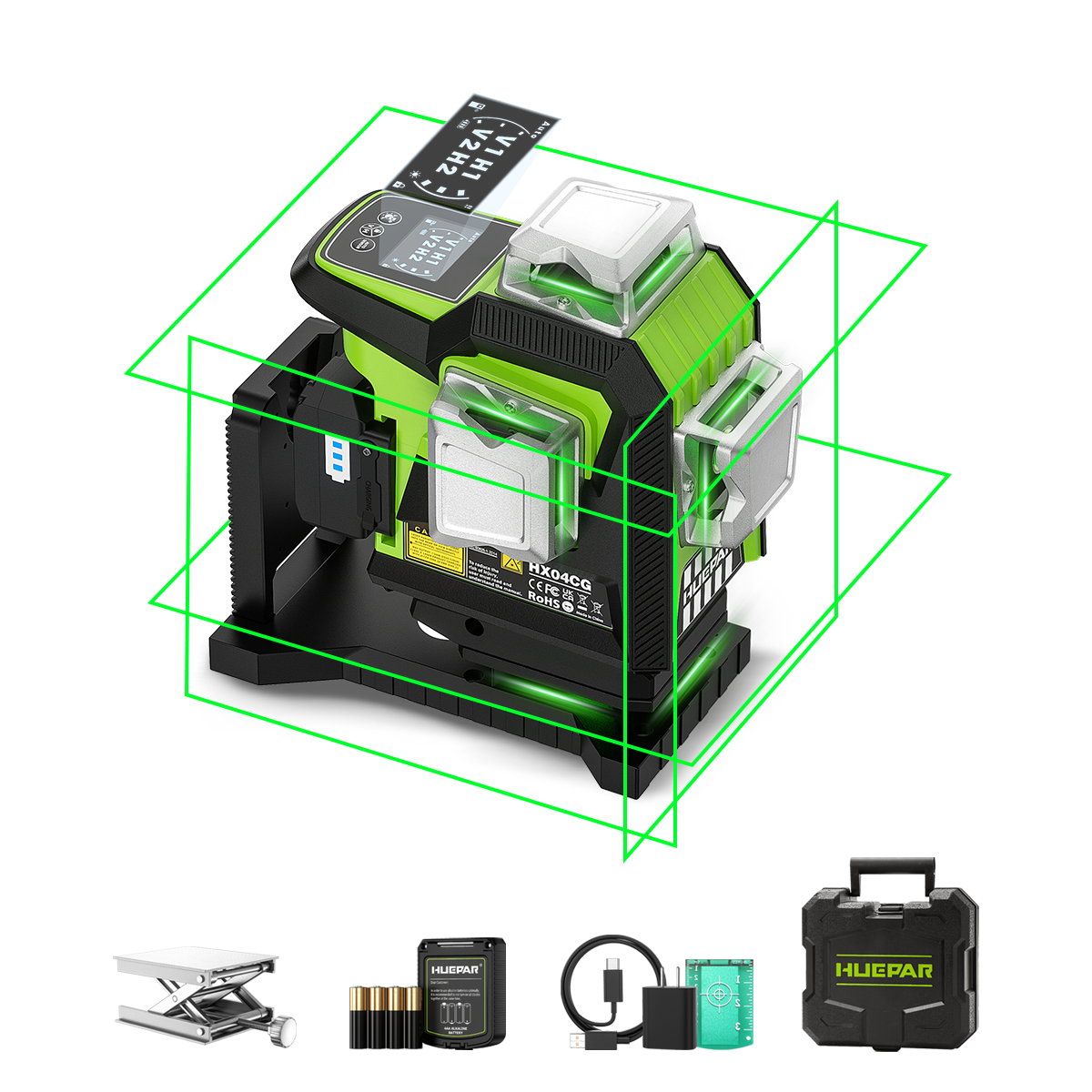

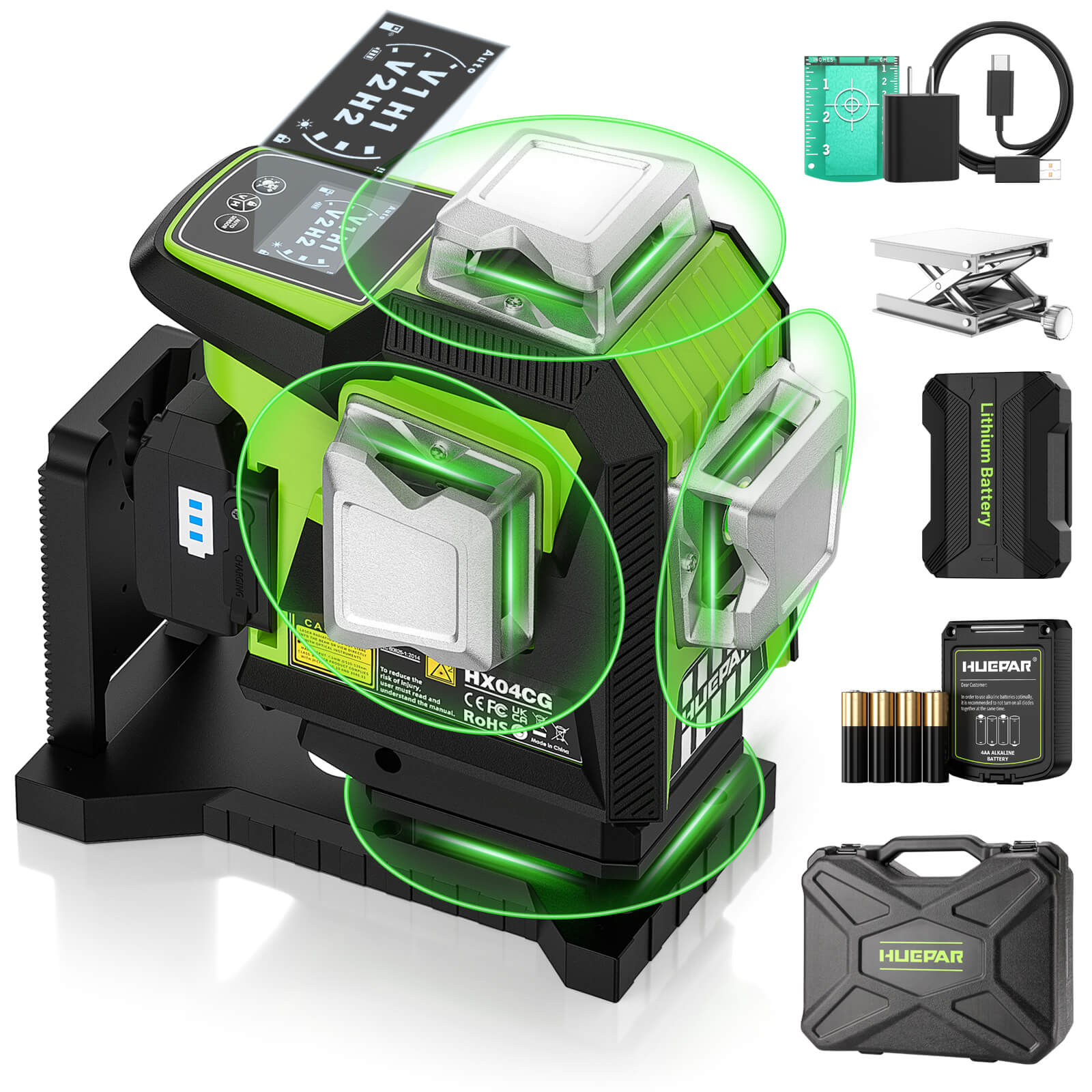

Huepar HX04CG

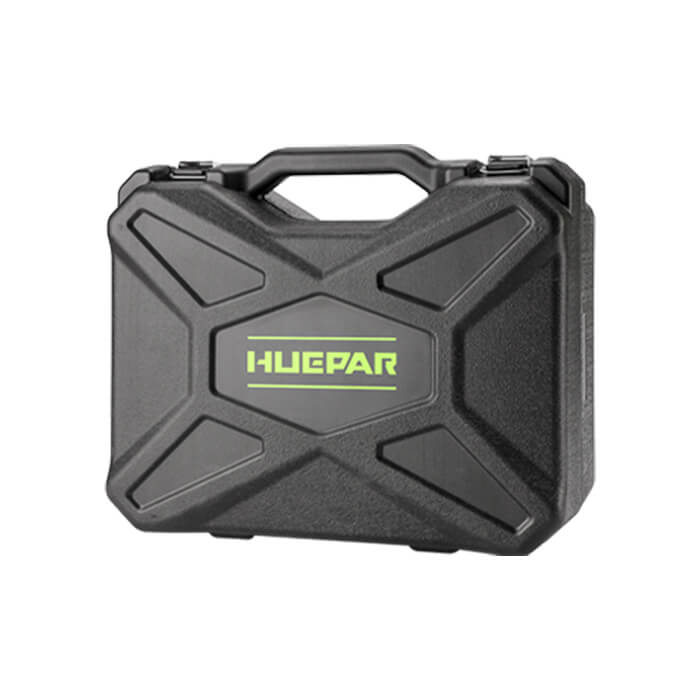

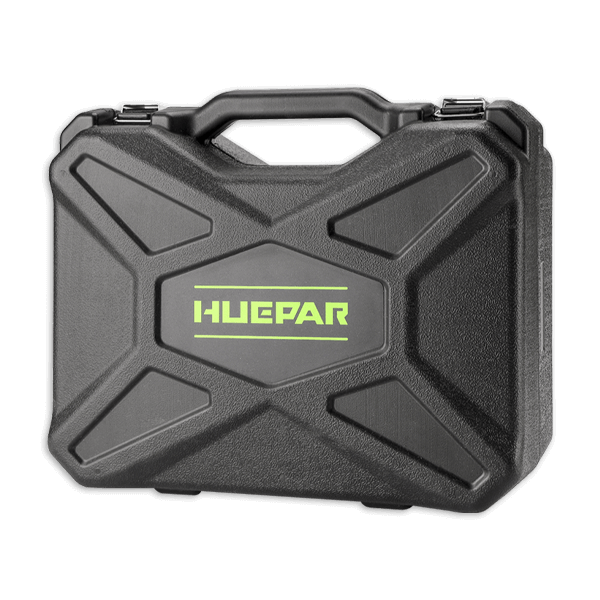

Hard Carry Case

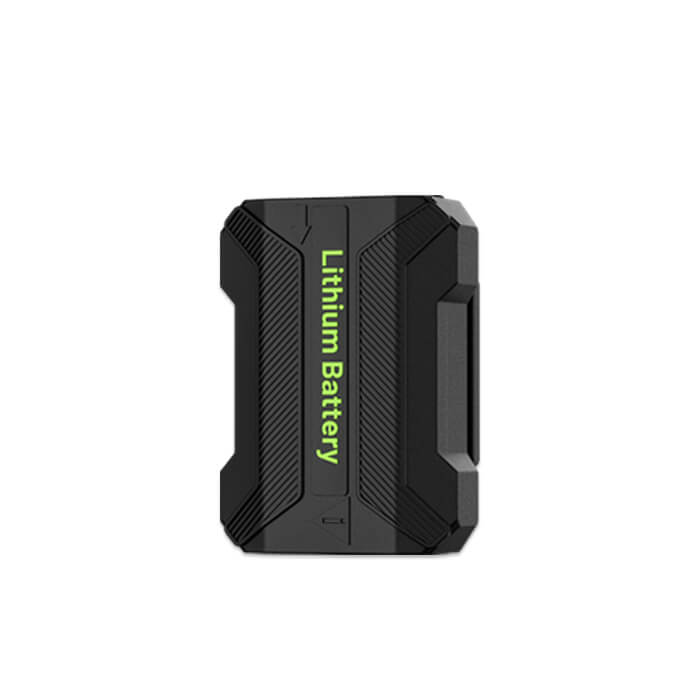

Li-ion Battery

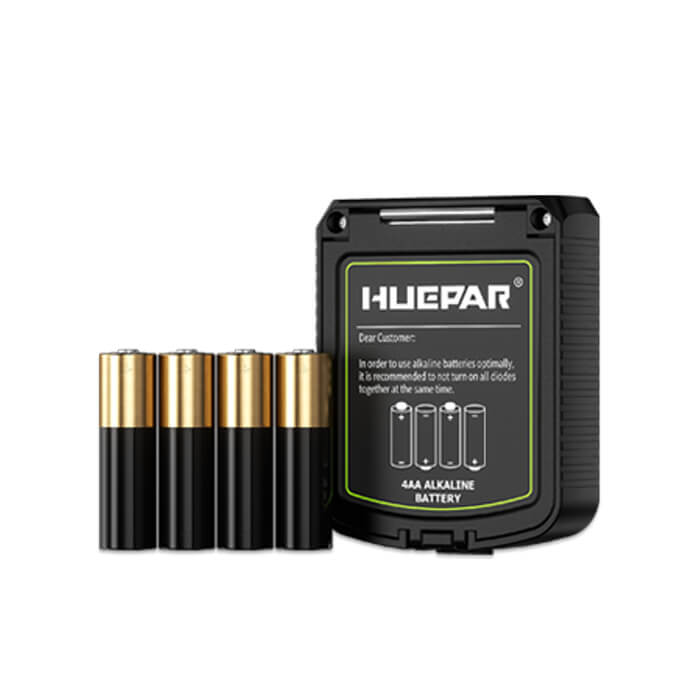

Battery Box

Type-C Charging Kit

Magnetic Bracket

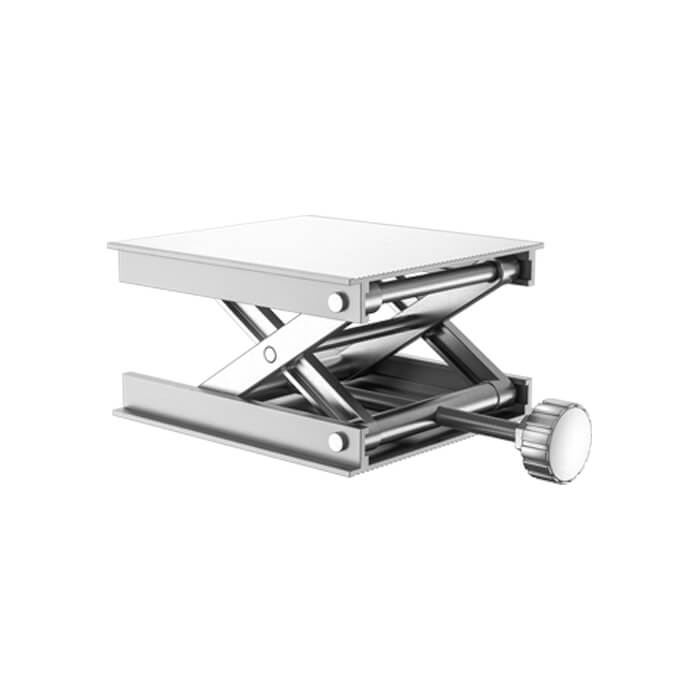

Lifting Base

Magnetic Target

User Manual

Product Comparison

Huepar HX04CG Laser Level

£229.99

Unavailable

Huepar Pro ZK04CG Laser Level

£259.99

Instock

Huepar W04CG Laser Level

£299.99

Unavailable

Huepar S04CG Laser Level

£259.99

Instock

Bluetooth Function

LCD Screen

Remote Control

APP

Brightness Adjustment

Rotating Base

Laser Beam Supplier

±2mm/10m

Accuracy

±2mm/10m

Accuracy

±3mm/10m

Accuracy

±3mm/10m

Accuracy

505-520nm

Wavelength

505-520nm

Wavelength

510-530nm

Wavelength

510-530nm

Wavelength

±3.5°

Leveling Range

±3°

Leveling Range

±3°

Leveling Range

3.5°±1°

Leveling Range

3 seconds

Self-leveling Time

3 seconds

Self-leveling Time

4 seconds

Self-leveling Time

4 seconds

Self-leveling Time

6 hours

Working Time

8 hours

Working Time

6.5 hours

Working Time

5 hours

Working Time

Model Weight

700g

Model Weight

790g

Model Weight

30m, 60m with detector

Working Range

30m, 60m with detector

Working Range

20m, 40m with detector

Working Range

20m, 40m with detector

Working Range
