Huepar 621CG Laser Level

• 360-DEGREE HORIZONTAL LINE AND TWO PLUMB DOTS: With one ultra-bright 360° horizontal & one 140° vertical green beams, 621CG Laser Level provides all-around leveling coverage even in big job-site. And unique up and down plumb spots provide additional benefits of ceiling, points transfer, leveling, alignment, plumbing and squaring applications to suit users' needs.

• ALL-IN-ONE LASER: 621CG laser level offers all-in-one versatility for users who perform a variety of tasks involving squaring, plumbing and leveling. Five modes are freely selectable independently, including Horizontal mode, Vertical mode, Horizontal&Vertical mode, Plumb points mode, and all beams on mode.

• POWER-SAVING OUTDOOR PULSE MODE: This laser level projects brighter green laser than standard red beams with accuracy of +/- 1/9" at 33Ft for lines, 1/9" at 33Ft for dots. Besides brighter green beam, a power-saving pulse mode extends laser range up to 180ft with Huepar LR-6RG Line Laser Receiver in bright light or outdoor conditions and use for a longer time.

• SELF-LEVELING & MANUAL MODE: With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

621CG Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

• Laser Wavelength: 505-520nm

• Horizontal/Vertical Accuracy: ±1/9" at 33 Ft.

• Plumb Dot Accuracy: 1/9" at 33 Ft.

• Leveling/Compensation Range: ±3.5°

• Working Distance (Line): 130Ft.(100 LUX) ,180Ft. with Huepar Line Laser Receiver

• Operating Time: 4 hours with all laser beams on

• Power Source: 4×˝AA˝ (LR6)

• IP Rating: IP54

• Operation Temperature Range: 32℉ ~ 113℉ (0℃~ 45℃)

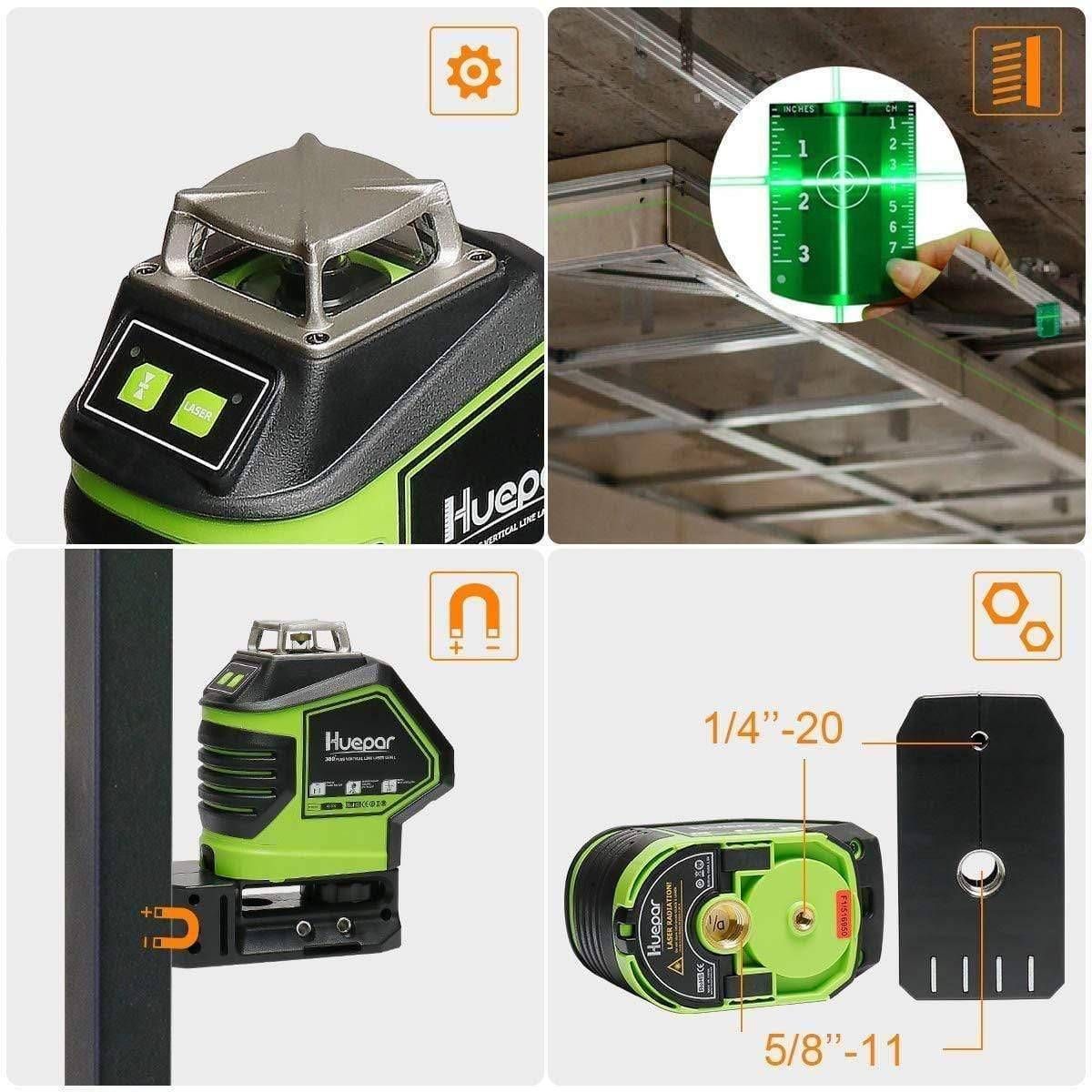

• Mount Size: 1/4"-20 and 5/8"-11

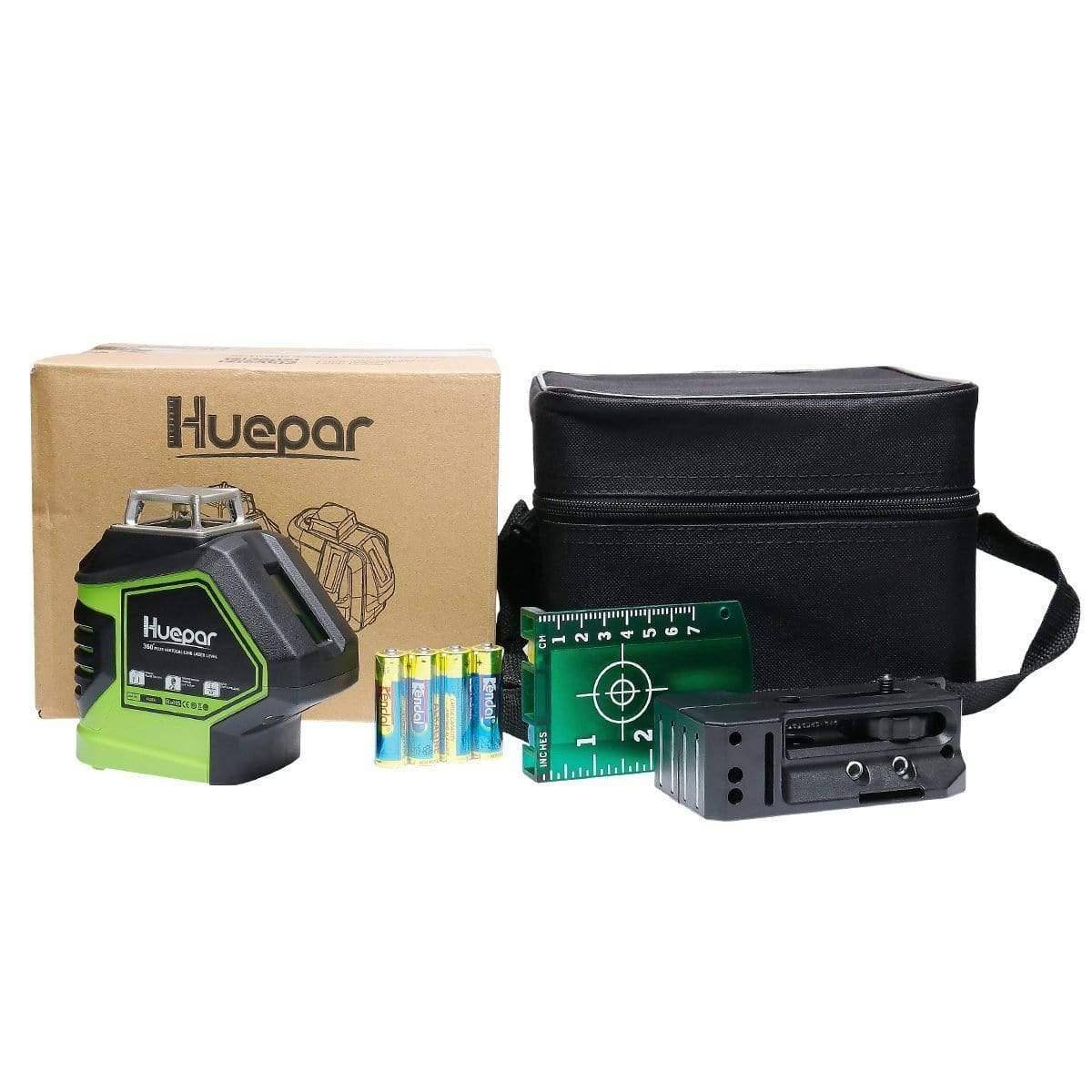

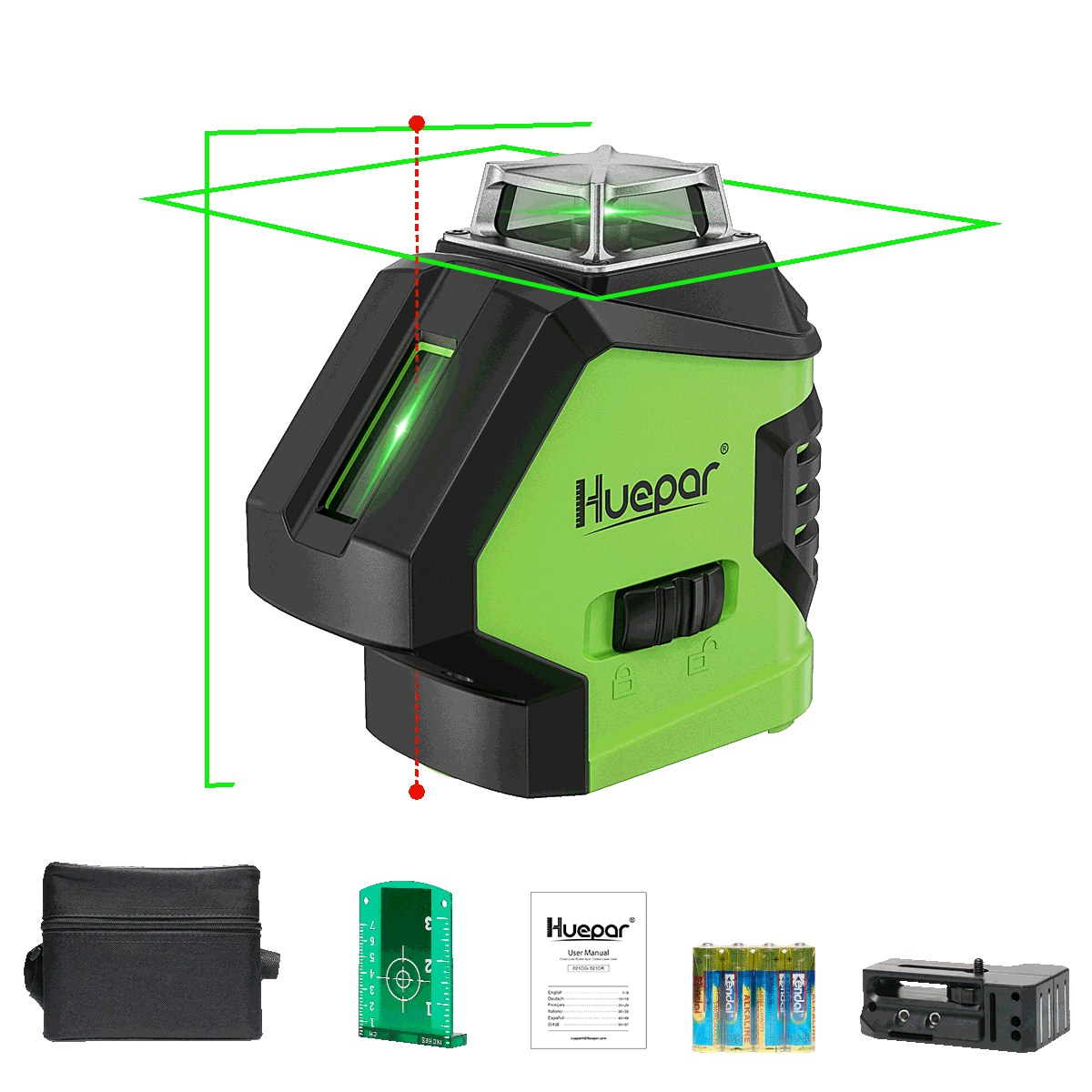

Items in the Package

• 1 x Huepar 621CG Green Self-Leveling Cross Line Laser Level
• 1 x Magnetic Pivoting Base
• 1 x Portable Bag
• 1 x Laser Target Plate
• 1 x User Manual
• (Not including AA Battery)

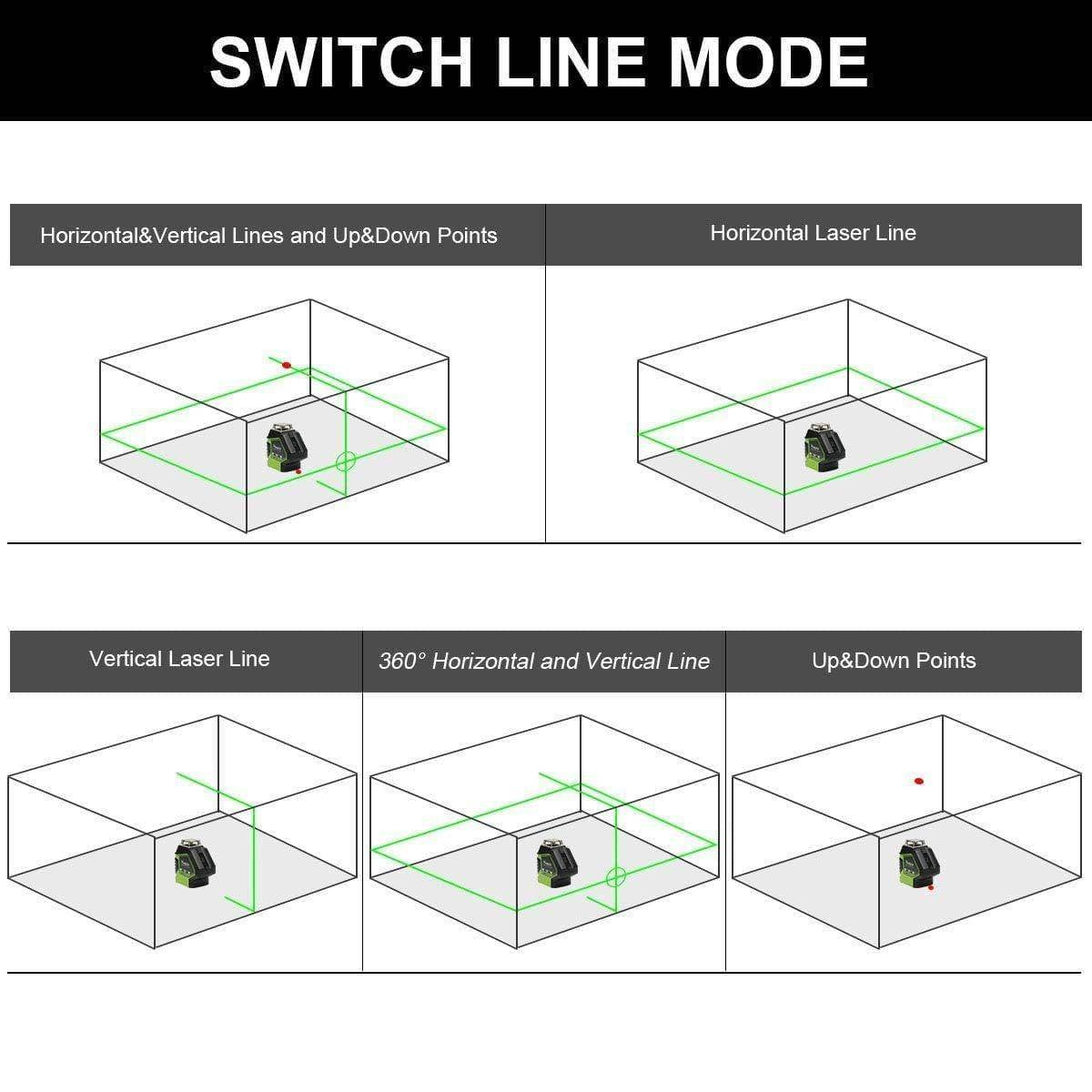

Multiple Line Switching Functions

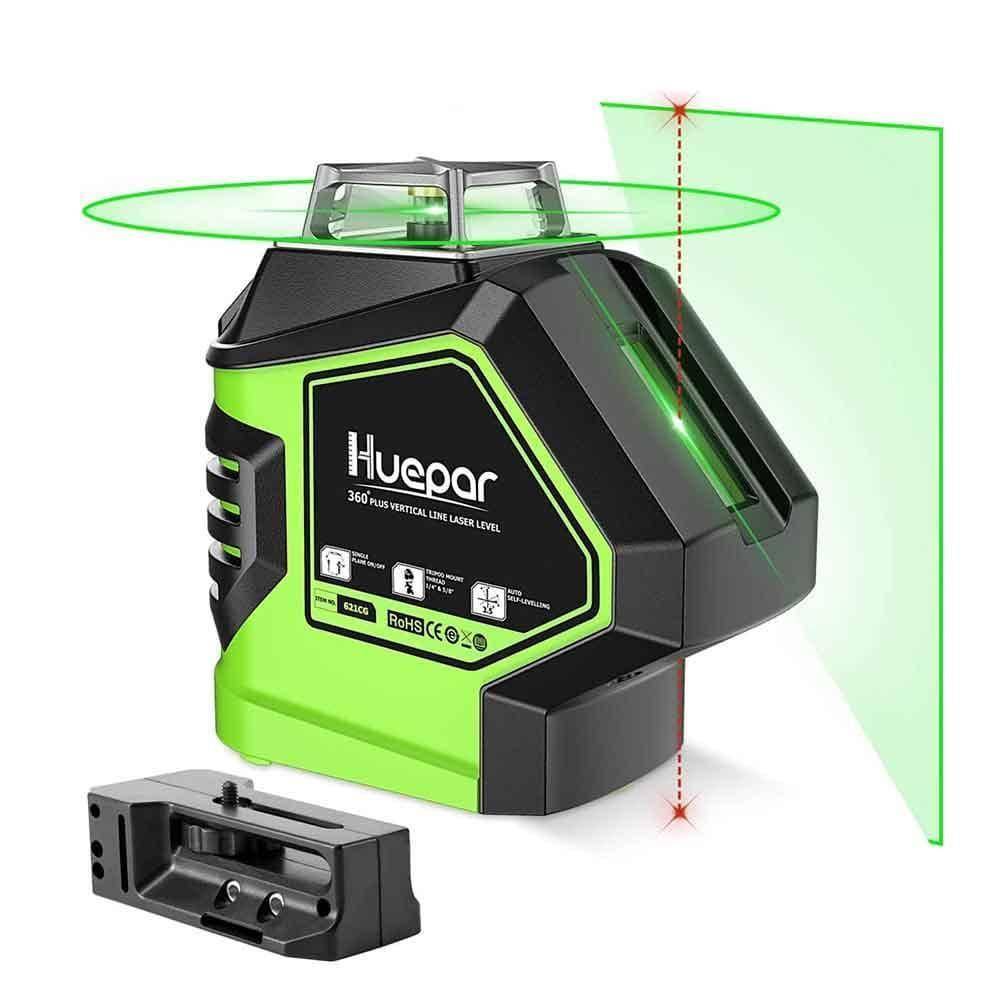

• This professional cross-line laser projects one 360° Horizontal and one 140° Vertical lines for all-around leveling coverage, even in big job-site.

• This laser level also projects up&down centered points on the floor and ceiling.

• Five modes can be freely selected independently: All Lasers on mode, 360 Horizontal mode, Vertical mode, Horizontal&Vertical mode and Plumb Points mode.

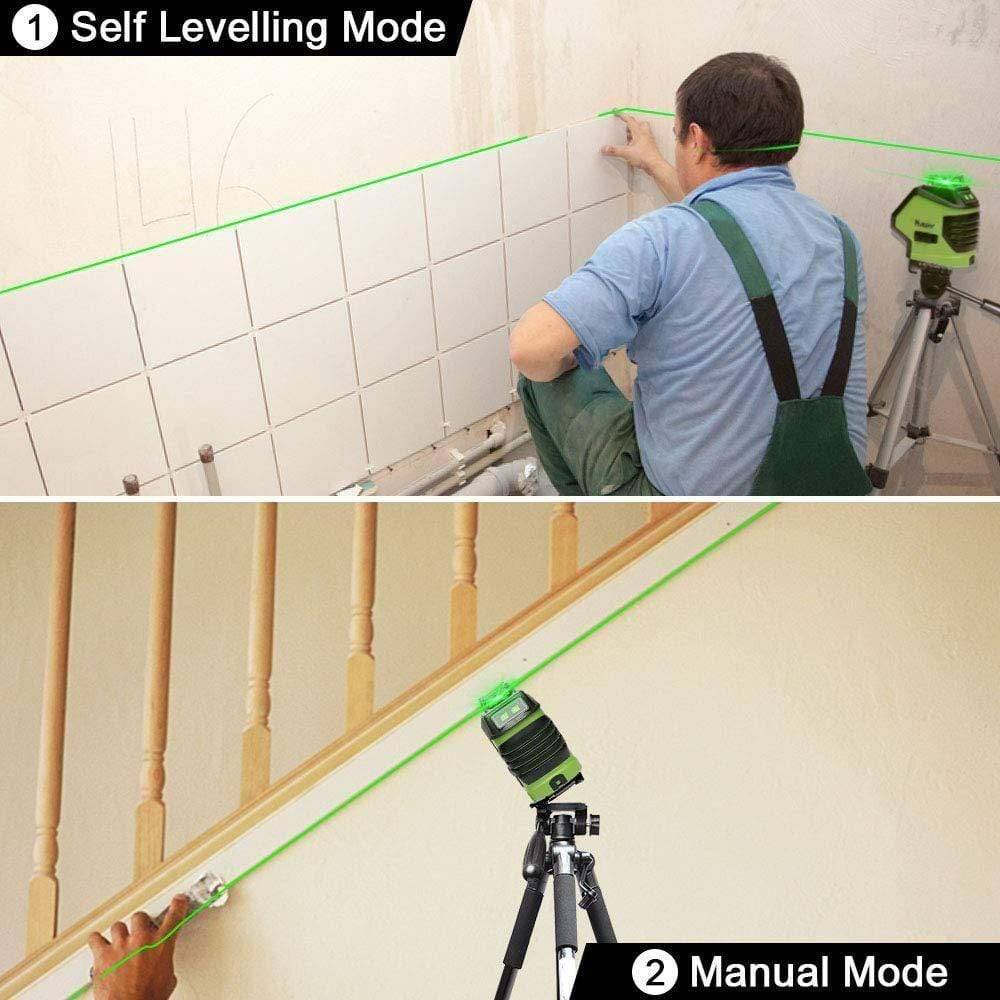

Self-leveling mode & Manual mode

Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).



Manual mode:

When the pendulum locked,  you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

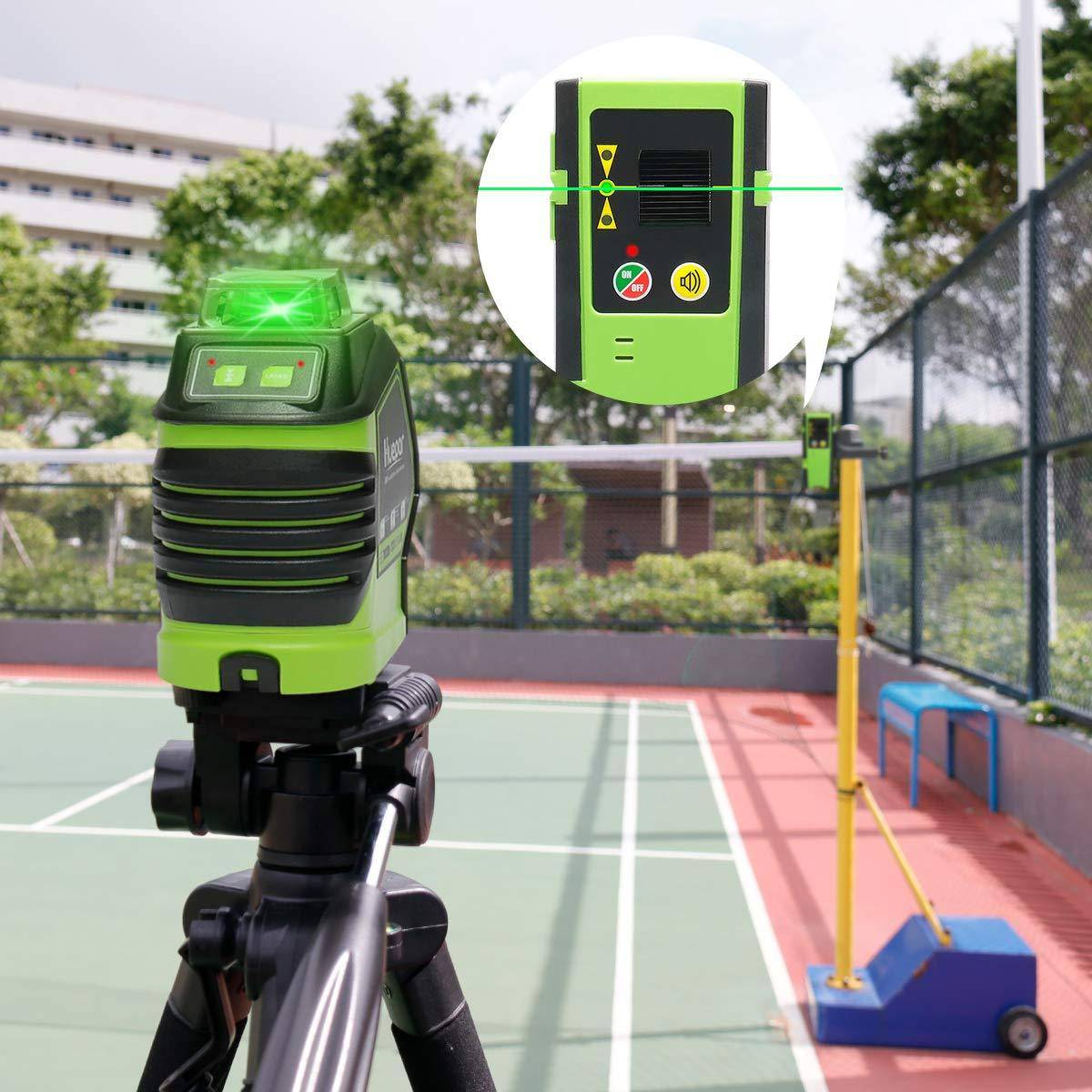

Pulse Mode

• Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.

• When the pulse mode turned on, the laser tool can be used with Huepar Line Laser Receiver (needs to be purchased separately) to work in brighter condition or a larger working distance up to 180ft.

• When use with a receiver, it’s necessary to turn on the pulse mode.

• It is compatible with Huepar Line Laser Receiver only.

Modes Of Operations

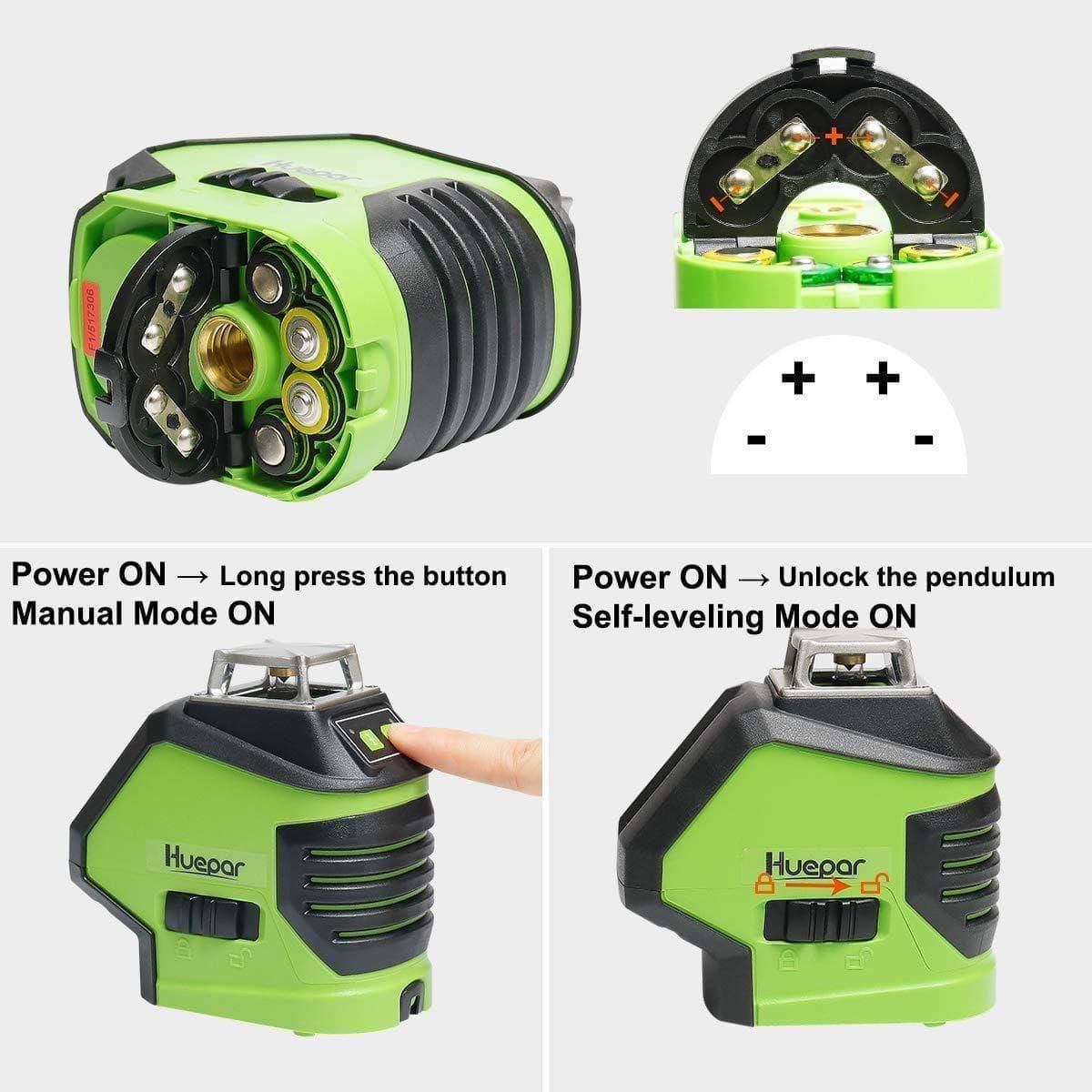

• Please follow the icon on the battery cover to install the battery properly（The battery is negative on the bottom side and positive on the middle side).

• Two ways of turn on the laser tool.

• Method 1: when the pendulum is in the locked position, press the button and keep it pressed for ≥ 2 seconds to turn on the laser tool. Activate the horizontal line and manual mode by default.

• Method 2: slide the pendulum to the unlock position, activate the horizontal line and the self-leveling mode by default
