Part Number | 603CG-BT_Laser Level-New |
---|---|
Item Weight | 3.6 pounds |
Package Dimensions | 80 x 8.4 x 6.6 inches |
Style | 603CG-BT 3x360 with Bluetooth |
Material | ABS+TPR |
Installation Method | self leveling and manual mode |
Number Of Pieces | 1 |
Performance Description | Bluetooth/Self-leveling time within 3s |
Measurement Accuracy | +/-1/9" at 33Ft |
Laser Beam Color | Green beam |
Plug Profile | 1/4"-20 and 5/8"-11 |
Switch Style | Slide switch |
Special Features |
Bluetooth Self-Leveling Cross-line 360 Degree Manual mode Pulse mode green-line |
Usage | Commercial/Residential/Indoor/Outdoor/Construction/DIY/Picture hanging/Drywall |
Included Components |
(1) Rechargeable Lithium Battery (1) Power Adapter (4) AA (LR6) Batteries (1) AA Battery Holder (1) Magnetic Pivoting Base (1) Laser Target Plate (1) User manual (1) Portable Bag |
Batteries Required? | No |

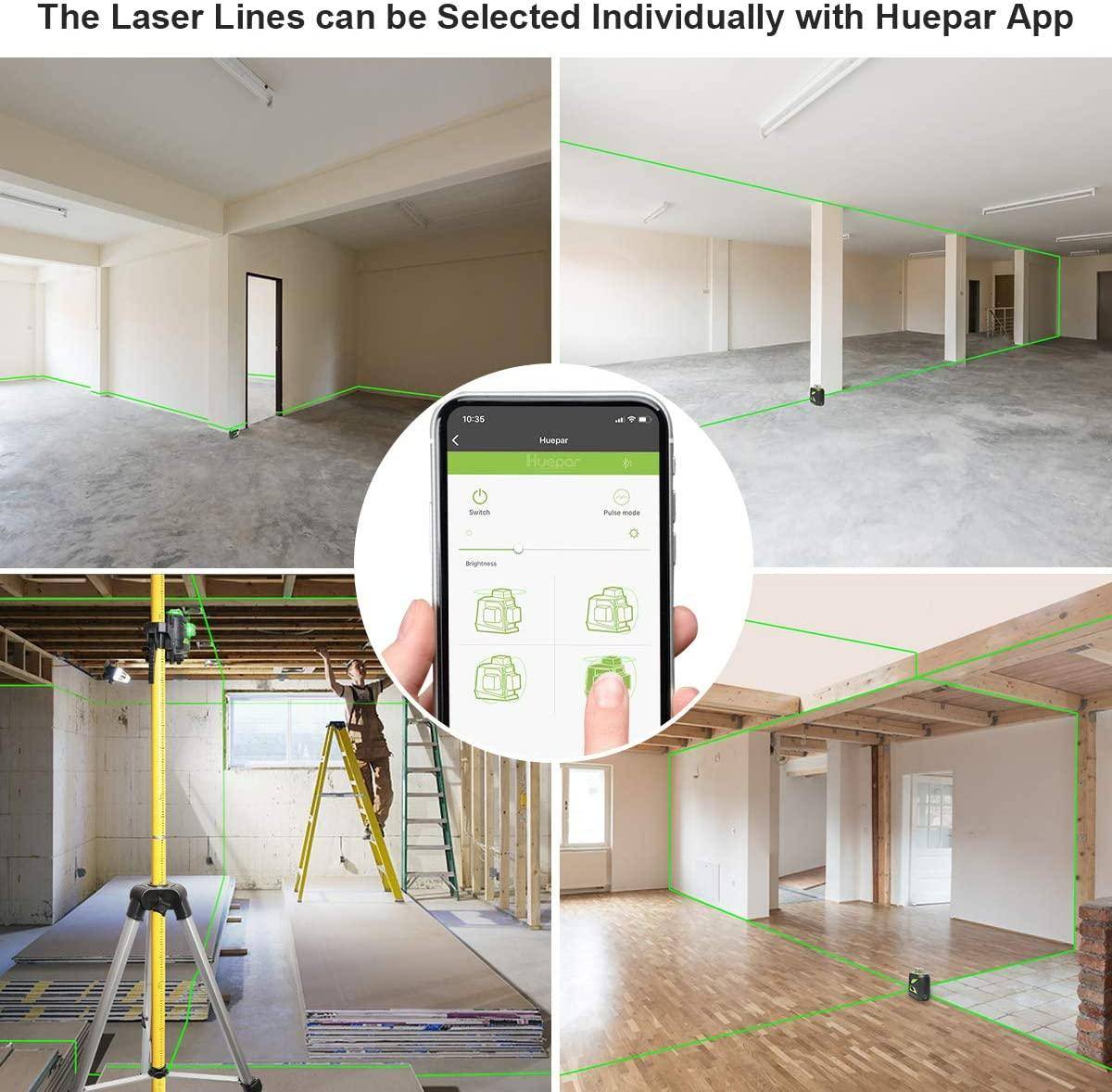

Line Switching
- Short press "LASER" button to switch the laser lines.
- The laser lines can be selected separately according to job requirements.
- The laser line(s) can be temporarily turned OFF by phone when you need to leave for a while.

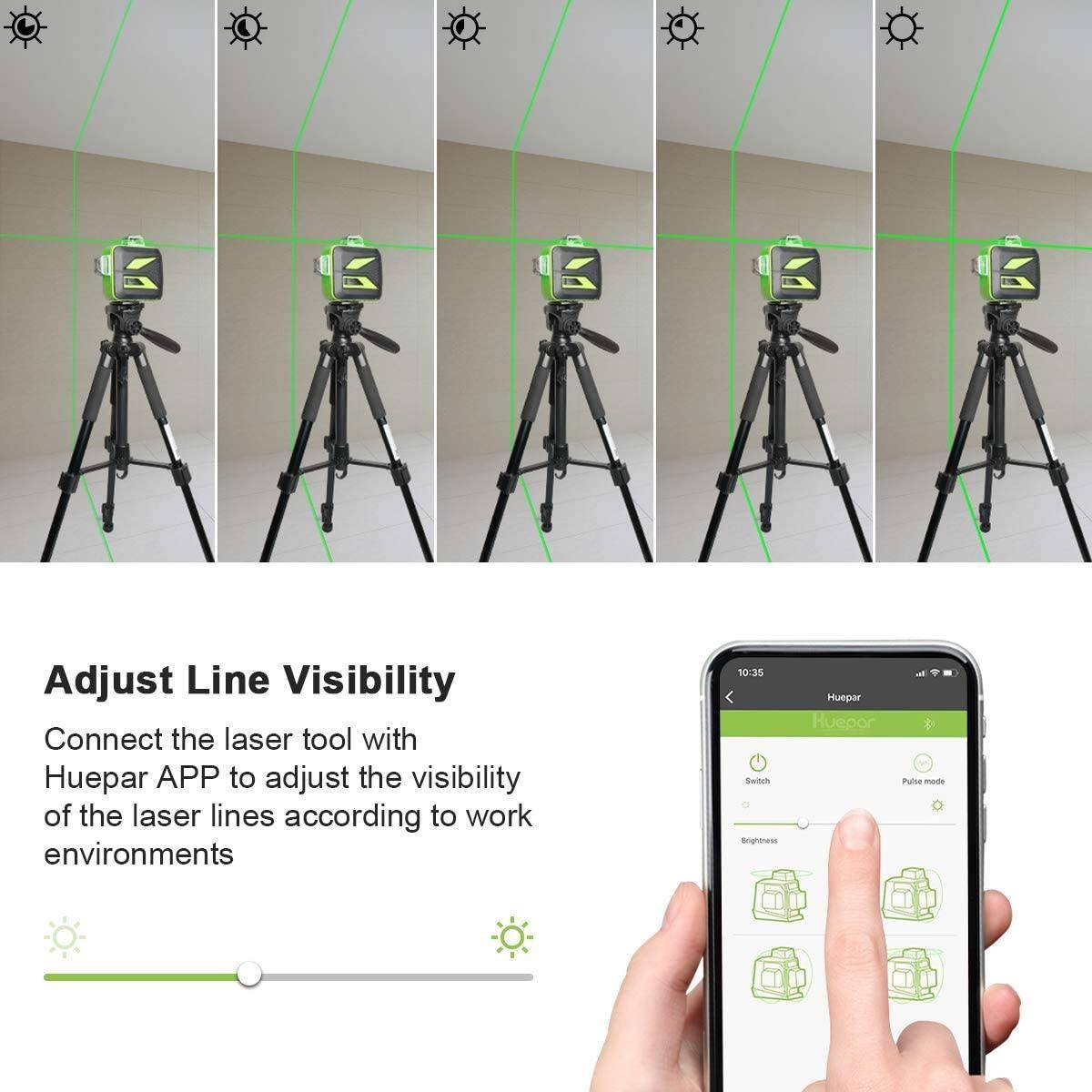

Visibility Adjustment
- The visibility of the laser beam can be adjusted by connecting with the Huepar APP.
- Slide the brightness bar to the brightness you need.
- The visibility adjustment function is not applicable after the pulse mode turned on.
Pulse Mode can be Switched ON/OFF with Huepar APP

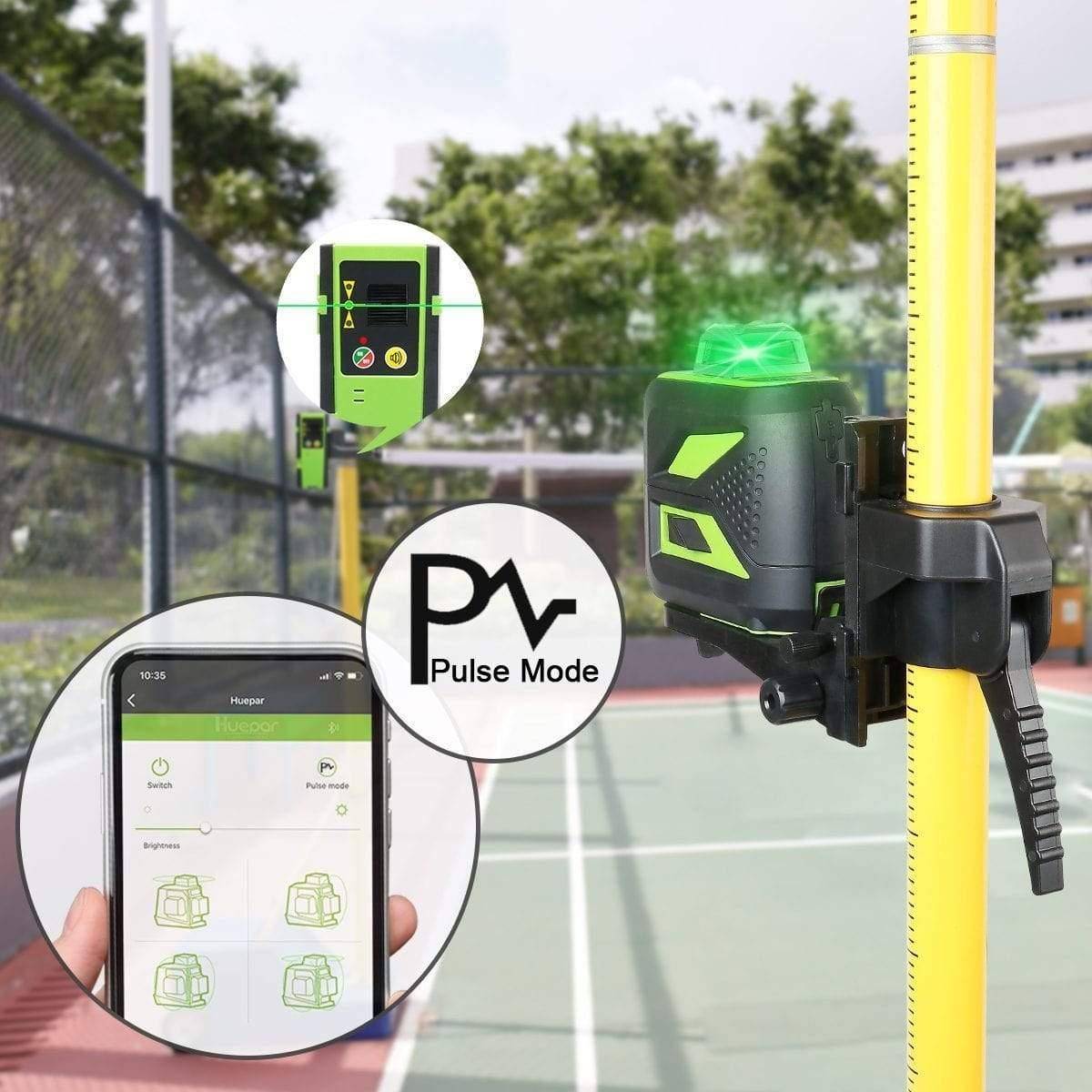

Pulse Mode
-
Short press "PULSE" button to switch ON/OFF the pulse mode. When connecting with Huepar APP, the pulse mode can be switched ON/OFF via APP.
-
Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
-
It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
Smart Pendulum
-
Self-leveling Mode: When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously to indicate out-of-level condition up to ±4°.
-
Connecting with Huepar APP, a level icon will be displayed to remind user when it is beyond the self-leveling range.
-
Manual Mode: When the pendulum lock is in locked position, manual mode locks laser lines for use at any angle. The laser beam will blink every 3-5 seconds to remind it's not self-leveling now.
-
When connecting with Huepar APP, a lock icon will be displayed to remind user it is in manual mode now.
-
Note: Due to the design of the pendulum locking device, the laser tool can not be controlled to be turned on/off by Bluetooth,

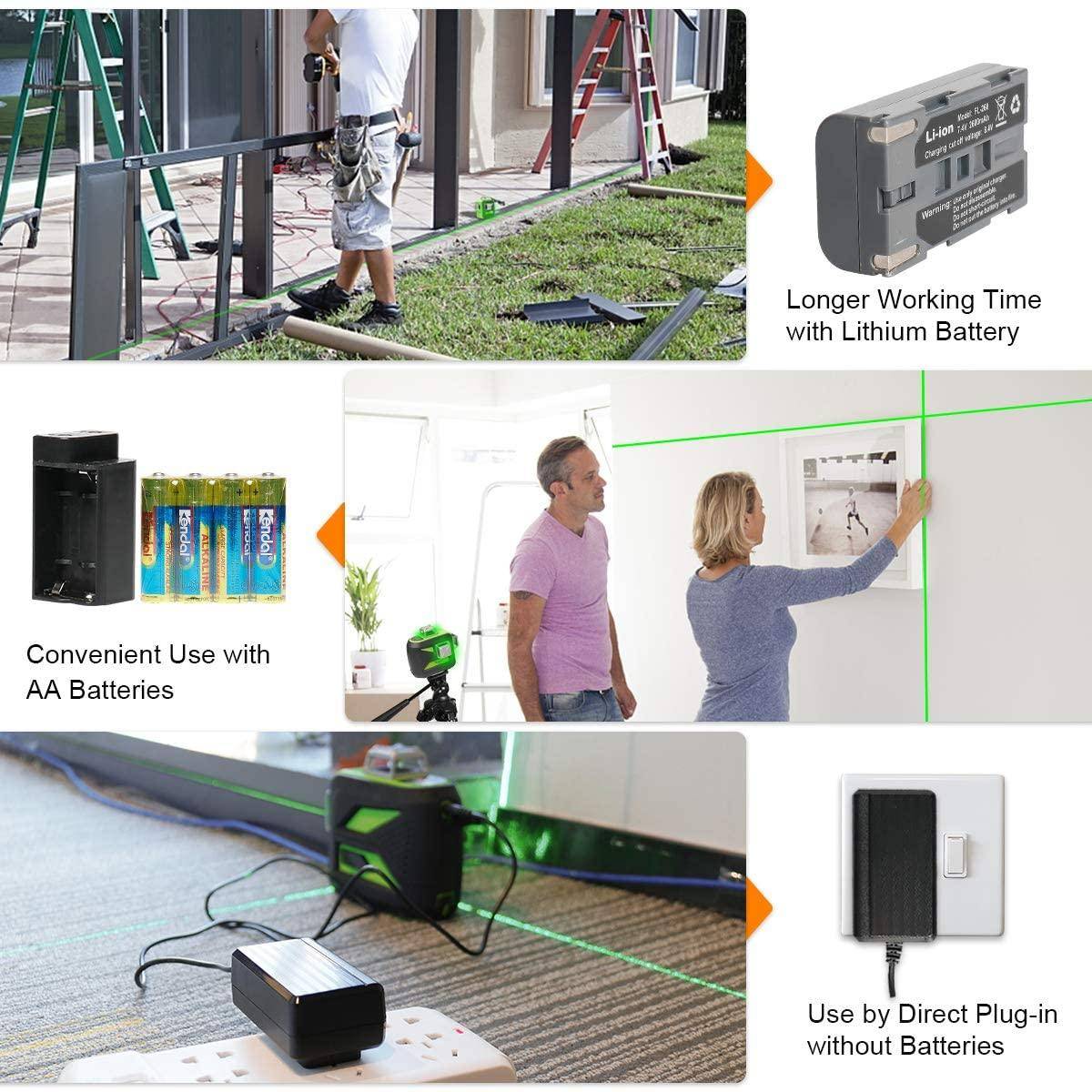

Triple Power Supply
-
This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.
-
This laser tool comes with an holder for installing AA battery for using the tool.
-
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
-
Charging protection help prevent the tool from overcharge.

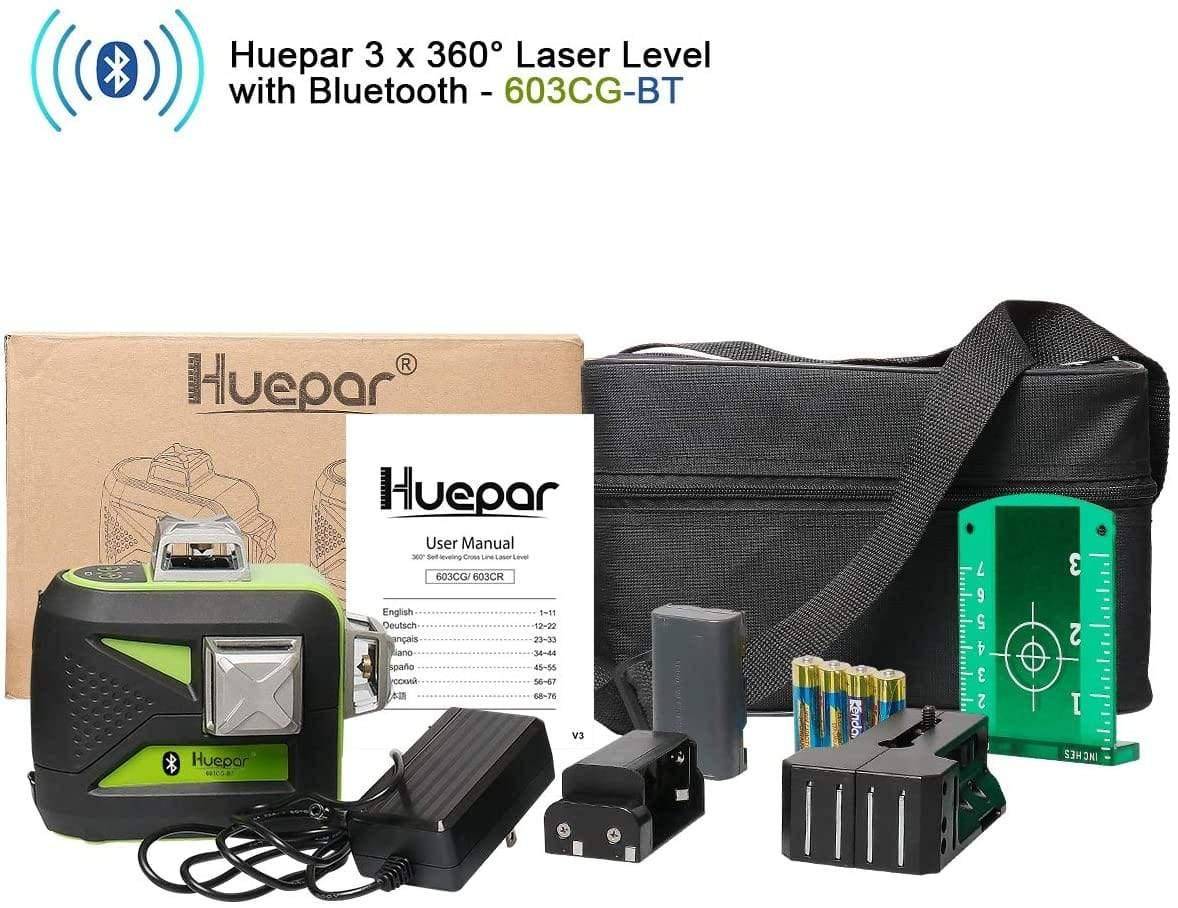

Package Contents:
- 1 x Huepar 603CG-BT 3D Cross Line Laser Level
- 1 x Rechargeable Lithium Battery
- 1 x Lithium Battery Charger
- 1 x Power Adapter
- 4 x AA (LR6) Batteries & 1 x AA Battery Holder
- 1 x Magnetic Pivoting Base
- 1 x Laser Target Plate
- 1 x Lase Level User Manual
- 1 x Huepar Bluetooth User Manual
- 1 x Portable Bag
Technical Details
