Huepar 503DG Laser Level

• 3 X 360 WITH FLOOR LINE LASER: This laser tool projects one 360° horizontal floor laser line for tiling installation at a 2/5" distance. With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.15" height. Two vertical lines cross at 90°angles makes user quickly visualize and finish square layout. This 360 laser level is a complete tool for covering the floor, wall, ceiling all around the room.

• MULTIFUNCTIONAL LASER TOOL: The remote control enables to select three 360° laser lines individually at a distance up to 33Ft. With smart pendulum, this laser tool self levels and indicates out-of-level condition while pendulum unlocked. The laser tool will beep as a reminder when out of self-leveling range ±4°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver.

• DUAL POWER METHODS & TYPE-C PORT: Huepar laser tool employed large capacity lithium battery (can be purchased easily at local market) for 6 hours use with all beams on. An extra battery is included for backup. Besides, this laser tool can be used at job site by plugged in when take out the battery. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc. Users can charge the battery independently with the battery charger included.

• MAGNETIC BRACKET & MOUNTING THREADS: The strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications. The four fine-tuning knobs on the bracket can adjust the left and right position, front and back position within 4.8 inch and the vertical angle against the wall. The laser tool comes with a 5/8"-11 female to 1/4"-20 male thread adapter as well as the 1/4"-20 mount thread to suit for standard tripod or pole mounts.



With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and convenience.

503DG 3 x 360 Green Floor Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
• Laser Wavelength: 505-520nm
• Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft
• Leveling/Compensation Range: 4°+/- 1°
• Working Distance (Line): 65Ft (100 LUX), 200Ft with Huepar Laser Receiver LR-6RG&LR-5RG
• Operating Time: 6 hours continual use with all laser beams
• Power Source: 7.4V 2600mA Li-ion battery
• IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
• Operation Temperature Range: 14℉ ~ 104℉ (-10℃~ 40℃)
• Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
• Mount Size: 1/4"-20

WARNING: Avoid direct exposure of the laser beam to the eyes.

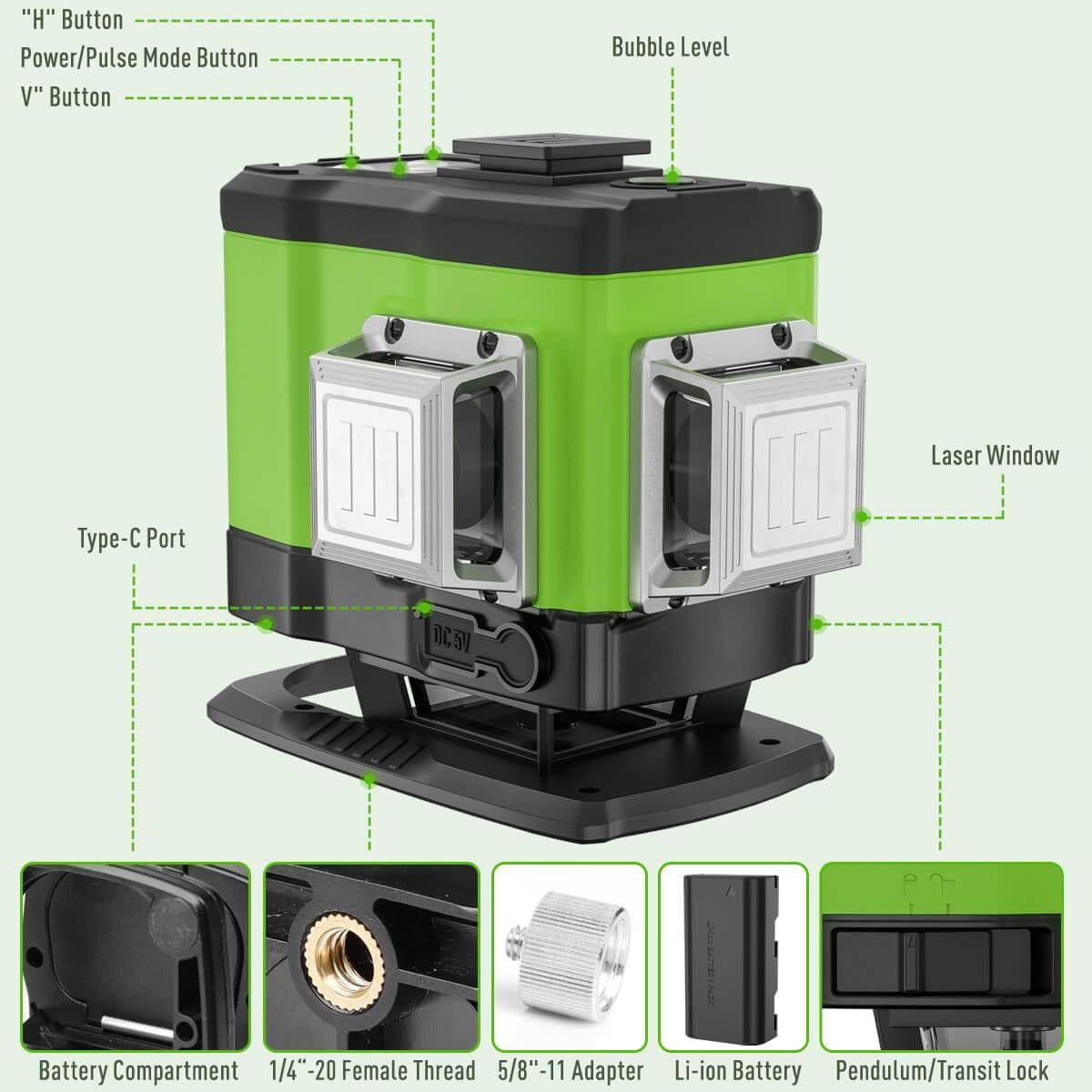

Lines Switching

• Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
• The remote control enables to select three 360° laser lines individually at a distance up to 33Ft.
• In manual mode, when all laser lines are switched off while the indicators are still on, the laser tool will shut OFF automatically after about 4 minutes of inactivity.
• The laser line(s) can be temporarily turned OFF by the remote control when you need to leave for a while.

Self-leveling mode & Manual mode

Self-leveling mode:

• Once the pendulum unlocked, self-leveling mode is enabled.
• The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.

Manual mode:

• When the pendulum locked, the laser tool can be placed for use at any angle.
• The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

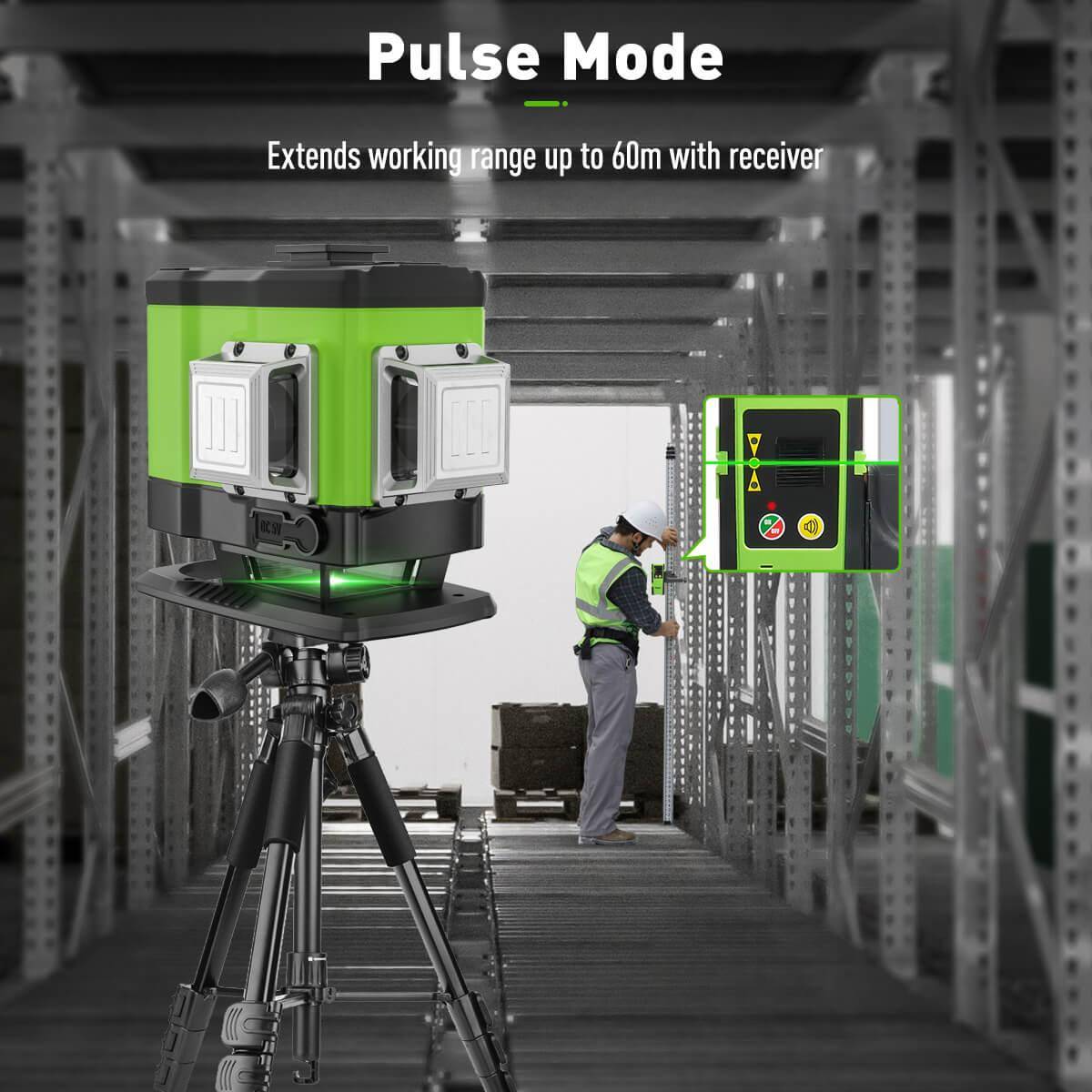

Pulse Mode

• Turn ON pulse mode: After power on, short press the power button to turn on the pulse mode. The indicator will light up in blue.
• Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
• Keep the pulse mode on when using with a receiver.
• It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

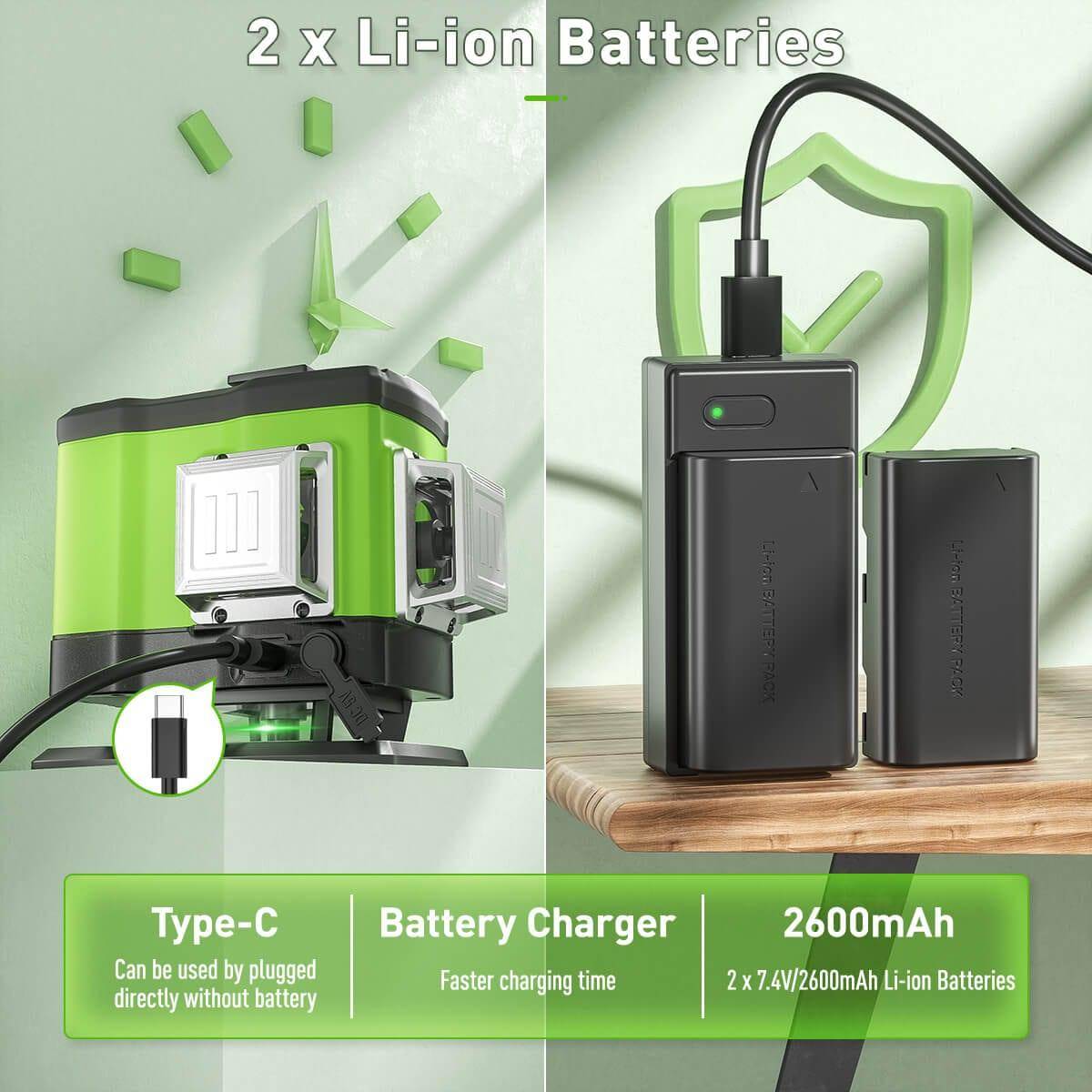

Dual Power Methods

• This laser tool utilizes the large capacity lithium battery which is compatible with Samsung SB-L110 battery. An extra battery is included in the package for backup.
• This laser level can be used at job site by plugged in directly when take out the battery.
• Users can charge the battery independently with the battery charger. The battery is not being charged in the device when connected to the power adapter.
• With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

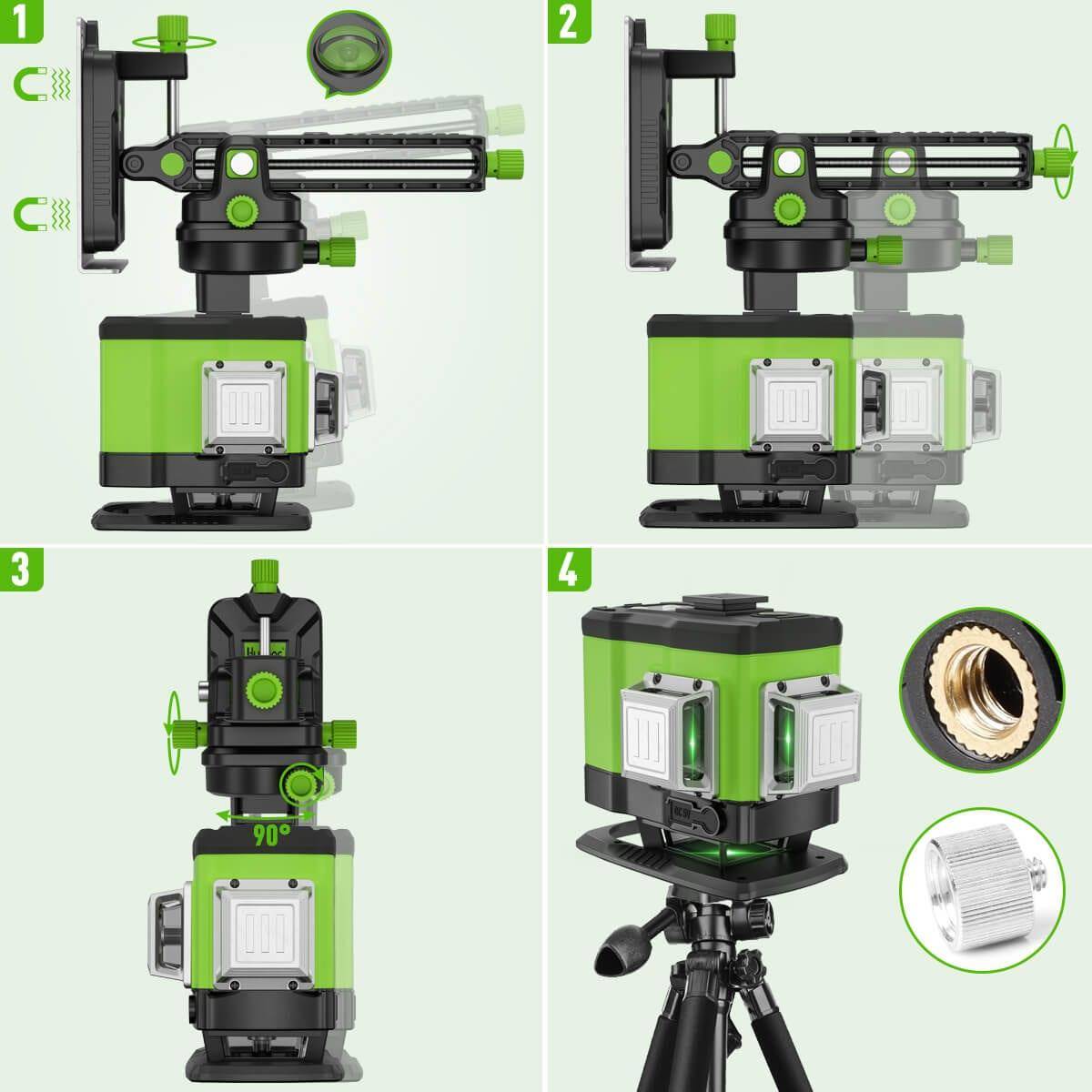

Magnetic Bracket&Mounting Thread

• The included strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications.
• The four fine-tuning knobs on the bracket enable to adjust the left and right position, front and back position within 4.8 inch (12cm) and the vertical angle against the wall.
• The laser tool comes with a 5/8"-11 female to 1/4"-20 male thread adapter as well as the 1/4"-20 mount thread to suit for standard tripod or pole mounts.

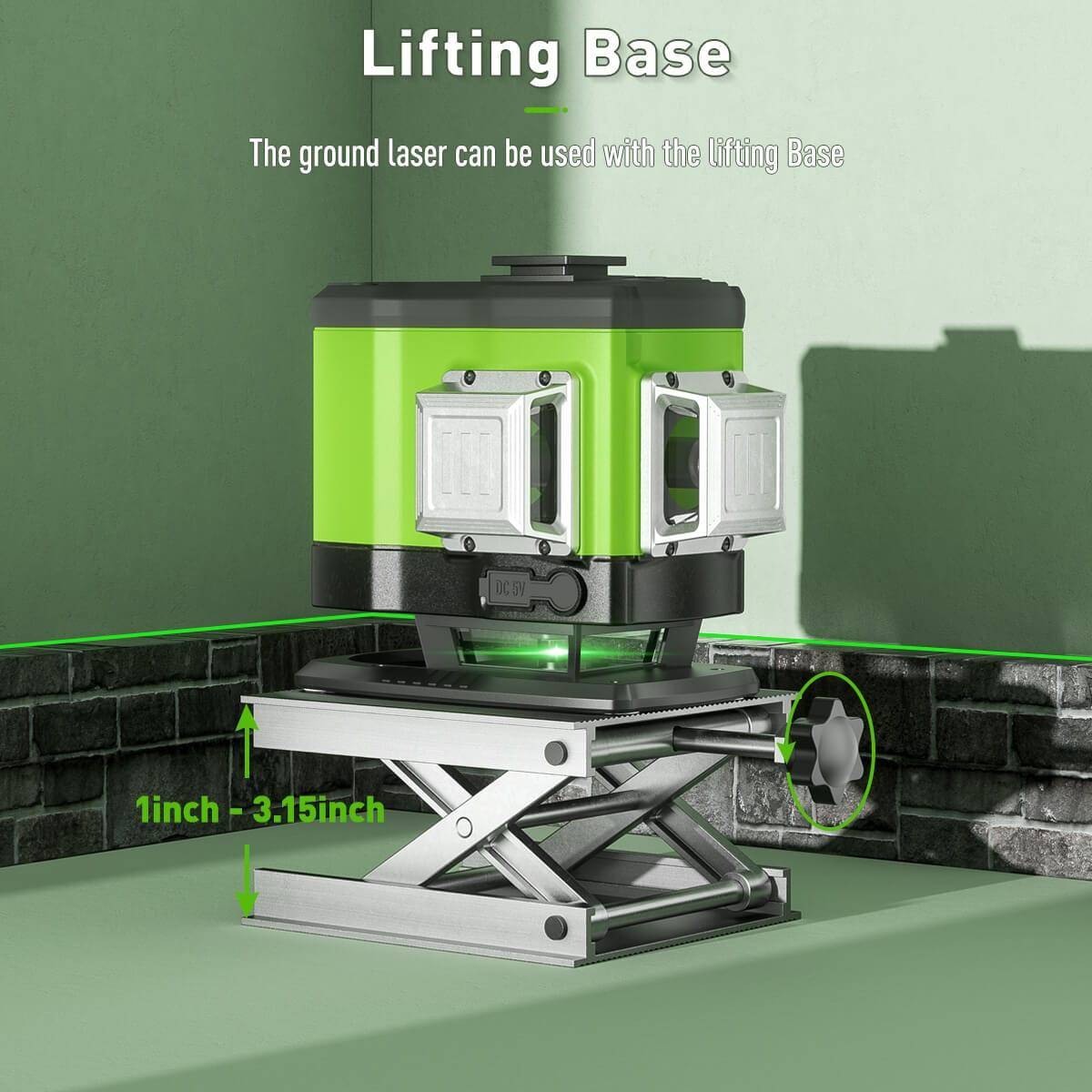

Lifting Base

• This line laser tool generates one 360°horizontal tiling laser on the floor or wall providing all-around leveling coverage for layout of tile, stone, brick, carpet and hardwood flooring.
• With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.

Items in the Package

• 1 x Huepar 503DG 3D Green Tiling Laser Level
• 2 x Rechargeable Lithium Batteries
• 1 x Type-C Power Cord
• 1 x Magnetic Bracket & 1 x Steel Sheet
• 1 x Hard Carry Case
• 1 x Power Adapter
• 1 x Battery Charger
• 1 x 5/8"-11 female to 1/4"-20 male thread adapter
• 1 x Laser Target Plate
• 1 x User Manual
