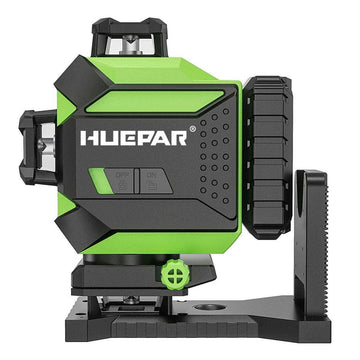

Huepar 704CG Laser Level
Huepar 704CG Laser Level
Huepar 704CG Laser Level
Tax included, shipping calculated at checkout.
Select Option
Add Top Accessories
Huepar LR8RG - Laser Detector/Line Laser Receiver
Huepar TPD14 - 143CM/4.69Ft Tripod Adjustable
Huepar LP36 - 3.7m Lasers Level Adapter Tripod
Buying Spare Batteries?
Expand Extended Warranty?
Out of stock
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with DHL/UPS/FedEx/USPS
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
±1/9 inch at 33Ft
Horizontal/Vertical Accuracy: ±3MM/10M
Brightness Adjustment
Adjust the line brightness according to light conditions with three levels available. After powering on, short press the brightness adjustment button to switch levels.
Rechargeable Li-ion Battery
3.7V / 6600mAh Li-ion battery provides up to 6-12 hours of running time.
Self-leveling Range ±3.5° & Manual mode
The laser tool self-levels and indicates out-of-level when unlocked. When the pendulum is locked, the laser tool can be used at any angle.
High Protection Grade
The durable, high-quality shockproof enclosure provides 4 ft. collision protection. It's compact and lightweight for easy gripping, yet large enough to sit stably, making it ideal for construction site work.
HORIZONTAL / VERTICAL LASER LINES
4 X 360° Laser Lines Switching
Huepar 704CG laser tool provides four 360° laser planes. The top horizontal line is for ceiling installation, while the bottom horizontal line is for floor tiling. One horizontal and one vertical 360° line intersect at 90°, allowing for quick and easy square layout. Short press the H/V button on the keypad to switch the horizontal and vertical laser lines separately.
SELF-LEVELING RANGE ±3.5°
Self-leveling & Manual Mode
Self-leveling mode: When the pendulum is unlocked, the self-leveling mode is enabled. The laser beam will beep and blink rapidly if the tool is out of the self-leveling range of ±3.5°. Manual mode: When the pendulum is locked, the laser tool can be used at any angle, with the laser beam blinking every 3-5 seconds to indicate it is not in self-leveling mode.
ADJUSTABLE VISIBILITY
Brightness Adjustment
The visibility adjustment function allows users to select line brightness according to light conditions, with three levels of brightness available. After powering on, short press the brightness adjustment button to switch brightness levels.
200FT / 60M
Outdoor Pulse Mode
Turn on the pulse mode: After powering on, short press the "P" button to toggle the pulse mode on or off. Pulse mode extends the working range up to 60m/197Ft when using the Huepar Line Laser Detector in brighter conditions. When activated, the laser beams are dimmer, reducing eye strain during close-range work, and the working time can be appropriately extended.
POWER SUPPLY SYSTEM
Integrated Magnetic Bracket
With a micro-adjust knob, the integrated 360° strong magnetic bracket allows for quick positioning to metal surfaces for wall applications. This magnetic bracket offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads. The Huepar 704CG floor laser tool generates a 360° horizontal tiling laser on the floor or wall, providing all-around leveling coverage for the layout of tile, stone, brick, carpet, and hardwood flooring. With the lifting base, the laser lines can rise from the surface to go over and travel past uneven surfaces or obstructions between 0.95" and 3.23" in height.
In the Box
Specifications
Laser Info
Osram Green Beam
4 x 360° 16 Line Laser Levels
Wavelength 505-520nm
Class 2 (IEC/EN60825-1/2014)
Laser Accuracy
±3mm/10m
(±1/9 in. at 33 ft)
Leveling Range / Time
±3.5°
3 seconds
Working Range
Max Working Distance
40m/130ft
60m/197ft with Pulse Mode
Minimum Distance From The Ground
22mm
Minimum Distance From The Wall
20mm
Power System
Li-ion Battery 3.7V 6600mAh
Working Time 8 hrs
Charging Time 4 hrs
TYPE-C Charing Port
Durable Design
Working Temperature
-10℃ ~ 50℃ (14℉ ~ 122℉)
Storage Temperature
-20℃ ~ 70℃ (-4℉ ~ 158℉)
Main Material
ABS + Plastic
IP Rating
IP54
Dimensions
Model Weight
880g (1.94 pounds)
Model Size
166 x 98 x 170mm
Item Weight
2.83kg (6.23 pounds)
Package Dimensions
35.20 x 30.10 x 14.00cm
(13.86 x 11.85 x 5.51 inches)
Suitable Accessories
Mount Size
1/4''-20 & 5/8''-11
Laser Detector
LR5RG/LR6RG/LR8RG
Tripod
LP36/TPD05/TPD14/TPD16
Base Adapter
AT2/PV3/PV10+/PV11+
Packing List
1x 704CG with integrated magnetic bracket Magnetic "L" Base
1x 3.7V/6600mAh Li-ion battery
1x Type-C Cable
1x Power Adapter
1x Lifting Base
1x Hard Carrying Case
1x Laser Target Plate
1x User Manual
Find your perfect laser level
| Product Info | ||||
|---|---|---|---|---|
Product SKU |
704CG
|
S04CG
|
P04CG
|
LS04CG
|
Product type |
4D Laser Levels
|
4D Laser Levels
|
4D Laser Levels
|
4D Laser Levels
|
| Featured | ||||
Number of Lines |
|
|
|
|
Laser Lines |
|
|
|
|
Laser Beam Supplier |
|
|
|
|
Laser Beam Color |
|
|
|
|
Laser Wavelength |
|
|
|
|
Line Accuracy |
|
|
|
|
Leveling / Compensation Range |
|
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
|
Extra features |
—
|
|
—
|
—
|
Bluetooth Connectivity |
|
|
|
|
Remote Control |
|
|
|
|
Dot Accuracy |
|
|
—
|
|
Line Switching |
|
|
|
|
Pulse Laser Receiver Mode |
|
|
|
|
Working Range (60-100 LUX) |
|
|
|
|
Working Range with Detector |
|
|
|
|
AA Battery |
|
|
|
|
Li-ion Battery |
|
|
|
|
Working Time (Hours) |
|
|
|
|
Charging Time (Hours) |
|
|
|
|
Mount Size |
|
|
|
|
Durable Design |
|
|
|
|
Hard Carry Case |
|
|
|
|
FAQ
What accessories can be used with the Huepar laser level?
What accessories can be used with the Huepar laser level?
When stray light appears from a laser, what could be the cause?
When stray light appears from a laser, what could be the cause?
Can laser level be used outdoors?
Can laser level be used outdoors?
What kind of laser diode is used with 704CG?
What kind of laser diode is used with 704CG?
What applications is the 704CG laser level suitable for?
What applications is the 704CG laser level suitable for?
What's the warranty for Huepar 704CG?
What's the warranty for Huepar 704CG?
Customer Reviews
This laser level is insane. it dose feel good quality very durable and easy to use. Laser beam very bright and good quality. Battery life time is out of this world 8 hours straight with all of the beams on image if you only turn one of them on it will keep running for days I highly recommend it.
Happy about this Huepar laser
Endorsed By
≥ 5,000 times Button test
All buttons are tested to ensure proper functionality.
≥ 5,000 times Switch test
The switch is tested repeatedly to ensure that the machine works stably.
≥ 1,000 times Charging test
Make sure the charging interface is working properly and not loose.
≥ 500 hours Working test
Laser tube aging test to ensure no brightness attenuation.
IP54 extreme environment test
Waterproof and dustproof, ensuring normal use in dusty environments.
Natural drop and shock test
Simulate natural drops while maintaining accuracy.
Simulated transportation
Simulate complex transportation environments to ensure unchanged accuracy.
High and low temperature test
Make sure the device can work normally between -10℃ ~ 50℃
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
